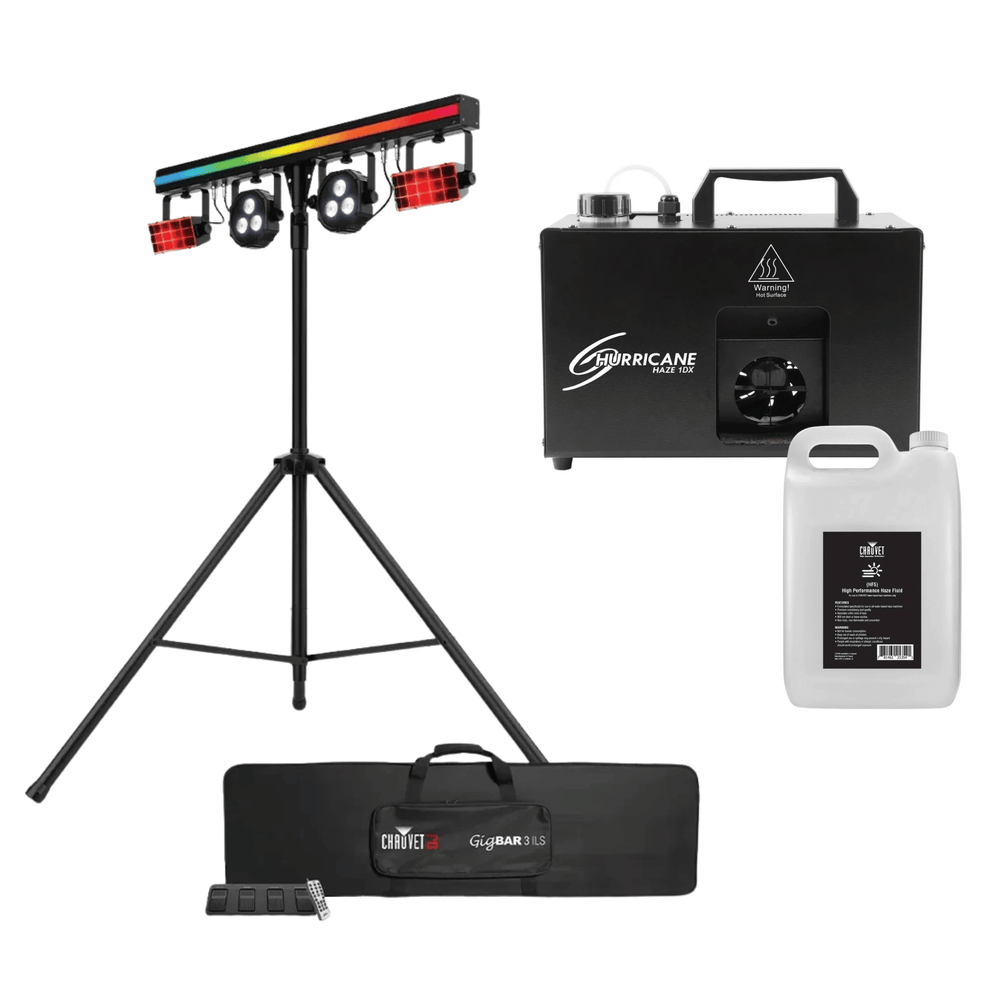

Chauvet DJ GigBar 3 ILS 3-in-1 Lighting System with Bag With Haze Machine
Product Description
This bundle includes:
1 x Chauvet GigBar 3 ILS Lighting System
1 x Chauvet DJ Hurricane Haze 1DX Haze Machine
Chauvet GigBar 3 ILS Lighting System
The Chauvet DJ GigBar 3 ILS 3-in-1 Lighting System is a complete, all-in-one lighting solution designed to deliver a full, high-impact light show straight out of the box. Perfect for DJs, mobile entertainers and event setups, it combines multiple effects into a single, easy-to-use system that saves time without compromising on performance.
This versatile 3-in-1 lighting system features a pair of LED derbies, LED pars and an integrated LED strip, all pre-mounted on one bar. The addition of the built-in LED strip brings extra visual flair, adding eye-catching effects and “wow factor” to any setup.
Fully compatible with the ILS ecosystem, the GigBar 3 ILS can be synchronised with other ILS-enabled fixtures to create a cohesive, coordinated light show. For even greater flexibility, you can mount up to four additional fixtures on top of the bar, allowing you to expand and customise your rig as needed.
Designed with convenience in mind, the system includes a reversible tripod bracket for both standard and upside-down mounting options. Setup and operation are simple thanks to the full-colour LCD display, offering quick and easy access to all settings and functions.
Everything you need to get started is included, with a tripod, wireless footswitch and FREE carry bags, making transport and setup quick and hassle-free. The unit also features built-in automated and sound-activated programs that combine all three lighting effects into one seamless show—perfect for plug-and-play operation.
Control is flexible and intuitive, whether you prefer using the onboard display, the included RF remote, wireless footswitch or full DMX control for more advanced setups. Plus, with power linking capability, you can connect multiple units together and reduce cable clutter.
Whether you’re lighting a dance floor, party or event space, the GigBar 3 ILS delivers a professional, dynamic lighting experience with minimal effort and maximum impact.
- 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
- Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
- ILS compatibility for use in the ILS ecosystem
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
- Reversible tripod bracket allows for upside down mounting
- Easy navigation and access all functions directly from the full-color LCD display
- Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
- Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
- Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
- Save time running cables and extension cords by power linking multiple units
Specifications
- DMX Channels: 2, 21, or 132
- DMX Connectors: 3-pin XLR
- Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
- Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
- Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
- Tripod leg width: 3.9 ft (1.2 m)
- Fits Tripod Size: 1.5 in (37.4 mm)
- Beam Angle (pars): 13°
- Field Angle (pars): 24°
- Coverage Angle (Derby): 114°
- Coverage angle: ( LED Strip ) 174°
- Operating Frequency (D-Fi): 2.412 to 2.484 GHz
- Cable Length: 9 ft (2.844 m)
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
- Illuminance (pars): 1,205 lux @ 2 m (per head)
- Power Linking: 11 units 120 V; 18 units 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 47 W, .7A 120 V, 60 Hz
- Power and Current: 45 W, .4 A 230 V, 50 Hz
- Weight: 13.2 lbs. (6 kg)
- Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
- Optional Controllers: ILS Command,
Chauvet DJ Hurricane Haze 1DX Haze Machine
A mesmerising effect. Enhance your performance or event with an atmospheric water-based haze. The Chauvet DJ Hurricane Haze 1DX creates a beautiful thin atmosphere that turns any light show into an experience. Taking just two minutes to heat up, it brings with it a quick set-up whilst being capable of producing an output of 800 cfm. Set-up and operation are made even easier thanks to the built-in digital display and stand-alone models. You can change the haze output speed to suit your preference.
A compact and lightweight design. The Hurricane Haze 1DX is not only highly portable but can easily fit in small venues and stages. Producing that beautiful haze wherever you may be performing. It even features a small footprint so that you can place it wherever you need to. The Hurricane Haze 1DX is a must-have machine for all stages and light shows. Producing magical sets and backdrops for all sorts of performances.
What's Included
- Hurricane Haze 1DX
- Power cord
- Warranty card
- Quick reference guide
Features
- Compact and lightweight hazer creates a thin atmosphere to enhance any light show
- Built-in volume knob offers smooth, stand-alone operation
- Silent running fan allows the unit to be used in any environment
- Built-in digital display quickly and easily sets DMX functions, and haze stand-alone settings
- Small footprint allows the machine to be placed in any location
Specifications
- Output: 800 cfm
- Heat-Up Time: 2 Minutes
- Fluid Consumption: 4ml/min
- Tank Capacity: 1.5L
- DMX Channels: 1
- DMX Connectors: 3-Pin
- Power Supply: 230V AC
- Dimensions: 278mm x 150mm x 223mm / 11'' x 6'' x 9''
- Weight: 3.3kg / 7.2lb
