Description

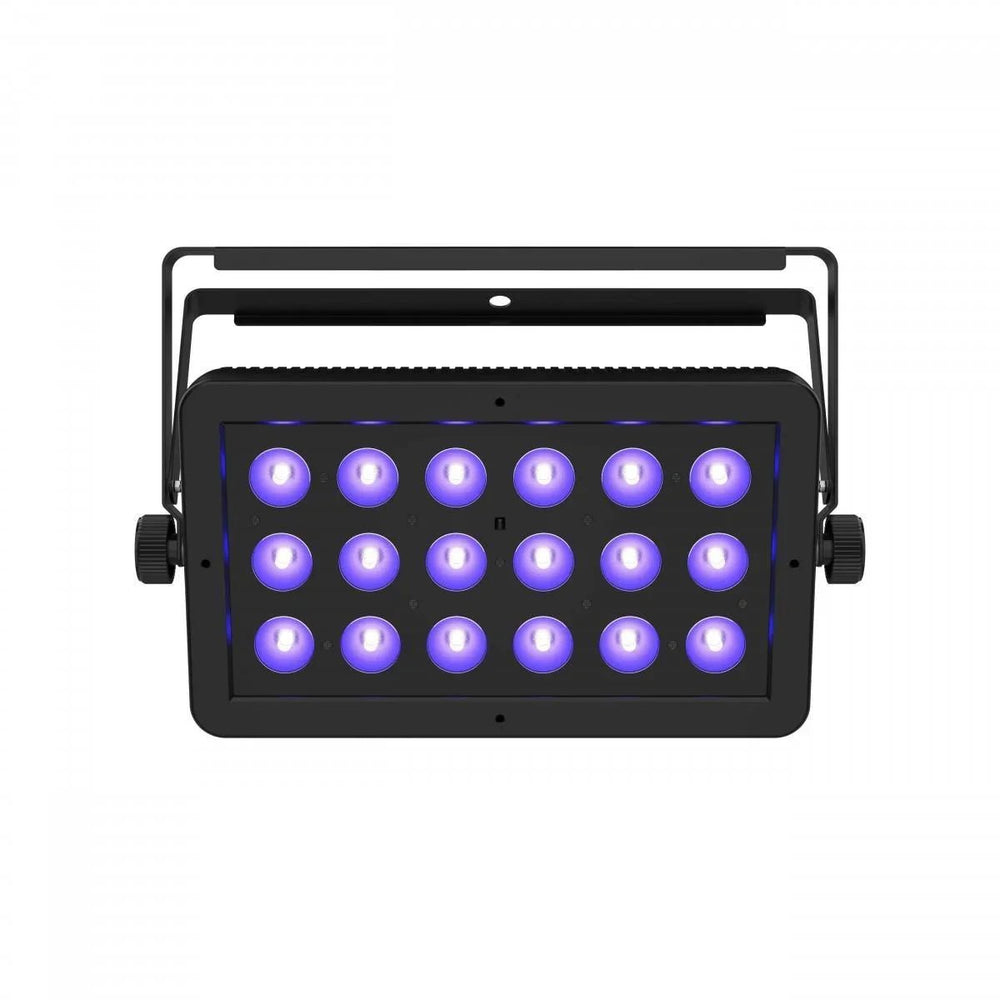

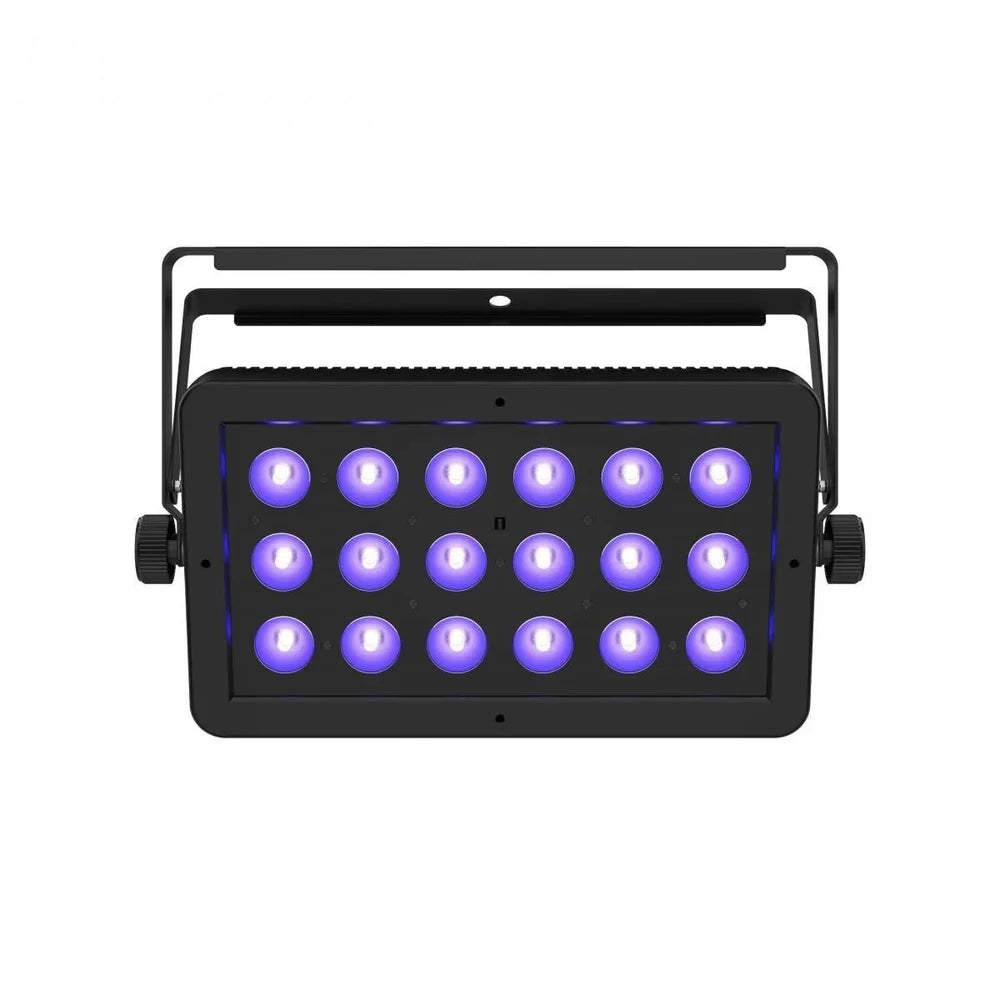

The Chauvet DJ LED Shadow 2 ILS Panel Lighting Effect is an ultraviolet LED panel that provides incredible black light effects. The LED Shadow 2 ILS makes it easy to create unique eye-candy to match your show with its section control and easy built-in programs. Then, with a wide range of built-in dimming curves, you can readily create simple and smooth transitions between effects.
Thanks to Chauvet's new Integrated Lighting System design, any ILS-equipped lights can be programmed and controlled from the GigBAR Move ILS without the need for DMX. However, if you still prefer traditional programming in your workflow, you can also run the LED Shadow 2 ILS via 3-pin XLR or wirelessly through D-Fi USB, to receive either master/slave or DMX control. Finally, the LED Shadow 2 ILS offers a radiant cooling system for utterly silent operation.
DMX is daunting, but Chauvet DJ’s Integrated Lighting System (ILS) isn’t. Using the new GigBAR Move + ILS as its core, ILS enables advanced, coordinated shows across multiple fixtures. So you can get a complete lighting ecosystem, without the complications.
Any ILS fixture can slave to the GigBAR Move + ILS. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can make adjustments to colour, speed and more as you go.
Please note: ILS functionality requires the GigBAR Move + ILS (not included)
Features
- Ultraviolet lighting panel with segment control to create unique black light effects
- Equipped with ILS (Integrated Lighting System) for programming and wireless control directly from a GigBAR Move ILS unit
- Create flexible, versatile black light effects to catch the attention of your audience
- Accepts control via 3-pin XLR or D-Fi USB to receive DMX or master/slave signals
- Built-in presets and segmented control offer easy programming of complex effects
- Optional infrared remote control (sold separately) for switching between programs
- Achieve smooth fading with a broad range of built-in dimming curves
- Operates silently due to radiant cooling design
- Reduce complex cable runs and save time with efficient setup for power linking
Specifications
- DMX Channels: 4
- DMX Connectors: 3-pin XLR
- Light Source: 18 LEDs (UV), 3 W, (0.6 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Wavelength: 405 nm
- PWM Frequency: 1.24 kHz
- Coverage Angle: 32°
- Power Linking: 11 units @ 120 V; 20 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 49 W, 0.7 A @ 120 V, 60 Hz. 49 W, 0.4 A @ 230 V, 50 Hz
- Bracket Mounting Hole: 13 mm
- Weight: 6 lbs (2.8 kg)
- Size: 8.2" x 14" x 2.2" (208 mm x 355 mm x 55 mm)
- Optional Controllers: IRC6
- Approvals: CE, RoHS, UKCA
