Description

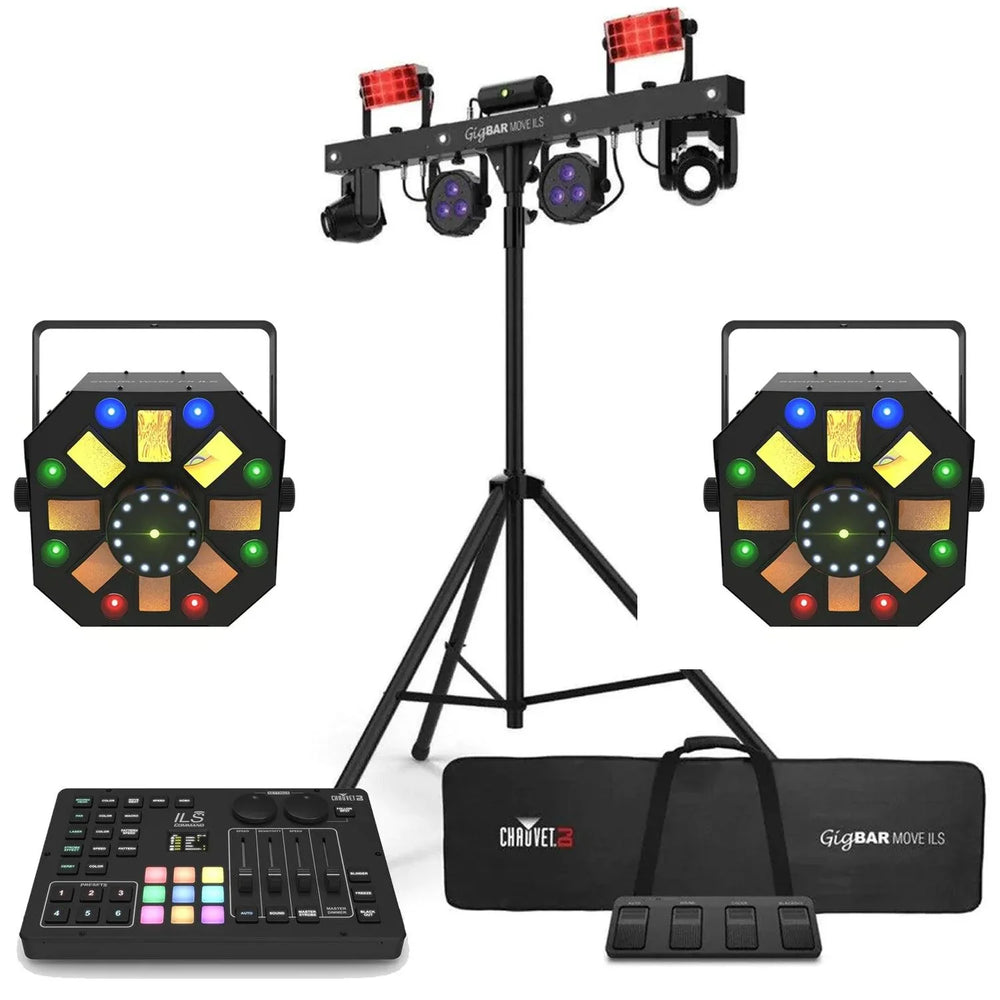

This Bundle includes:
1 X Chauvet Gig Bar Move ILS Lighting System.
2 x Chauvet Swarm Wash FX ILS Effect Lights
1 x Chauvet DJ ILS Command DMX Controller

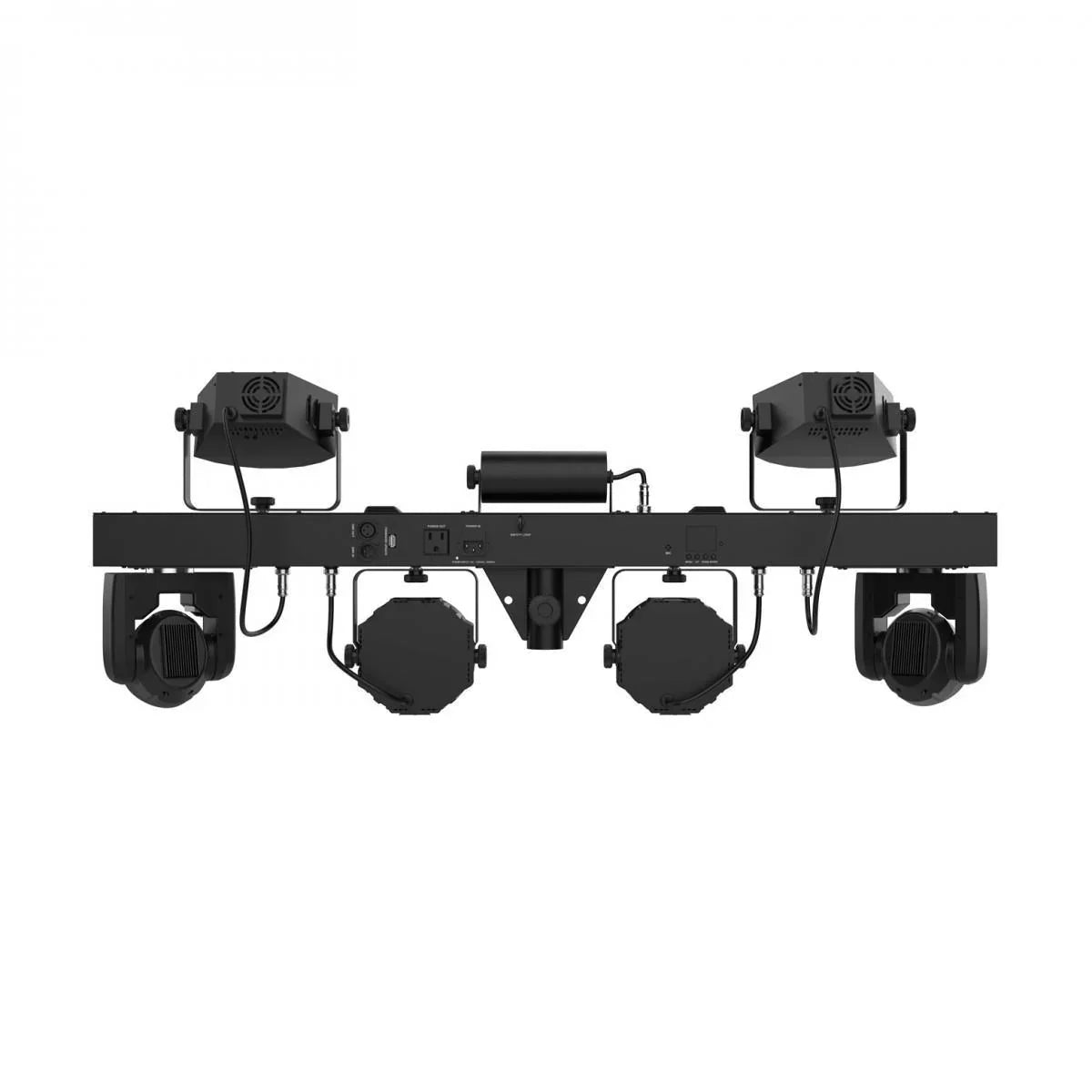

Chauvet Gig Bar Move ILS Lighting System
The Chauvet DJ GigBAR Move ILS is a complete 5-in-1 lighting system, pre-mounted on a single bar and featuring moving heads, derbies, washes, a laser, and strobe effect. This versatile system offers separate colour and gobo wheels in the moving heads for creative programming and Totem Mode to keep the moving heads focused on the dance floor when active.
The GigBAR Move ILS' built-in D-Fi transceiver ensures complete Integrated Lighting System (ILS) compatibility, including wireless control of other ILS products. The system includes a tripod, wireless footswitch, RF remote, and carry bags for quick and easy setup.
Individual control of each effect allows for customized light shows, while built-in UV LEDs illuminate fluorescent objects and make them pop. Easy control is available via stand-alone mode, DMX, wireless RF remote, or wireless footswitch.
Chauvet DJ's integrated lighting system
DMX is daunting, but Chauvet DJ’s Integrated Lighting System (ILS) isn’t. Using the new GigBAR Move ILS as its core, ILS enables advanced, coordinated shows across multiple fixtures. So you can get a complete lighting ecosystem, without the complications.
Any ILS fixture can slave to the GigBAR Move. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can make adjustments to colour, speed and more as you go.
All-in-one lighting
Consisting of two moving heads, two par cans with RGB and UV colour options, a red/green laser, and two LED derbies, the GigBAR Move ILS provides a complete lighting experience, with a complete spectrum of colours and effects to build and combine to enrapture your audience. Pair this with its versatile control options, from standalone to wired DMX, D-Fi wireless DMX, or wireless RF remotes and footswitches, and this light bar proves itself incredibly flexible. That's saying nothing the DMX-free possibilities from the ILS control, which will let you program both the bar itself and your other fixtures directly from this unit. The GigBAR Move proves itself one of the most powerful light bars for control and connectivity on the market.
Features
- Five-in-1 lighting system with moving heads, derbies, washes, laser and strobe effects all in one
- ILS compatibility for wireless DMX-free programming and control of other ILS fixtures
- Built-in D-Fi Transceiver sends and receives both ILS control signals and wireless DMX
- Gobo and colour wheels in moving heads with independent controls for unique effects
- Totem Mode for keeping moving heads on the dance floor
- Included tripod, wireless footswitch, RF remote, and carry bags
- Ultraviolet LEDs illuminates fluorescent objects for unique blacklight effects
- Individual control over each lighting effect provides flexible programming
- Controllable via standalone, wired DMX, wireless RF remote, and wireless footswitch
Specifications
- DMX Channels: 3, 27, or 46
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/180°
- Colours (Moving Head): 7 + white, continuous scroll at variable speeds
- Gobos (Moving Head): 7 + open, continuous scroll at variable speeds
- Light Source (Pars): 3 LEDs (quad-colour RGB + UV), 3.5 W (1 A)
- Light Source (Strobe): 4 LEDs (white & UV), 5 W (1 A)
- Light Source (Derby: 6 LEDs (2 red, 2 green, 2 blue), 5 W (1.6 A)
- Light Source (Moving Head): 1 LED (cool white), 10 W (2.3 A)
- Light Source (Laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
- Strobe Rate (All Effects): 0 to 20 Hz
- Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
- Beam Angle (Moving Head): 11°
- Beam Angle (Pars): 19°
- Beam Angle (Strobe): 8°
- Coverage Angle (Derby): 131°
- Coverage Angle (Laser): 93°
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max. Unobstructed Distance: 100 ft (30.5 m)
- Illuminance (Pars): 1,205 lux @ 2 m (per par)
- Illuminance (Moving Head): 1056 lux @ 2 m (per head)
- Illuminance (Strobe): 86 lux @ 2 m (per LED)
- Power Linking: 7 units @ 120 V; 12 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current:
- 81 W, 1.1 A @ 120 V, 60 Hz
- 79 W, 0.6 A @ 230 V, 50 Hz
- Dimensions: 43 x 5.7 x 17.7 in. (1100 x 144 x 449 mm)
- Weight: 23.4 lbs. (10.7 kg)

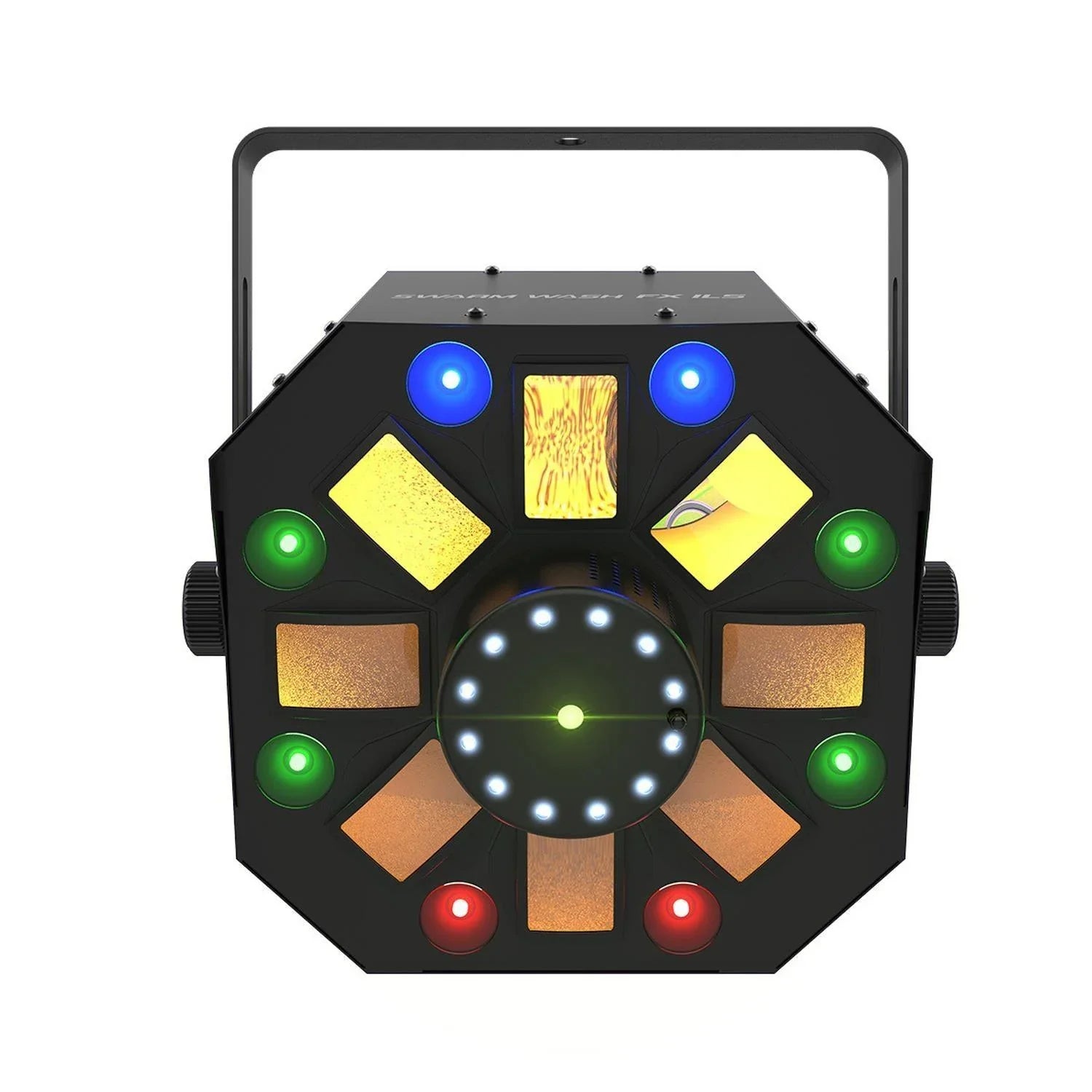

Chauvet Swarm Wash FX ILS Effect Lights
Swarm Wash FX is a 4-in-1 LED effect fixture that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Create an endless array of looks by individually controlling each effect via DMX and master/slave modes. Other features include automated and sound-activated programs and a user-friendly menu structure. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-40 VIP Gear Bag.
- 4-in-1 LED light that combines an RGBAW rotating derby,
- RGB+UV wash, red/green laser, and a ring of white SMD strobes
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave, or DMX control
- Access built-in automated programs via IRC6 remote, Master/Slave or DMX
- Red and green laser beams project thousands of beams for maximum coverage
- Generate complex looks easily with built-in, eye-catching automatic and sound-activated programs
- Save time running extension cords by power linking multiple units
- Fits best inside the CHS-40 VIP gear bag
General
- DMX Channels: 2 or 18
- DMX Connectors: 3- pin XLR
- Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 2 W (650 mA) 50,000 hours life expectancy
- Light Source (Wash): 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy
- Light Source (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
- Light Source (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
- Strobe Rate: 0 to 20 Hz
- Coverage Angle (laser): 82°
- Coverage Angle (swarm): 65°
- Coverage Angle (strobe): 71°
- Coverage Angle (wash): 46°
- Power Linking: 11 units @ 120 V; 20 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 51 W, 0.7 A @ 120 V, 60 Hz
- Power and Current: 50 W, 0.4 A @ 230 V, 50 Hz
- Optional Controllers: IRC6
- Classified per EN/IEC 60825-1:2014
- Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
- Approvals: CE, FDA, RoHS, UKCA
Physical & Dimensions
- Weight: 9.5 lb (4.3 kg)
- Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
What's in the Box?
- Power cord
- Hanging Bracket w/ mounting hardware
- Warranty card
Chauvet DJ ILS Command DMX Controller
Light up the night without setting up all day with ILS - the Integrated Lighting System that makes creating a synchronized light show across different fixture types fast and easy without DMX. Now the ILS universe is at your command with ILS Command, a powerful controller capable of programing any ILS-enabled product. This hardware controller has a built-in D-Fi transmitter that wirelessly controls an unlimited number of ILS-enabled fixtures. Enjoy unlimited creativity as you customize, save and recall presets even in dark environments where backlit silicon buttons provide a tactile response and bright visibility. Your lighting creations are always safe because you can back up, restore and update the controller’s software using the built-in USB port and ensure unauthorized access is blocked by enabling the onboard lockout. An innovative follow spot mode highlights grand entrances without interrupting the rest of the show and a built-in audio connector allows for better accuracy when triggering lights to the beat. Manually override the show on the fly using the 9 quick color access buttons. Safely transport the controller with the included carry case.
• Powerful ILS controller capable of programing any ILS-enabled product
• Built-in D-Fi transmitter controls an unlimited number of ILS-enabled fixtures
• Customize, save and recall presets without using DMX
• Backlit silicon buttons provide a tactile response in dark environments
• Innovative follow spot mode highlights grand entrances without interrupting the rest of the show
• Backup, restore and update the controller’s software using the built-in USB port
• Ensure unauthorized access is blocked by enabling the onboard lockout
• Built-in audio connector allows for better accuracy when triggering lights to the beat
• Manually override the show on the fly using the 9 quick color access buttons
• Safely transport the controller with the included carry case
• ILS Connectors: 3-pin XLR
• Programmable Presets: 6
• Operating Frequency: 2.412 to 2.484 GHz
• Cable Length: 20 in (508 mm)
• Max Unobstructed Distance: 600 ft (183 m)
• Input Voltage (USB-C): 5V, 1A
• Weight: 3.6 lb (1.6 kg)
• Size: 12.3 x 9.9 x 0.7 in (313 x 252 x 19 mm)
• Approvals: CE, UKCA, RoHS, FCC
