Chord Active Direct Injection DI Box
Brand: Chord
SKU: 173.293UK
£19.99
In Stock (20+)
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description

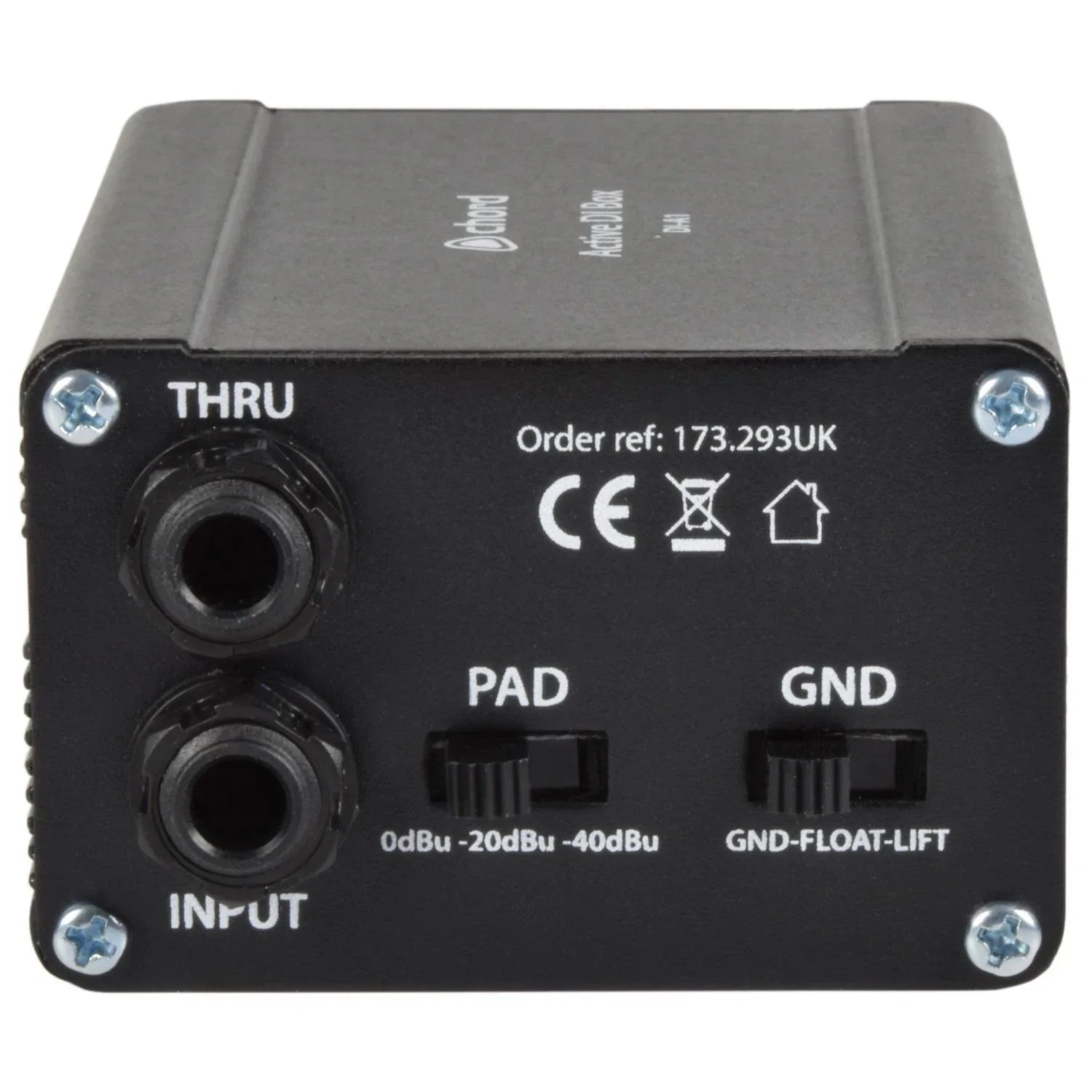

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.
- Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
- Ground float option for ground lift with RF/mains filter
- Ground lift option isolates signal ground without filter
- 3 pad settings for level matching

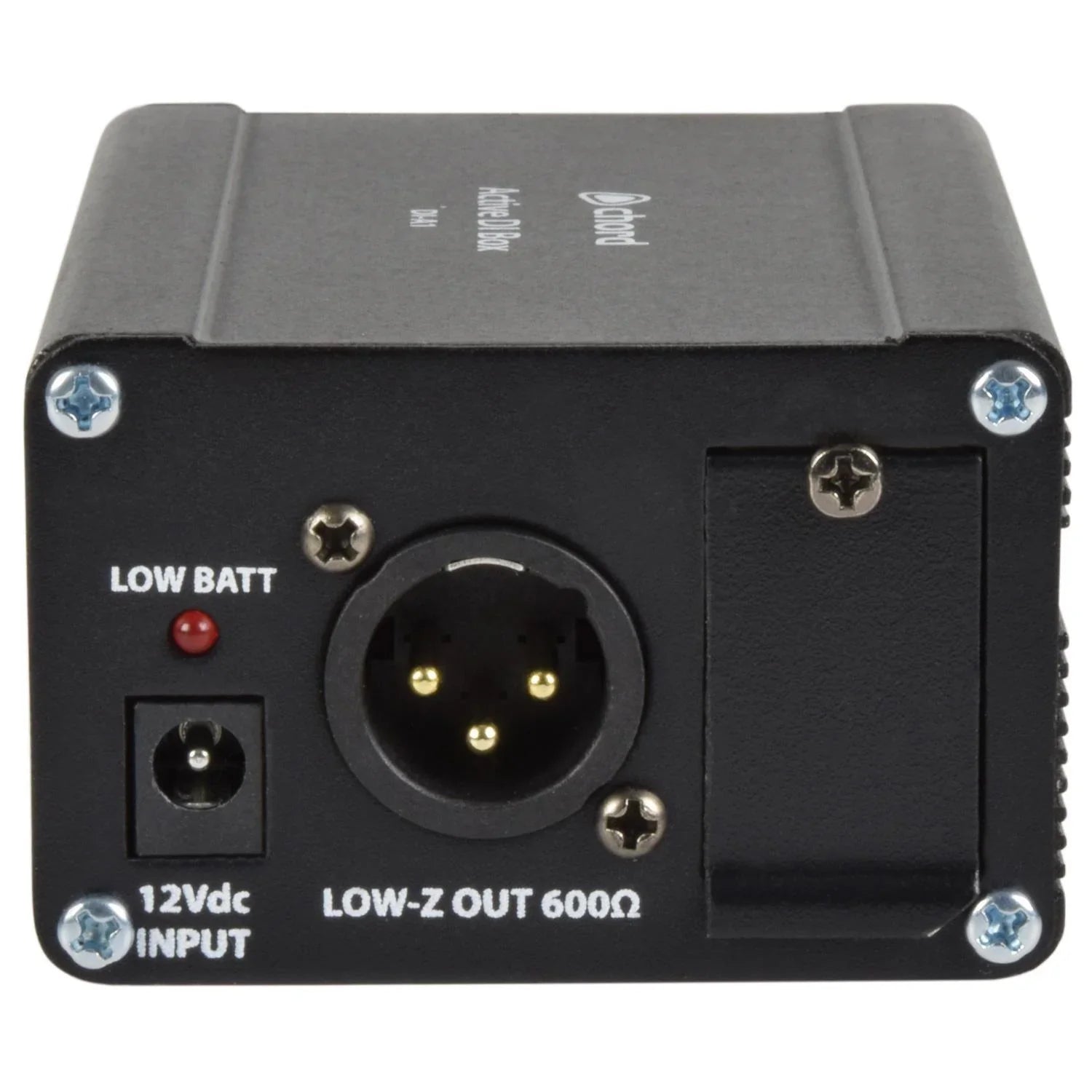

- Power supply9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
- Input6.3mm jack (unbalanced)
- OutputsXLRM (balanced), 6.3mm jack through (unbalanced)
- Input impedance>100k Ohms
- Output impedance600 Ohms
- Controls0/-20/-40dBu pad & Ground-Float-Lift switch
- Dimensions103 x 70 x 45mm
- Weight243g
