Chord SU20 Dual UHF Handheld Microphone Set Blue + Yellow
Brand: Chord
SKU: 171.908UK
£109.00
£149.00
SALE
Only 10 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
SU20 Compact Dual UHF Microphone Sets

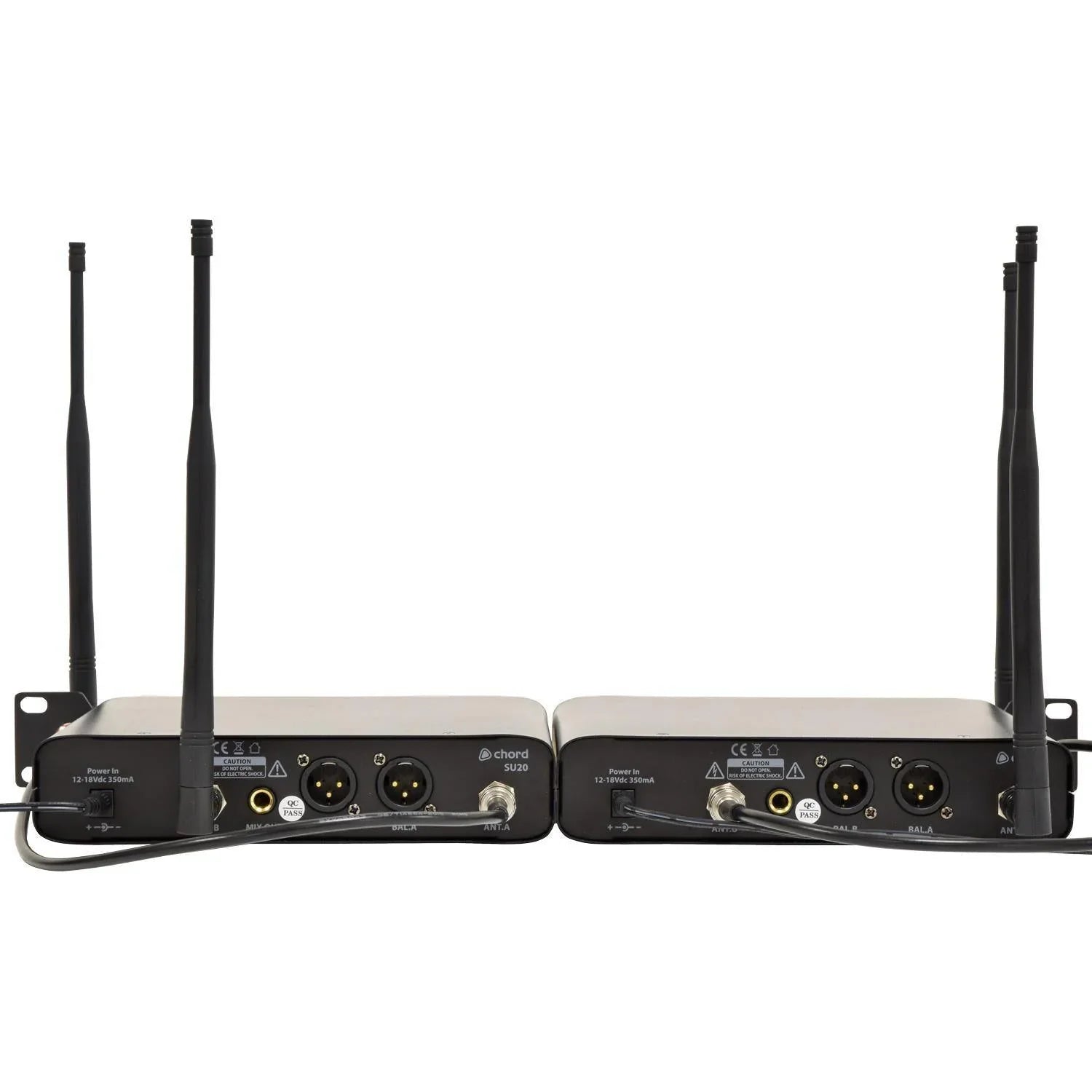

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.
- Up to 2 sets (4 microphones) can be used together
- Available in handheld or beltpack versions with 2 carrier frequency options
- Front or rear mountable antennas
- Compact half-rack receiver
- Supplied with power adaptor and 4 x AA batteries
- Power supply14Vdc 350mA (adaptor supplied)
- Antenna connectionBNC
- Batteries4 x AA (2 per transmitter) included
- Range60m
- Microphone : polar patternCardioid (handheld, neckband or lavalier)
- Output connections2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output impedance2.2k Ohms
- Output level400mV (balanced), 200mV (unbalanced)
- Frequency response50Hz - 18kHz (±3dB)
- S/N ratio>80dB
- THD<0.5% @ 1kHz
- Dimensions : receiver203 x 187 x 42mm
- Weight : receiver845g
| Dimensions : handheld transmitter | 250 x 47mmØ | ||||
|---|---|---|---|---|---|
| Weight : handheld transmitter | 231g (no battery) | ||||
| Dimensions : beltpack transmitter | N/A | ||||
| Weight : beltpack transmitter | N/A | ||||
| Carrier frequencies | 864.8MHz (Blue) + 863.1MHz (Yellow) |
