BRAND Chord

Chord XU4 Quad Handheld UHF Wireless Microphone System

SKU: 171.017UK
£299.00 Save £60.00 vs RRP £359.00
Checking stock…
FREE UK Mainland Delivery Available to pre-order

Checking estimated delivery…

Currently out of stock. Contact us for the latest availability and estimated delivery time.

Contact us for the latest delivery estimate.

🔒 Secure Payment
We accept all major payment methods including:
Visa Mastercard Klarna PayPal
🏬 Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.

Product Description

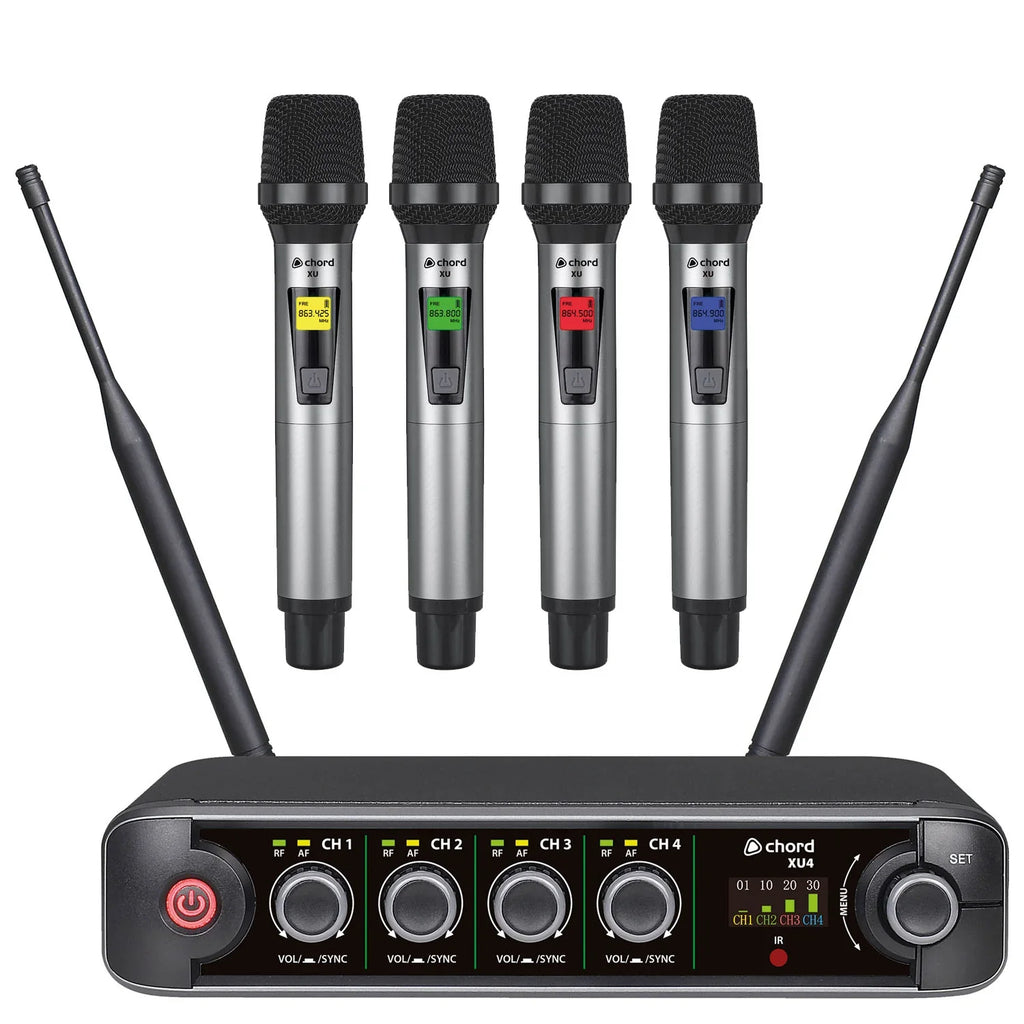

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 1, 2 or 4 channels of either handheld microphones or bodypack transmitters with a neckband and lavalier mic option. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

  • Compact half-width rack receiver
  • True diversity antennas with internal distro for reliable reception
  • 10 groups of 9 selectable UHF carrier frequencies
  • Selectable backlight colours for each channel

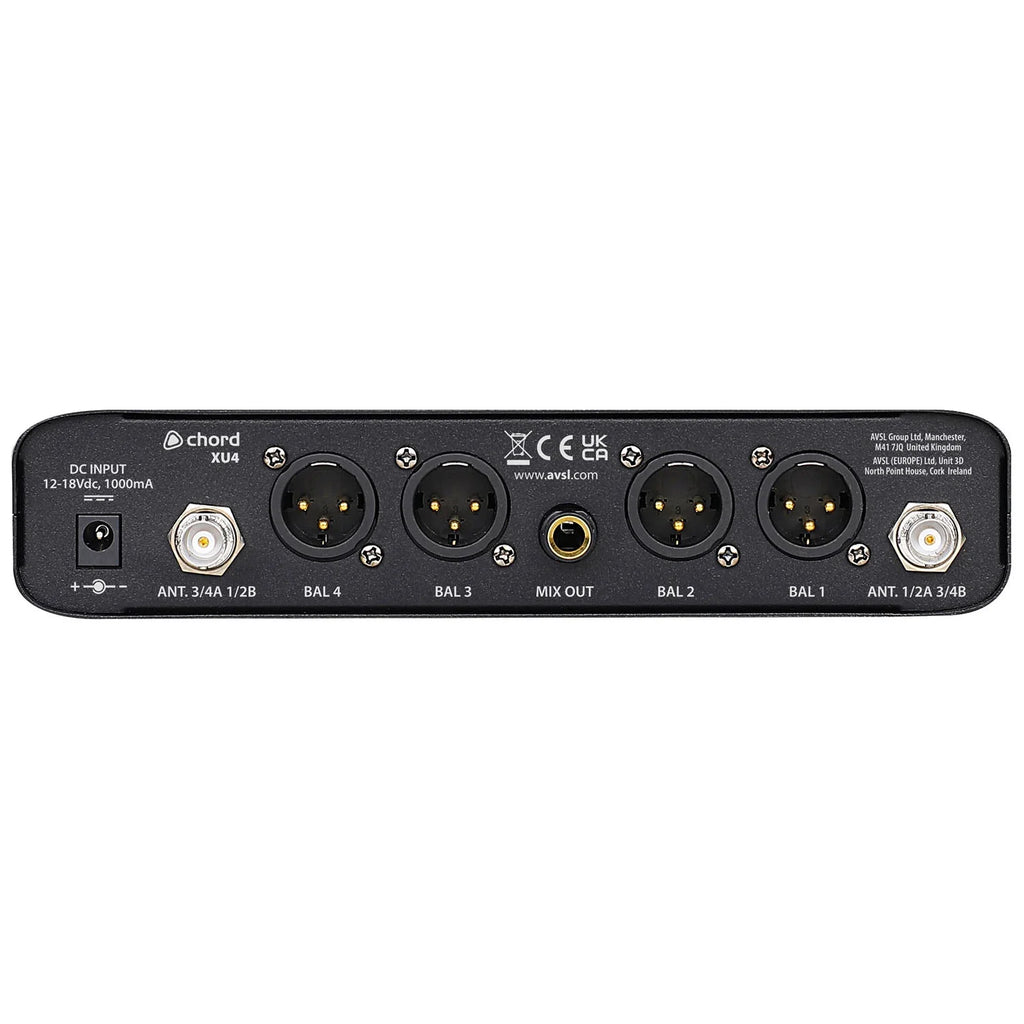

  • 1, 2 or 4 x XLR outputs + 1 x 6.3mm mix output
  • Settings sync I.R. from receiver to transmitters
  • Colour TFT display for settings menu
  • Weight : lavalier microphoneN/A
  • Dimensions : lavalier microphoneN/A
  • Weight : neckband microphoneN/A
  • Dimensions : neckband microphoneN/A
  • Weight : beltpack transmitterN/A
  • Dimensions : beltpack transmitterN/A
  • Weight : handheld transmitter246g (no battery)
  • Dimensions : handheld transmitter258 x 47mmØ
  • Power supply12-18Vdc, 1000mA (mains adaptor supplied)
  • Batteries2 x AA per transmitter
  • Carrier frequencies823-832 / 863-865MHz
  • Wireless rangeUp to 60m
  • Antenna connection2 x BNC
  • Dimensions : receiver205 x 205 x 44mm
  • Weight : receiver755g
