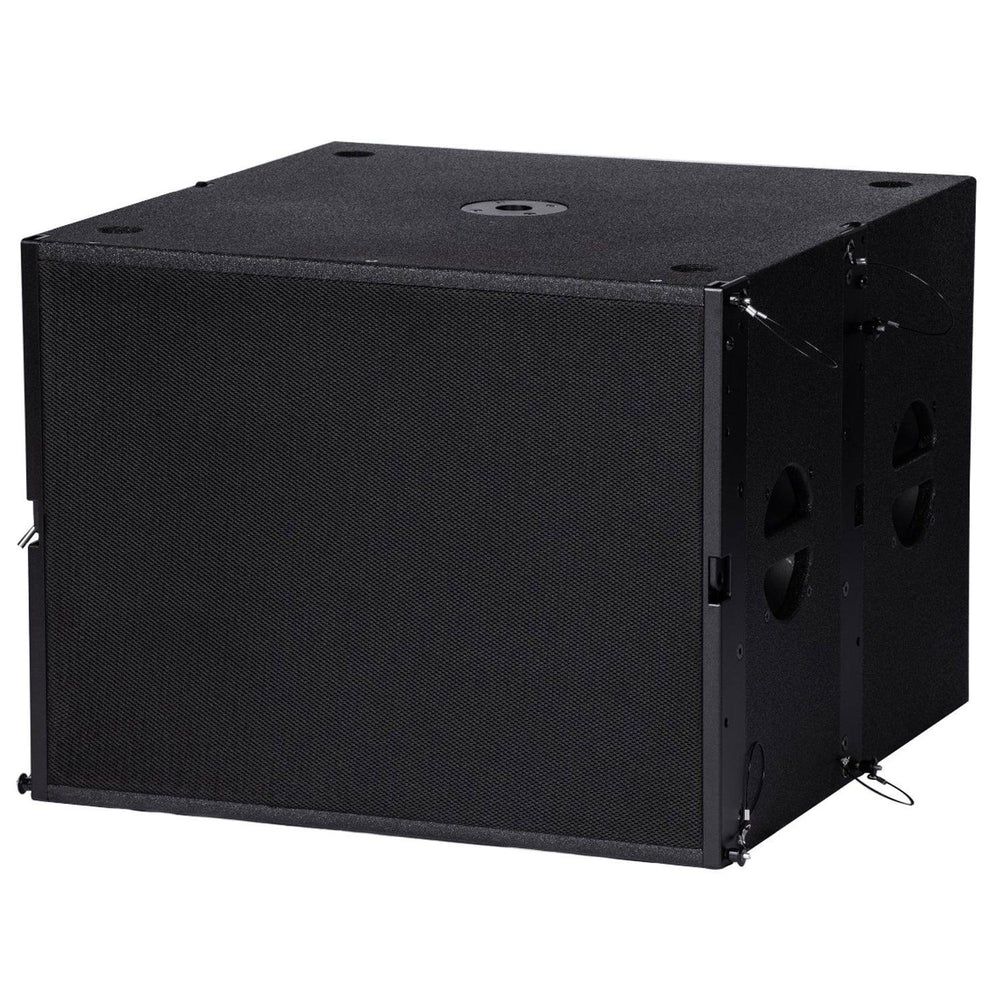

Citronic C-118S Array Sub 1x18 1000Wrms Line Array Subwoofer
Product Description
line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-208 line array unit comprises 2 x 8" main drivers coupled with a 3" compression driven ribbon tweeter for wide horizontal coverage. All drivers are fitted with high flux-density Neodymium magnets to efficiently convert power into sound pressure and are loaded into a computer-designed plywood wedge enclosure. A class-D bi-amplifier section is fully DSP controlled for accurate and efficient power delivery to the driver units across all frequencies. Fitted with side handles and array hardware, the C-208 can be angled for exact coverage of the venue or auditorium, either flown or floor mounted from the optional C-FRAME support assembly and/or partnered to the the C-118S sub units.
- Neodymium magnets for efficient power-to-sound conversion.
- Internal 500+100Wrms digitally controlled bi-amplifier
- Integral pinlock array hardware and carry handles
- 2 x 8" main drivers + 3" CD ribbon tweeter
- Power supply230Vac, 50Hz (Powercon® in + through)
- Construction15mm plywood cabinet, polyurea coated
- Frequency response45Hz - 20kHz
- Amplifier : constructionClass-D bi-amp (inbuilt DSP)
- Output power rms600W
- Output power peak1200W
- Drivers2 x 200mmØ (8") LF + HF ribbon tweeter (Ti CD)
- Voice coil2 x 50mmØ (2") LF, 1 x 75mmØ (3") HF
- Sensitivity98dB
- SPL max.128dB (@ 1W/1m)
- Dispersion10° (V) x 100° (H)
- Dimensions690 x 380 x 248mm
- Weight22.5kg
