Citronic C-208 and C-118S Subwoofer Line Array Bundle
Product Description
This bundle includes:
2 x Citronic C-208 Array Cab 2 x 8in + HF 600w RMS Line Array Speaker
1 x Citronic C-118S Array Sub 1x18 1000WRMS Line Array Subwoofer

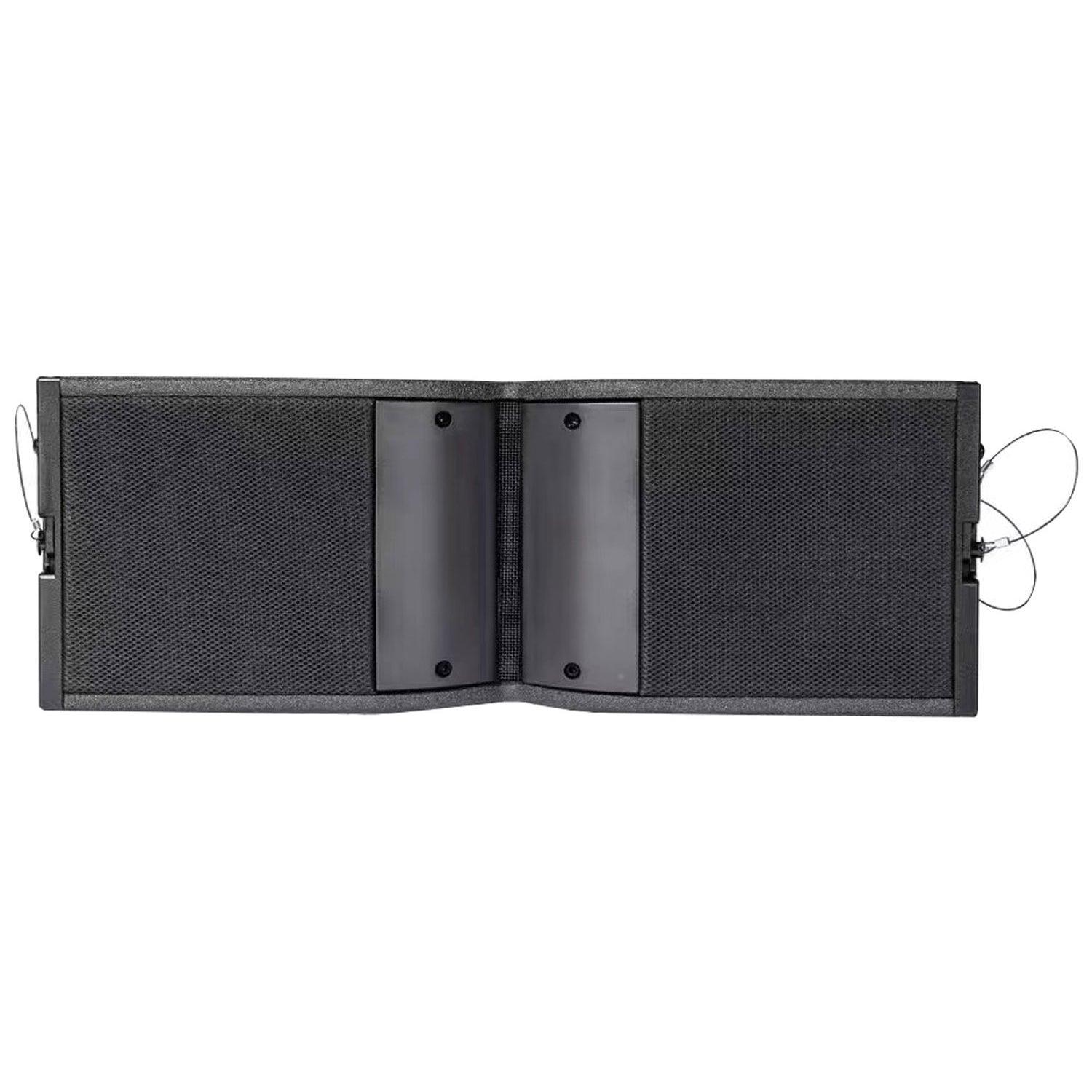

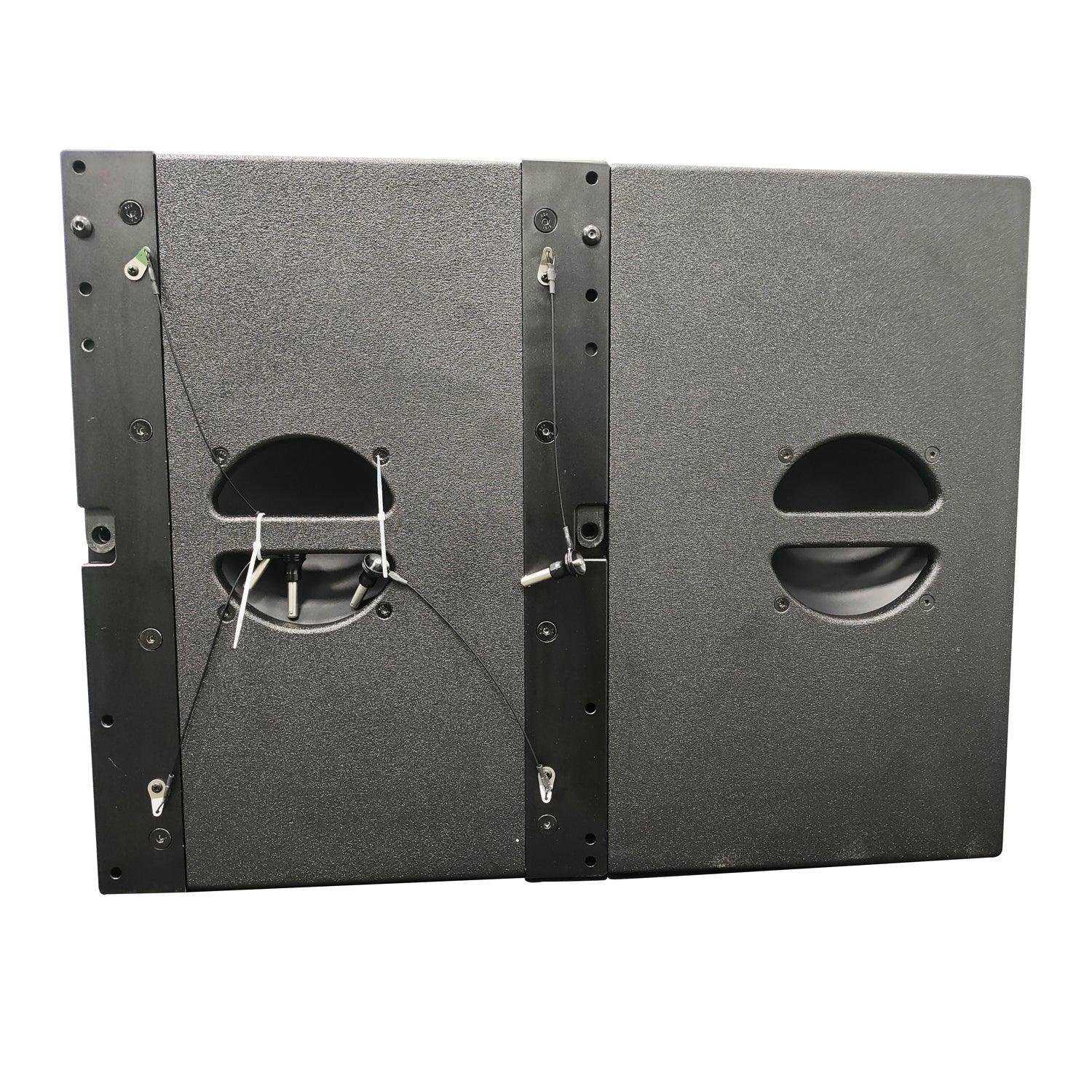

Citronic C-208 Array Cab 2 x 8in + HF 600w RMS Line Array Speaker
C-208 Line Array Cabinet 2 x 8" + HF 600Wrms
Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-208 line array unit comprises 2 x 8" main drivers coupled with a 3" compression driven ribbon tweeter for wide horizontal coverage. All drivers are fitted with high flux-density Neodymium magnets to efficiently convert power into sound pressure and are loaded into a computer-designed plywood wedge enclosure. A class-D bi-amplifier section is fully DSP controlled for accurate and efficient power delivery to the driver units across all frequencies. Fitted with side handles and array hardware, the C-208 can be angled for exact coverage of the venue or auditorium, either flown or floor mounted from the optional C-FRAME support assembly and/or partnered to the the C-118S sub units.
- Neodymium magnets for efficient power-to-sound conversion.
- Internal 500+100Wrms digitally controlled bi-amplifier
- Integral pinlock array hardware and carry handles
- 2 x 8" main drivers + 3" CD ribbon tweeter
- Power supply230Vac, 50Hz (Powercon® in + through)
- Construction15mm plywood cabinet, polyurea coated
- Frequency response45Hz - 20kHz
- Amplifier : constructionClass-D bi-amp (inbuilt DSP)
- Output power rms600W
- Output power peak1200W
- Drivers2 x 200mmØ (8") LF + HF ribbon tweeter (Ti CD)
- Voice coil2 x 50mmØ (2") LF, 1 x 75mmØ (3") HF
- Sensitivity98dB
- SPL max.128dB (@ 1W/1m)
- Dispersion10° (V) x 100° (H)
- Dimensions690 x 380 x 248mm
- Weight22.5kg

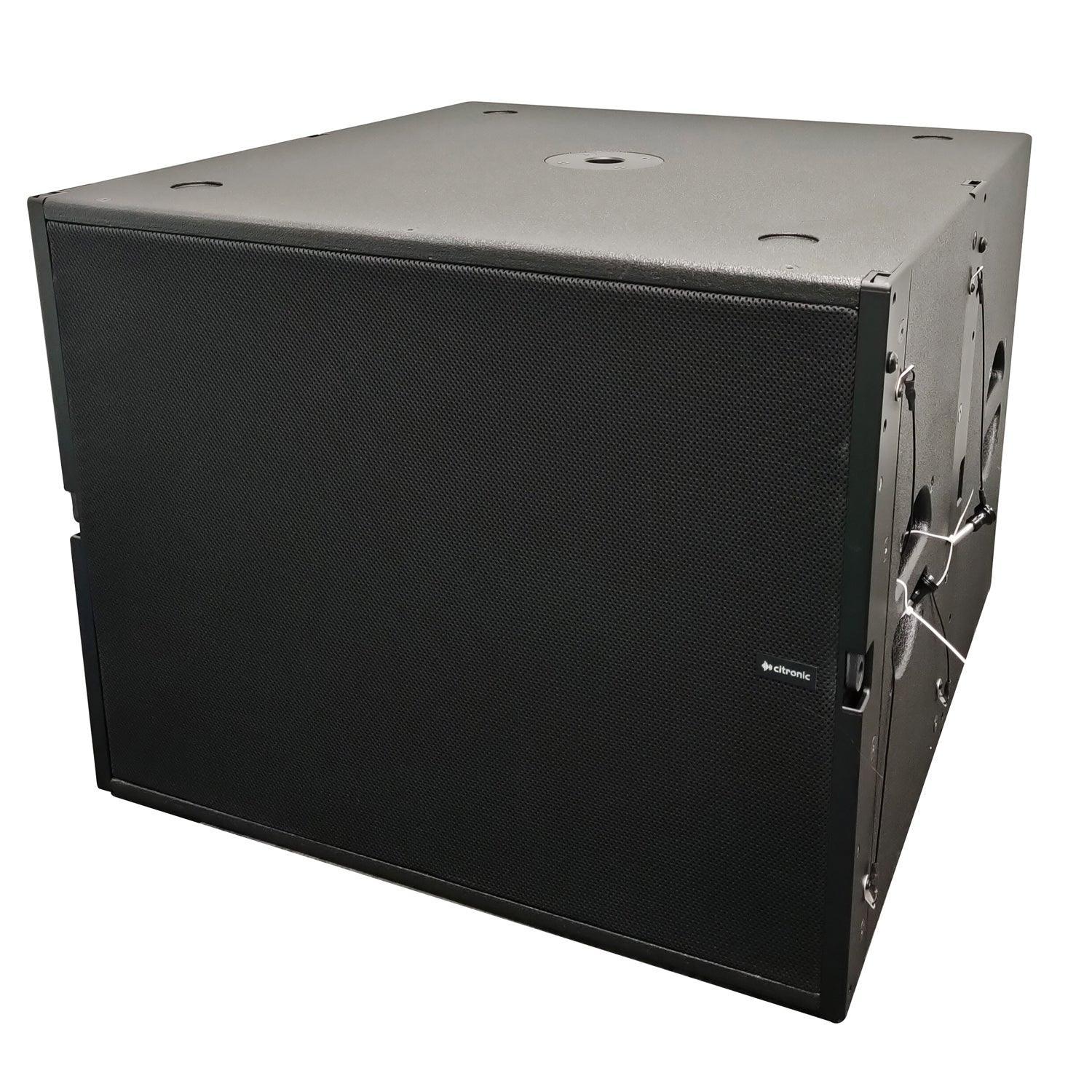

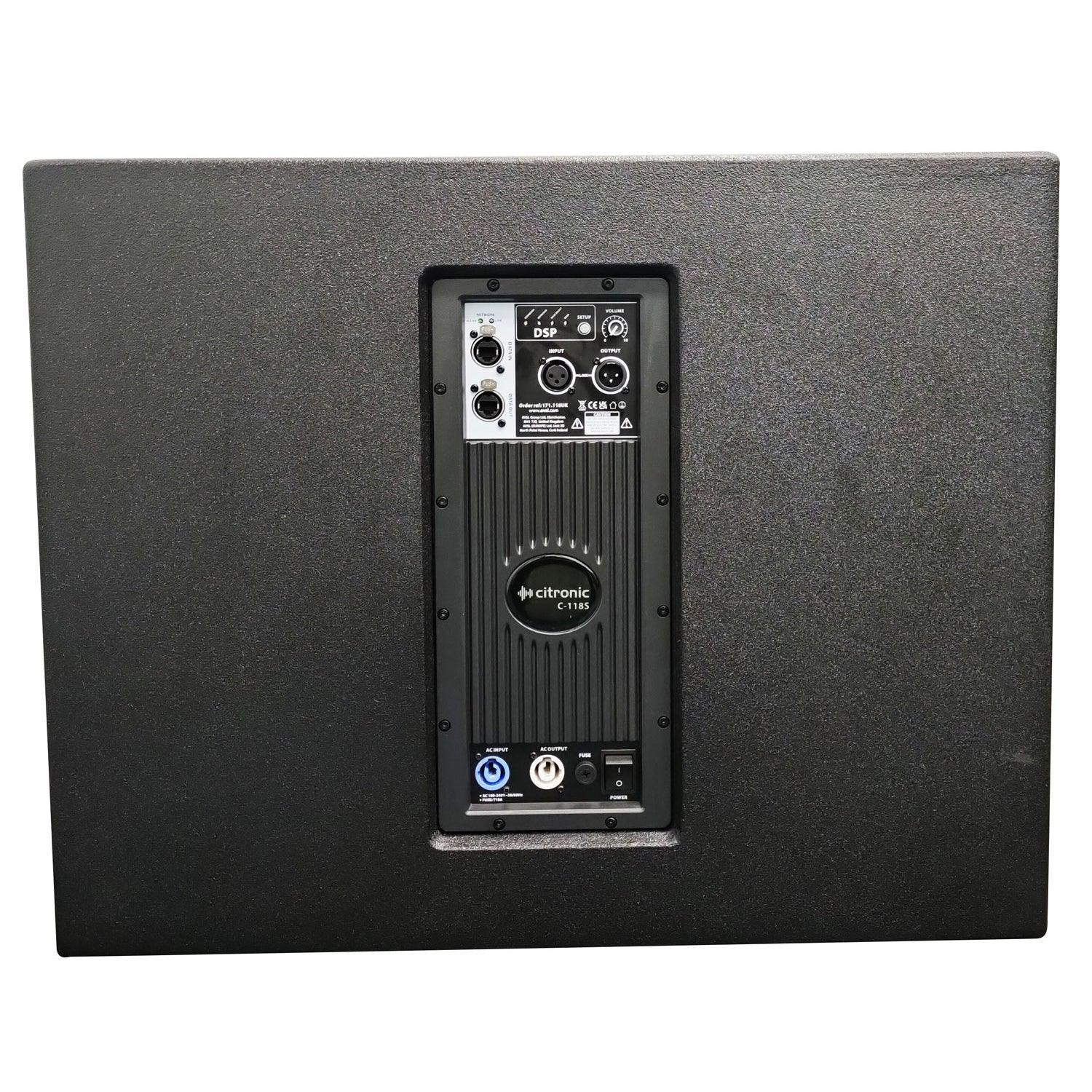

Citronic C-118S Array Sub 1x18 1000WRMS Line Array Subwoofer
Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-118S sub unit features a single 1000W 18" driver with cast aluminium basket and double reinforced suspension, loaded into a custom computer-designed and tuned wooden enclosure with a super-tough polyurea texture finish. The subwoofer is served by an internal class-D amplifier section with inbuilt pre-set DSP to deliver 1000W of power on demand with accurate frequency and dynamics control. The C-118S can be used as a standalone active subwoofer, stacked in multiples, or flown with C-series array cabinets using the optional C-FRAME support assembly
- Internal 1000Wrms digitally controlled amplifier
- Integral pinlock array hardware and carry handles
- Polyurea-coated wooden cabinet
- Single heavy duty sub driver
- Top panel 35mmm pole mount socket
- Power supply230Vac, 50Hz (Powercon® in + through)
- Construction15mm plywood cabinet, polyurea coated
- Frequency response40Hz - 150Hz
- Amplifier : constructionClass-D (inbuilt DSP)
- Output power rms1000W
- Output power peak2000W
- Driver unit450mmØ (18") driver, Al frame, ceramic magnet
- Voice coil100mmØ (4")
- Sensitivity98dB
- SPL max.131dB (@ 1W/1m)
- Dimensions710 x 690 x 545mm
- Weight54kg
