Citronic CASA-10A and CASA 12BA 4500W Active Speaker Bundle
Product Description

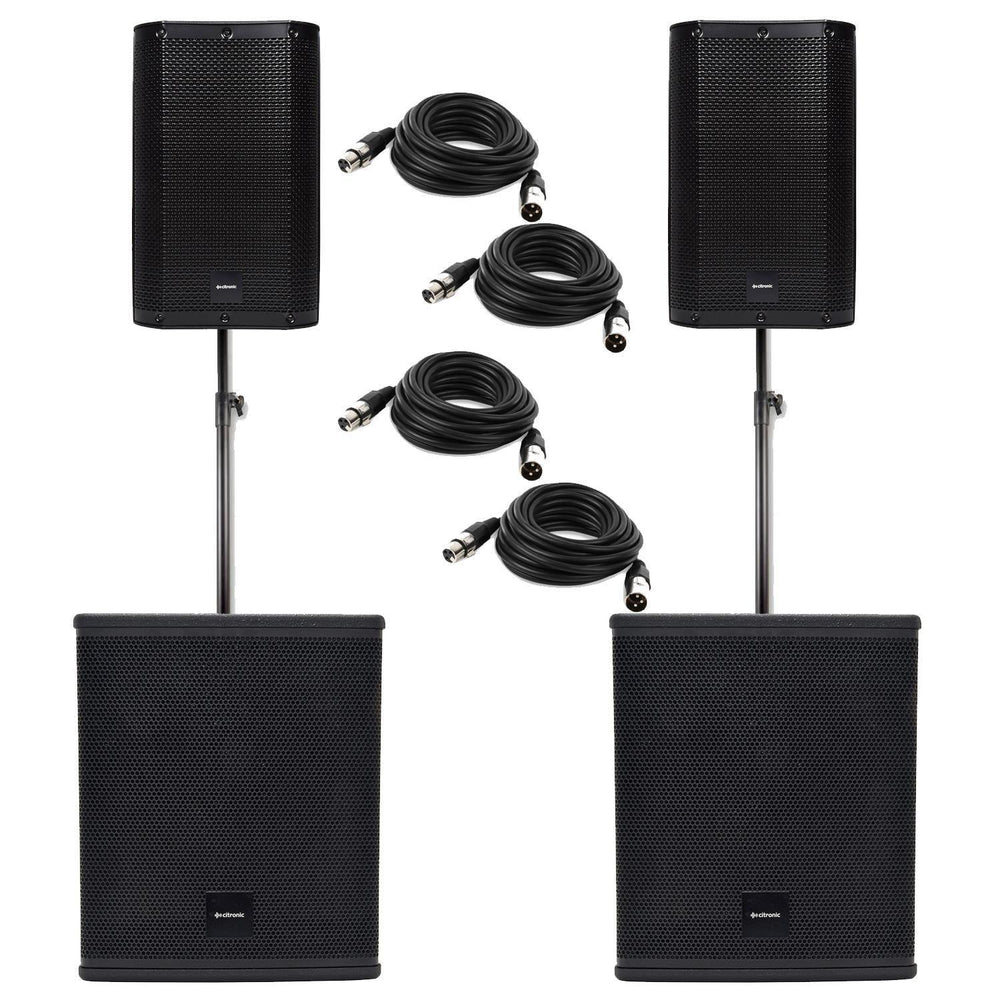

This bundle includes:
2 x Citronic Casa-10A 10" Active Speakers
2 x Citronic Casa-12BA Active Subwoofers
2 x 35mm Poles
2 x 3m XLR Cables
2 x 6m XLR Cables

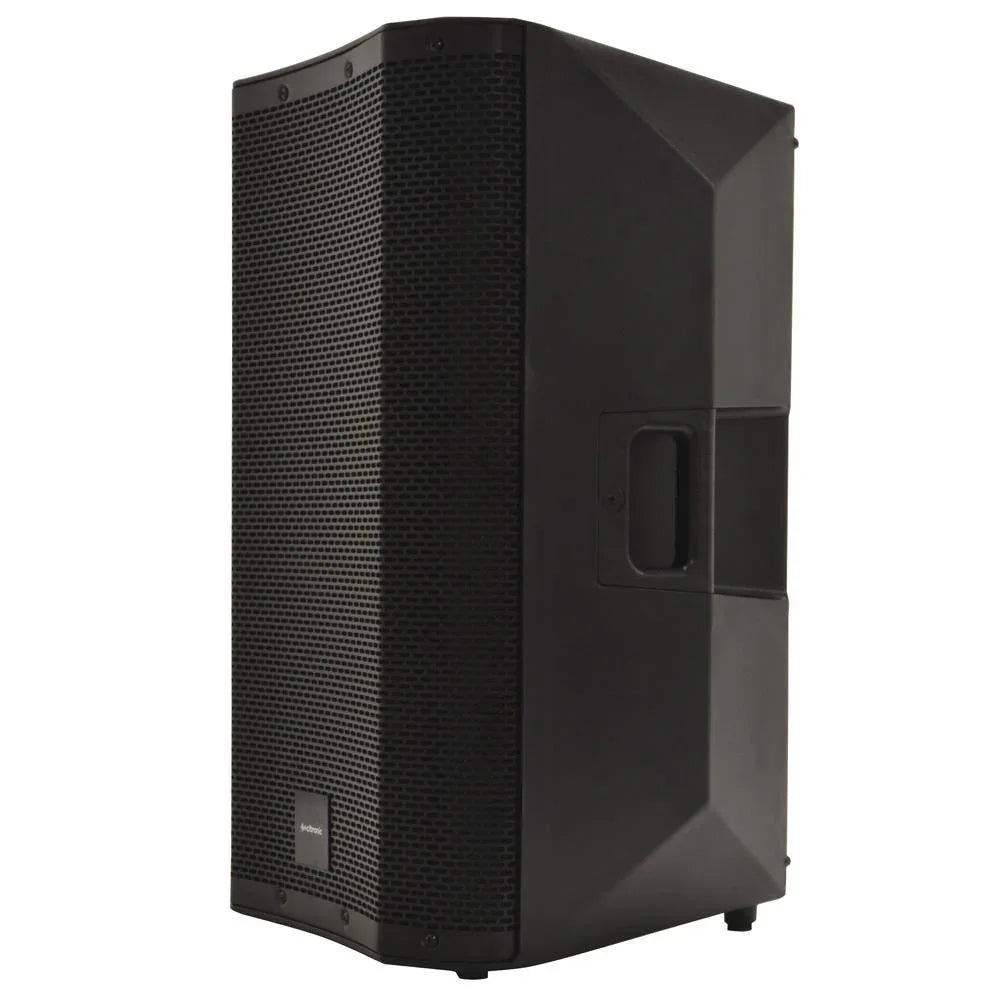

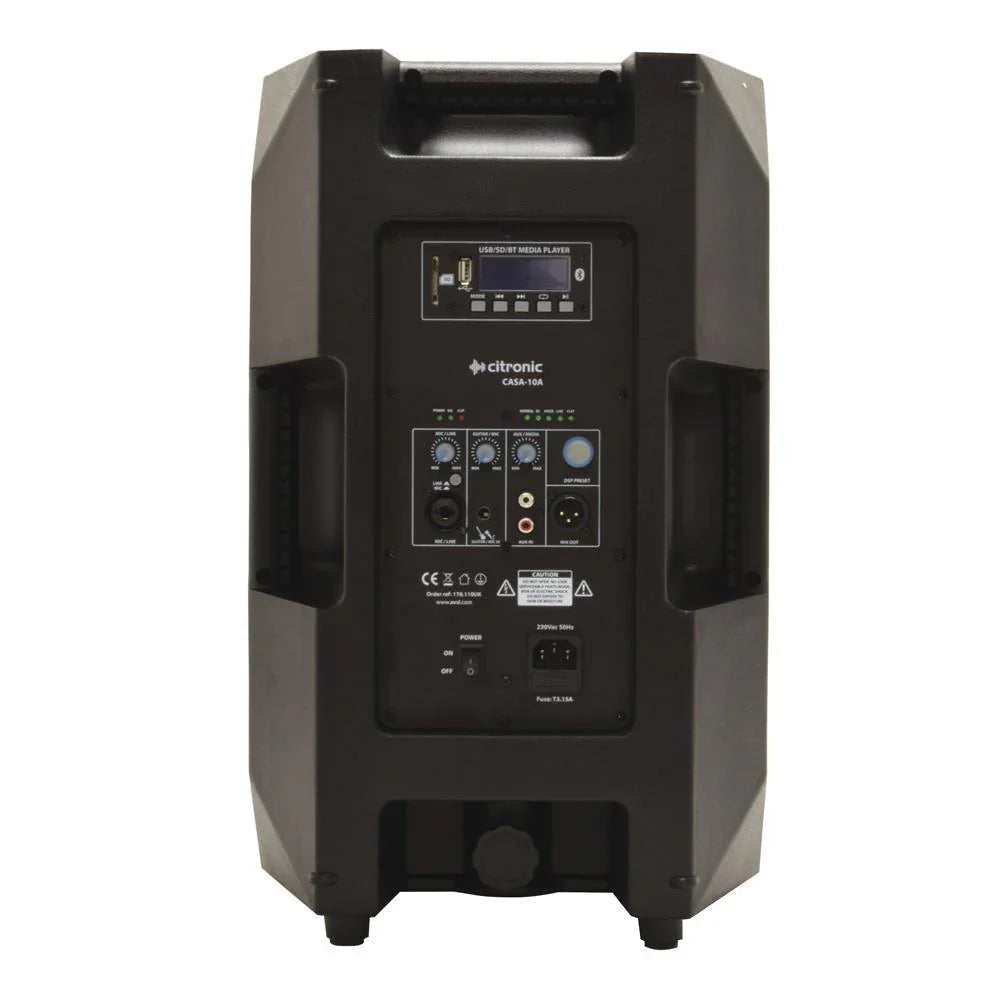

Citronic Casa-10A 10" Active Speaker
Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.
- Compact and lightweight design
- 15mm MDF cabinets with hard-wearing paint finish
- 2 x side carry handles
- 35mm pole mount socket
- Power supply230Vac, 50Hz (IEC)
- Construction15mm MDF with durable texture paint finish
- Hardware2 x side carry handles + 35mm pole mount socket
- Amplifier : constructionClass D
- Line inputsL+R balanced XLR
- Line outputsL+R balanced XLR & L+R link XLR
- ControlsOutput level, phase switch, high pass x-over (output)
Sub driver |
250mmØ (10") |
Voice coil |
50mmØ (2") |
Output power : rms |
300W |
Output power : max. |
500W |
Peak output |
1000W |
SPL max. |
120.0dB |
Frequency response |
60 - 150Hz |
Dimensions |
431 x 407 x 338mm |
Weight |
16.23kg |

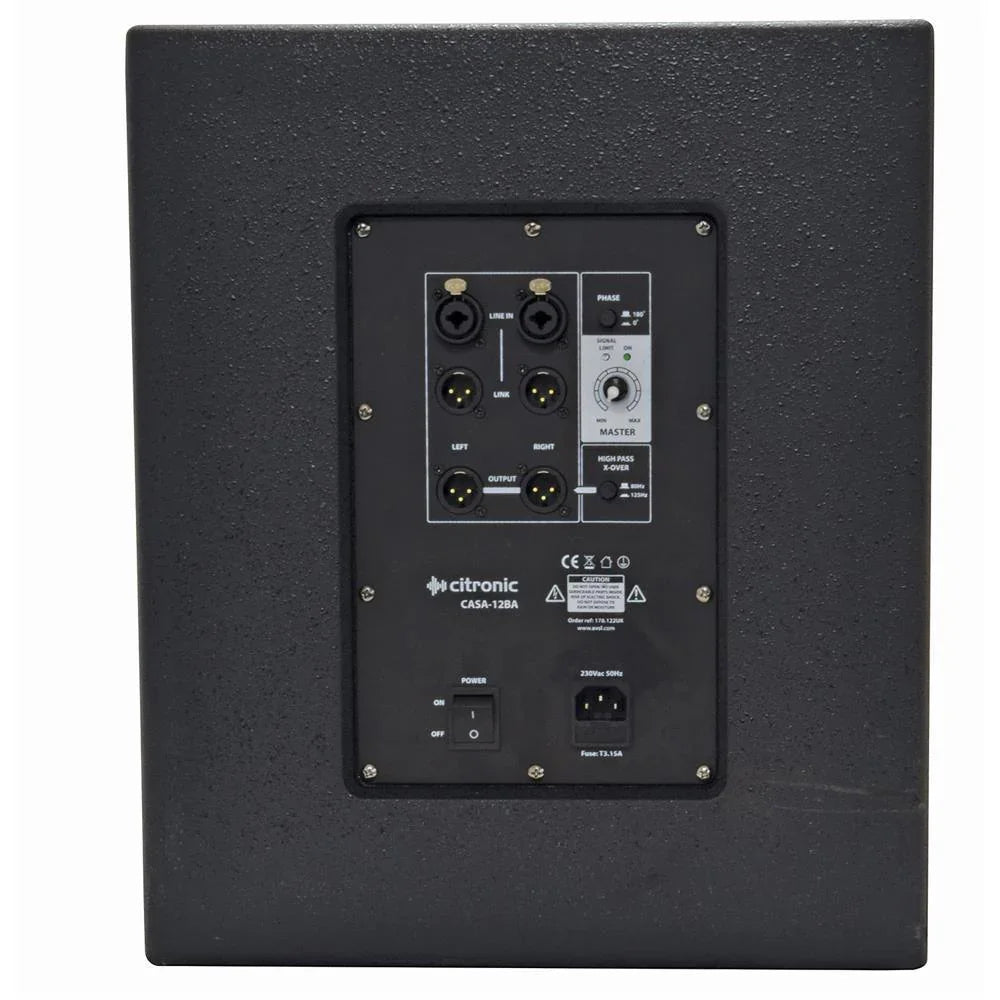

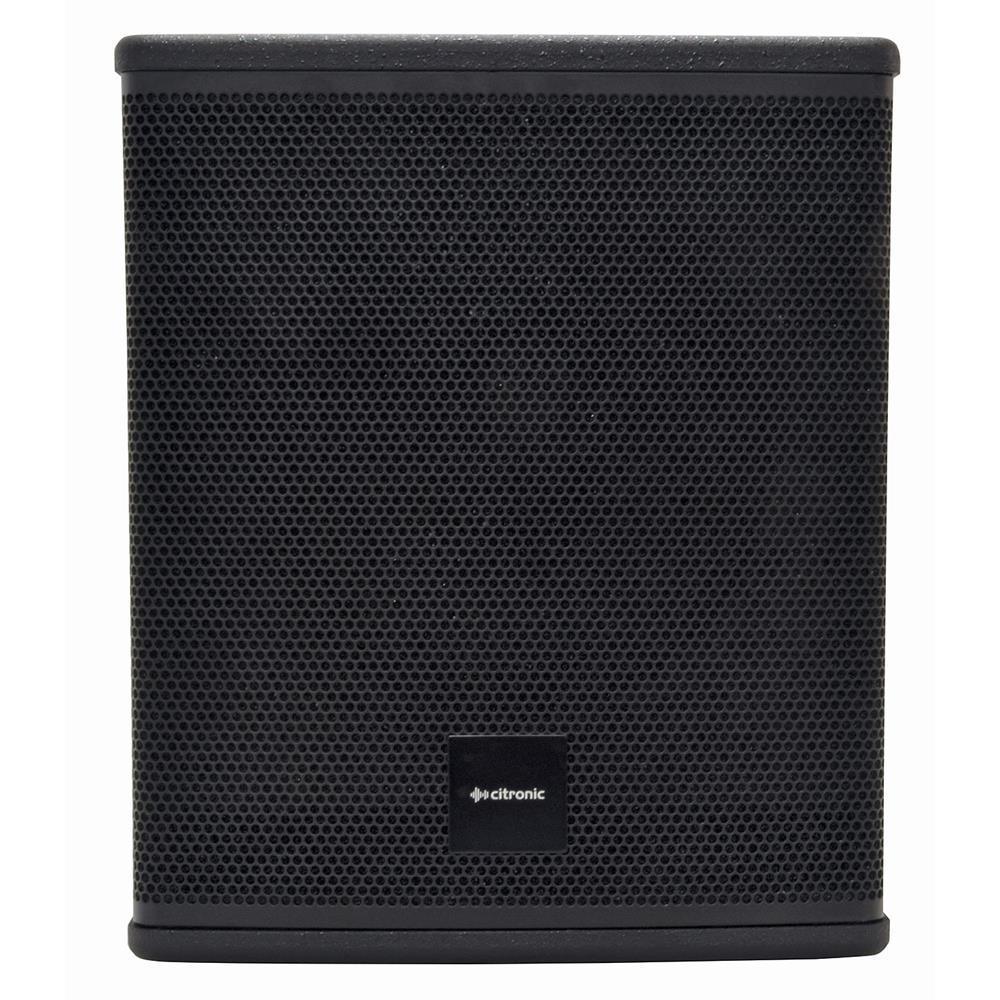

Citronic Casa-12BA Active Subwoofer
Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.
- Compact and lightweight design
- 15mm MDF cabinets with hard-wearing paint finish
- 2 x side carry handles
- 35mm pole mount socket
Specification : Common
- Power supply230Vac, 50Hz (IEC)
- Construction15mm MDF with durable texture paint finish
- Hardware2 x side carry handles + 35mm pole mount socket
- Amplifier : constructionClass D
- Line inputsL+R balanced XLR
- Line outputsL+R balanced XLR & L+R link XLR
- ControlsOutput level, phase switch, high pass x-over (output)
Sub driver |
300mmØ (12") |
Voice coil |
62mmØ (2.5") |
Output power : rms |
400W |
Output power : max. |
700W |
Peak output |
1400W |
SPL max. |
122.0dB |
Frequency response |
55 - 150Hz |
Dimensions |
480 x 450 x 380mm |
Weight |
18.86kg |
