Citronic CASA-15A Active Speakers with CASA-18BA Subwoofer Bundle
Product Description

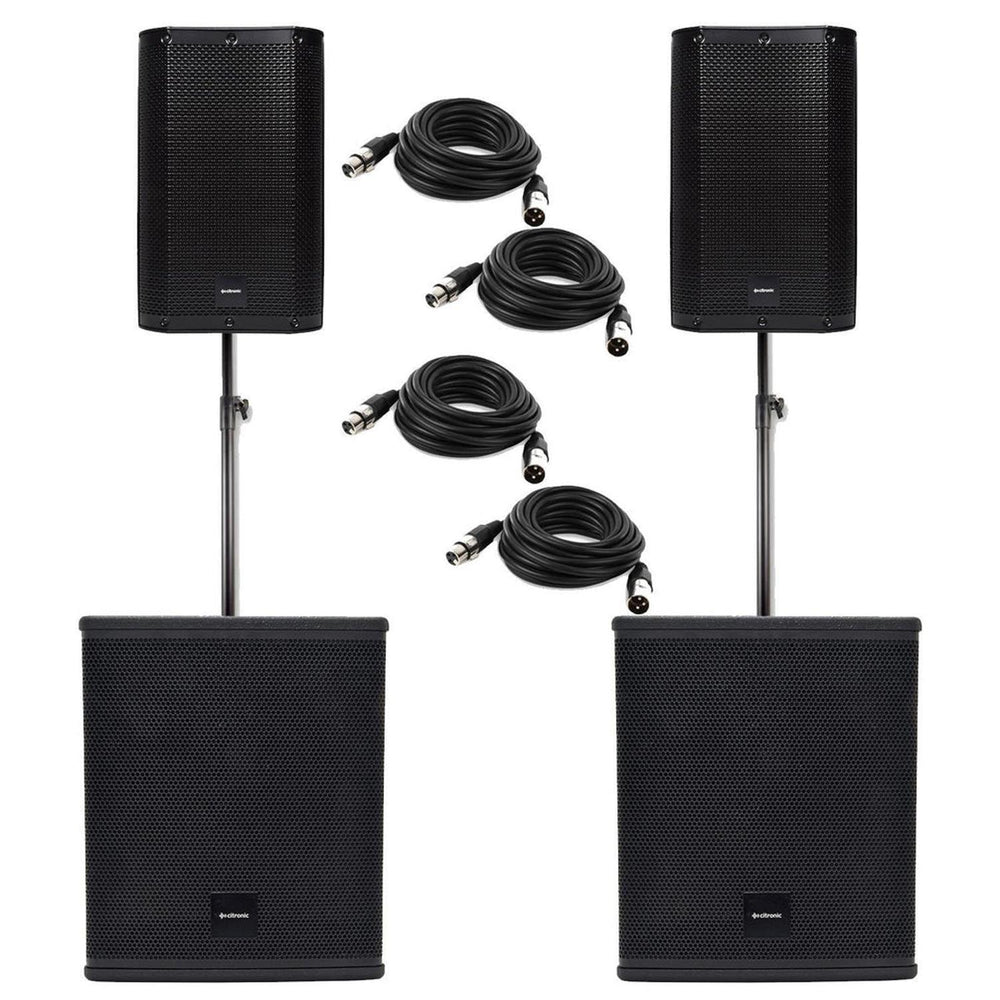

This Bundle includes:
2 x Citronic Casa-15A Active Speakers
2 x Citronic Casa-18BA Subwoofers
2 x 35mm Speaker Poles
4 x 3m XLR Cables
Citronic Casa-15A Active Speakers
Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.
- High efficiency class D bi-amplifier section
- DSP speaker control with 5 selectable profiles
- Inbuilt USB/SD audio player
- Bluetooth wireless connectivity
- High impact moulded cabinet with side and top handles.
- 35mm pole mount socket
- Power supply230Vac, 50Hz (IEC)
- Audio sourceUSB/SD player + Bluetooth receiver
- Line outputXLR
- DSP settingsNormal, DJ. Voice, Live, Flat
| Main driver | 380mmØ (15") | |||
|---|---|---|---|---|
| Voice coil | 63mmØ (2.5") | |||
| HF driver | 44mmØ (1.75") Ti compression driver | |||
| Output power : rms | 350W | |||
| Output power : max. | 700W | |||
| Output power peak | 1400W | |||
| Sensitivity | 97dB | |||
| SPL max. | 124.5dB | |||
| Frequency response | 45Hz - 20kHz | |||
| Inputs | XLR/jack mic/line, XLR/jack/L+R RCA line | |||
| Dimensions | 705 x 430 x 375mm | |||
| Weight | 22.0kg |

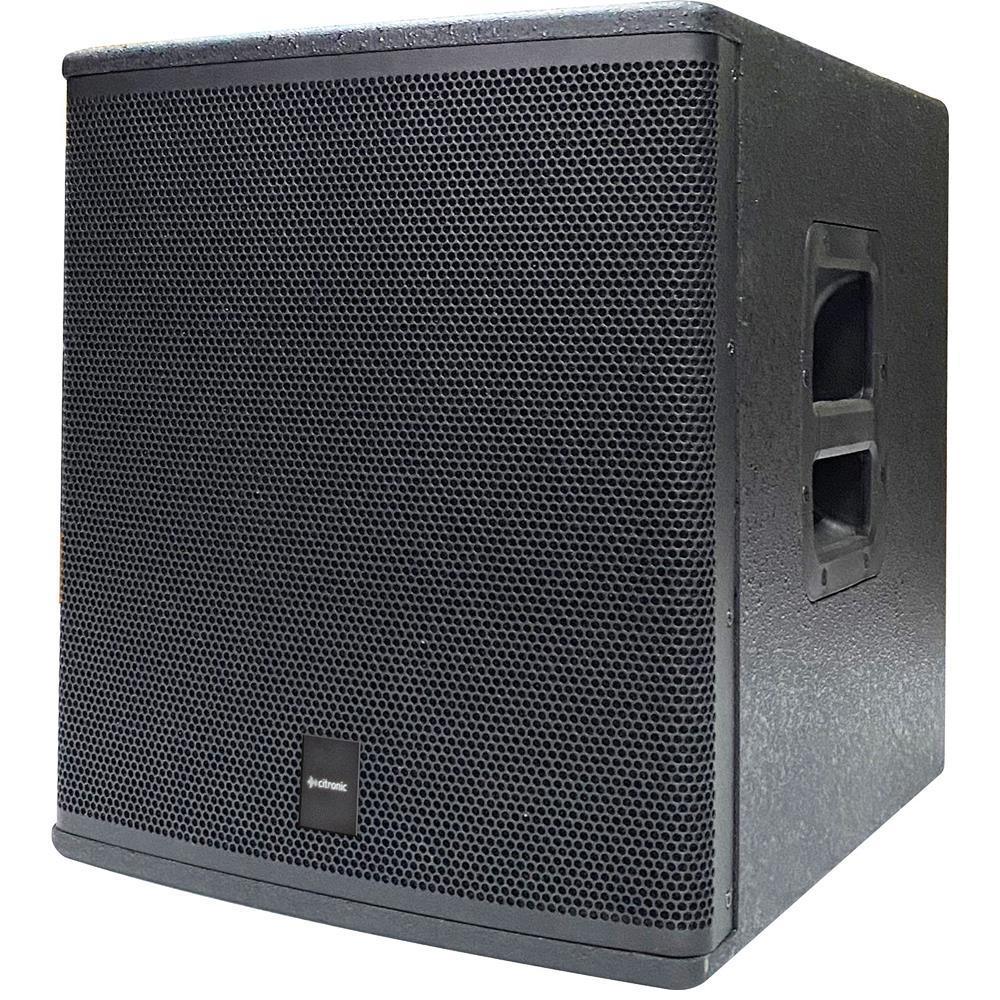

Citronic Casa-18BA Subwoofer
Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.
- Compact and lightweight design
- 15mm MDF cabinets with hard-wearing paint finish
- 2 x side carry handles
- 35mm pole mount socket
- Power supply230Vac, 50Hz (IEC)
- Construction15mm MDF with durable texture paint finish
- Hardware2 x side carry handles + 35mm pole mount socket
- Amplifier : constructionClass D
- Line inputsL+R balanced XLR
- Line outputsL+R balanced XLR & L+R link XLR
- ControlsOutput level, phase switch, high pass x-over (output)
Sub driver |
450mmØ (18") |
Voice coil |
75mmØ (3") |
Output power : rms |
600W |
Output power : max. |
1100W |
Peak output |
2200W |
SPL max. |
124.0dB |
Frequency response |
45 - 150Hz |
Dimensions |
645 x 605 x 510mm |
Weight |
34.00kg |
