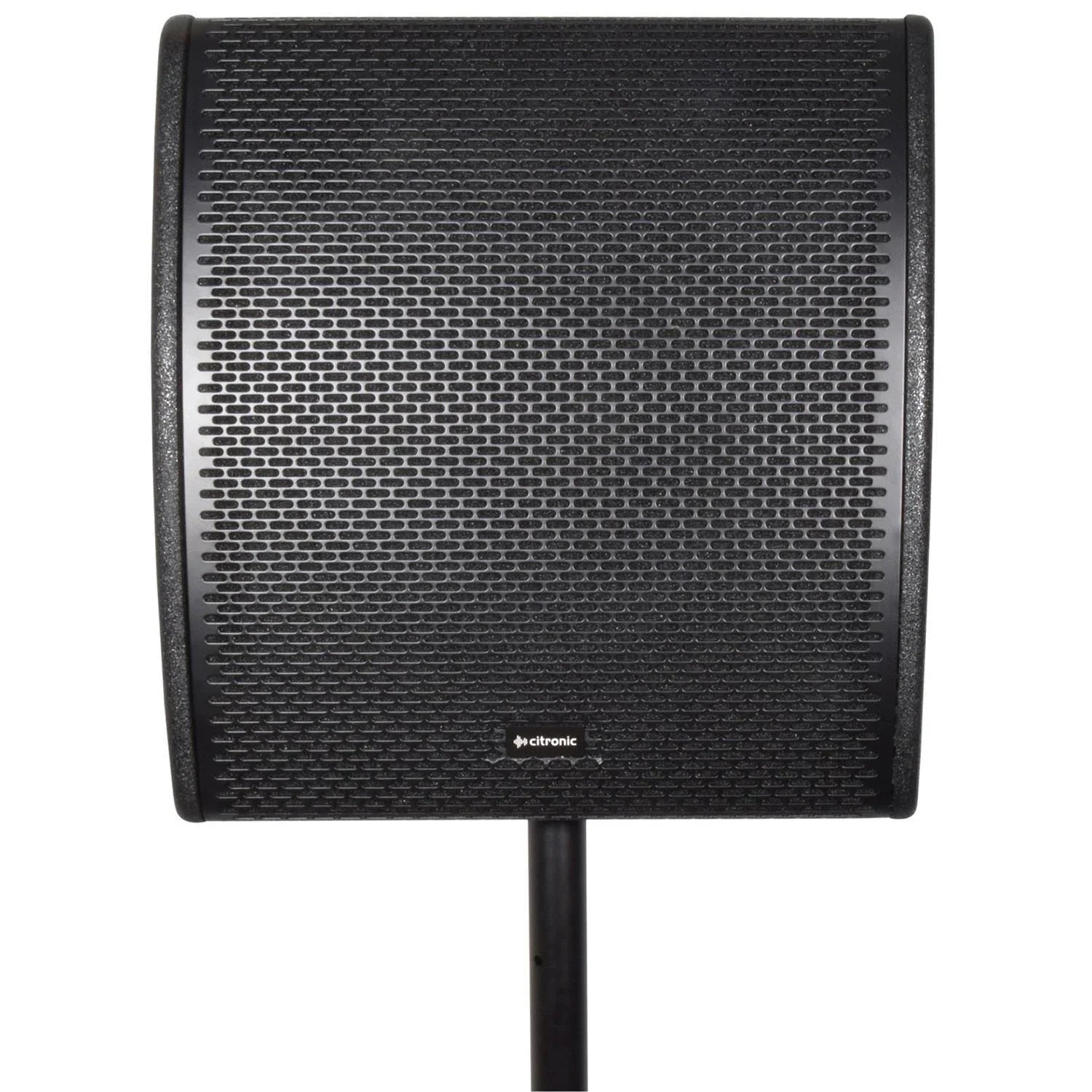

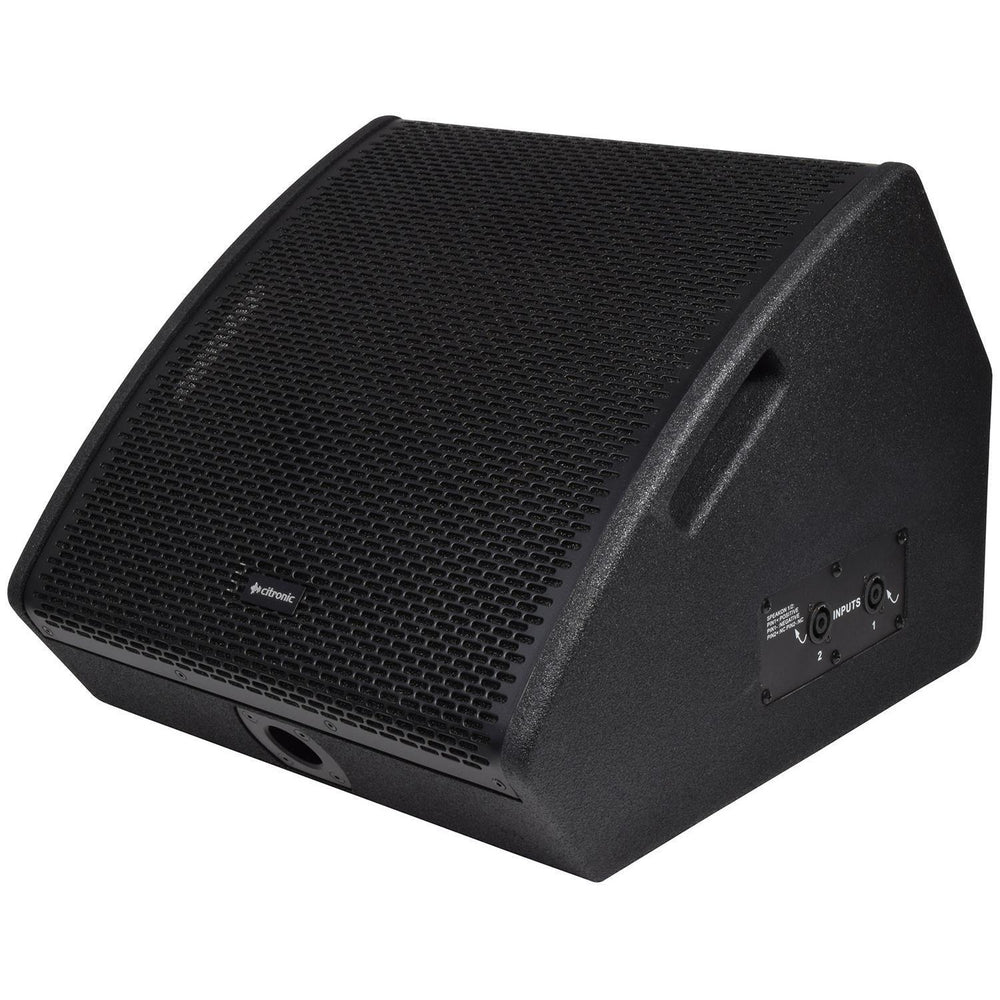

Citronic CM12 12" Passive Wedge Stage Monitor
Product Description
assive wedge speaker in a durable, texture coated plywood cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. A pair of twist-lock SPK connectors are wired in parallel to accept input from an amplifier and enable connection onto a further passive speaker or monitor if required. The compact size and high power handling means that this is a very capable unit for stage foldback but can equally serve as a compact PA speaker, thanks to its 35mm pole-mount socket and M8 flying points.
- Concentric HF driver
- Compact cabinet with minimal footprint
- 2 side handles and 35mm pole-mount socket
- Impedance8 Ohms
- Inputs2 x SPK connectors (parallel pins 1±)
- HF driver44mmØ (1.75") titanium driver
| Main driver | 300mmØ (12") | ||
|---|---|---|---|
| Voice coil | 63mmØ (2.5") | ||
| Magnet weight | 1.50kg (53oz) | ||
| Power handling : rms | 300W | ||
| Power handling : peak | 600W | ||
| Frequency response | 55Hz - 20kHz | ||
| Dimensions | 445 x 410 x 335mm | ||
| Sensitivity | 96dB | ||
| Weight | 8.64kg | 10.80kg |
