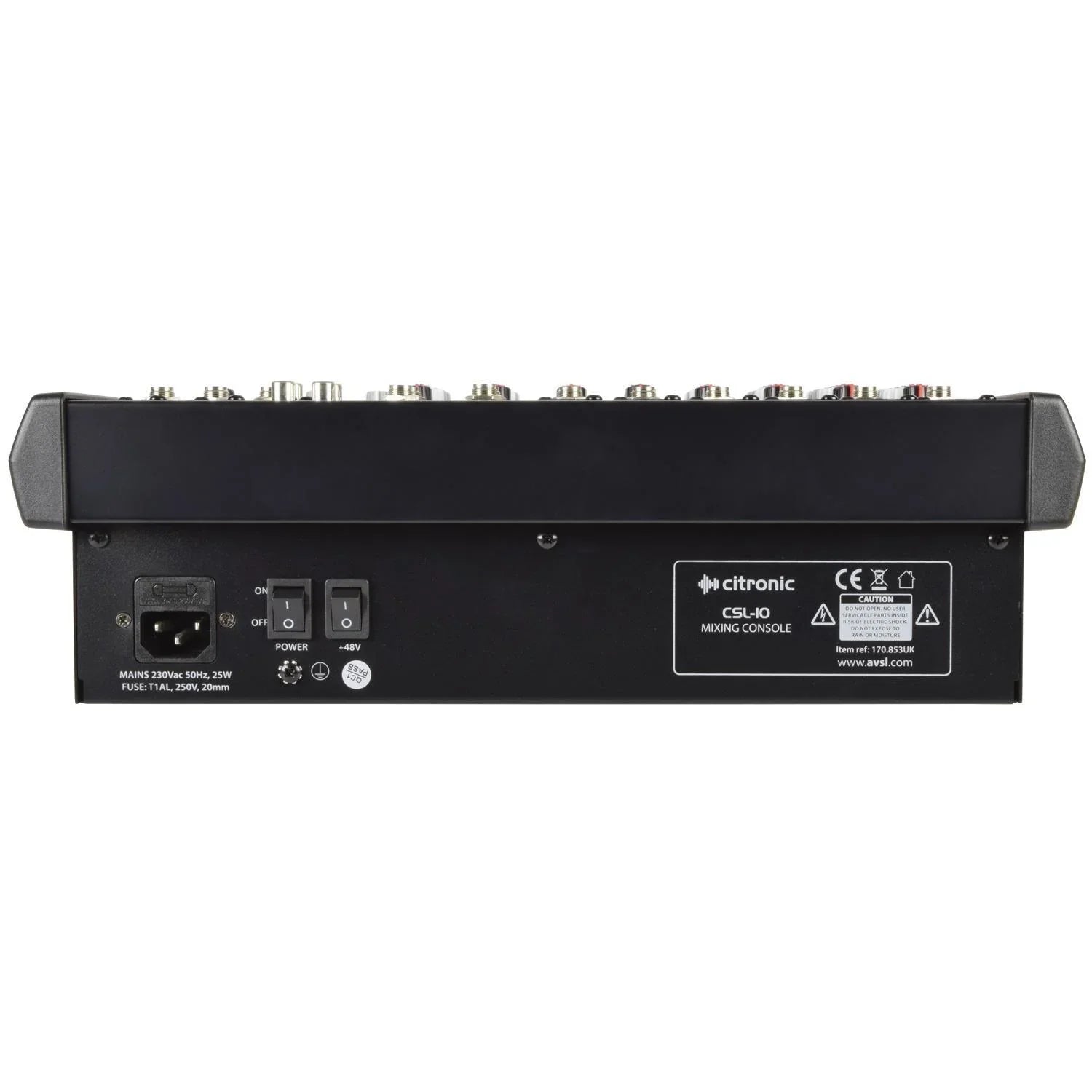

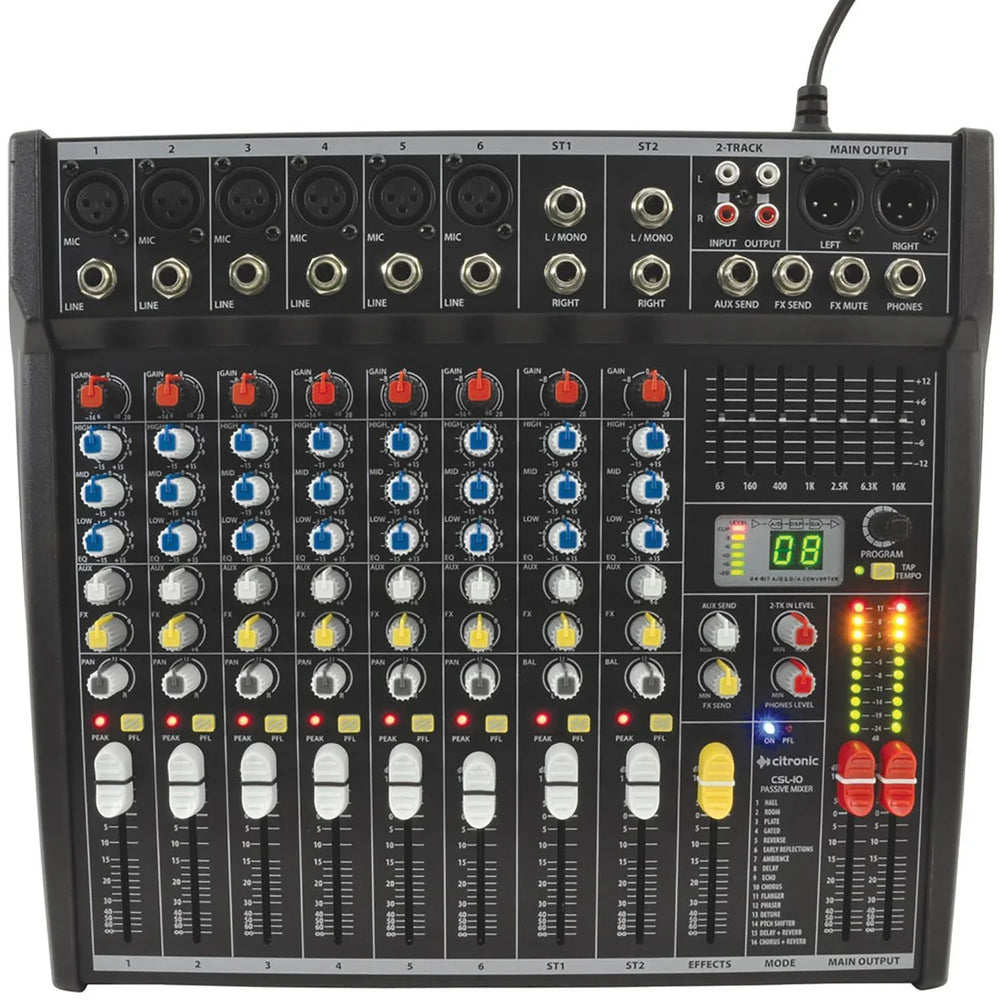

Citronic CSL-10 10 Channel Mixing Desk
Brand: Citronic
SKU: 170.853UK
£179.00
£239.00
SALE
Only 1 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
CSL Series Compact Mixing Consoles with DSP
Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- IEC mains powered
- Balanced main outputs
- Power supply230Vac, 50Hz (IEC)
- Output connectionsMain L+R balanced XLR
- Effects16 program DSP (24-bit sigma-delta, 40kHz)
- Phantom power+48V (XLR inputs)
- Frequency response20Hz-30kHz (0.5dB)
- Power consumption25W
- FuseT1AL
- Input level+24dBu
- Output level : line+26dBu
- CMRR>74dB (mic 1kHz)
- THD +N<0.01% (channel to main out)
- Crosstalk>85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ: high12kHz ±15dB shelving
- EQ: mid2.5kHz ±15dB band pass
- EQ: low80Hz ±15dB shelving
- Input impedance : mic (balanced)2k Ohms
- Input impedance : line (balanced)10k Ohms
- Sensitivity : mic-60 to +14dBu
- Sensitivity : line-40 to +14dBu
- 2-track2 x RCA in & out (-2dBu)
- Output impedance<75 Ohms
- Headphone output6.3mm jack, 30-600 Ohms
| Inputs : mic/line | 6 x balanced XLRF/TRS jack | ||
|---|---|---|---|
| Dimensions | 360 x 320 x 107mm | ||
| Weight | 3.5kg |
