Description

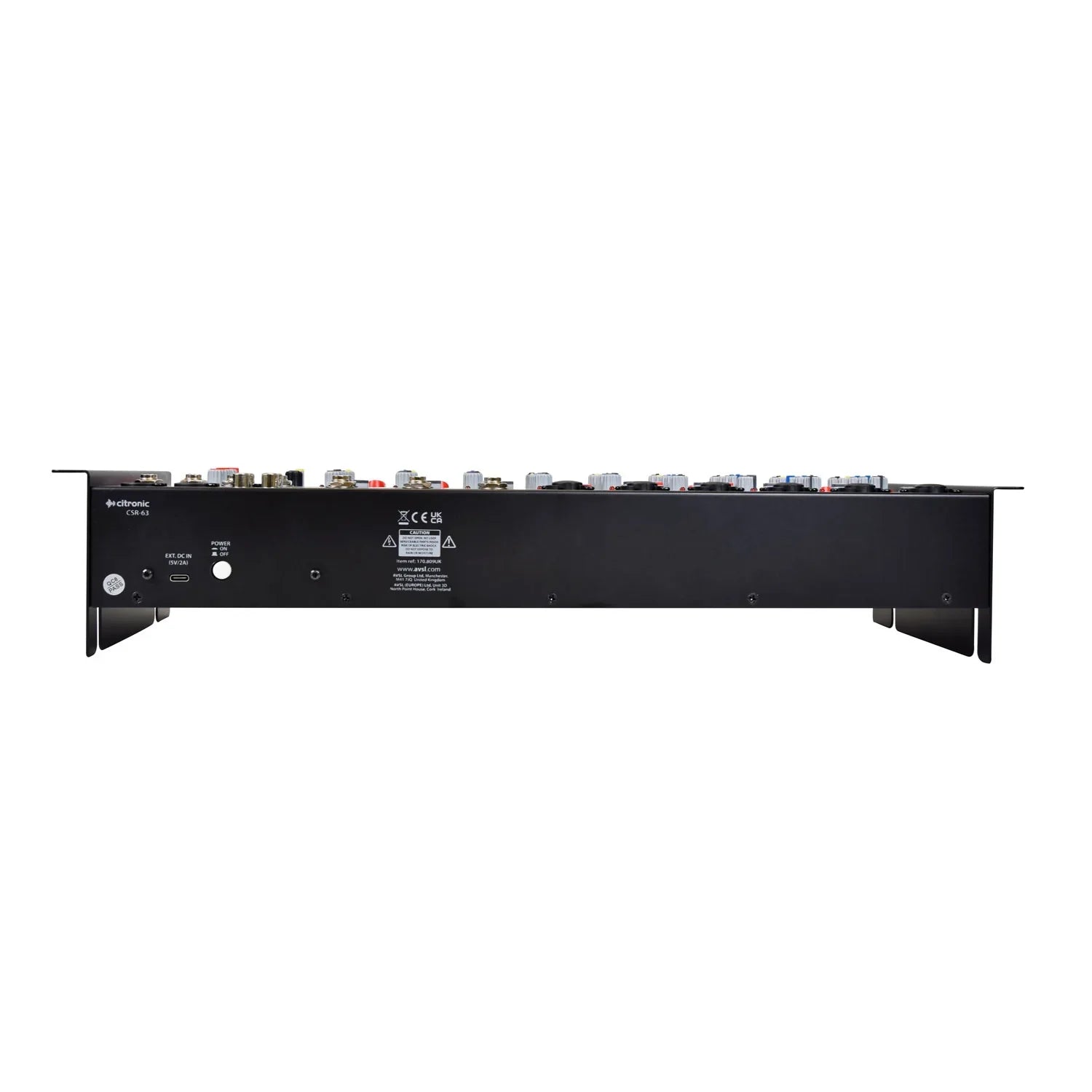

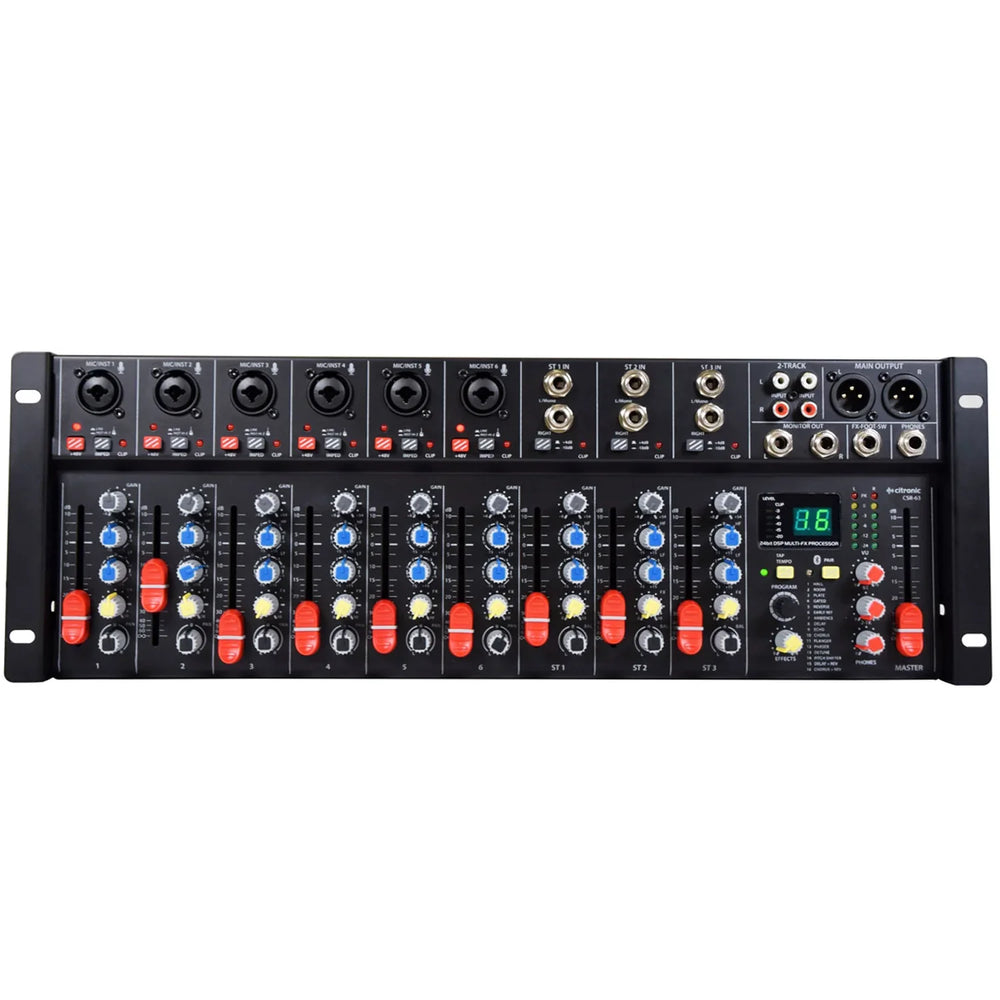

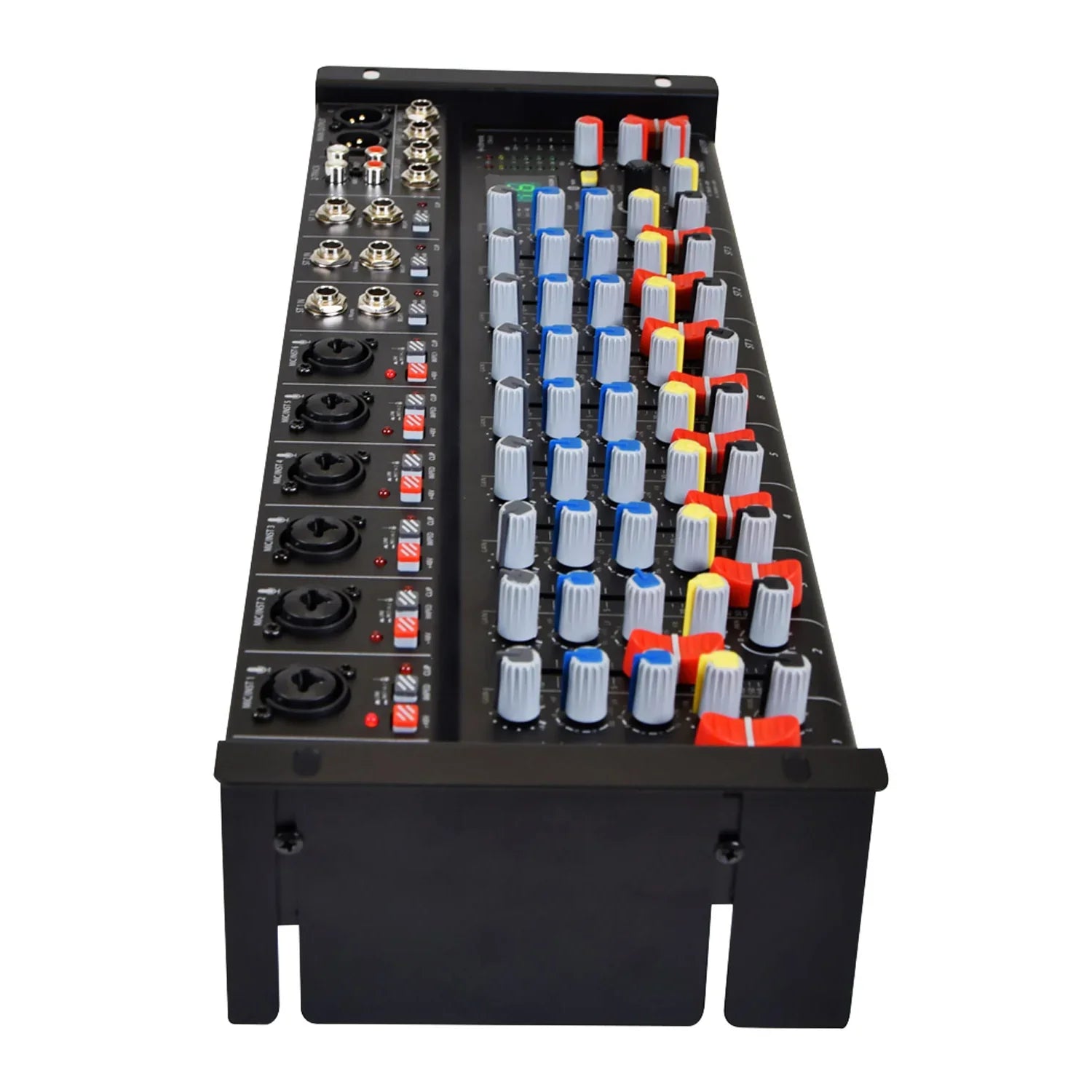

The Citronic CSR-63 rack-mountable mixing console is built to offer full-size mixer features in a slim profile format. Equipped with 6 mic/line channels and 3 stereo line channels, each has individual Gain, 2-band EQ, FX and PAN control with a 60mm Level fader. Mono channels also have individually switchable +48V phantom power and can accept a mic, line or instrument input. For live performers, a DSP effects section has 16 editable presets and can be activated remotely via a foot switch if needed. Balanced main outputs are joined by 2-track in and out, monitor out, headphones out and a Bluetooth receiver for wireless music playback. Uniquely designed end panels are supplied to enable installation into a 19" rack or left off for free-standing operation. When rack-mounted, the CSR-63 occupies a little less than 4U height, allowing space to feed cables through the rear of the rack frame from the top-mounted connectors. The end panels also have adjustable depth fixing, enabling controls to stand proud of the rack for easy access or deeper behind the frame for protection. Unlike most rack mixers, this mixer has a shallow housing depth to allow back-to-back mounting with other equipment in racks with rear mounting strips. Overall, the CSR-63 can find its home in numerous different audio setups and provides a problem-solver for both installed and mobile PA systems.
- 16-preset 24-bit DSP effects section
- 60mm level fader for each channel
- Power input at rear or underside for rack-mounting
- Internal Bluetooth receiver
- Individually switchable +48V phantom power
- Supplied with optional rack side panels (<4U height)
- Power supply5Vdc, 1A (adaptor included)
- OutputLeft + Right balanced XLR
- Effects16 program DSP (24-bit sigma-delta, 40kHz)
- Power consumption max.10W
- Inputs6 x combo XLR/jack + 3 x L(mono)+R jack
- EQ: low±15dB @ 80Hz
- EQ: high±15dB @ 12kHz
- Phantom power+48V individually switchable (XLR inputs only)
- Input impedance : mic2k Ohms
- Input impedance : instrument1M Ohms
- Input impedance : line20k Ohms
- Audio sourceBluetooth receiver
- Frequency response20Hz - 20kHz (±0.5B)
- THD +N<0.03% @ 1kHz
- Dynamic range102dB
- Crosstalk : stereo92dB
- Output impedance120 Ohms
- Max. output level3Vrms
- Dimensions482 x 160 x 90mm
- Weight2.745kg
