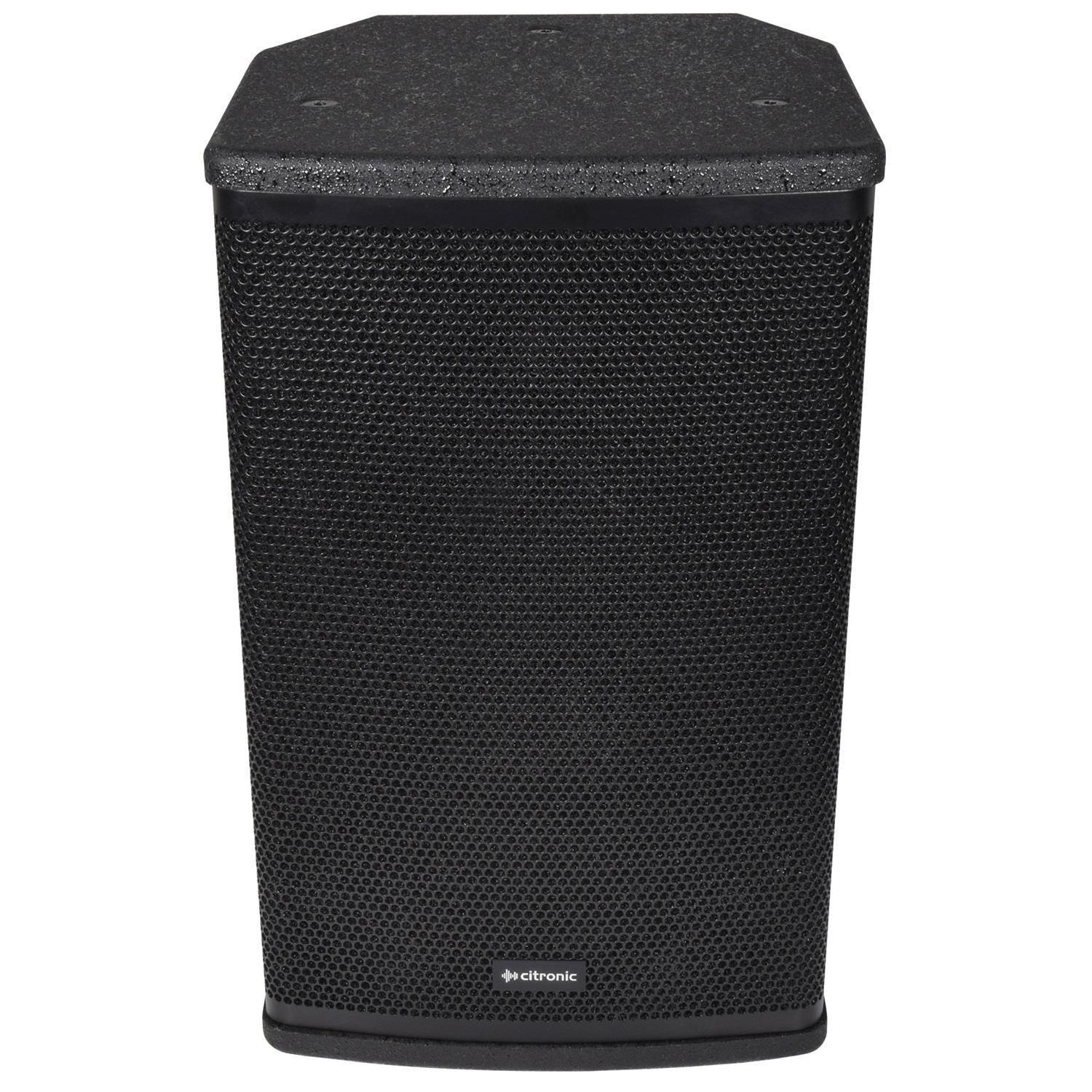

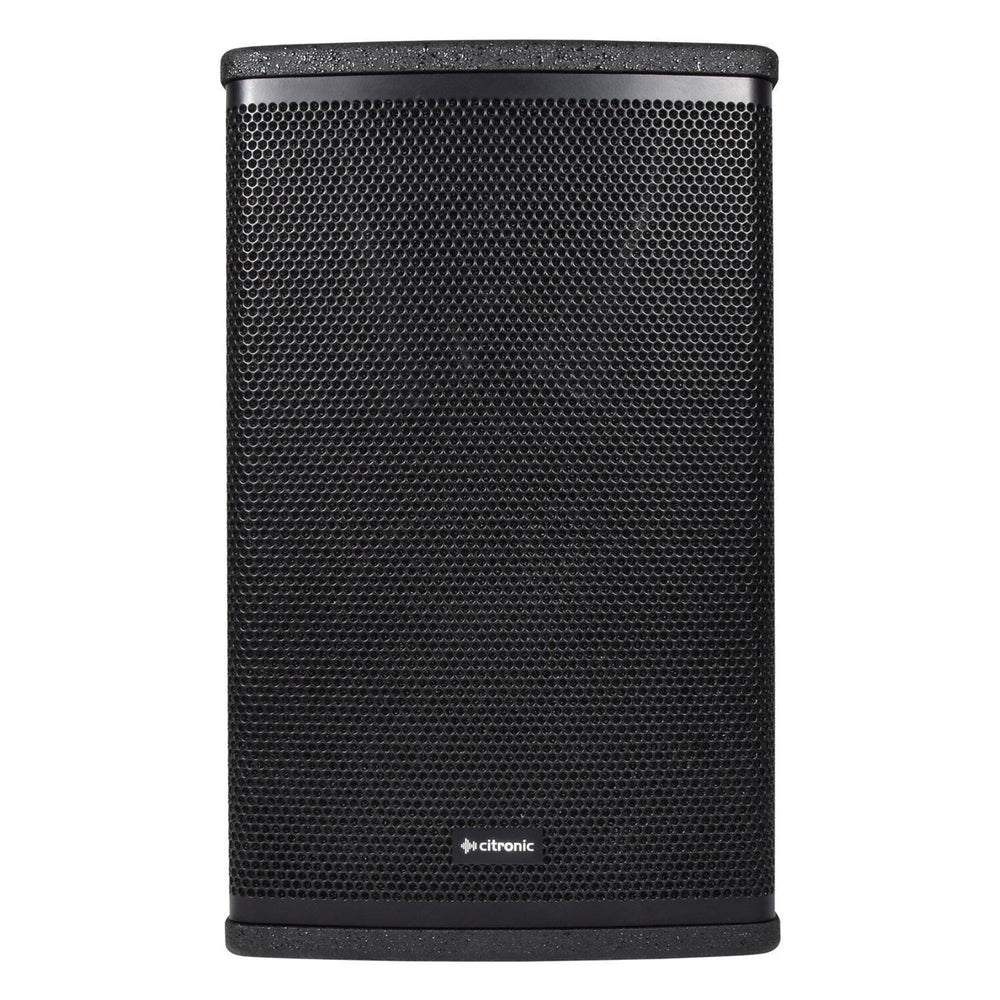

Citronic CUBA-10 10" 540w Passive Speaker
Product Description
Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.
- Hard-wearing polyurea cabinet coating
- CUBA-8 & CUBA-10 supplied with a U-bracket
- 35mm pole mount socket and M8 flying points
- Custom designed high power LF and HF drivers
- ConstructionPolyurea coated MDF + powder-coated steel grille
- Input2 x parallel SPK socket
| Main driver | 250mmØ (10") | |||
|---|---|---|---|---|
| Voice coil | 50mmØ (2") | |||
| HF driver | 35mmØ (1.35") Ti compression driver | |||
| Power handling : rms | 270W | |||
| Power handling : max | 540W | |||
| Frequency response | 60Hz-20kHZ | |||
| Sensitivity | 95dB | |||
| Max. SPL | 122.5dB | |||
| Dimensions | 507 x 313 x 307mm | |||
| Weight | 12.5kg |
