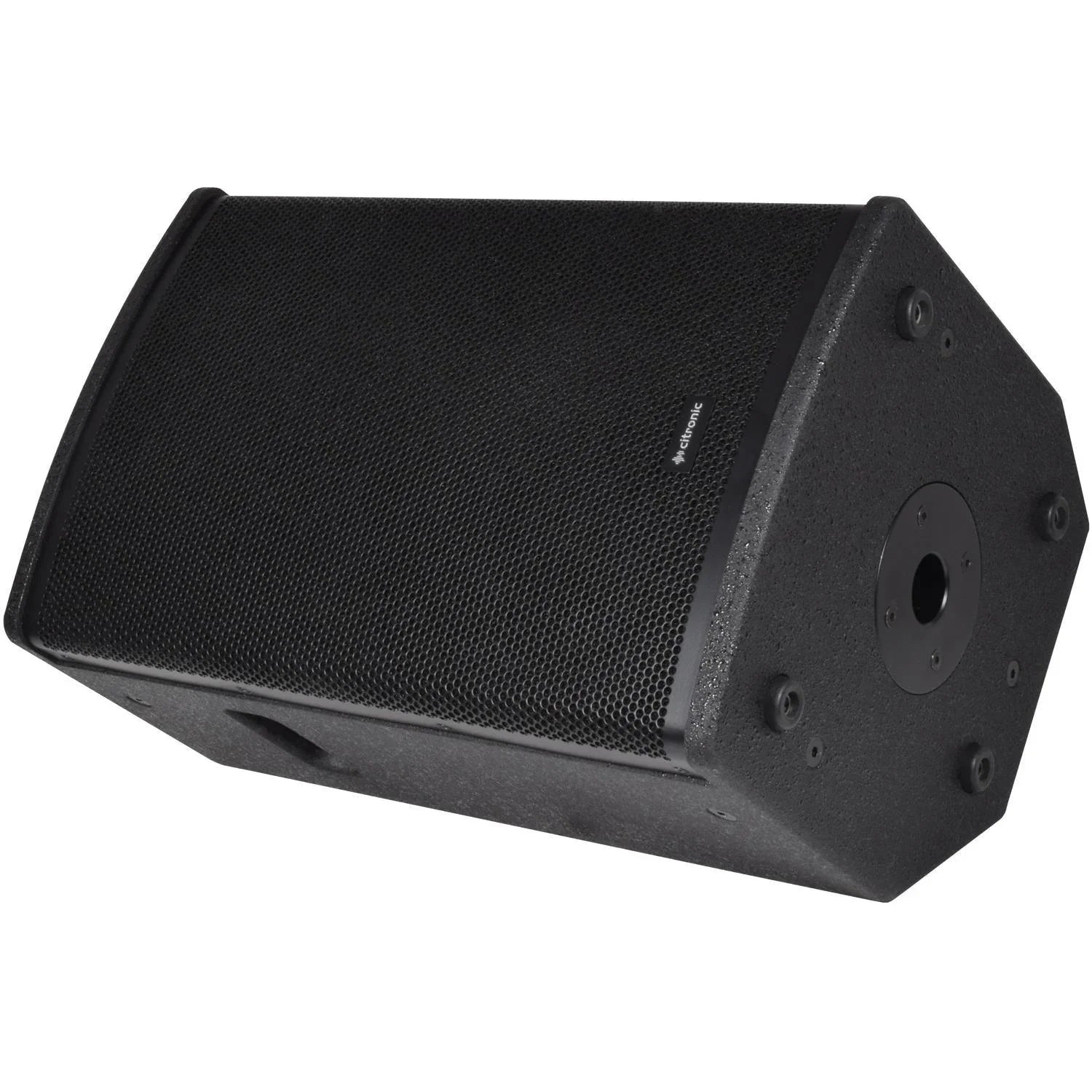

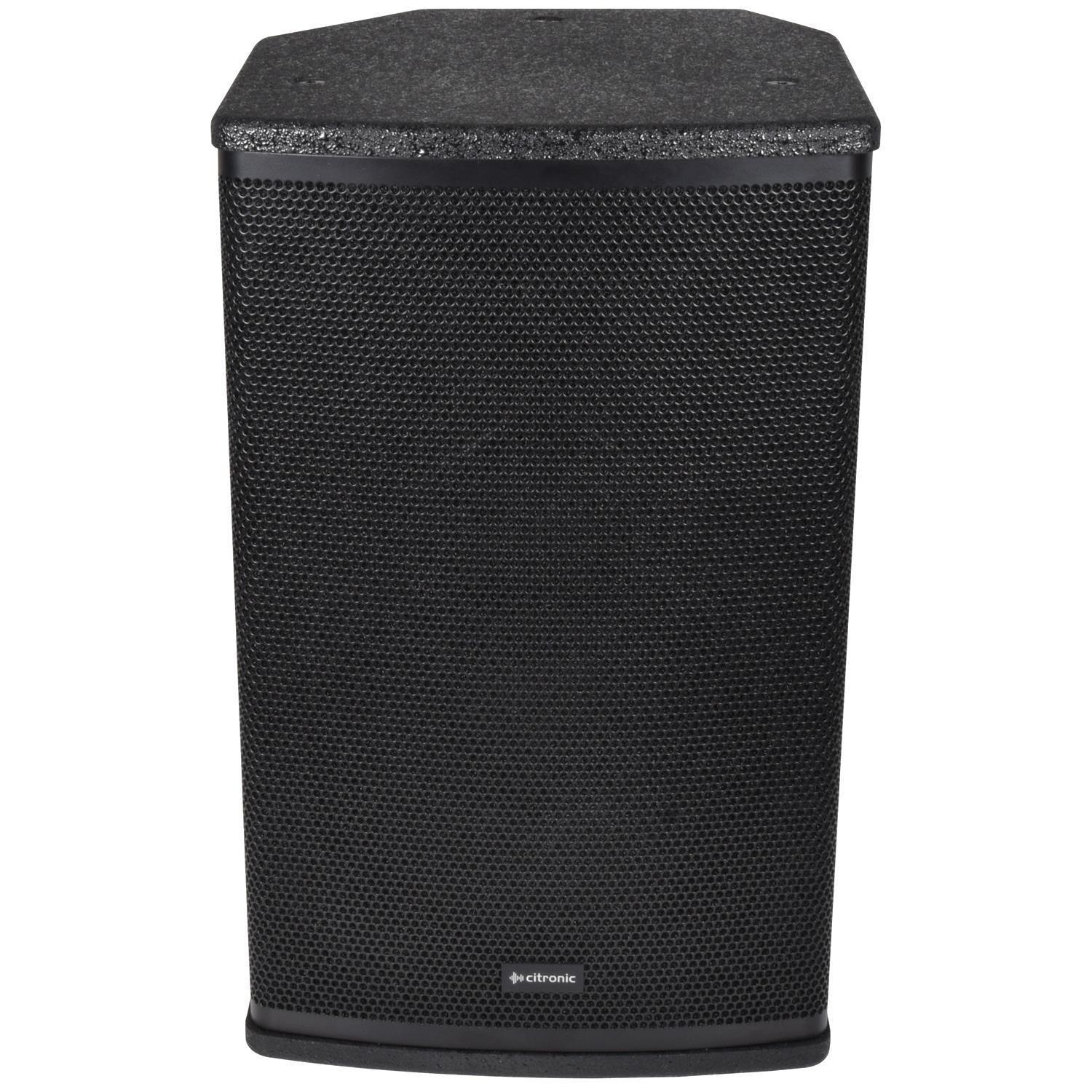

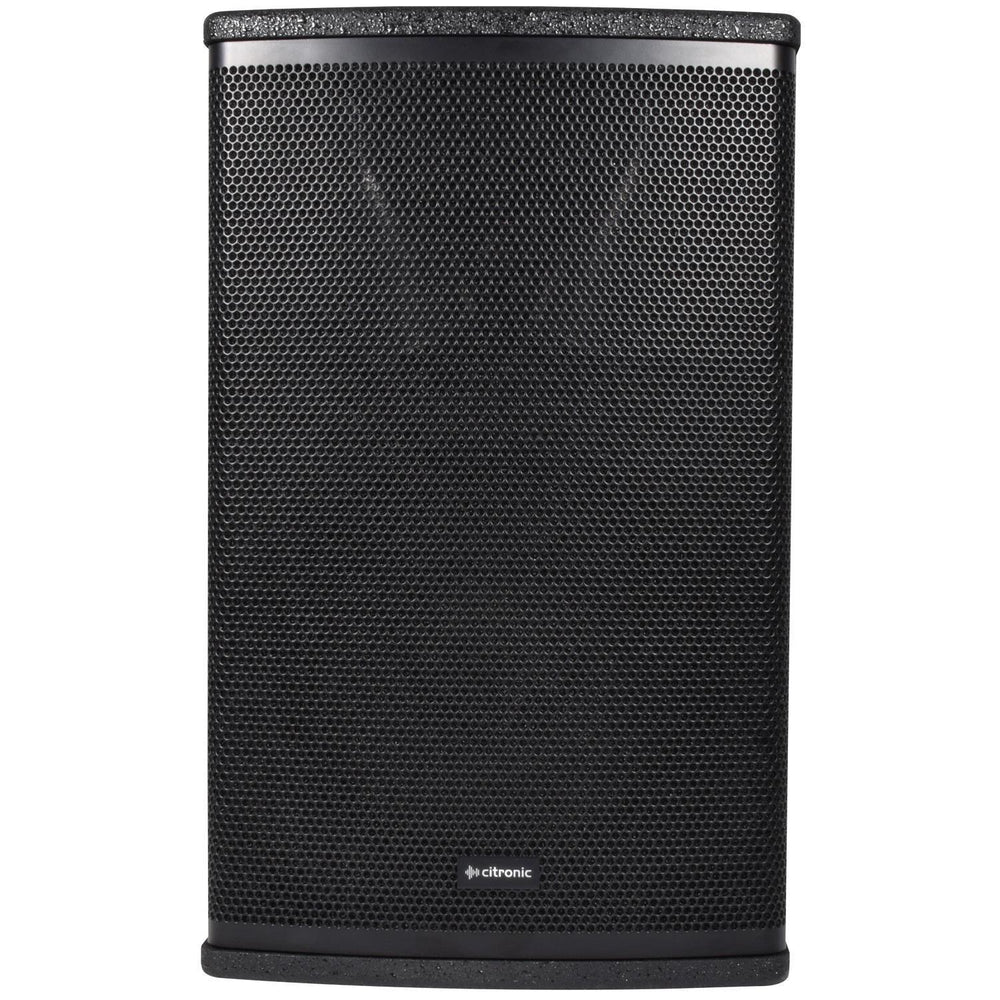

Citronic CUBA-10A 10" Active PA Cabinets with DSP & Bluetooth
Product Description
Premium full-range active speaker cabinets with minimalist texture coated MDF enclosure and powder-coated steel grille. Integral high-efficiency class-D amplifier sections are controlled by a 5-preset DSP which controls high detail and can extend the response down to sub-frequencies for an uncompromising full-range output. A switchable Mic/line input and a line input have XLR or jack input and the line input also has RCA option and a Bluetooth receiver for wireless playback from a smart phone. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Designed to provide clean, high-energy output across the full audio spectrum for all sound reinforcement applications.
- Efficient and lightweight class-D bi-amplifier
- High power full-range output
- 5 profile DSP section
- Bluetooth receiver
- Power supply230Vac, 50Hz (IEC)
- DSP settingsNormal, DJ. Voice, Live, Flat
- InputsMic/line (XLR/jack), Line (RCA/XLR/jack), Bluetooth
- Line outputXLR
- ConstructionPolyurea coated MDF + powder-coated steel grille
| Main driver | 250mmØ (10") | |||
|---|---|---|---|---|
| Voice coil | 50mmØ (2") | |||
| HF driver | 35mmØ (1.35") Ti compression driver | |||
| Output power : rms | 270W | |||
| Output power : max. | 540W | |||
| Frequency response | 60Hz-20kHZ | |||
| Sensitivity | 95dB | |||
| Max. SPL | 122.5dB | |||
| Dimensions | 507 x 313 x 307mm | |||
| Weight | 16.2kg |
