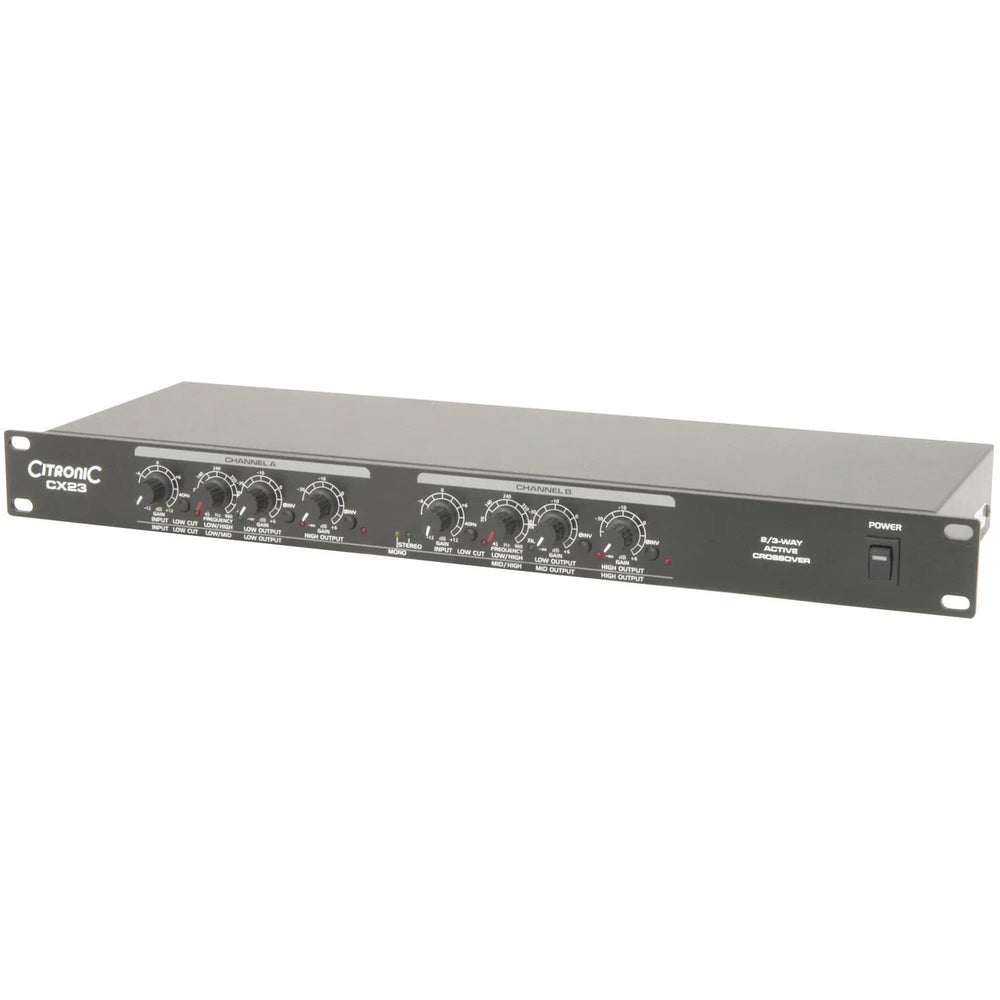

Citronic CX23 Active Crossover 2 / 3 / 4 Way
Brand: Citronic
SKU: 170.929UK
£79.00
£99.00
SALE
Only 15 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
- 2-way stereo, 3-way mono crossover
- 19" rack mountable
- Butterworth filters - 18dB/octave
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function

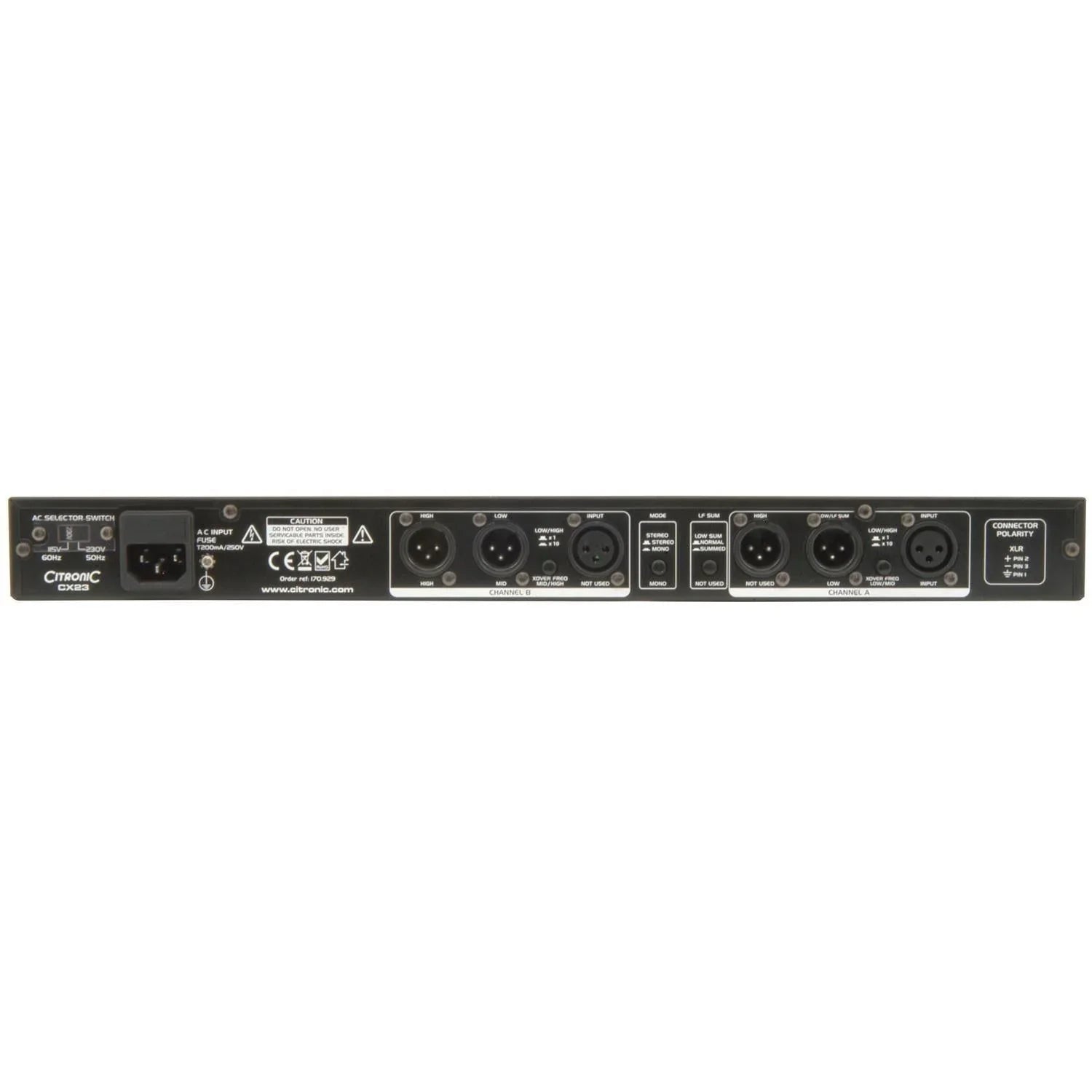

- Inputs and outputs via XLR
- Power supply115/230Vac, 50/60Hz (IEC)
- Input impedance : balanced40k ohms
- Input impedance : unbalanced20k ohms
- Output impedance220 ohms
- Crossover ranges : stereo50Hz-5kHz;750Hz-7.5kHz
- Crossover ranges : mono50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
- Filter slope18dB/octave
- Frequency response20Hz-25kHz +0/-1dB
- Signal to noise ratio>90dB
- THD0.006%
- Dimensions482 x 44 x 170mm
- Weight2.5Kg
