Description

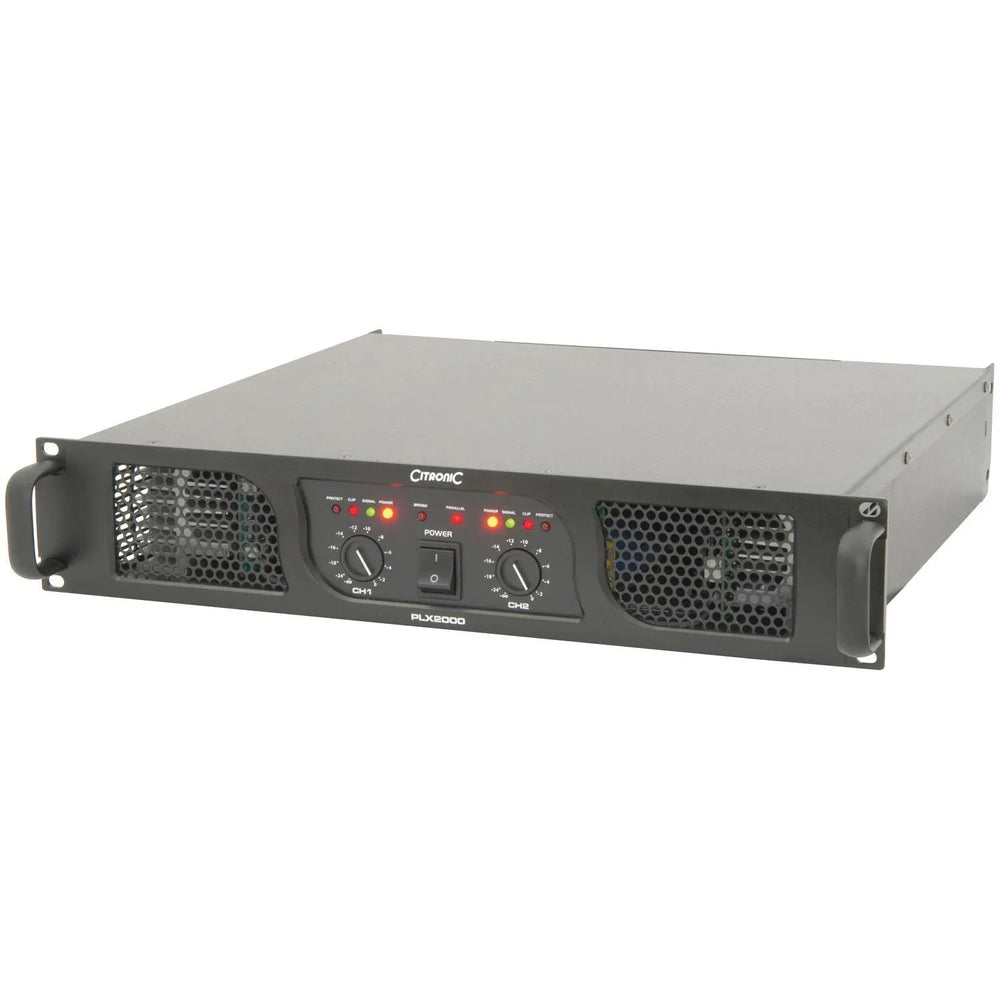

PLX Series Power Amplifiers

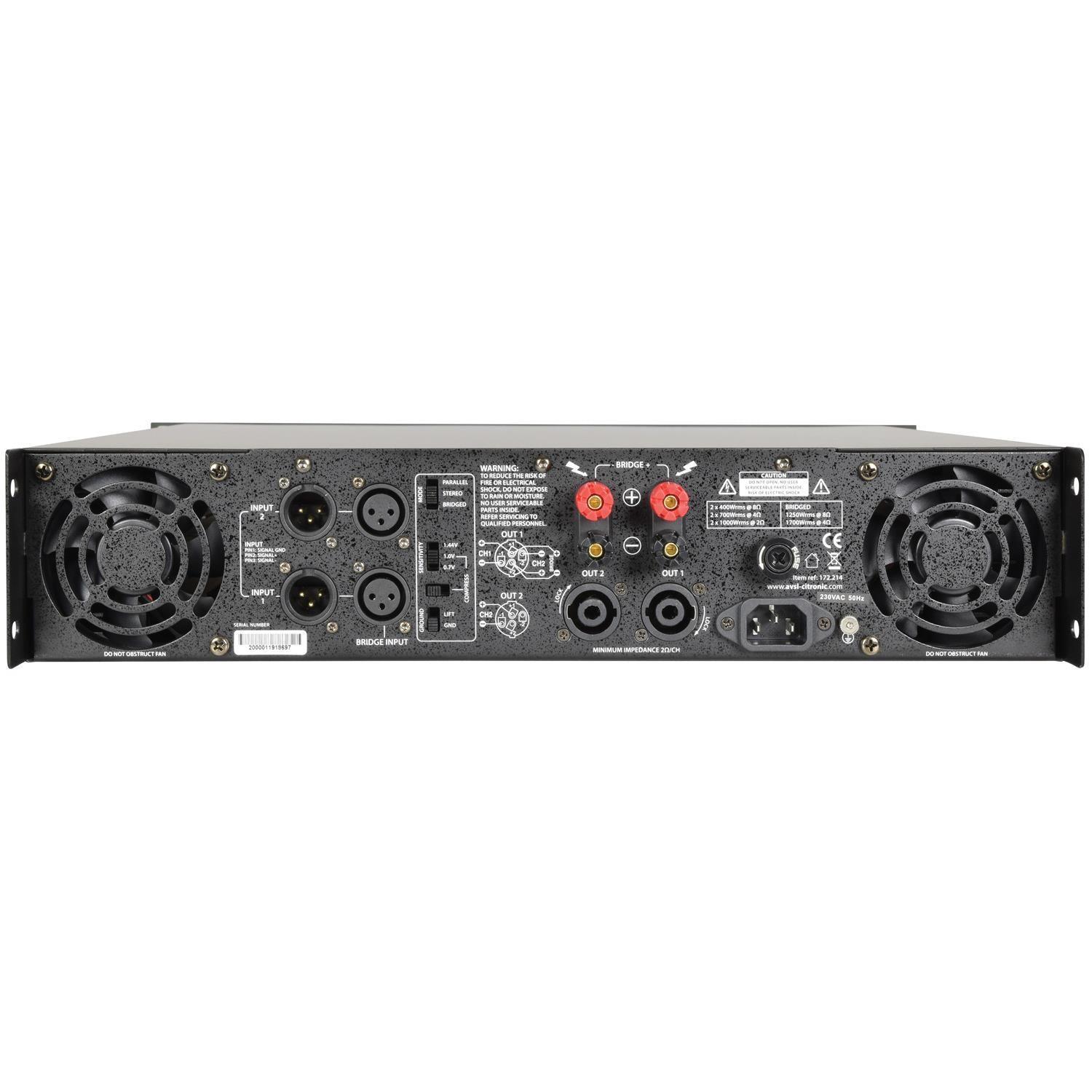

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
- Bridge mode for high power mono operation
- Output stable down to 2 Ohms
- Removable handles for low profile install
- Switchable clip limiter
- Power supply230Vac, 50Hz (IEC)
- ControlsLevel channel 1, level channel 2, ground, mode, clip limiter
- Input impedance20k ohms
- Frequency response5Hz - 50kHz
- Total harmonic distortion0.05%
- Slew rate40V/us
- Damping factor>400
- ProtectionShort-circuit, overload, D.C. and thermal protect
- Dimensions482 x 453 x 88mm (2U)
| Fuse | F8A (6 x 32mm) | ||
|---|---|---|---|
| Amplifier : construction | Class-AB | ||
| Power rms @ 2 Ohms | 2 x 1000W | ||
| Power rms @ 4 Ohms | 2 x 700W | ||
| Power rms @ 8 Ohms | 2 x 400W | ||
| Power rms bridge @ 4 Ohms | 1700W | ||
| Power rms bridge @ 8 Ohms | 1250W | ||
| Weight | 22.5kg |
