Citronic USB Audio Interface 3 Channel Audio Interface
Product Description
esktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with deparate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.
- 2 XLR/jack microphone inputs with gain and mute control
- Separate instrument 6.3mm jack input
- 48kHz sample rate
- Inbuilt echo effect

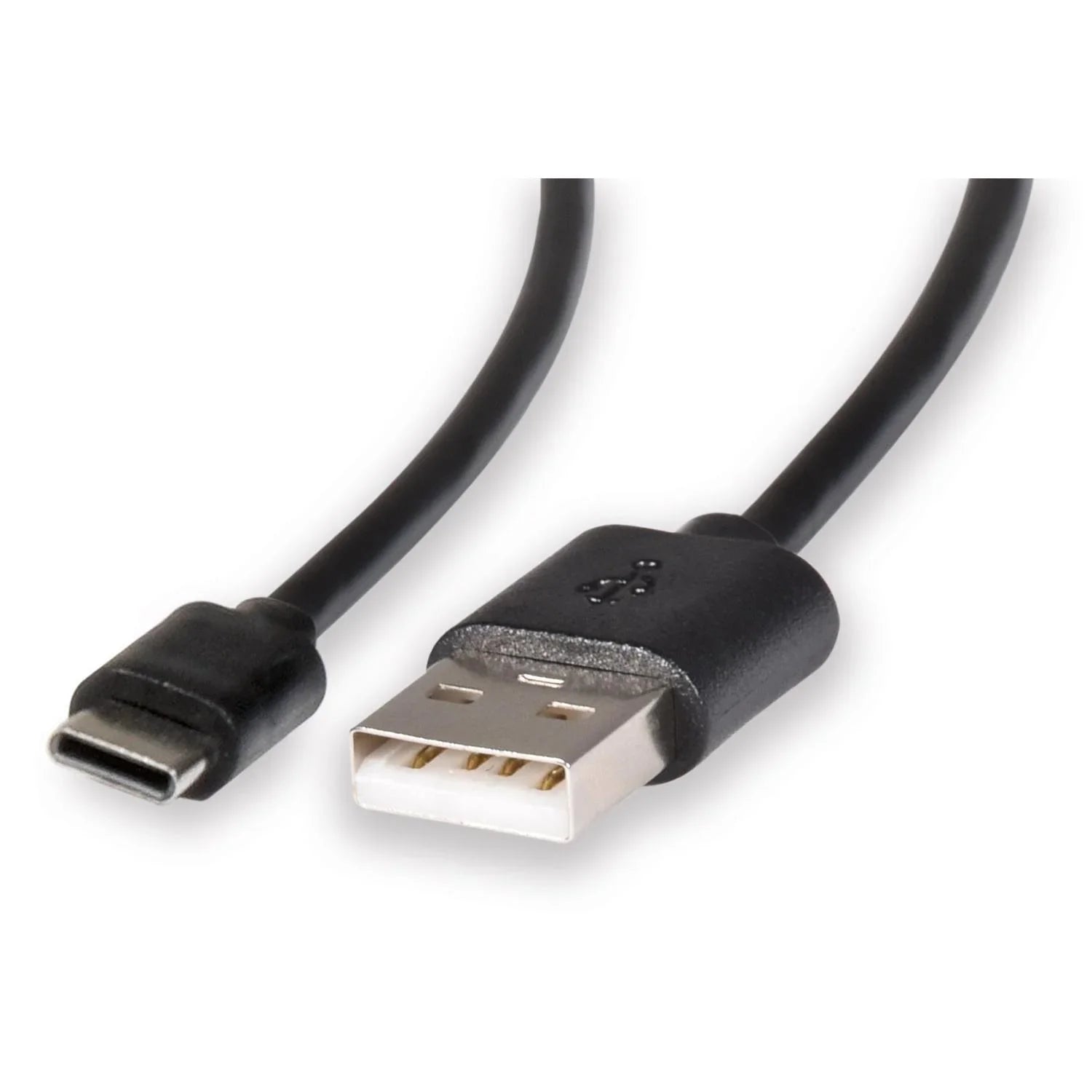

- 1.5m USB type C to A lead supplied
- Power supply5Vdc (from USB)
- ConnectionUSB type-C

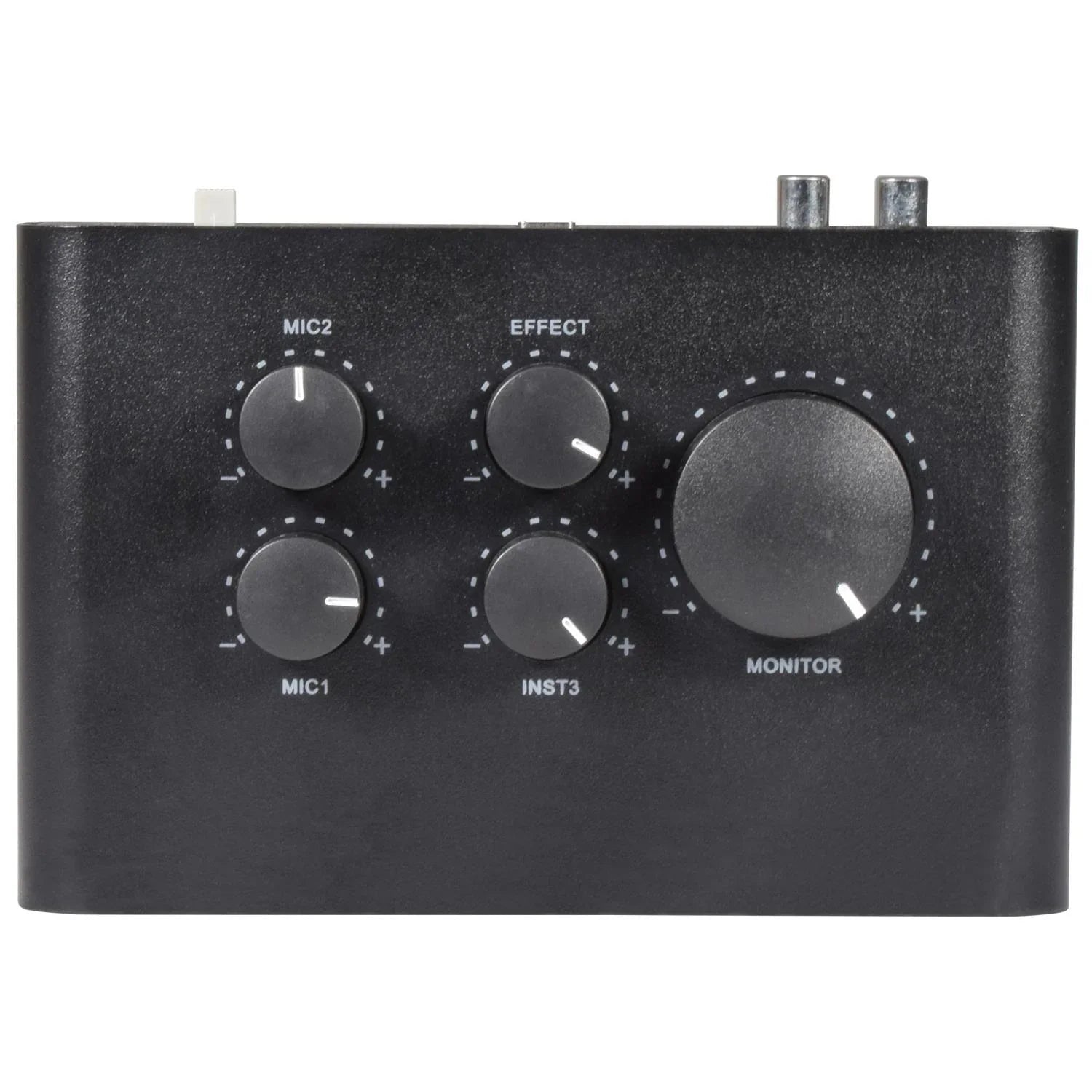

- ControlsMic1, Mic2, Inst3, Effect, Monitor

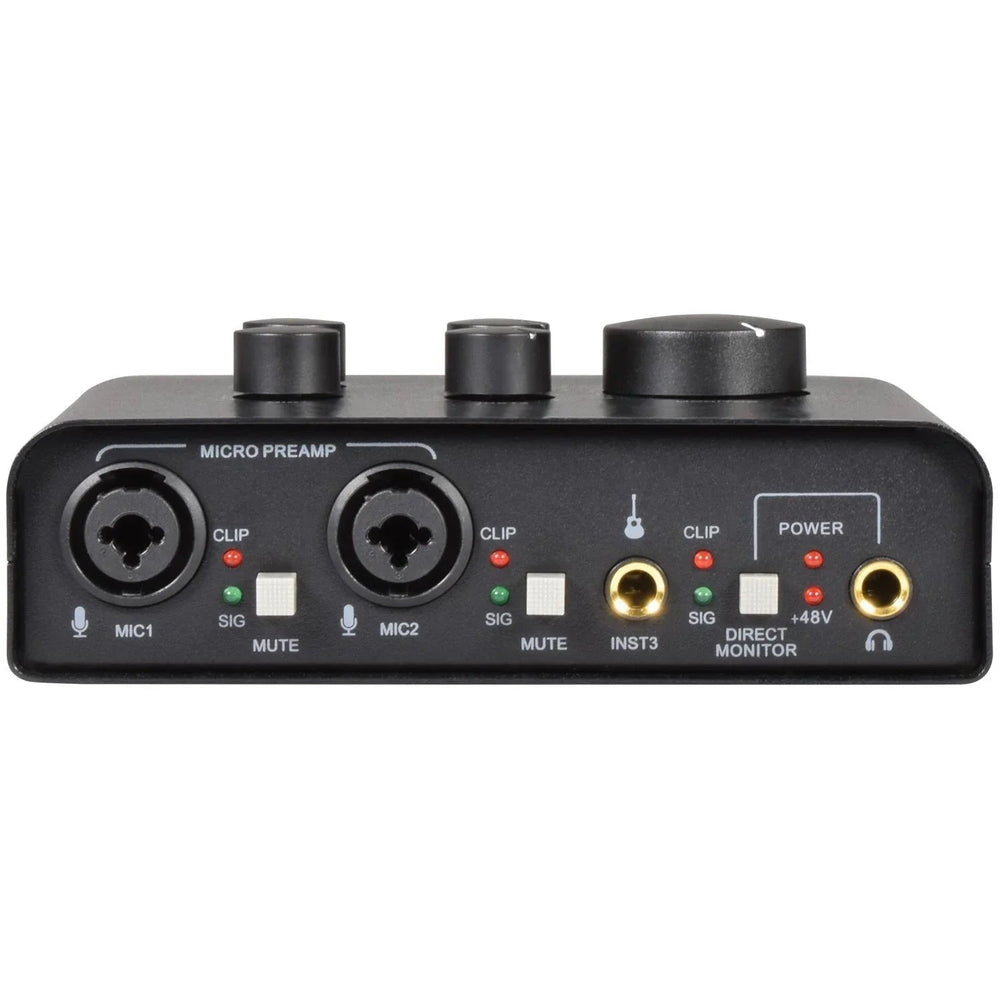

- Input connections2 x mic XLR/Jack, 1 x 6.3mm instrument jack
- Phantom power+48V switchable to XLR inputs
- Frequency response10Hz - 30kHz (-0.5dB)
- Input impedance : instrument1M Ohm
- Input impedance : mic3k Ohm
- Max. input sound levelMic or Instrument +2dBu, Line +22dBu
- Dynamic range100dB (A-weighted)
- Sampling format48kHz, 16-bit
- Monitor outputsHeadphones (stereo 6.3mm jack), Line out (L+R RCA)
- Dimensions160 x 110 x 57mm
- Weight529g
