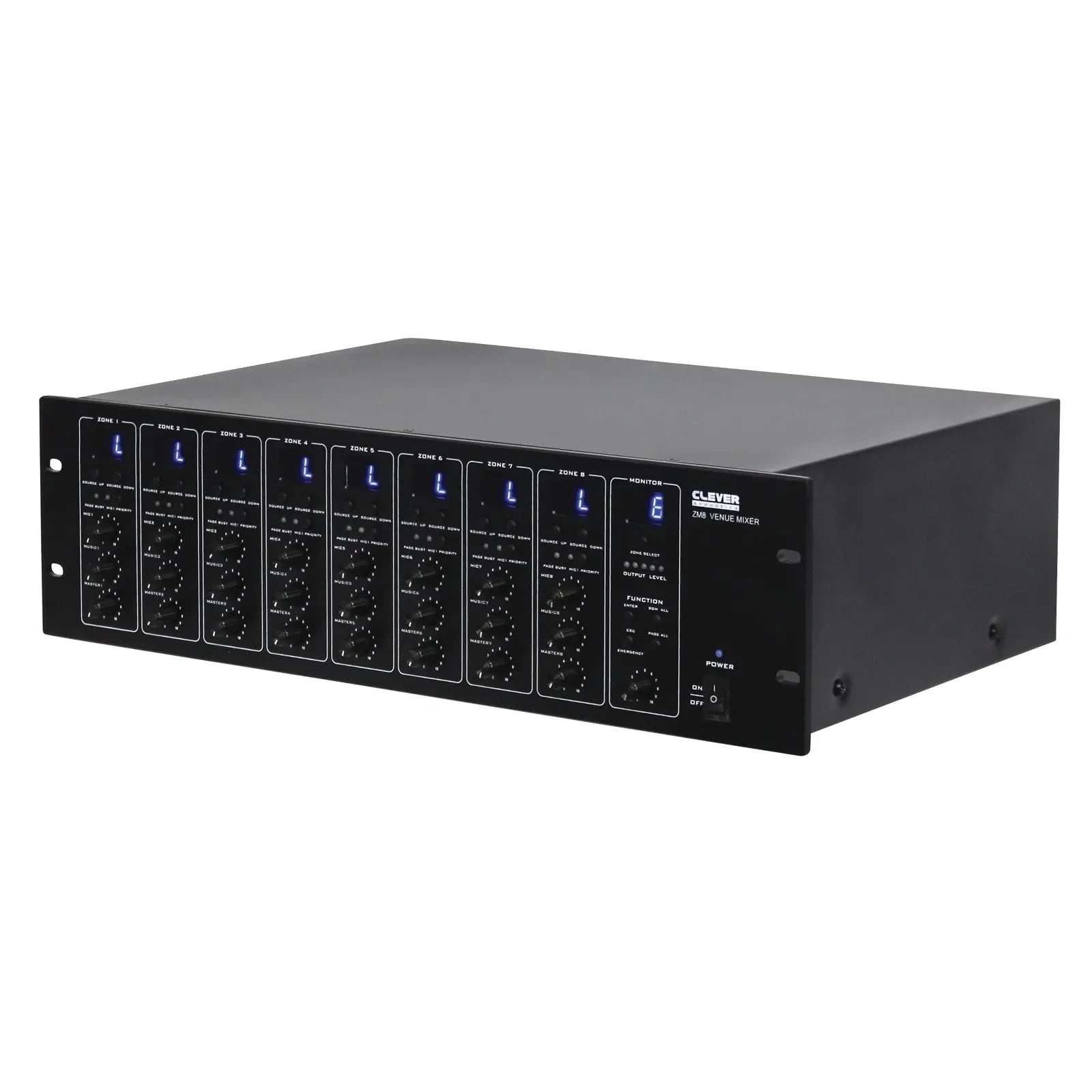

Clever Acoustics ZM 8 Zone Matrix System

The ZM 8 Zone Mixer allows 8 signal sources plus 2 dedicated paging microphones to be routed into 8 separate zones. With the addition of more ZM 8 zone mixers each system is expandable up to a total of 32 zones. Each zone can be controlled remotely via a wall plate which offers great flexibility, whilst control is also available centrally via the master front panel. The ZM 8 zone mixer offers a complete solution for multi-zone, multi-functional venues such as entertainment establishments, hotels, shopping centres and airports. With digital LCD displays of program/local input selection and monitor selection, and LED indication for monitor output level, microphone priority and busy.

• 3 year warranty

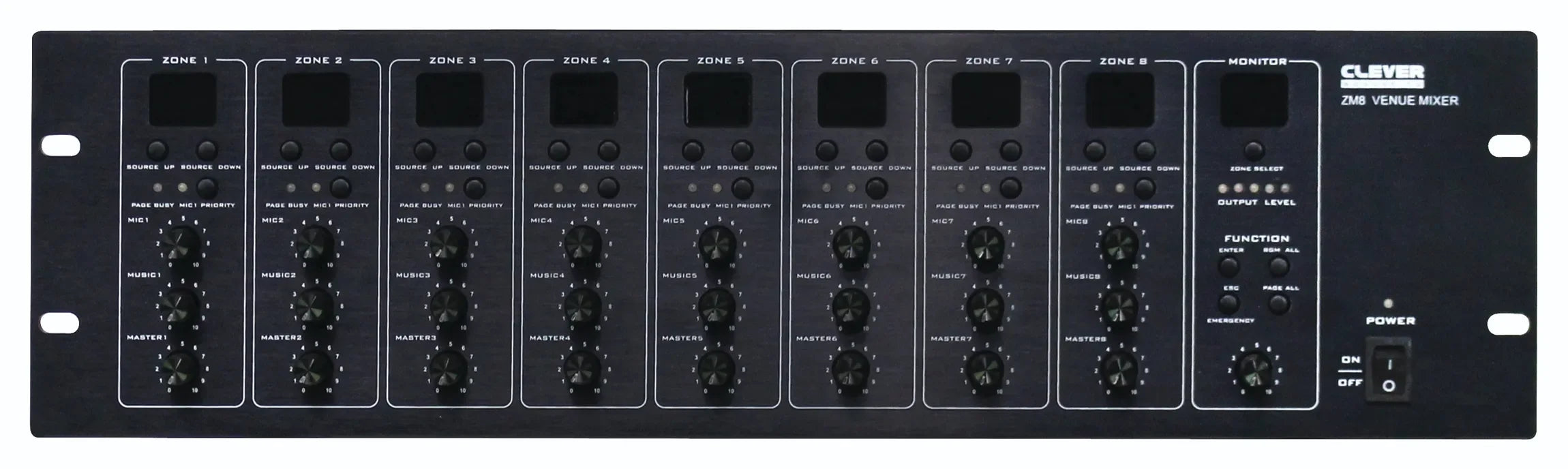

• Each zone output features front panel operator controls for source select, priority mic override, paging mic level, music level and master volume control
• Engineers controls include gain, HF/LF control, paging level control, wall plate enable/disable and remote source gain
• Mic 1 features balanced XLR, gain control and LF and HF tone adjustment

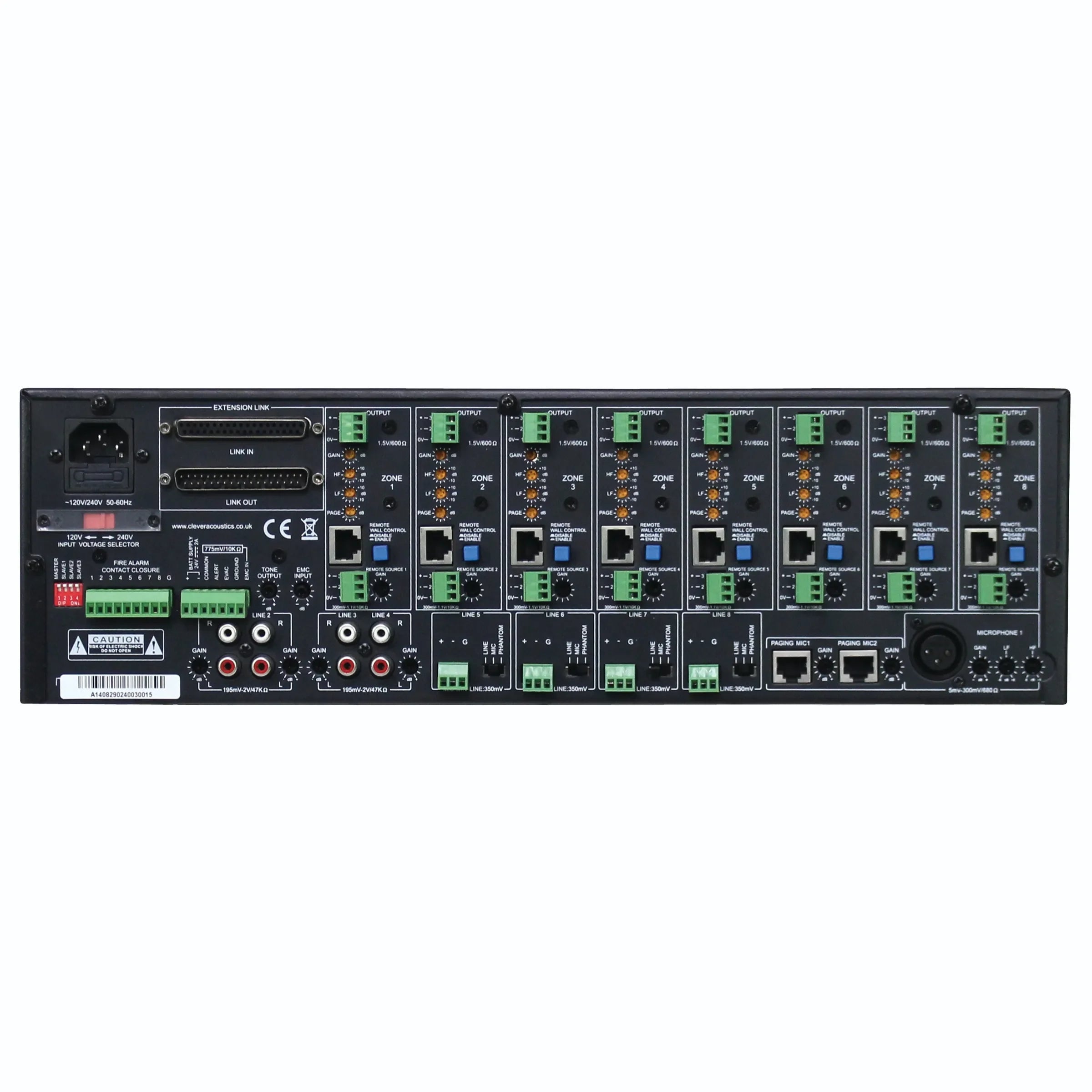

• Paging mic inputs 1 and 2 located on rear panel feature audio input via RJ45 for use with the PM ZM8 paging microphone and gain control
•  8 zone voice alarm contact closure to activate built-in tone voice alarm
• Full fire alarm relay functions (alert, evacuation and alarm; three pre-recorded chimes are provided with tone control)
• EMC and ground for external voice alarm generator input
•  4 swift keys for direct all channel BGM and paging access
• Priority from high to low: mic 1, fire alarm, remote paging console, remote control panel and background music
• AC 220V-240V and DC 24V operating voltage
• Monitor output with volume

• Outputs: 0.775V / 600Ω
• Frequency response (MIC): 80Hz-18KHz (+1/-3dB)
• Frequency response (Line): 20Hz-20KHz (+1/-3dB)
• Power supply: 110V/60Hz and 240V/50Hz or DC 24V
• Power consumption: 20W
• Dimensions (H x W x D): 132 x 484 x 304mm
• Weight: 10.3kg
