Clever Acoustics

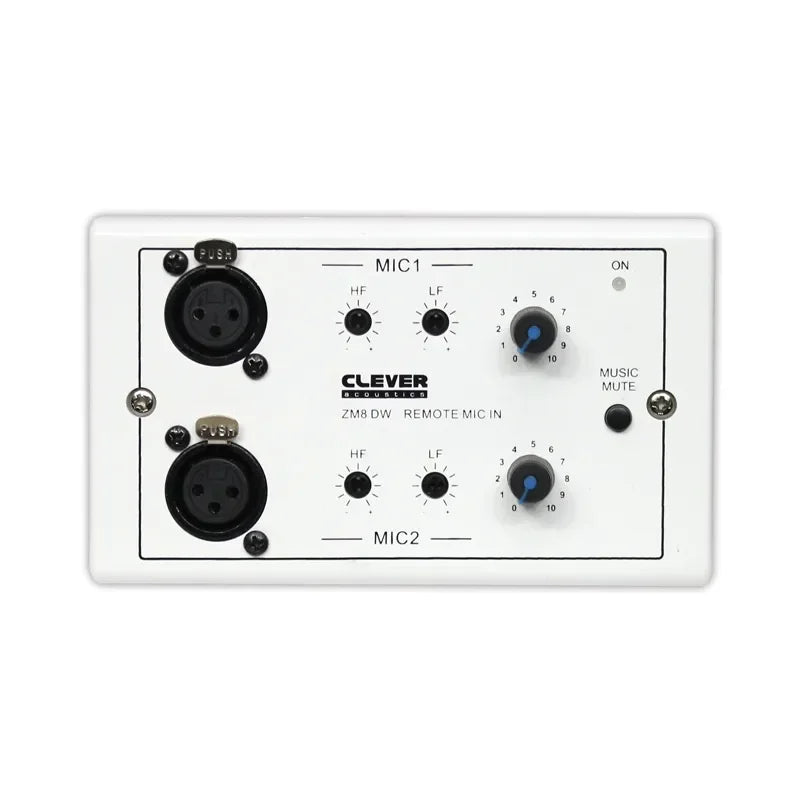

Clever Acoustics ZM Wall Plates
SKU: CRAM19C
£59.00
✓ In Stock (15+ Available)
Quantity:
Trusted Payments
We accept Visa, Mastercard, Klarna, and PayPal Credit for your convenience.
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
Dedicated wall plate for the ZM 8 Zone Mixer. Installation of the plates requires simple, easy connection via standard RJ45 terminated CAT5e cable.
- 3 year warranty
- Zone LED indicator with up/down buttons
- Volume controls provided
- DC 24V power supply from controller
- Metal back box supplied
- Two remote microphone inputs with volume, bass, and treble controls
- Both mic signals are sent using single CAT5e cable
- Only for use with the ZM 8 Zone Mixer (CRAM19)
- Serial communication speed: 4800bps
- Communication port: RJ45
- Communication protocol: RS485
- Serial communication distance: 1km maximum
- MIC input sensitivity: 5mV/600Ω
- Audio output: 0dB/600Ω
- Frequency response: 50Hz-18kHz (±1dB)
- S/N ratio: >65dB
- THD: <0.1% @ 1kHz
- Power consumption: 5W
- Power supply: DC 24V
- Dimensions (H x W x D): 86 x 146 x 48mm
- Weight: 150g
