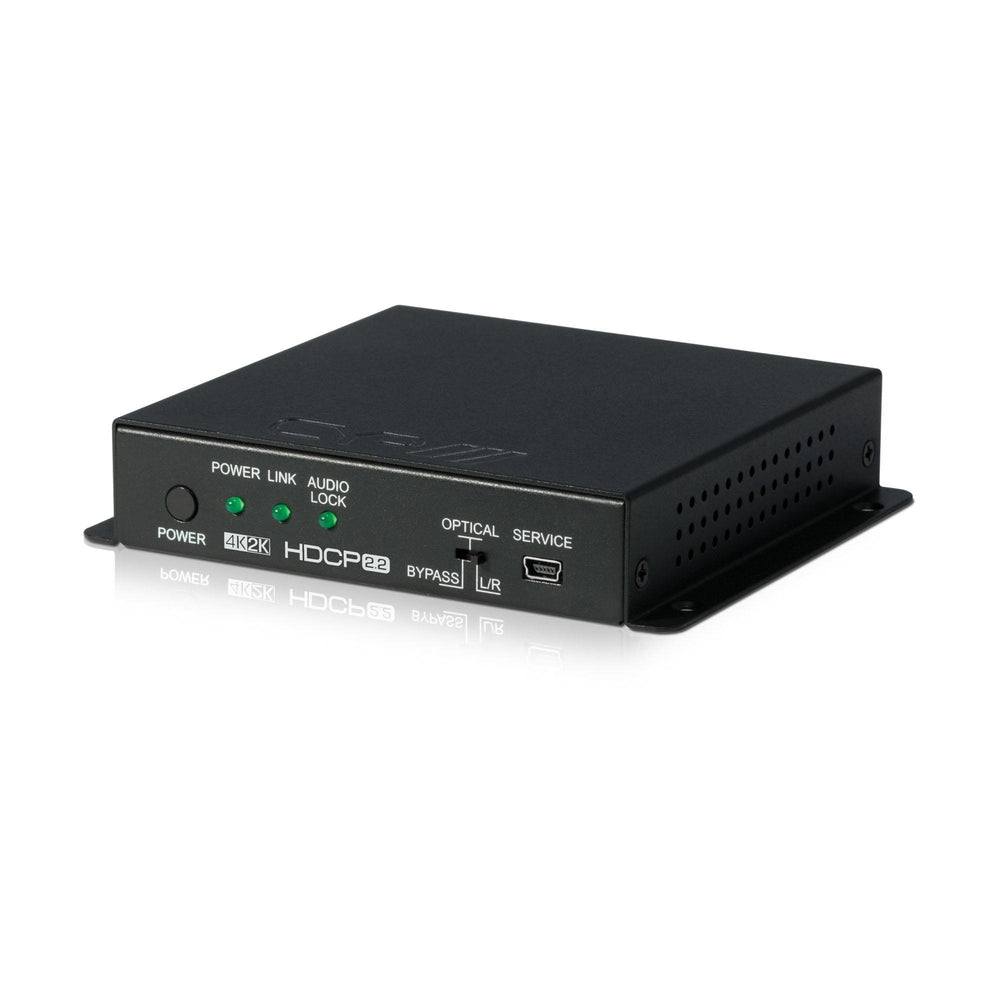

CYP AU-11CA-4K22 Full 4K HDMI Audio Embedder with Repeater
Brand: CYP
SKU: CYP026
£284.58
Only 5 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
Insert external analogue stereo or optical digital stereo/multichannel audio into an HDMI signal. This HDMI 2.0/HDCP 2.2 audio embedder supports 4K video and also boosts the HDMI signal. At full 1080p, HDMI amplification and equalisation support cable runs of 10m on either side of the device.
Features
- HDMI 2.0, HDCP 2.2 and DVI compliant
- HDTV resolutions: 3840 x 2160 and 4096 x 2160 at 24, 25, 30, 50 or 60Hz, YUV 4:4:4
- HDMI audio bypass supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
- HDMI high-bit-rate audio support
- Selectable audio source for embedding into HDMI
- HDMI and optical S/PDIF sampling rates up to 192kHz
- Optical input supports LPCM stereo, DTS and Dolby Digital
- CEC bypass
- HDMI amplification/equalisation: 10m cables on either side at full 1080p
Specifications
- Inputs: one HDMI 2.0 uncompressed AV/data, one 3.5mm analogue-stereo mini-jack, one Toslink optical two-channel LPCM and one USB 3 Type-B service/power/data port
- Output: one HDMI 2.0 uncompressed AV/data
- PSU: 5V/2.6A
- Dimensions (H x W x D): 25 x 128 x 108mm
- Net weight: 360g
- Gross weight: 740g
- Packed quantity: 20
