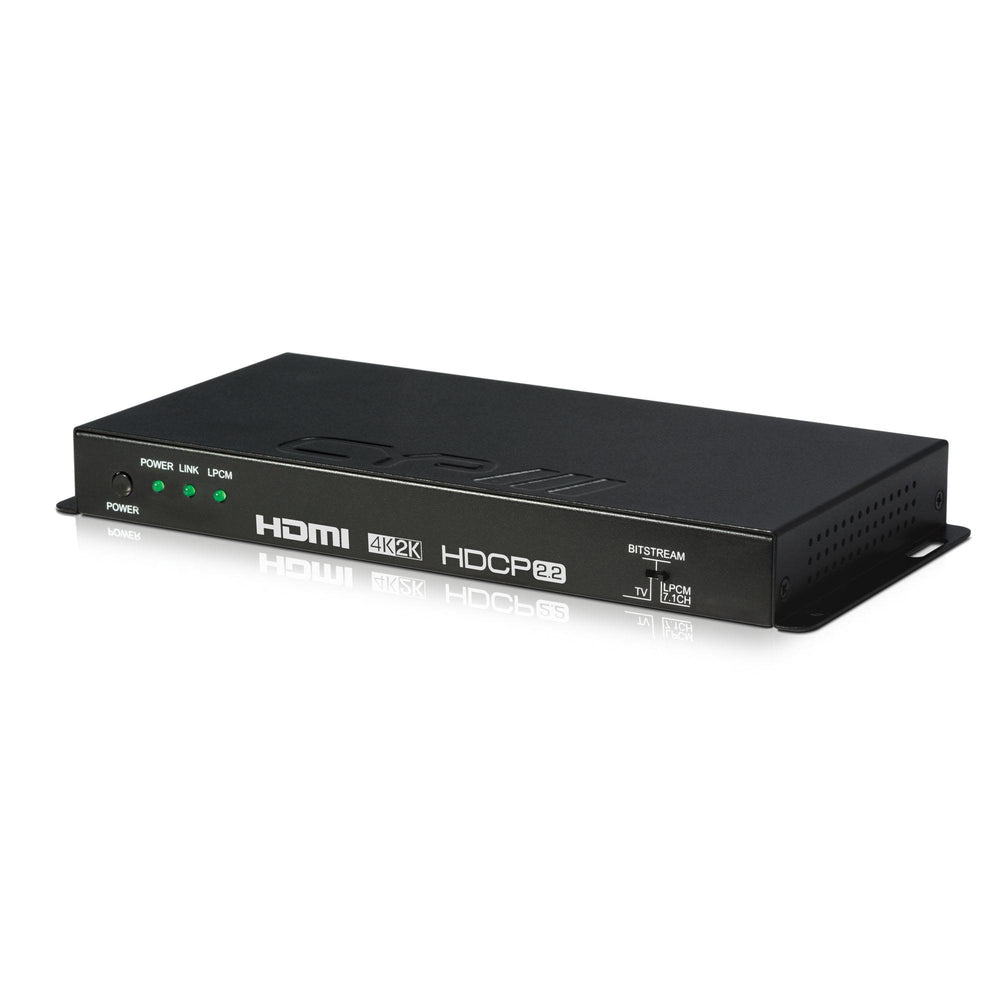

CYP AU-11SA-4K22 Full 4K HDMI Audio De-embedder with 7.1 Analogue Output
Brand: CYP
SKU: CYP029
£325.62
Only 5 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
Extract two-channel or multichannel audio from HDMI to 7.1 analogue outputs or 5.1 optical output, while retaining HDMI bypass. Supports 4K video, HDMI 2.0 and HDCP 2.2, with high-resolution HDMI audio bypass and sampling rates up to 192kHz.
Features
- HDMI 2.0, HDCP 2.2 and DVI compliant
- HDMI audio decoder with built-in repeater
- HDTV resolutions: 3840 x 2160 and 4096 x 2160 at 24, 25, 30, 50 or 60Hz, YUV 4:4:4
- Optical output: LPCM, Dolby Digital and DTS up to 5.1
- HDMI bypass: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Analogue audio outputs support LPCM 2-channel, 5.1 and 7.1
- Audio sampling rates up to 192kHz
- HDMI high-bit-rate audio support
Specifications
- Input: one HDMI 2.0 uncompressed AV/data
- Outputs: one HDMI 2.0 and one Toslink optical Dolby Digital, DTS or two-channel LPCM
- Eight RCA analogue mono outputs: front left, front right, front centre, low-frequency effect, rear left, rear right, rear left centre and rear right centre
- PSU: 5V/2.6A
- Dimensions (H x W x D): 25 x 231.5 x 108mm
- Net weight: 620g
- Gross weight: 1.02kg
- Packed quantity: 10
