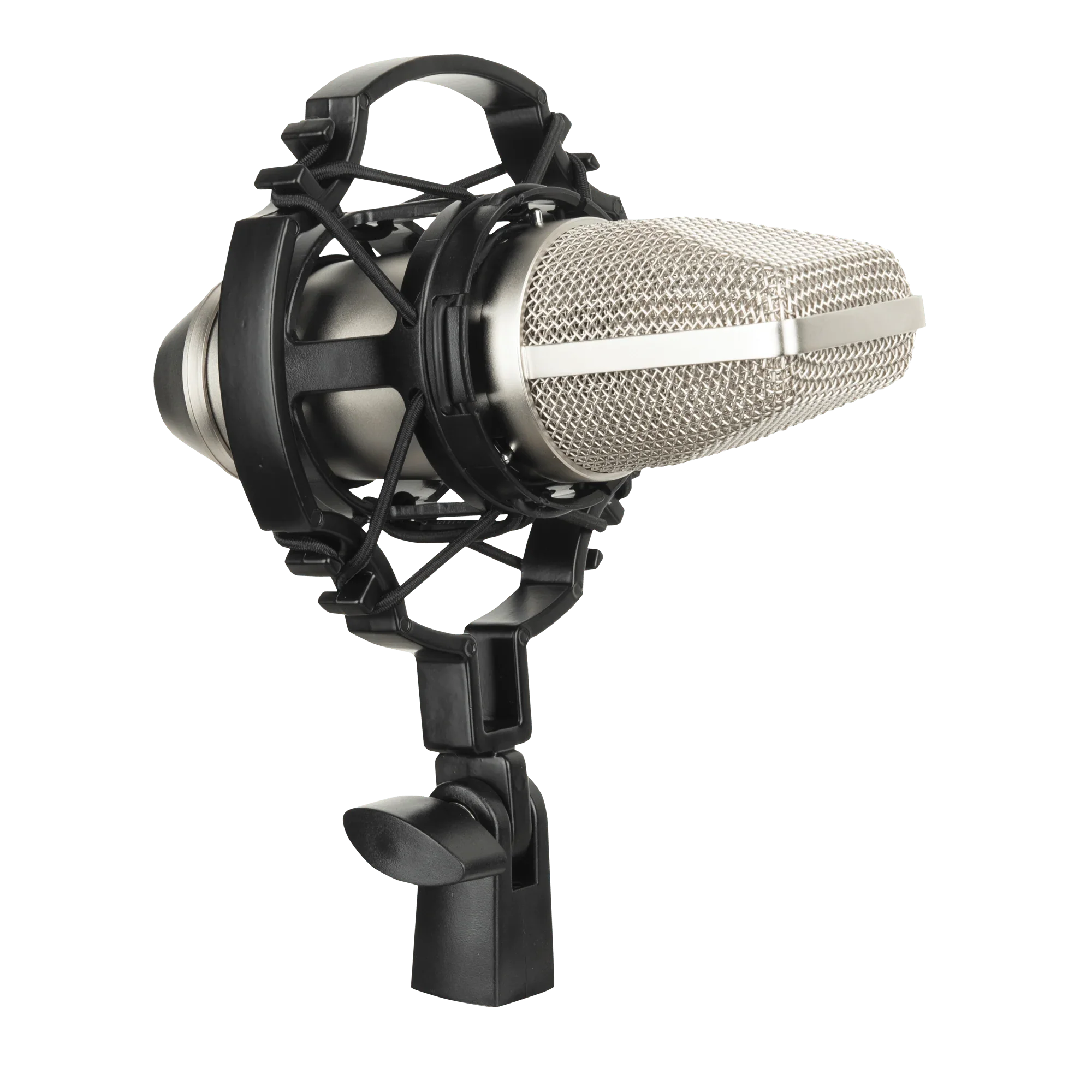

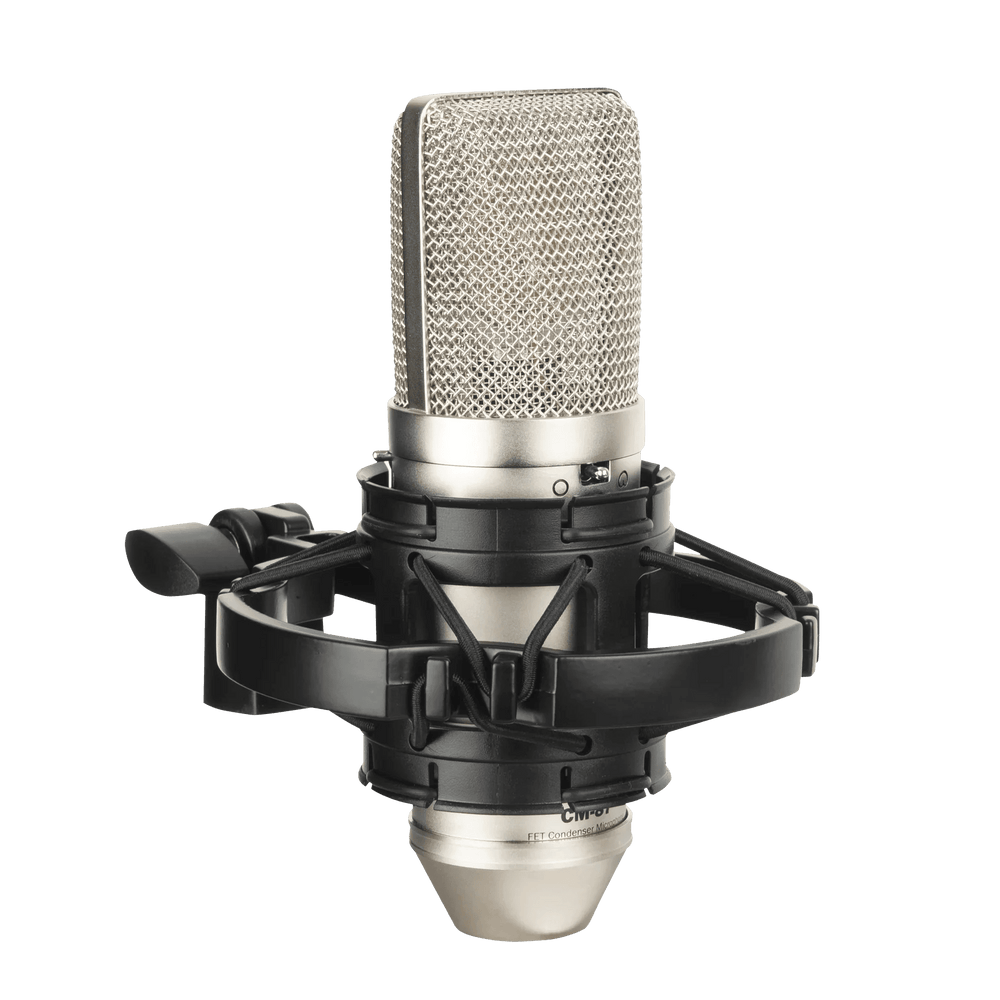

DAP CM-87 Large-diaphragm FET Condenser Studio Microphone

The DAP CM-87 is a large-diaphragm FET condenser studio microphone suitable for perfectly capturing vocals, acoustic ensembles and orchestras. Depending on the type of recording, you can change the pick-up pattern to cardioid (front), figure-of-8 (front and back) or Omnidirectional (all directions). This makes it a versatile and widely applicable studio microphone.

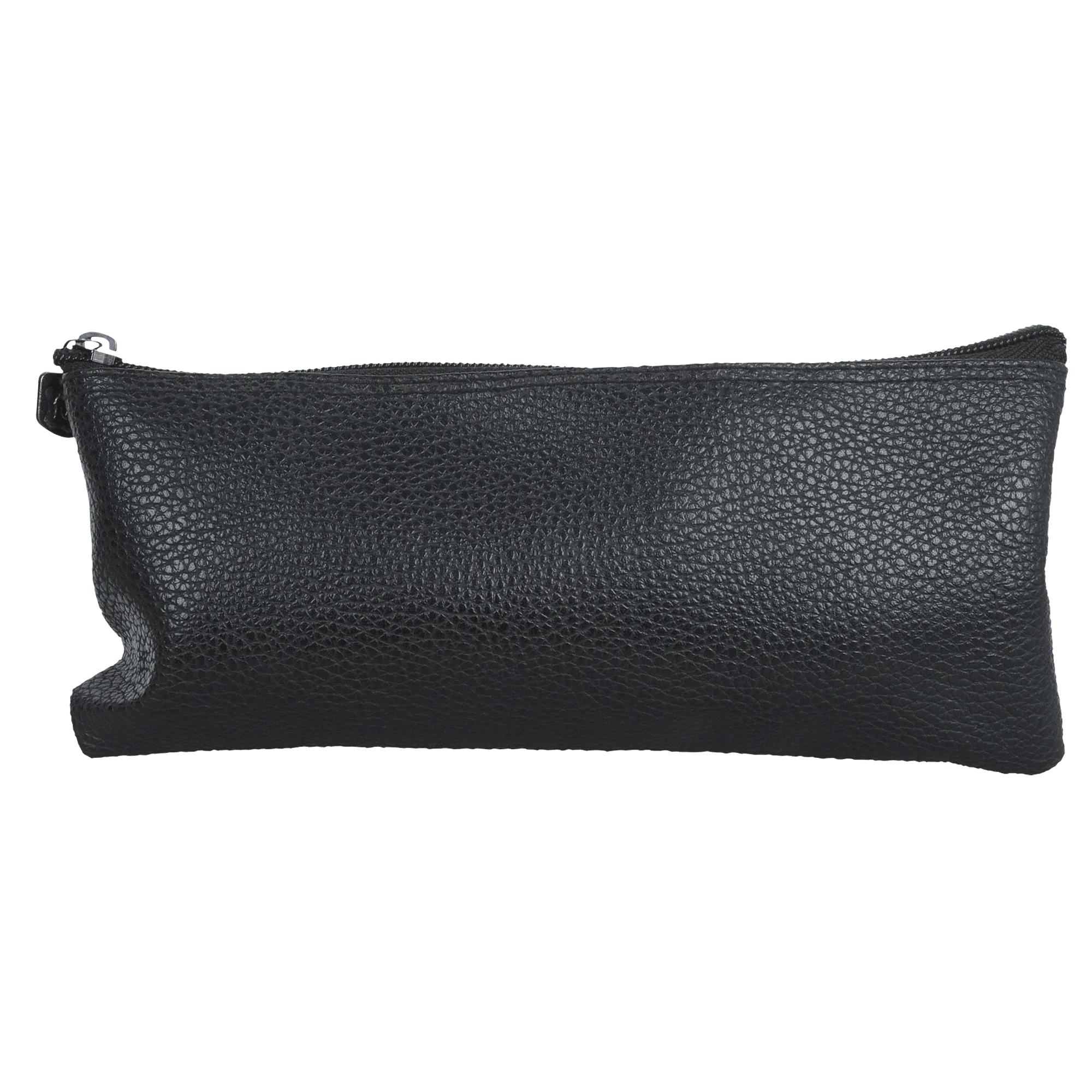

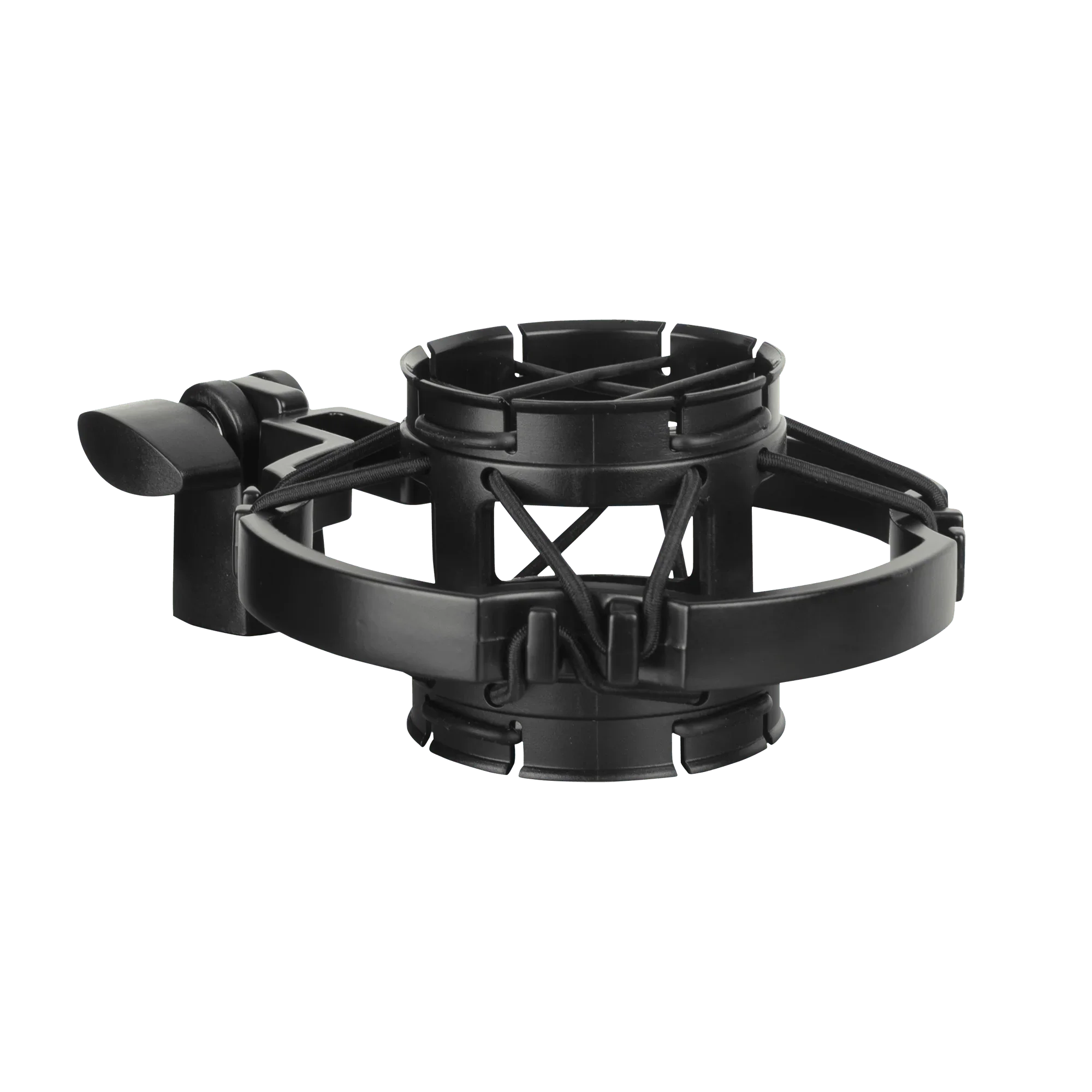

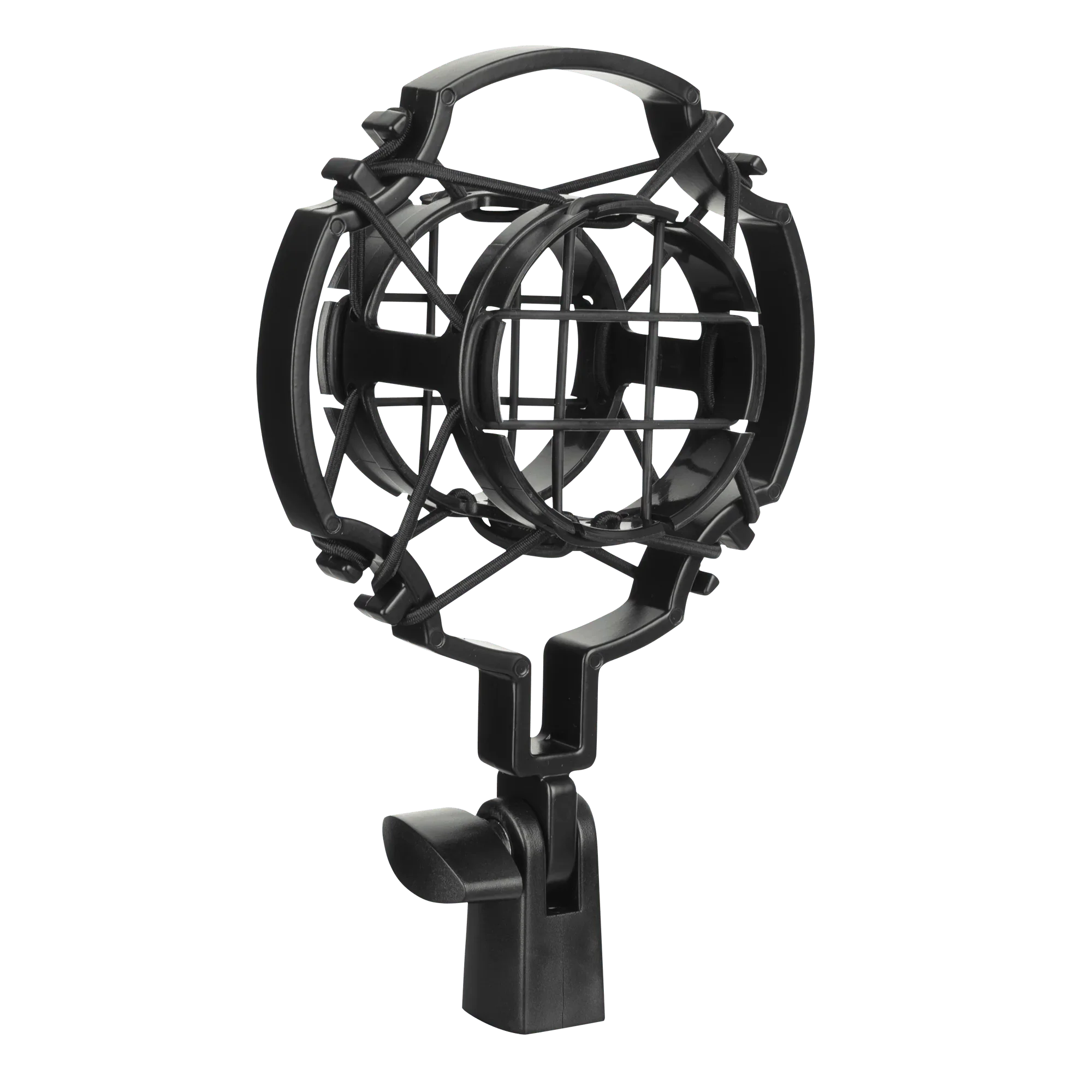

The CM-87 has a large diaphragm which is especially fit for studio recordings or other places with little ambient sounds. A shock mount is included for eliminating unwanted low-frequency rumble, such as structure-borne noise. Besides, a leather pouch is included for safe transport and protection against dust.

Outputs

Microphone Output 1

Microphone Output Connection 3-pin XLR

Microphone Impedance 200 Ω

Audio Specifications

Microphone Type Condenser

Microphone Sensitivity= 8 mV

Polar Pattern Cardioid, Figure-of-8, Omni

Max. SPL 140 dB

Frequency Response Minimum 20 Hz

Frequency Response Maximum 20000 Hz

Phantom Power 48 V

Sound Editing

Attenuation -10dB

Mechanical Specifications

Length (mm) 167 mm

Height (mm) 50 mm

Width (mm) 50 mm

Diameter 50 mm

Weight 0.47 kg

Housing Aluminium

Colour Gray

Product Properties

Thread 3/8, 5/8

Included Items

Included Accessories Leather Pouch, Shockmount
