Description

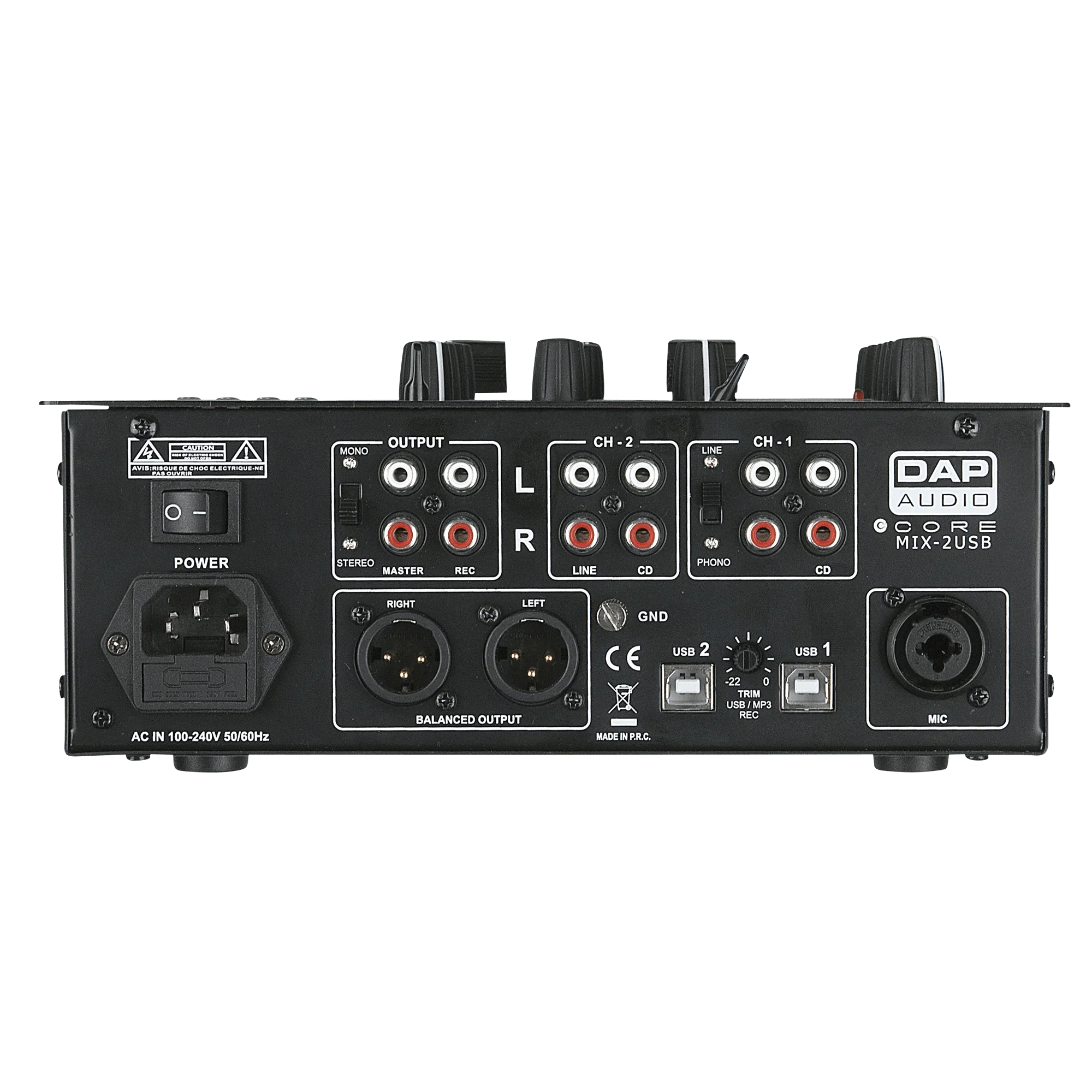

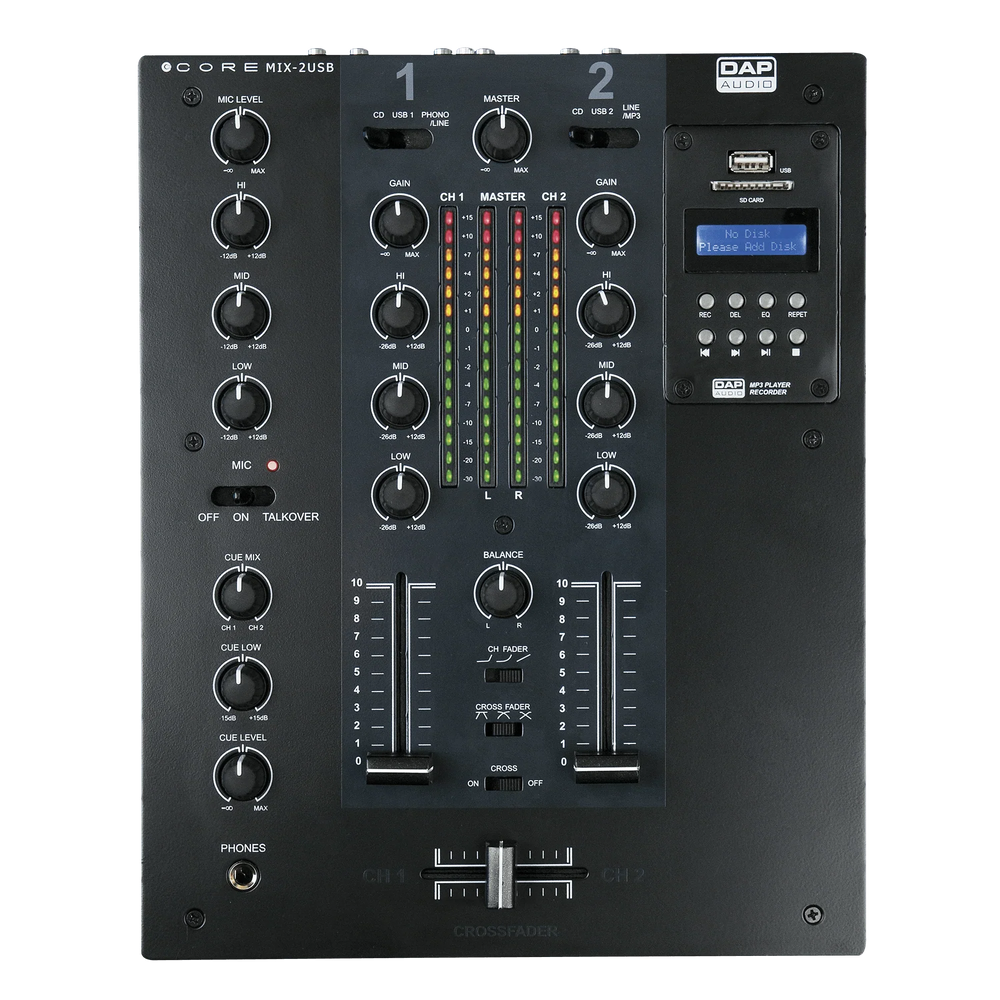

The DAP CORE MIX-2 USB is a basic 2 channel analogue DJ mixer. It has 4 analogue inputs and 2 independent USB-Audio interfaces. This makes it easy to connect your laptop and route the output of your DJ software directly through the MIX-2 USB. The headphone output has a low tone control which makes it possible to adjust your favorite sound. Both channel and cross-faders have fader curve selections. All the pot metres are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It has a MP3 module which can record and playback your life performance directly on an USB or SD device.
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs 4
Stereo Input Connector RCA
Phono Audio Inputs 1
Phono Audio Input Connector RCA
Outputs
Main Outputs 2
Main Output Connector 3-pin XLR, RCA
Monitor Outputs 1
Monitor Output Connector RCA
Headphone Output 1
Headphone Output Connector TS balanced 6.3 mm
Record Output 1
Record Output Connector RCA
Digital Playback
Audio Interface USB Input 2
Audio Interface Input Connection USB-B
Audio Interface Sample Rate 48 kHz
Audio Interface Supported Input Channels 2
Audio Interface Supported Output Channels 2
Extension Module
Audio Module Maximum Storage Size 16 GB
Audio Module Media In/Out SD Card, USB-A
Audio Module Bitrate 128 kbit
Audio Module Sample Rate 441 kHz
Audio Module Playback Functions Delete, Down (Skip), EQ, Pauze, Play, Record, Repeat, Stop, Up (Skip)
Audio Specifications
THD Level < 0.1%
Crosstalk 75 dBu
AD/DA Convertor Sample Rate 48 kHz
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20 Hz
Software Specifications
Supported Operating Systems Mac, Windows
Sound Editing
Parametric Channel Equalizer 3 Bands
Input Channel Equalizer Gain Range 26 dB
Input Channel Fixed Frequencies 70, 1.000,13.000 Hz
Microphone Input Equalizer Gain Range 12 dB
Parametric Microphone Equalizer 3 Bands
Microphone Input Fixed Frequencies 120, 800, 5.000 Hz
Product Properties
LED Indicators Input level, Output level
Control and Programming
Display LCD
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 8 W
Fuse 1 A
Power Connector In IEC
Data Connector In USB
Mechanical Specifications
Fader Length 60 mm
Height (mm) 88 mm
Width (mm) 300 mm
Length (mm) 240 mm
Flightcase Size 10"
Housing Metal
Colour Black
Weight 3.4 kg
IP Rating IP20 (indoor use only)
Included Items
Included Cables IEC cable
