Description

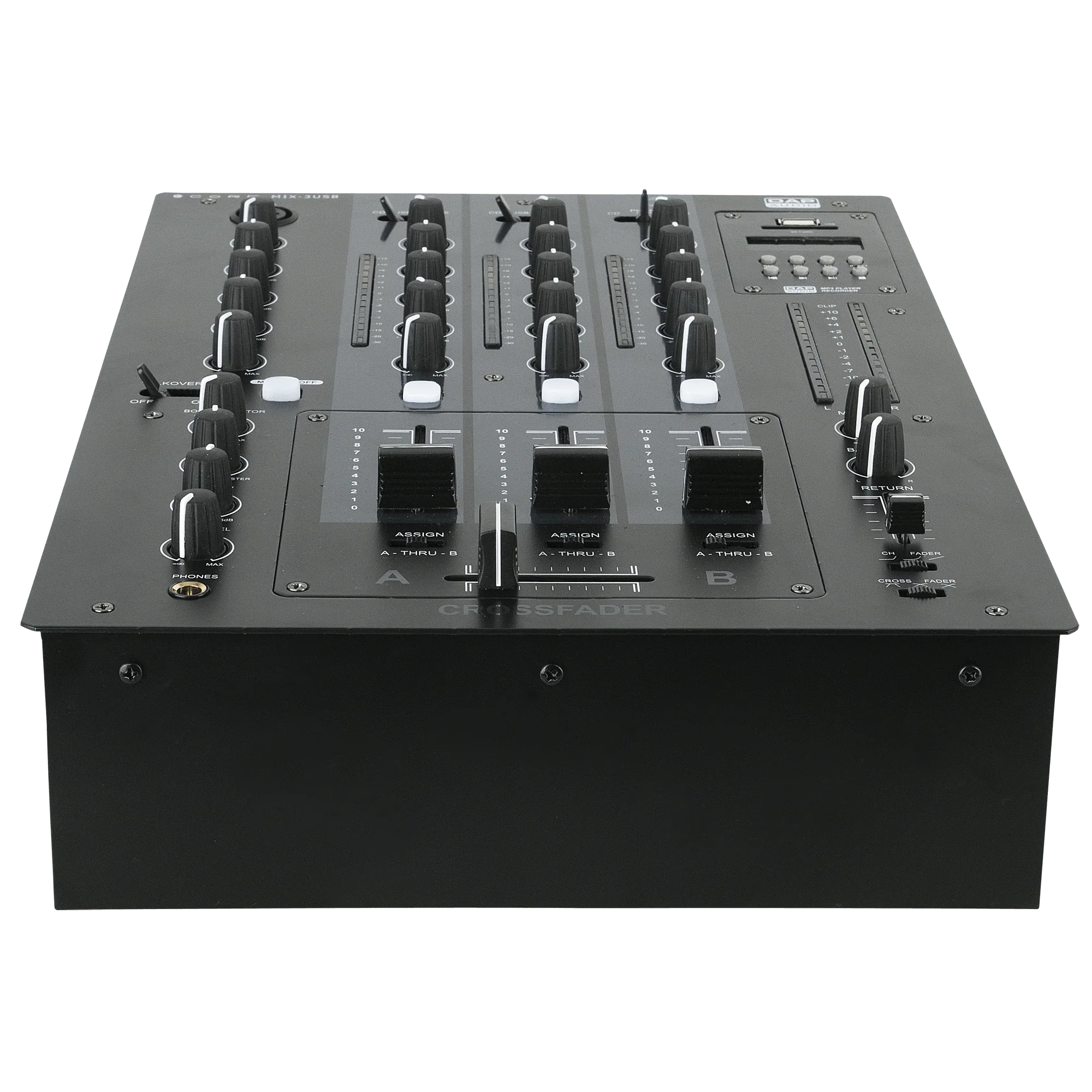

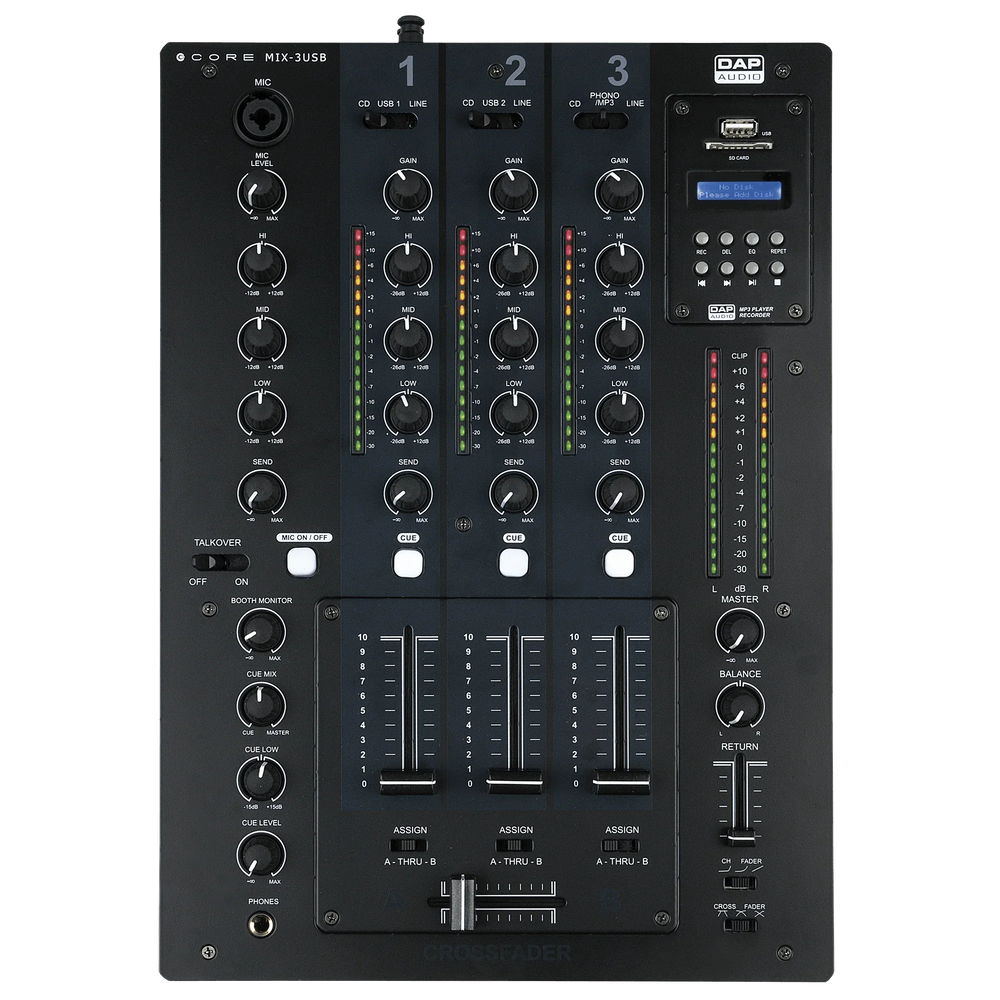

The DAP CORE MIX-3 USB is a DJ mixer with 8 analogue inputs and 2 independent USB-Audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-3 USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a 45 mm fader. The microphone channel has a 3 band EQ, talk-over function and an on/off switch to make MC-ing save and easy for party jocks & MC’s. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot metres are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and has a MP3 module which can record and playback your life performance directly on an USB or SD device.
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs 6
Stereo Input Connector RCA
Phono Audio Inputs 1
Phono Audio Input Connector RCA
FX Return Inputs 1
FX Return Connector RCA
Outputs
Main Outputs 2
Main Output Connector 3-pin XLR, RCA
FX Send Outputs 1
FX Send Connector RCA
Monitor Outputs 1
Monitor Output Connector RCA
Headphone Output 1
Headphone Output Connector TS balanced 6.3 mm
Record Output 1
Record Output Connector RCA
Recording
Record Output File MP3
Digital Playback
Audio Interface USB Input 2
Audio Interface Input Connection USB-B
Audio Interface USB Type 2.0
Audio Interface Sample Rate 48 kHz
Audio Interface Supported Input Channels 2
Audio Interface Supported Output Channels 2
Extension Module
Audio Module Supported Files
MP3
Audio Module Maximum Storage Size
16 GB
Audio Module Media In/Out
SD Card, USB-A
Audio Module USB Type
2.0
Audio Module Bitrate
128 kbit
Audio Module Sample Rate
441 kHz
Audio Module Playback Functions
Delete, EQ, Pauze, Play, Record, Repeat, Stop, Up (Skip)
Audio Specifications
THD Level
< 0.1%
Frequency Response Minimum
20 Hz
Frequency Response Maximum
20000 Hz
Phantom Power
No
Software Specifications
Supported Operating Systems
Mac, Windows
Sound Editing
Parametric Channel Equalizer
3 Bands
Input Channel Equalizer Gain Range
12 dB
Input Channel Fixed Frequencies 70, 1.000, 13.000 Hz
Microphone Input Equalizer Gain Range 12 dB
Parametric Microphone Equalizer 3 Bands
Microphone Input Fixed Frequencies 120, 800, 5.000 Hz
Product Properties
LED Indicators Input level, Output level, Power
Control and Programming
Display 7-segment
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 10 W
Fuse 1 A
Power Connector In IEC
Mechanical Specifications
Fader Length 60 mm
Height (mm) 88 mm
Width (mm) 268 mm
Length (mm) 381 mm
Flightcase Size 12"
Housing Metal
Colour Black
Weight 4.6 kg
IP Rating IP20 (indoor use only)
Included Items
Included Cables IEC cable, USB-A - USB-B cable
