Description

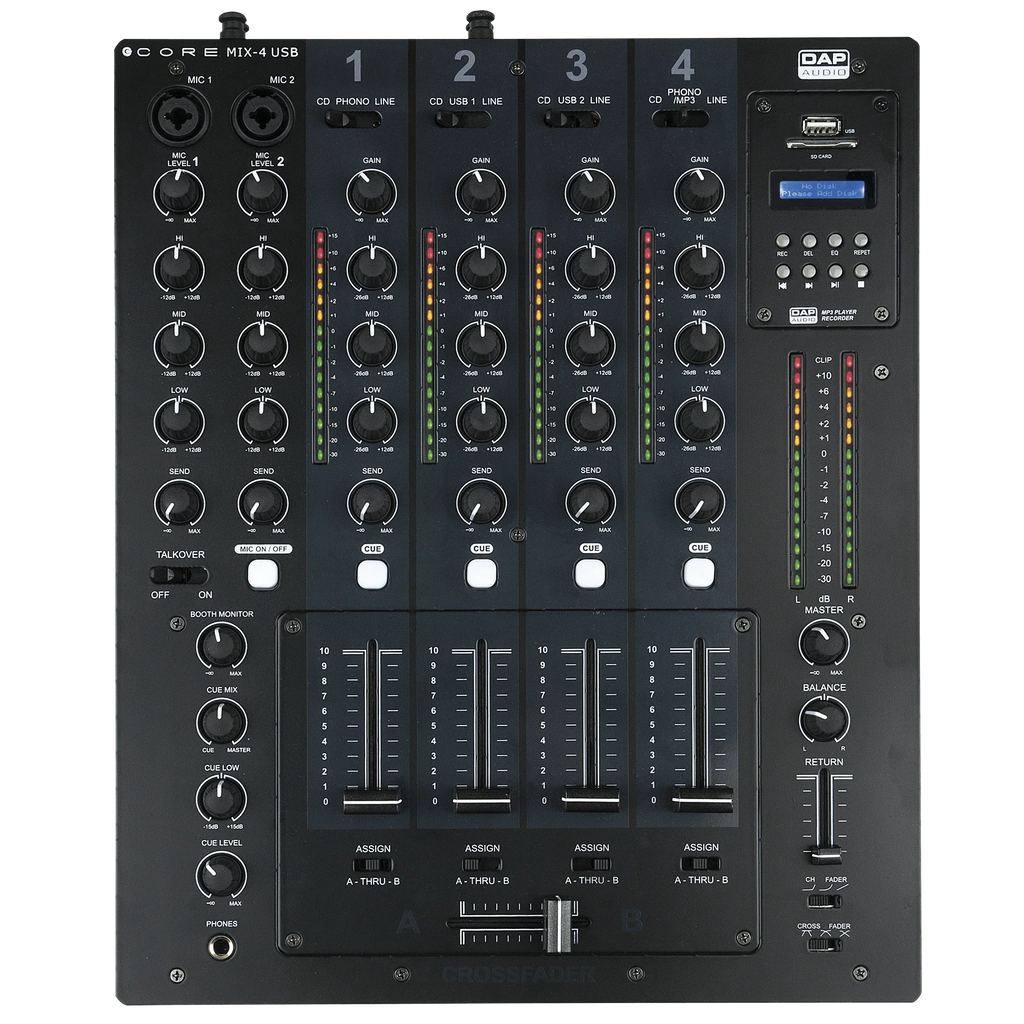

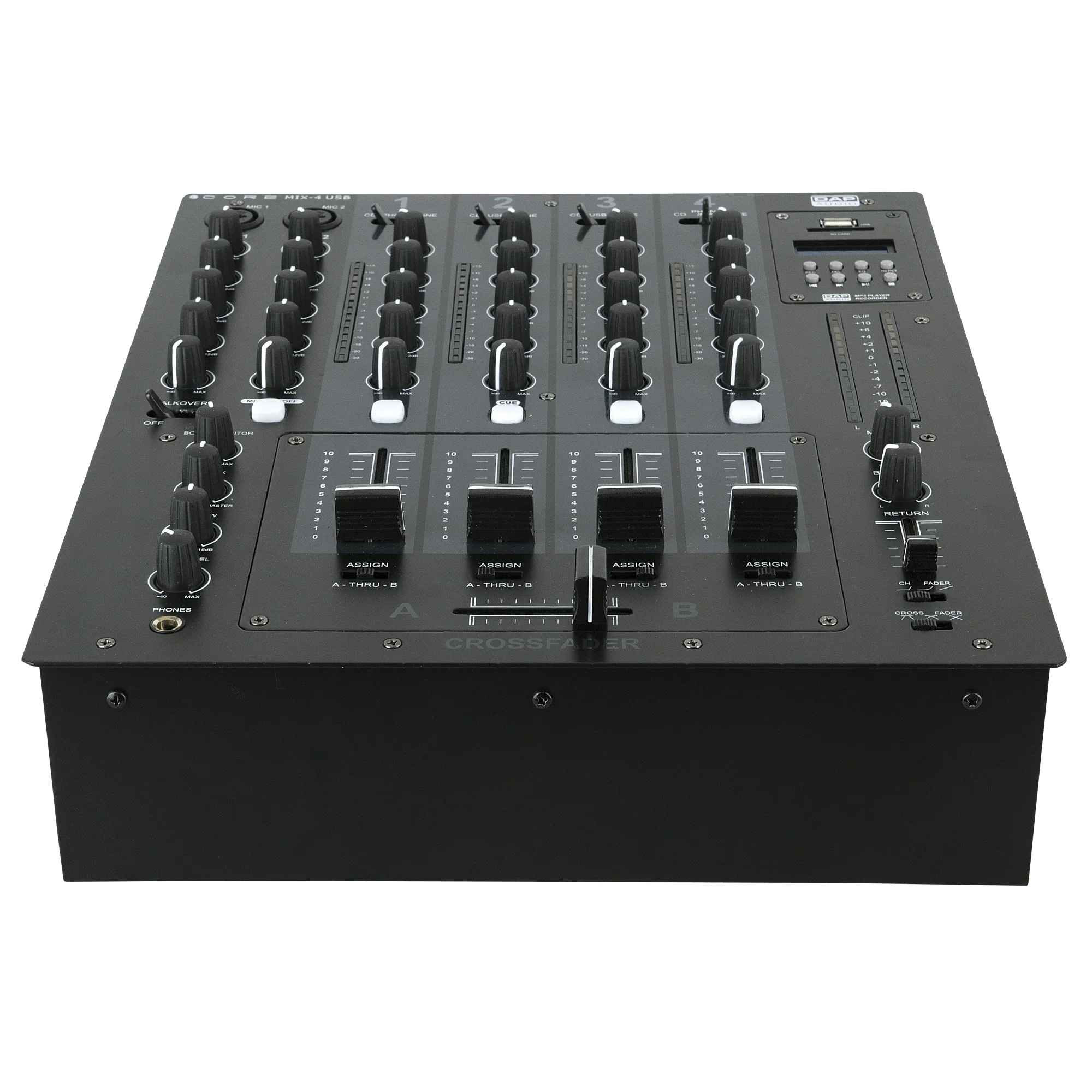

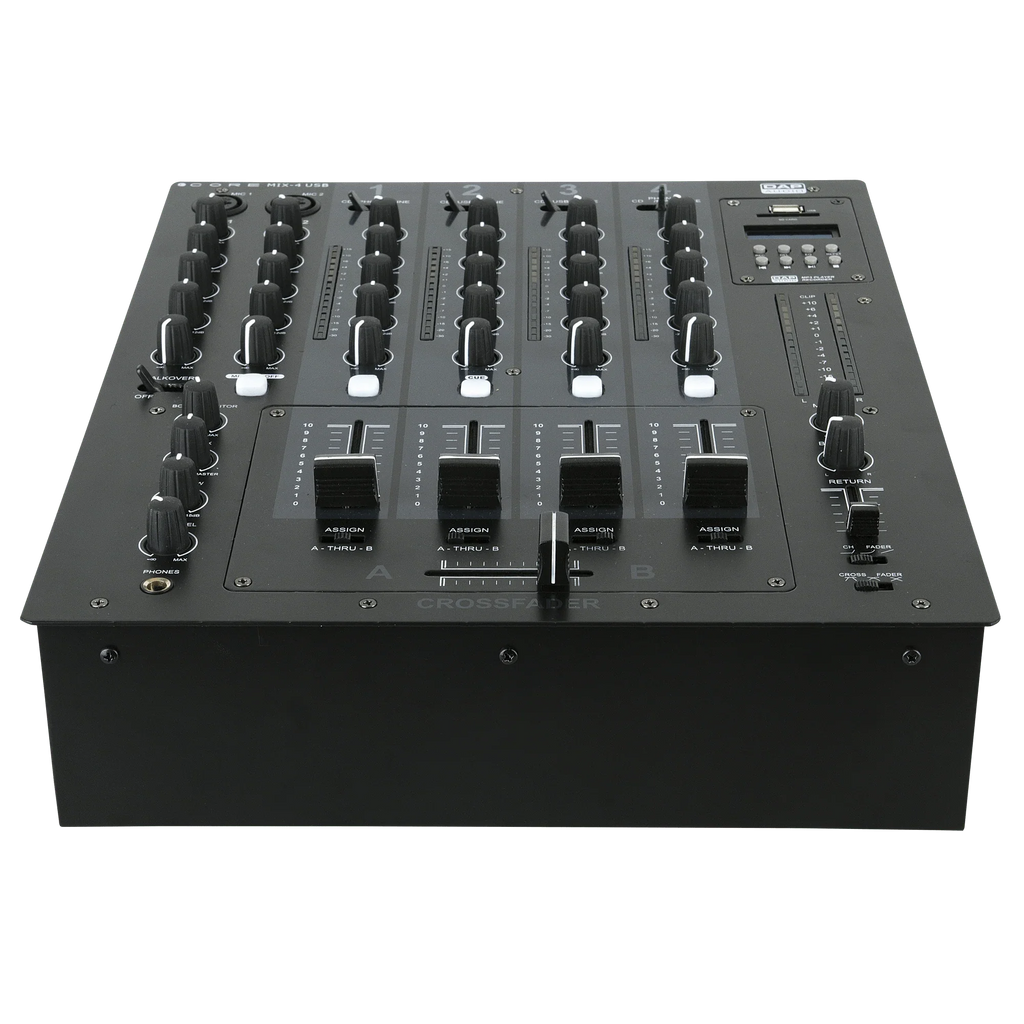

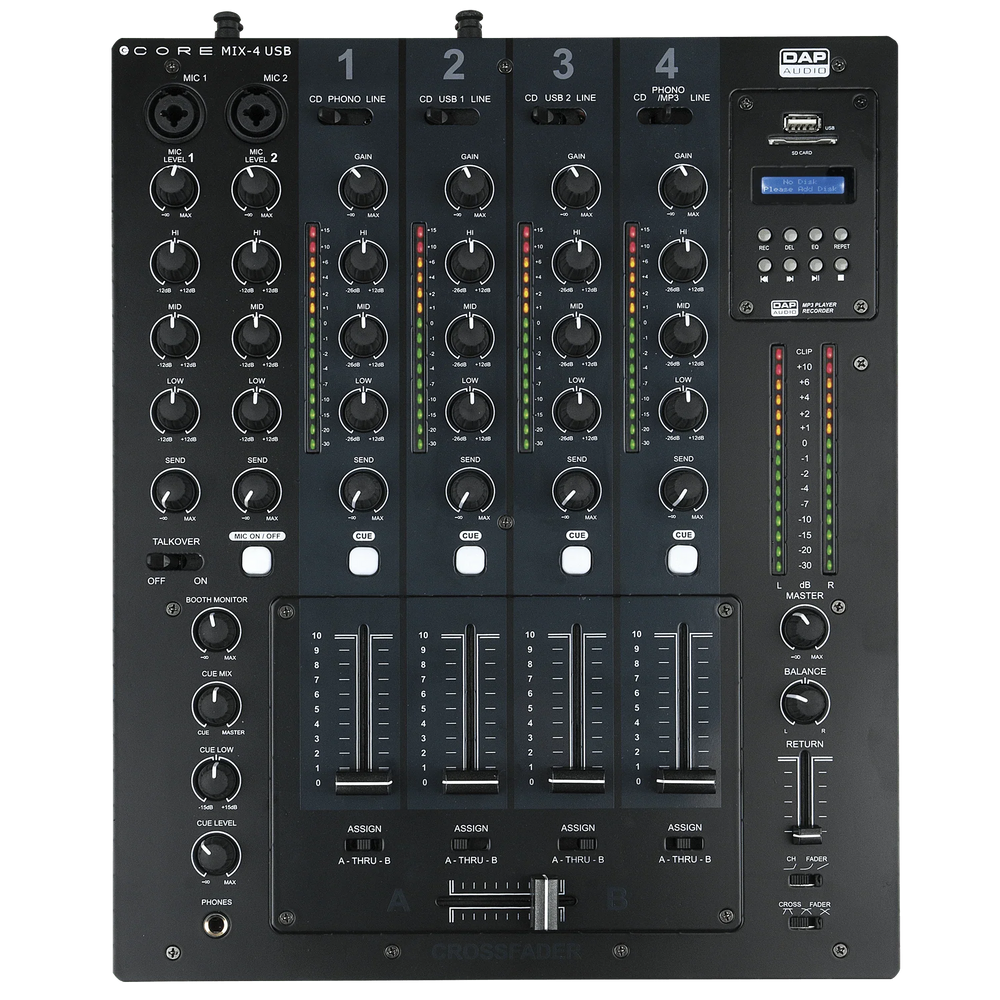

The DAP CORE MIX-4 USB is a 4-channel DJ club mixer with 12 analogue inputs and 2 independent USB-Audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-4USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a short fader. It has 2 microphone channels with a 3 band EQ, talk-over function and an on/off switch to make MC-ing safe and easy for party jocks & MC’s. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot metres are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and a MP3 player-recorder. The MP3 module can record and playback your life performance directly on an USB or SD device.
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs 8
Stereo Input Connector RCA
Phono Audio Inputs 2
Phono Audio Input Connector RCA
FX Return Inputs 1
FX Return Connector RCA

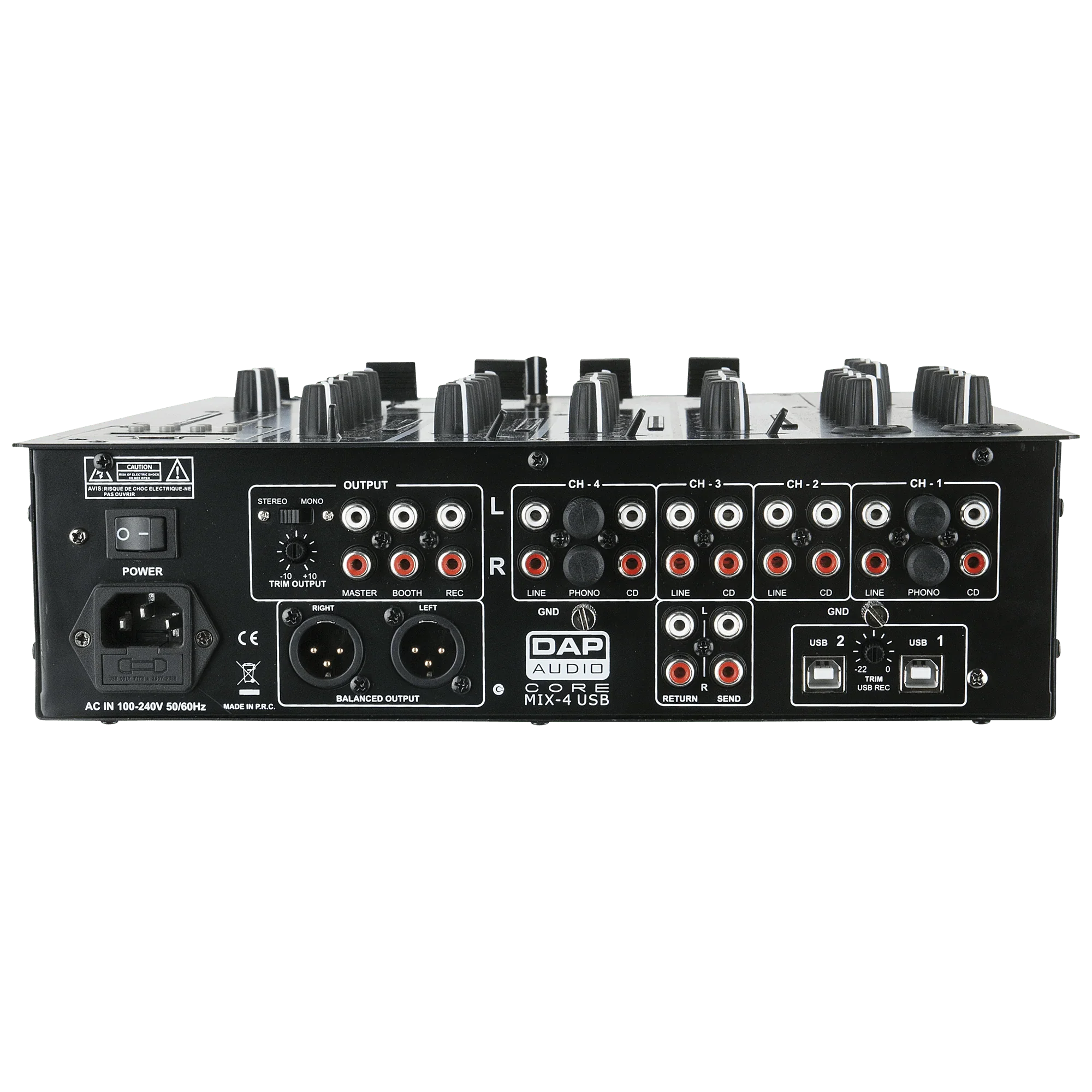

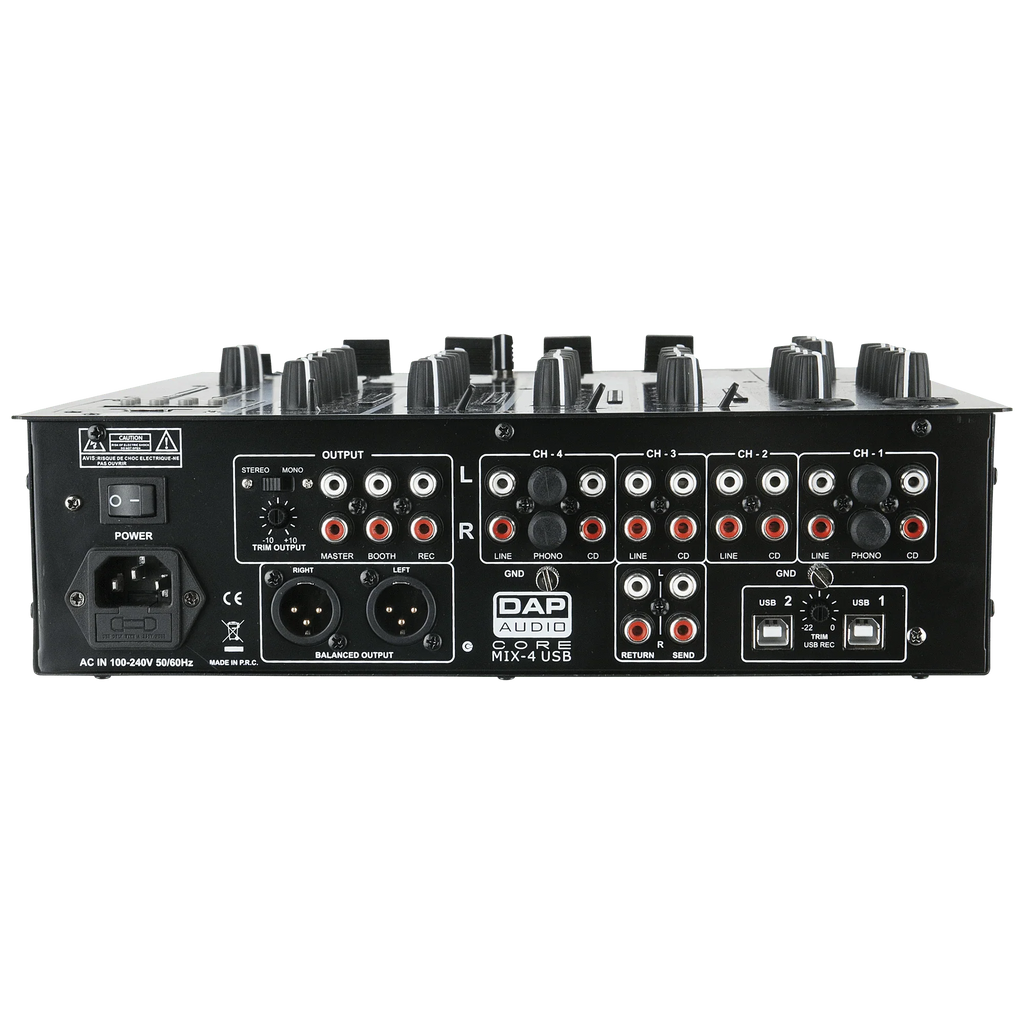

Outputs
Main Outputs 2
Main Output Connector 3-pin XLR, RCA
FX Send Outputs 1
FX Send Connector RCA
Monitor Outputs 1
Monitor Output Connector RCA
Headphone Output 1
Headphone Output Connector TS balanced 6.3 mm
Record Output 1
Record Output Connector RCA
Recording
Record Output File MP3
Digital Playback
Audio Interface USB Input 2
Audio Interface Input Connection USB-B
Audio Interface USB Type 2.0
Audio Interface Sample Rate 48 kHz
Audio Interface Supported Input Channels 2
Audio Interface Supported Output Channels 2
Extension Module
Audio Module Supported Files MP3
Audio Module Maximum Storage Size 16 GB
Audio Module Media In/Out SD Card, USB-A
Audio Module USB Type 2.0
Audio Module Bitrate 128 kbit
Audio Module Sample Rate 441 kHz
Record Output File Format MP3
Audio Module Playback Functions Delete, Down (Skip), EQ, Pauze, Play, Record, Repeat, Stop, Up (Skip)
Audio Specifications
THD Level < 0.1%
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Phantom Power No
Software Specifications
Supported Operating Systems Mac, Windows
Sound Editing
Parametric Channel Equalizer 3 Bands
Input Channel Equalizer Gain Range 12 Db
Input Channel Fixed Frequencies 70, 1.000, 13.000 Hz
Microphone Input Equalizer Gain Range 12 dB
Parametric Microphone Equalizer 3 Bands
Microphone Input Fixed Frequencies 120, 800, 5.000 Hz
Product Properties
LED Indicators Input level, Output level, Power
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 13 W
Fuse 1 A
Power Connector In IEC
Mechanical Specifications
Fader Length 60 mm
Height (mm) 100 mm
Width (mm) 310 mm
Length (mm) 378 mm
Flightcase Size 14"
Rack Units 9 U
Housing Metal
Colour Black
Weight 5 kg
IP Rating IP20 (indoor use only)
Included Items
Included Cables IEC cable, USB-A - USB-B cable
