Description

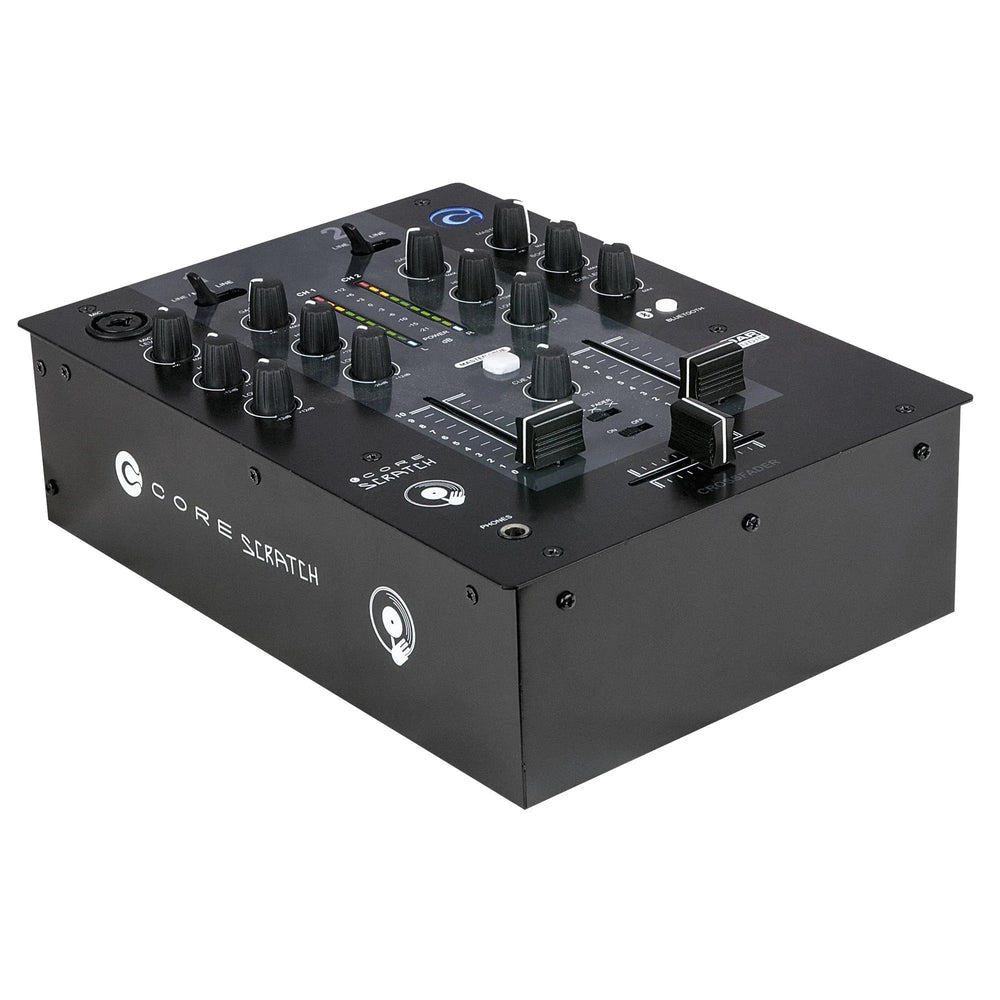

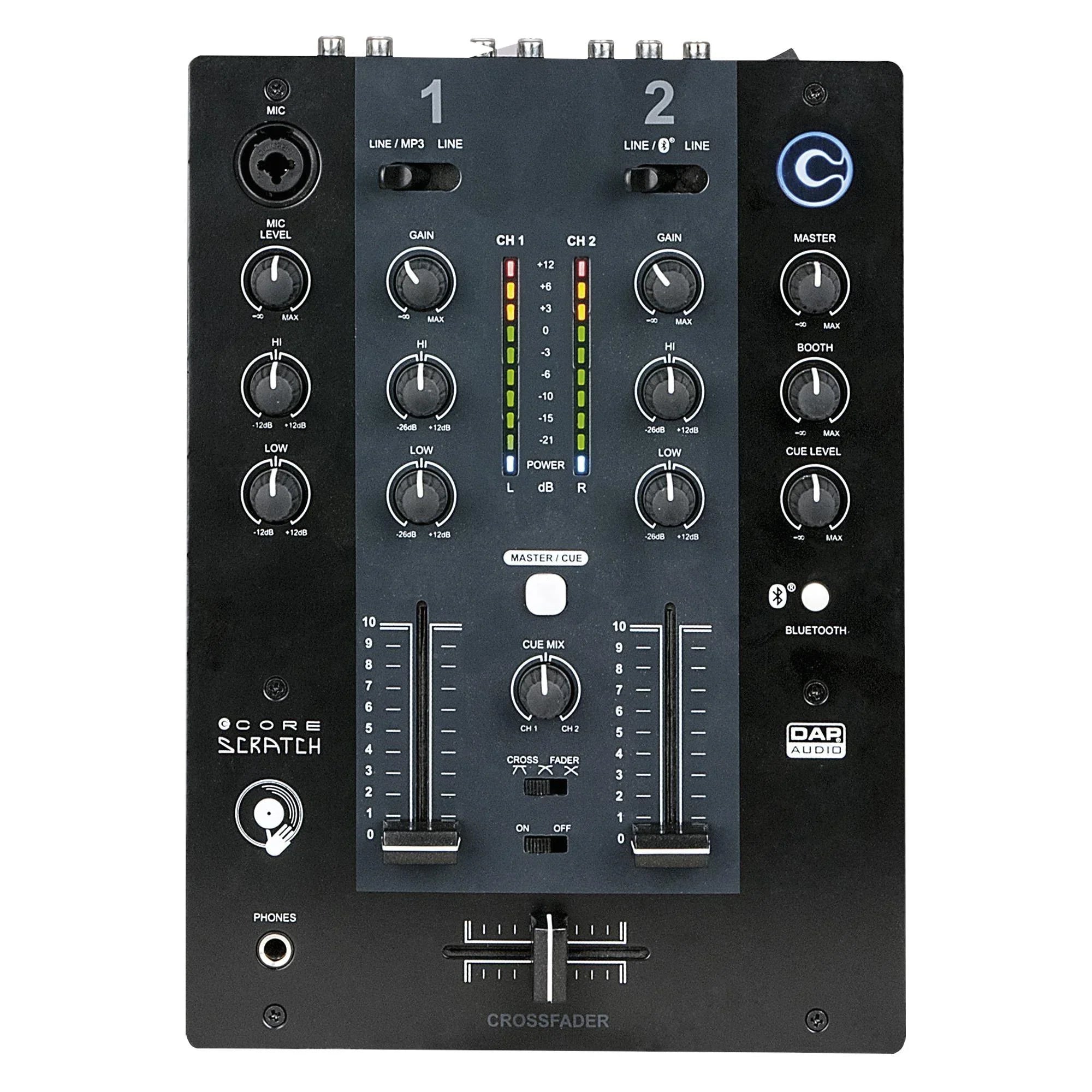

The DAP Core Scratch is a reliable 2-channel DJ mixer with four line inputs, microphone input and Bluetooth playback module. With this mixer you can mix music from multiple media sources, both wired and wireless. In addition, it has all the important functionalities on board for a DJ to excel and entertain the audience in a simple way.
The Core Scratch has an intuitive and straightforward design, so you can fully focus on your audience. Both channels have EQ, volume and gain settings for a smooth transition of songs. You can choose from three crossfader options to seamlessly switch between songs without compromising the atmosphere.
The high-quality components ensure reliability and a long service life. This DJ mixer is well worth the investment and retains its value for a long time.
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs 4
Stereo Input Connector RCA
Outputs
Main Outputs1
Main Output Connector RCA
Monitor Outputs 1
Monitor Output Connector RCA
Headphone Output 1
Headphone Output Connector TS balanced 6.3 mm
Record Output 1
Record Output Connector RCA
Audio Specifications
THD Level < 0.05 %
Signal-to-noise Ratio > 85 dB
Signal-to-noise Ratio (Mic) > 80 dB
Signal-to-noise Ratio (Line) > 85 dB
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Phantom Power No
Sound Editing
Parametric Channel Equalizer 2 Bands
Input Channel Equalizer Gain Range 12 dB
Input Channel Fixed Frequencies 100, 10.000 Hz
Microphone Input Equalizer Gain Range 12 dB
Parametric Microphone Equalizer 2 Bands
Microphone Input Fixed Frequencies 100, 10.000 Hz
Wireless Specifications
Bluetooth Audio Profile A2DP
Bluetooth Range 25 m
Product Properties
LED Indicators BT Pairing, Input level, Output level, Power
Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Output voltage 15 V AC
Power Consumption 5 W
Power Connector In Low Voltage DC plug
Mechanical Specifications
Fader Length 60 mm
Height (mm) 84 mm
Width (mm) 203 mm
Length (mm) 279 mm
Flightcase Size 10"
Housing Metal
Colour Black
Weight 2.5 kg
IP Rating IP20 (indoor use only)
Included Items
Included Accessories Adapter, User Manual
