Description

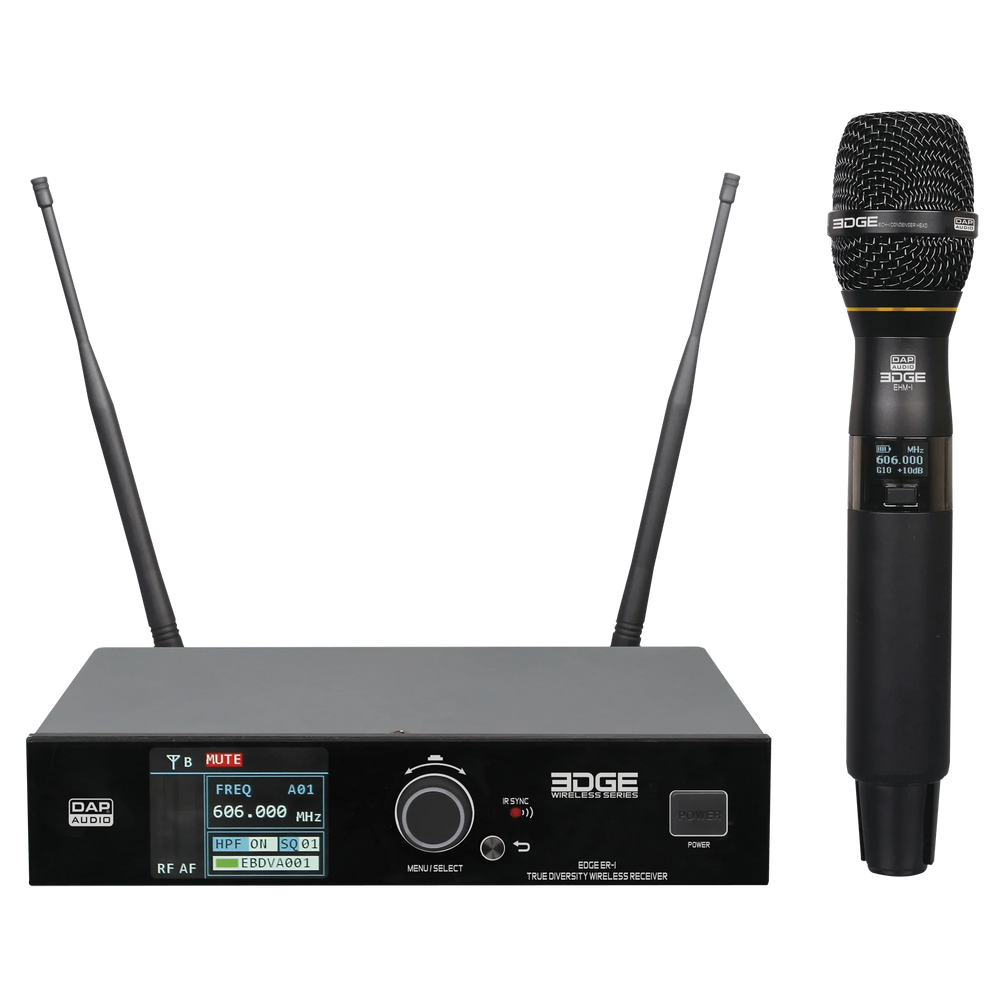

The DAP EDGE EHS-1 is a wireless handheld microphone system for easy operation and a clear and pure sound without interference. The microphone has a high-quality cardioid condenser capsule, suitable for singing, presenting, teaching, acting and speaking at live events, gatherings, and conferences. A most practical function is the battery status on both the display of the receiver and microphone.
The EDGE EHS-1 has a practical colour coding solution. This enables you to instantly recognise the dedicated receiver for your microphone when using up to 8 wireless microphones at the same time. The receiver can quickly scan the frequency range and find an unused frequency to avoid signal distortion for the best reception possible. Another great feature is the infrared sensor on the microphone and receiver. It allows you to easily set all important settings on the receiver and everything is transferred automatically as soon as you hold the microphone in front of it.
This wireless microphone set comes with many accessories to complete its installation, such as a 19" rack installation kit, power supply, colour-coded stickers, leather pouch, RF antenna and a windscreen.
Wireless Specifications
Wireless Microphone Frequency Start 610 MHz
Wireless Microphone Frequency End 670 MHz
RF Frequency Stability 0.0015%
RF Power30 mW
Frequency Deviation 75 ± kHz
Spurious Rejection 50 <- dBC
RF Bandwidth 60 MHz
Audio Specifications
THD Level < 1.0 %
Signal-to-noise Ratio > 100 dB
Microphone Type Condenser
Microphone Sensitivity 2.2 mV
Polar Pattern Cardioid
Max. SPL 130 dB
Frequency Response Minimum 60 Hz
Frequency Response Maximum 18000 Hz
Gain Range (Transmitter) 30 dB
Inputs
RF Antenna Inputs 2
RF Antenna Input Connection BNC
RF Antenna Input Impedance 50 Ω
Outputs
Microphone Output 1
Microphone Output Connection 3-pin XLR, TS unbalanced 6.3 mm
Balanced Audio Output Maximum Level 48 dBu
Receiver Output Impedance 50 Ω
RF Receiver Antenna Output Voltage 15 V
RF Receiver Antenna Output Current 150 mA
Battery
Battery Type AA
Battery Voltage 1.5 V
Runtime Average 10 h
Control and Programming
Display OLED
Product Properties
Transmitter Type Handheld
Receiver Type True diversity
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Output Voltage 15 V DC
Power Consumption 5.3 W
Power Connector In Low Voltage DC plug
Power Connector Out Low Voltage DC Socket
Mechanical Specifications
Height (mm) 44.5 mm
Maximum Height (mm) 250 mm
Width (mm) 205 mm
Depth (mm) 225 mm
Transmitter Height (mm) 51 mm
Transmitter Width (mm) 51 mm
Transmitter Length (mm) 255 mm
Diameter 36 mm
Installation Depth (Excl. Connector) 250 mm
Flightcase Size 19"
Rack Units 1 U
Housing Aluminium, Metal
Weight 1.24 kg
Transmitter Weight 0.38 kg
Colour Black
Thermal Specifications
Maximum Ambient Temperature 50 °C
Included Items
Included Cables TRS unbalanced 6.3 mm - TRS unbalanced 6.3 mm
Included Accessories 19'' Rack installation kit, Adapter, Colour-coded stickers, Leather Pouch, RF antenna, Screws, User Manual, Windscreen
