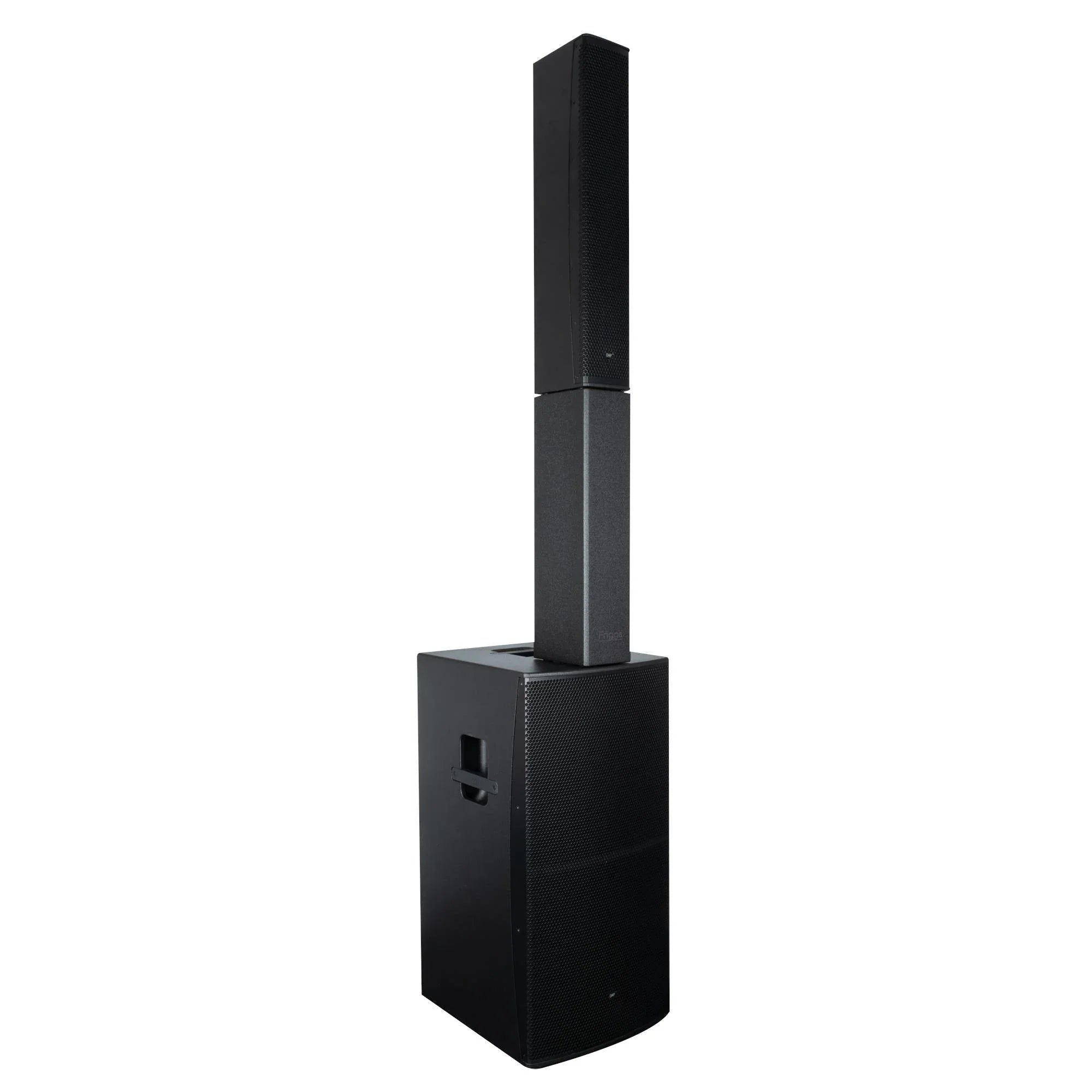

DAP Frigga 12" Black Active Column PA System
Product Description
Outputs
Power Amplifier RMS Output 1000 W
Power Amplifier Peak Output 2000 W
Top Cabinet High Driver Power 250 W
Top Cabinet Low Driver Power 250 W
Subwoofer Power 500 W
Passive Output Connector Speaker Connector 4 pole
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Audio Specifications
THD Level < 0.3 %
Signal-to-noise Ratio > 105 dB
AD/DA Convertor Sample Rate 48 kHz
Amp Technology Class D /Class H
Speaker System Active Subwoofer/ Active Bi-amp 2-way
Speaker Sensitivity (1 W/1 m) 96 dB
Max. SPL Subwoofer at 1 m 132 dB
Max. SPL Top Cabinet at 1 m 134 dB
DSP Processor Bitrate 24-bit
Frequency Response Minimum 40 Hz
Frequency Response Maximum 20000 Hz
Woofer Diameter 12 "
Woofer Voice Coil Diameter 2.5 "
Woofer Magnet Type Ferrite
Satellite Woofer Diameter 4 "
Satellite Woofer Voice Coil Diameter 1 "
Satellite Woofer Magnet Type Neodymium
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1.8 "
Compression Driver Magnet Type Ferrite
Subwoofer Dispersion Angle (Horizontal) 360 °
Subwoofer Dispersion Angle (Vertical) 180 °
Satellite Dispersion Angle (Horizontal) 110 °
Satellite Dispersion Angle (Vertical) 30 °

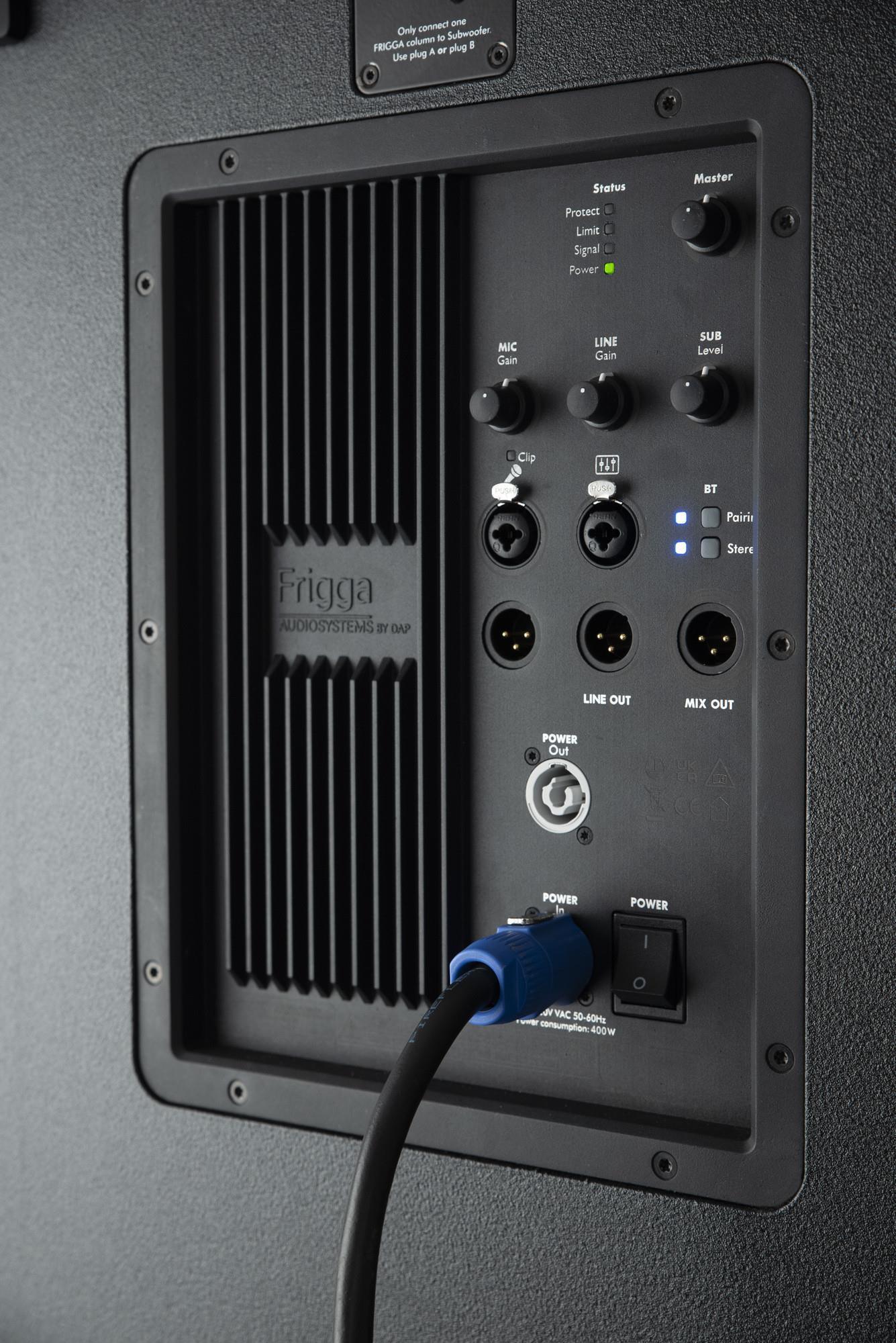

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 1100 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
Mechanical Specifications
Top Cabinet Height 765 mm (30.118″)
Top Cabinet Width 135 mm (5.315″)
Top Cabinet Depth 200 mm (7.874″)

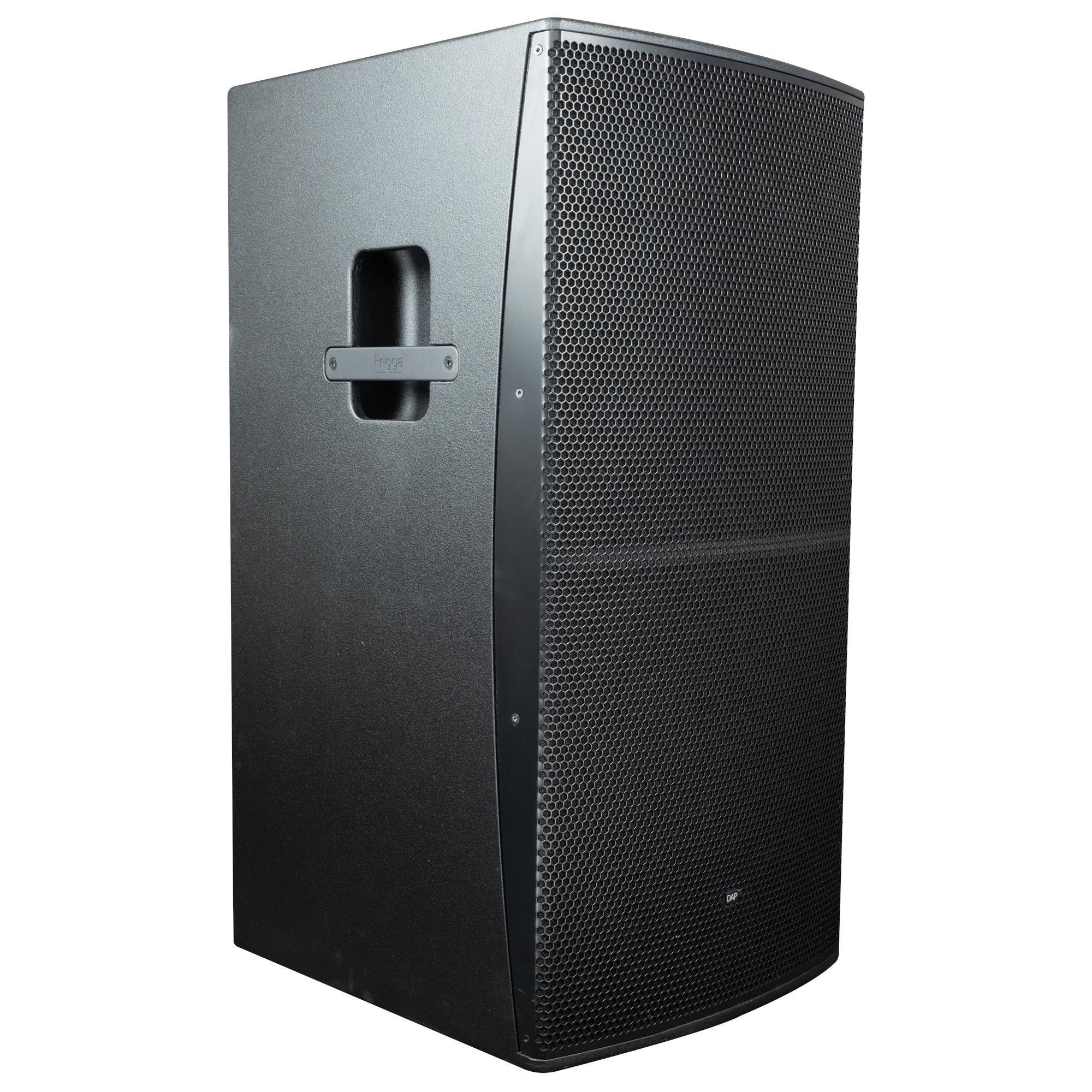

Subwoofer Height 865 mm (34.055″)
Subwoofer Width 430 mm (16.929″)
Subwoofer Depth 485 mm (19.095″)
Material Plywood
Top Cabinet Weight 9.2 kg (20.283 lb)
Subwoofer Weight 37 kg (81.571 lb)
IP Rating IP20 (indoor use only)
Colour Black
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature -20 °C (-4 °F)
Included Items
Included Cables Power Pro Cable, Speakercable
