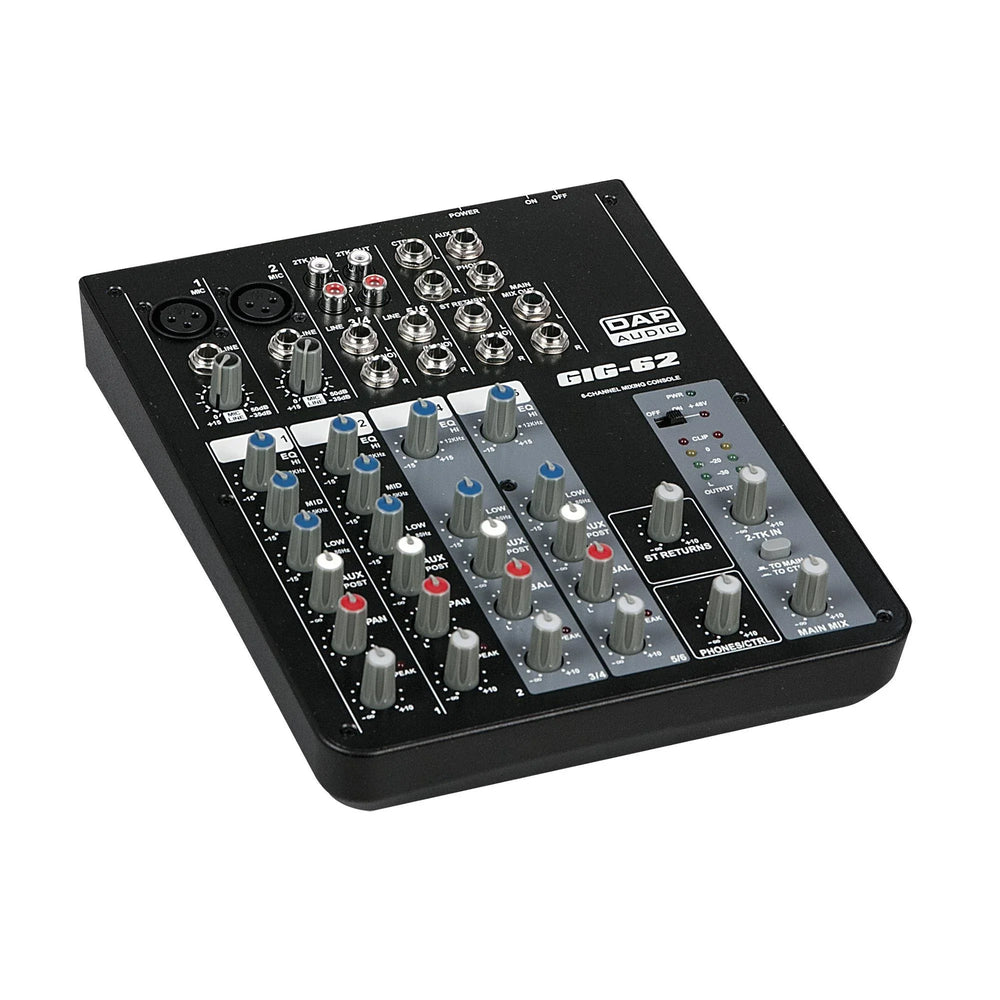

DAP GIG-62 6-channel analog mixer
Product Description
The DAP GIG-62 is a 6-channel live mixer with 2 stereo and 2 mono inputs including +48 V phantom power for connecting either dynamic and condenser microphones. The mono channels are equipped with 3-bands EQ and the stereo channels are equipped with 2-bands EQ. It is possible to add external effects per channel thanks to the AUX sends. This compact and low-noise mixer is very practical for small performances, conference rooms and home recordings.
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 50 dB
Balanced Mono Input Sensitivity 15 dBu
Stereo Inputs 2
Stereo Input Connector TS unbalanced 6.3 mm
Stereo Input Gain Range 50 dB
Unbalanced Stereo Input Sensitivity 20 dBv
2-track Audio Input Yes
Stereo Return Input Yes
Outputs
Main Outputs 1
Main Output Connector TS unbalanced 6.3 mm
Auxiliary Outputs 1
Auxiliary Output Connector
Control Room Output 1
Control Room Output Connector TS unbalanced 6.3 mm
Headphone Output 1
Headphone Output Connector TS balanced 6.3 mm
Audio Specifications
THD Level < 0.03 %
Signal-to-noise Ratio > 100 dB
Signal-to-noise Ratio (Mic) > 100 dB
Signal-to-noise Ratio (Line) > 100 dB
Frequency Response Minimum 22 Hz
Frequency Response Maximum 22000 Hz
Phantom Power 48 V
Sound Editing
Parametric Channel Equalizer 2 Bands
Input Channel Equalizer Gain Range 15 dB
Input Channel Fixed Frequencies 80, 12.000 Hz
Parametric Microphone Equalizer 3 Bands
Microphone Input Fixed Frequencies 80, 2.500, 12.000 Hz
Electrical Specifications and Connections
Power Supply 240 V AC 50-60 Hz
Output Voltage 18 V AC
Power Consumption 14 W
Power Connector In Low Voltage DC plug
Mechanical Specifications
Height (mm) 60 mm
Width (mm) 19.6 mm
Length (mm) 244 mm
Housing Plastic
Colour Black
Weight 1.74 kg
IP Rating IP20 (indoor use only)
Product Properties
LED Indicators +48V, Clip, Output level, Power
Included Items
Included Accessories Adapter, User Manual
