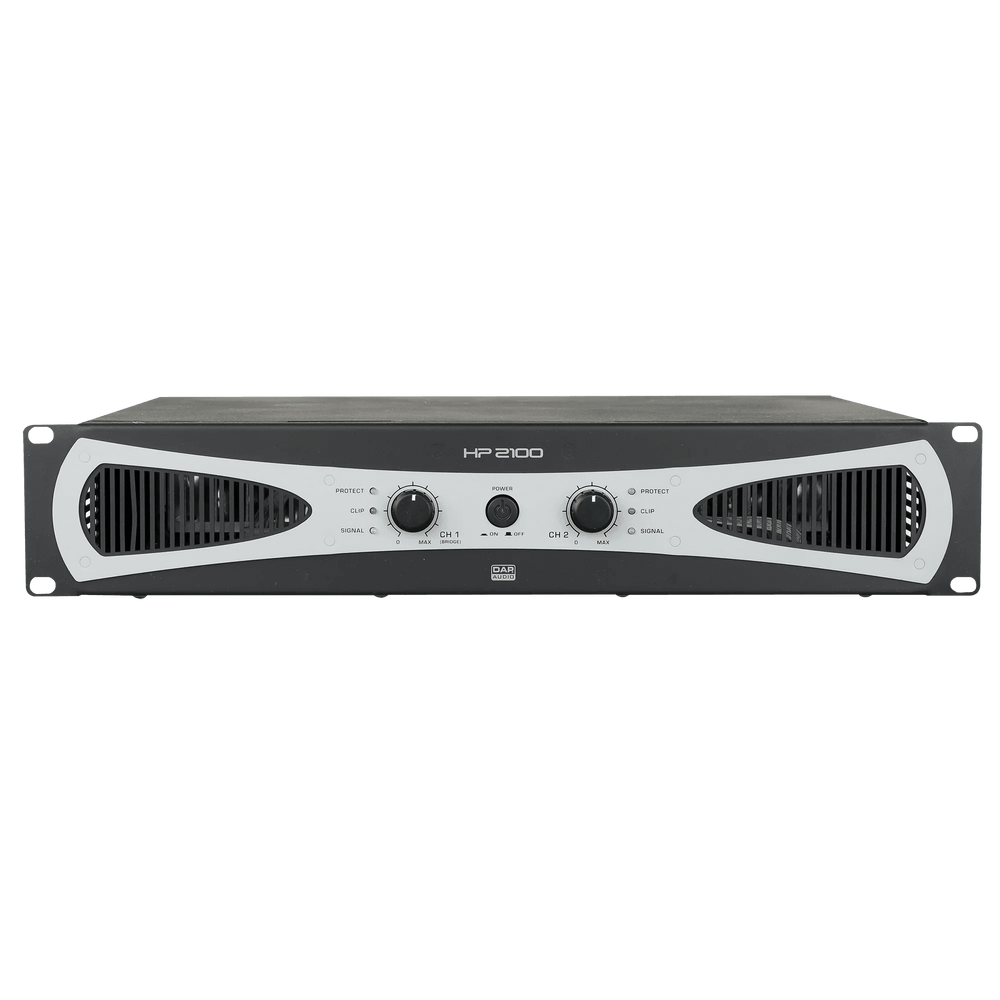

DAP HP-2100 2x 1000 W Amplifier

The DAP HP-2100 is a simple yet effective and safe 2x 1000 watt amplifier with bridge, parallel and stereo mode, suitable for audio installations at public places, such as clubs, bars and other small venues. Its output is sufficient for everyone to sing along and dance to their favorite tunes.

The HP-2100 is safe to use since it is protected from clipping, overloading and overheating. It can be built into a 19-inch rack or case and has a 2 unit height. Rubber feet are included for placement on a cabinet. A power cable is also included.

Outputs

2 ohms Stable No

Output per Channel into 8 ohms at 1 kHz 700 W

Output per Channel into 4 ohms at 1 kHz 1000 W

Bridge Output into 8 ohms at 1 kHz 2000 W

Output per Channel into 8 ohms from 20 Hz - 20 kHz 700 W

Output per Channel into 4 ohms from 20 Hz - 20 kHz 1000 W

Bridge Output 8 ohms from 20 Hz - 20 kHz2000 W

Output Channels 2

Output Gain 34 dB

Output Mode Bridge, Parallel, Stereo

Output Connector Speaker Connector 4 pole

Inputs

Mono Inputs 2

Mono Input Connector 3-pin XLR

Mono Input Impedance 20 Ω

Balanced Mono Input Sensitivity 1 dBu

Audio Specifications

THD Level < 0.5 %

Signal-to-noise Ratio > 100 dB

Slew Rate 20 V/μs

Amp Technology Class H

Damping Factor 250 :1

Crosstalk 75 dBu

Frequency Response Minimum 10 Hz

Frequency Response Maximum 20000 Hz

Electrical Specifications and Connections

Power Supply 220-240 V AC 50 Hz

SMPS No

Power Consumption 2000 W

Fuse 15 A

Power Connector In IEC

Mechanical Specifications

Amplifier Airflow Front to back

Amplifier Cooling Axial fan

Height (mm) 88 mm

Width (mm) 483 mm

Depth (mm) 360 mm

Installation Depth (Excl. Connector) 360 mm

Flightcase Size 19"

Rack Units 2 U

Housing Metal

Colour Gray

Finish Powder Coating

Weight 14.9 kg

IP Rating IP20 (indoor use only)

Product Properties

Handles No

Electronic Protection Clip limiter (fixed), DC voltage, Overheat, Overload, Short circuit, Softstart, Thermal

LED Indicators Clip, Protect, Signal

Included Items

Included Cables IEC cable

Included Accessories Rubber feet, User Manual
