Description

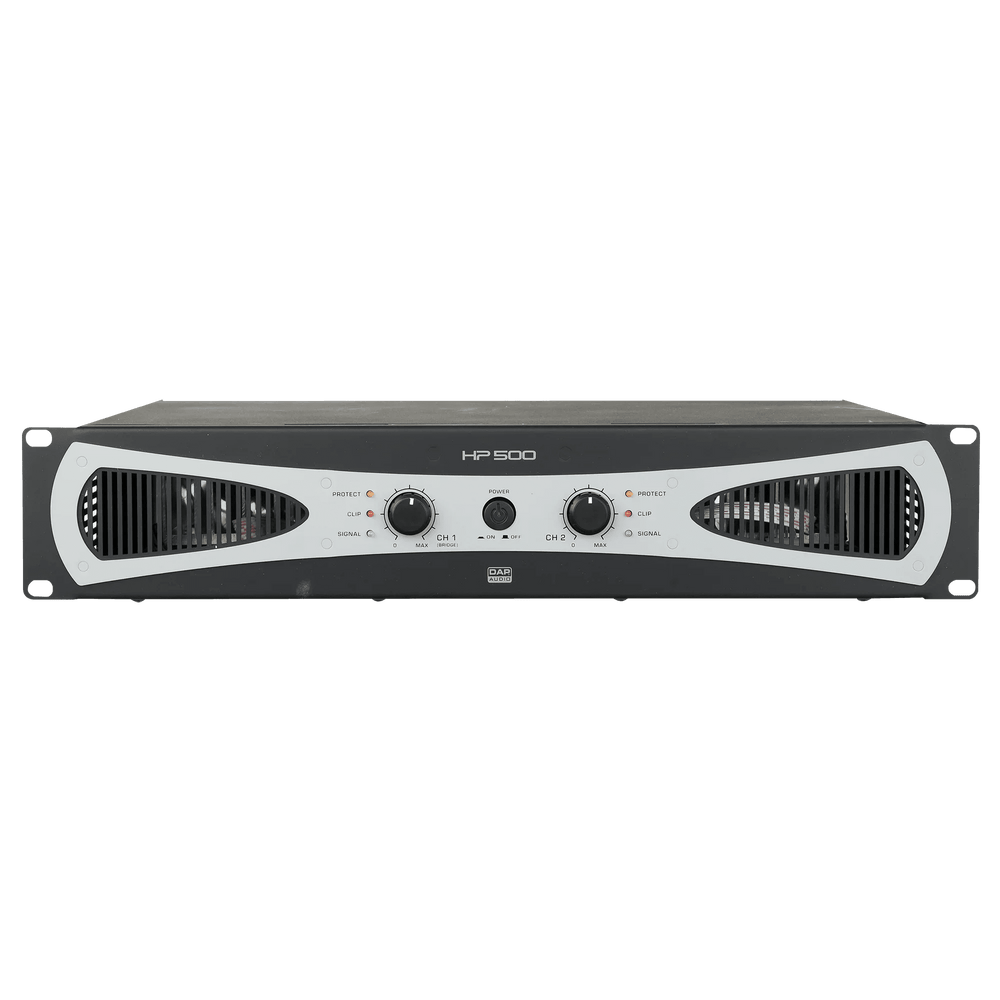

The DAP HP-500 is a simple yet effective and safe 2x 200 watt amplifier with bridge, parallel and stereo mode, suitable for audio installations at public places, such as clubs, bars and other small venues. Its output is sufficient for everyone to sing along and dance to their favorite tunes.
The HP-500 is safe to use since it is protected from clipping, overloading and overheating. It can be built into a 19-inch rack or case and has a 2 unit height. Rubber feet are included for placement on a cabinet. A power cable is also included.
Outputs
2 ohms Stable No
Output per Channel into 8 ohms at 1 kHz 150 W
Output per Channel into 4 ohms at 1 kHz 200 W
Bridge Output into 8 ohms at 1 kHz 400 W
Output per Channel into 8 ohms from 20 Hz - 20 kHz 150 W
Output per Channel into 4 ohms from 20 Hz - 20 kHz 200 W
Bridge Output 8 ohms from 20 Hz - 20 kHz 400 W
Output Channels 2
Output Gain 32 dB
Output Mode Bridge, Parallel, Stereo
Output Connector Speaker Connector 4 pole
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Mono Input Impedance 20 Ω
Balanced Mono Input Sensitivity 1 dBu
Audio Specifications
THD Level < 0.5 %
Signal-to-noise Ratio > 100 dB
Slew Rate 10 V/μs
Amp Technology Class AB
Damping Factor 100 :1
Crosstalk 75 dBu
Frequency Response Minimum 10 Hz
Frequency Response Maximum 20000 Hz
Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz
SMPS No
Power Consumption 325 W
Fuse 3 A
Power Connector In IEC
Mechanical Specifications
Amplifier Airflow Front to back
Amplifier Cooling Axial fan
Height (mm) 88 mm
Width (mm) 483 mm
Depth (mm) 310 mm
Installation Depth (Excl. Connector) 310 mm
Flightcase Size 19"
Rack Units 2 U
Housing Metal
Colour Gray
Finish Powder Coating
Weight 8.7 kg
IP Rating IP20 (indoor use only)
Product Properties
Handles No
Electronic Protection Clip limiter (fixed), DC voltage, Overheat, Overload, Short circuit, Softstart, Thermal
LED Indicators Clip, Protect, Signal
Included Items
Included Cables IEC cable
Included Accessories Rubber feet, User Manual
