DAP M15 Active 15" floor monitor

The DAP M15 is an active floor monitor speaker with a 15-inch woofer and a total power of 415 watt, especially built to amplify sounds on stage. It features a 60° wedge design and a coaxial speaker for transparent and direct 'in your face' sound with consistent coverage. The powerful Class D amplifier provides good sound quality, even at a high volume.

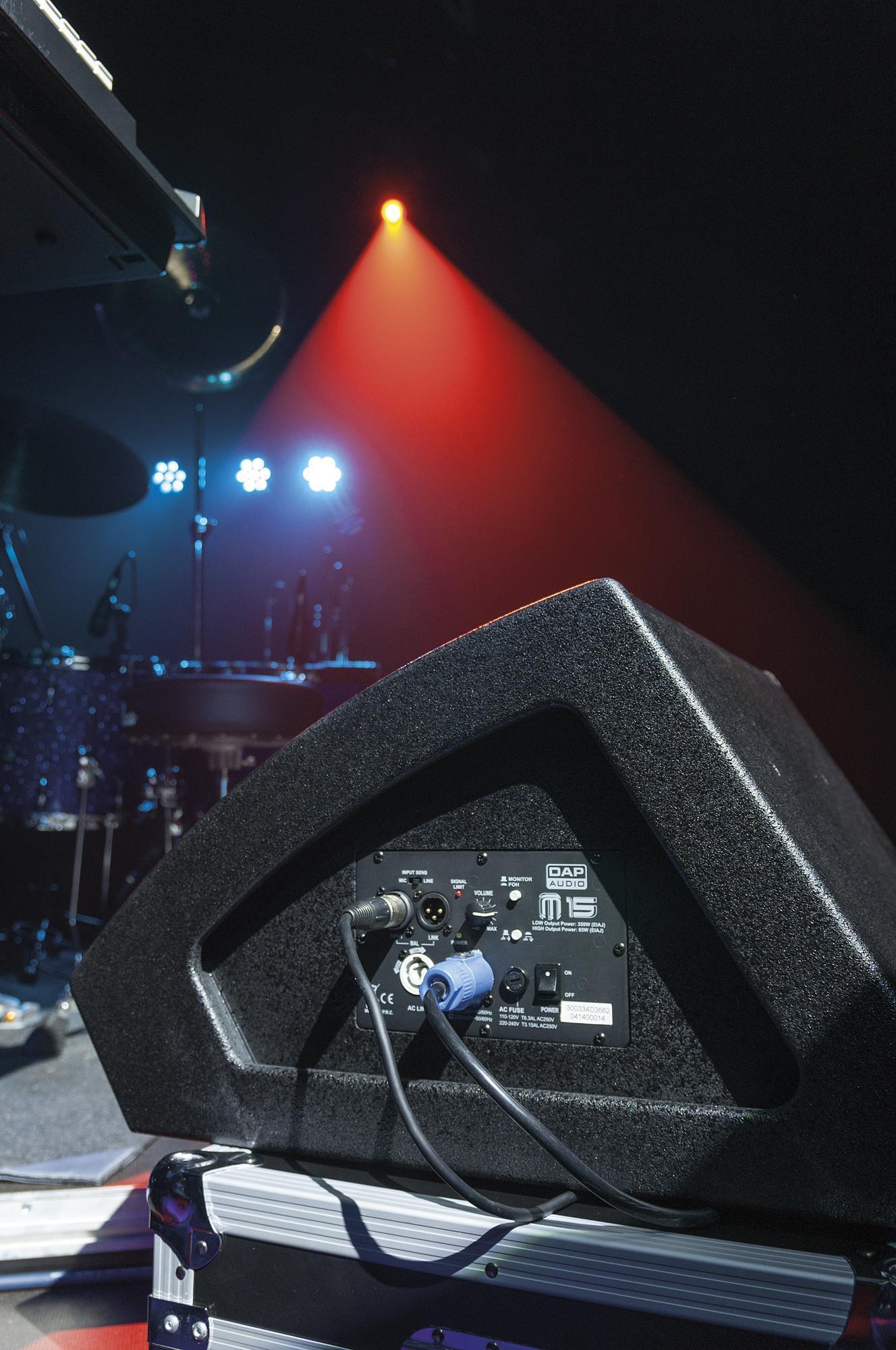

The built-in amplifier of the M15 has an XLR/Jack input connector, XLR line output connector and powerCON in and through connector. It's equipped with a volume control, EQ preset selector, ground switch and AC fuse for adjusting the sound and output level.

Integrated handles protect the recessed amplifier and connectors from getting damaged and makes it a very easy-to-handle floor monitor, even in the toughest stage environments.

Outputs

Low Driver Power 350 W

High Driver Power 65 W

Power Amplifier RMS Output 415 W

Main Outputs 1

Main Output Connector 3-pin XLR

Inputs

Mono Inputs 1

Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm

Audio Specifications

THD Level < 0.5 %

Signal-to-noise Ratio > 90 dB

Amp Technology

Class D Damping Factor 200 :1

Speaker System 2-way

Speaker Sensitivity (1 W/1 m) 99 dB

Maximum SPL at 1 m 128 dB

Frequency Response (-10 dB) Minimum 60 Hz

Frequency Response (-10 dB) Maximum 20000 Hz

Woofer Diameter 15 "

Woofer Voice Coil Diameter 2.5 "

Woofer Magnet Type Ferrite

Compression Driver Diameter 1 "

Compression Driver Voice Coil 1 "

Compression Driver Magnet Type Neodymium

Dispersion Angle (Horizontal) 70 °

Dispersion Angle (Vertical) 70 °

Electrical Specifications and Connections

Power Supply 100-240 V AC 50/60 Hz

Power Consumption 80 W

Fuse 3.15 A

Power Connector In powerCON Blue

Power Connector Out powerCON Grey

Mechanical Specifications

Amplifier Cooling Axial fan

Height (mm) 342 mm

Width (mm) 495 mm

Depth (mm) 538 mm

Material Wood

Material Thickness 15 mm

Colour Black

Finish Painted

Weight 18.4 kg

IP Rating IP20 (indoor use only)

Product Properties

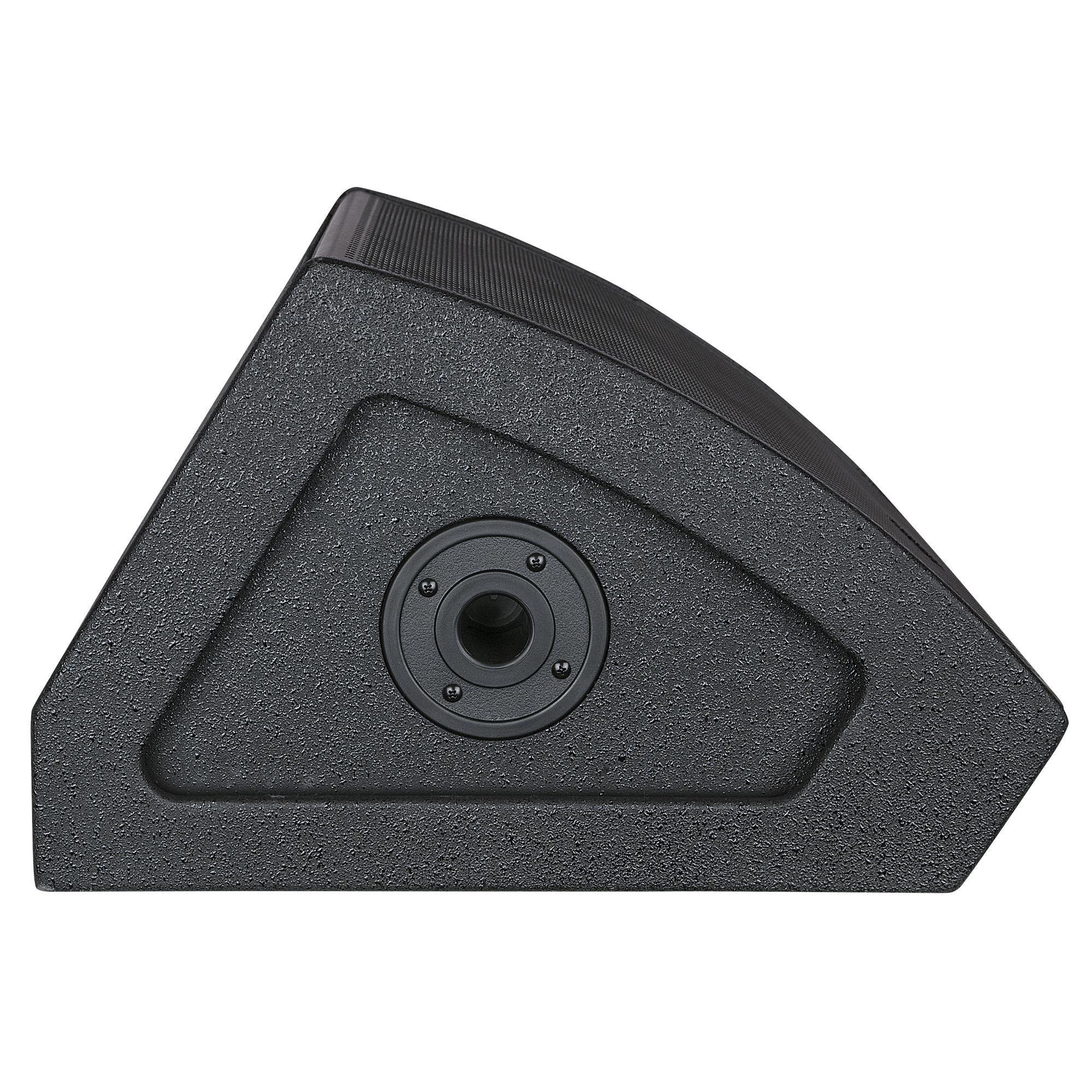

Pole Mount 35 mm

Electronic Protection Clip limiter (fixed), Convection-fan, DC voltage, Thermal

LED Indicators Clip, Power

Rotatable Horn No

Useable as Monitor/Wedge Yes

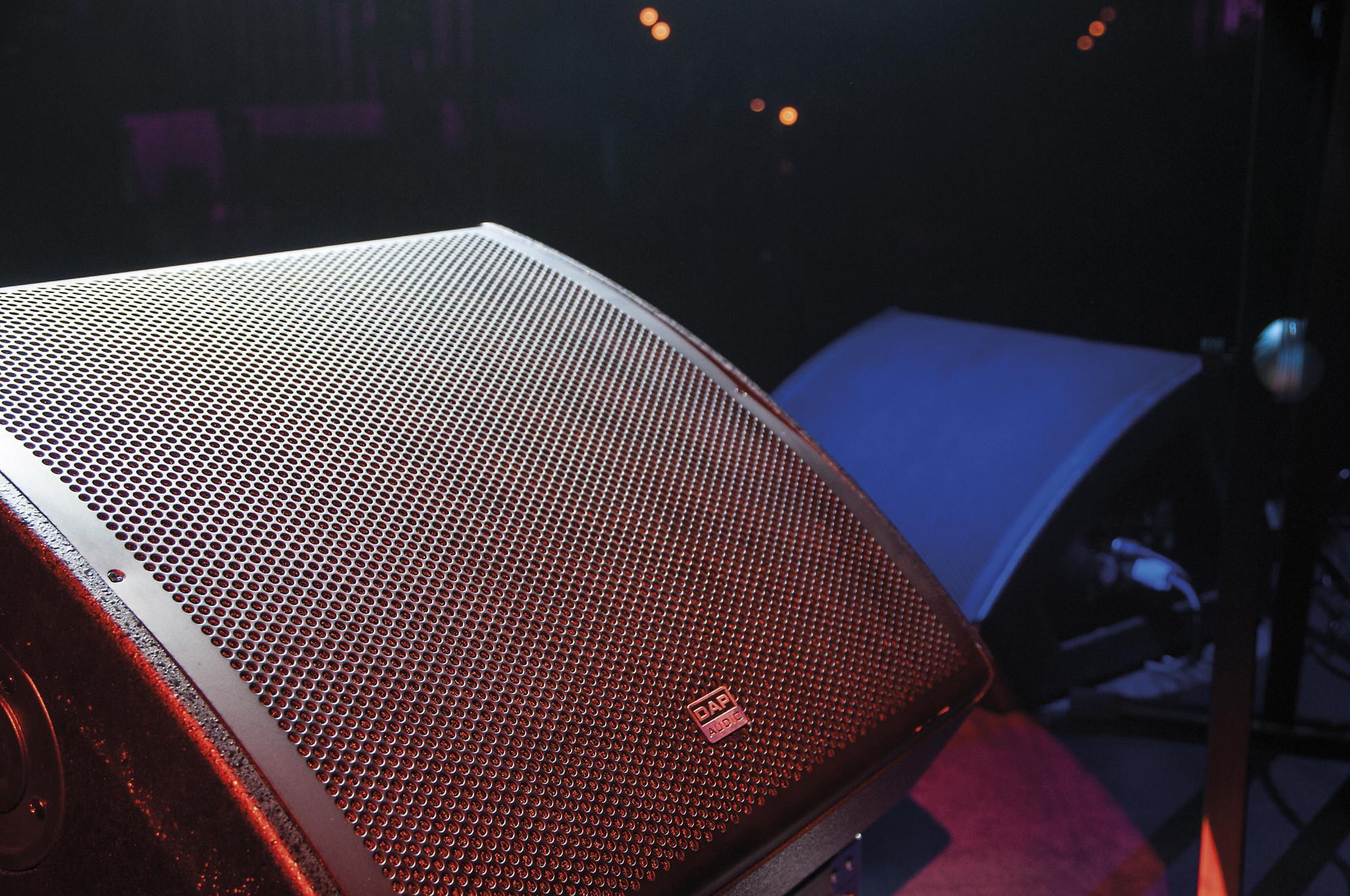

Speaker Grille Material Steel

Speaker Handle Positions Left side, Right side

Included Items

Included Cables powerCON cable
