DAP PL-07 Cardioid Dynamic Instrument Microphone
Product Description

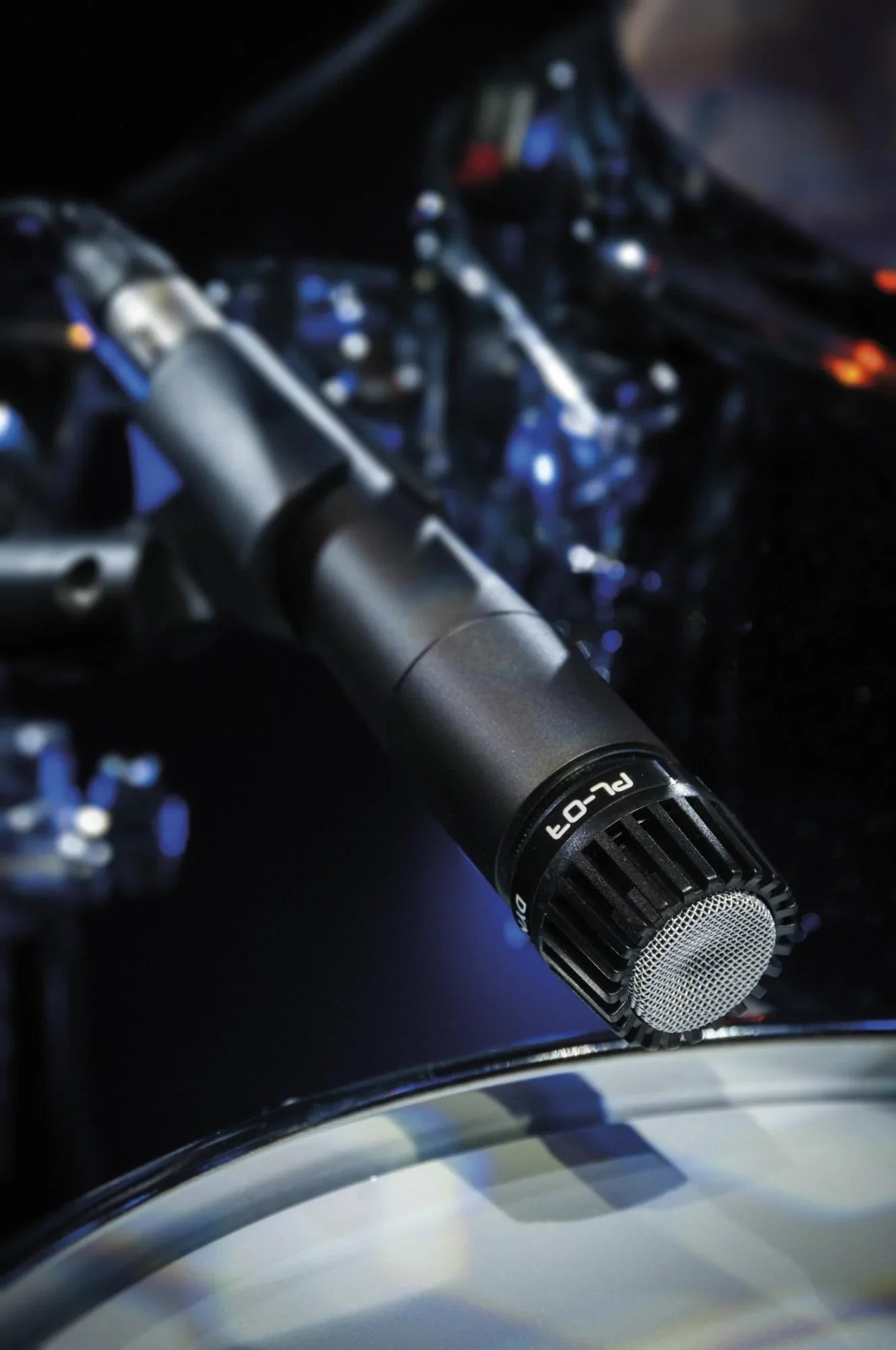

The DAP PL-07 is a slim black design cardioid dynamic microphone. It picks up sounds in the direction it is being pointed, and cancels out any sound coming from behind it. This limits background noise from being picked up by the microphone and prevents feedback up to a high gain level. It is developed for capturing instruments in live situations, such as guitar amps, bass amps, acoustic guitars, saxophones, snares, congas and woodwinds.
For best results, we recommend that you keep the instrument a short distance from the PL-07. It can handle high sound pressure levels without distortion due to its high maximum SPL. A six meter long XLR cable and leather pouch are included.
Outputs
Microphone Output 1
Microphone Output Connection 3-pin XLR
Microphone Impedance 600 ?
Audio Specifications
Microphone Type Dynamic moving coil
Microphone Sensitivity 1.7 mV
Polar Pattern Cardioid
Max. SPL 137 dB
Frequency Response Minimum 40 Hz
Frequency Response Maximum 16500 Hz
Phantom Power No
Microphone On/Off Switch No
Mechanical Specifications
Height (mm) 32 mm
Width (mm) 32 mm
Length (mm) 157 mm
Diameter 32 mm
Housing Aluminium
Colour Black
Weight 0.245 kg
Included Items

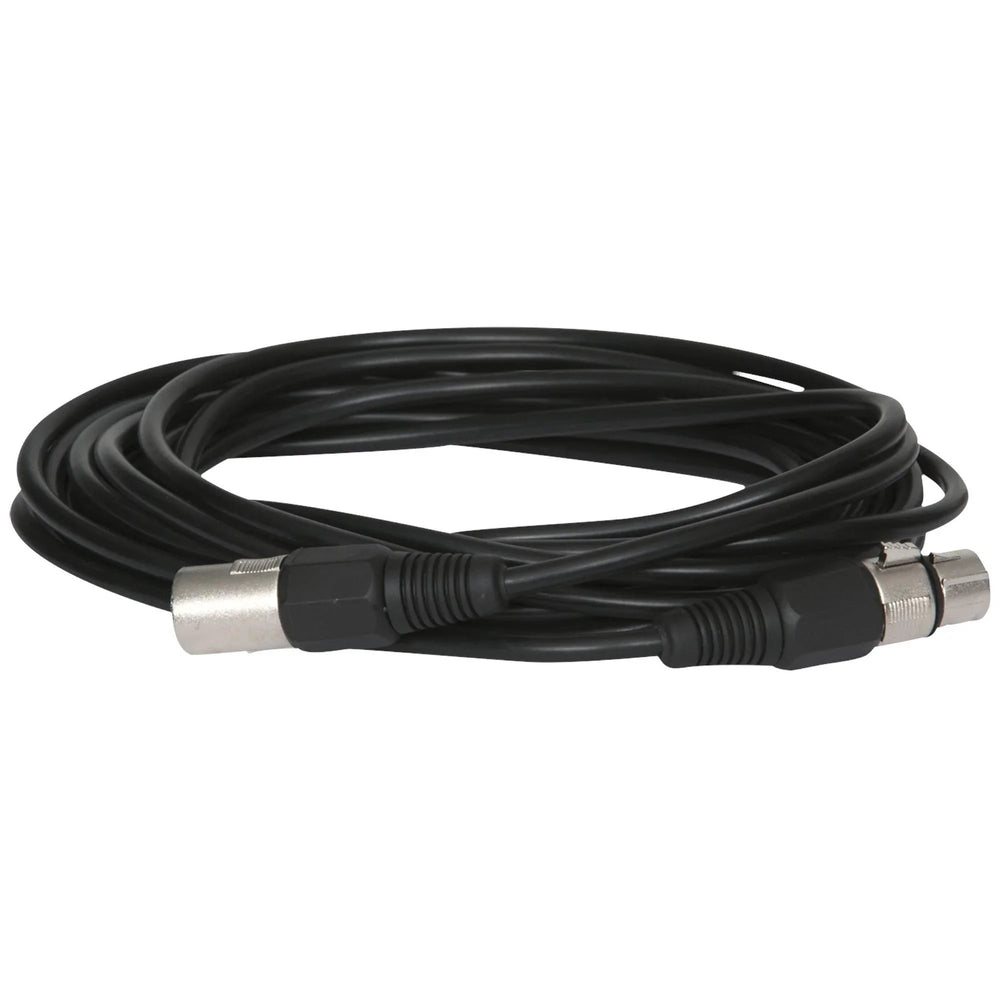

Included Cables XLR 3P 6m
