dB Technologies Opera Reevo 212 12" Active Speakers

The OPERA REEVO 212 delivers an astonishing sound pressure level with touring-grade sound definition and a remarkable low-end extension in a compact and freshly designed enclosure accessible to anybody who wants great sound anywhere.

The Quasi 3-way configuration delivers a vigorous yet pristine sound. This bold acoustic design is in-fact unparalled in its category, inspired by dBTechnologies touring series, marks a clear step-up In the longest running and most appreciated dBTechnologies active speaker series of all times.

Opera Reevo translates the mix in an impeccable way, adapting the speaker to complex musical material especially when rich in the midrange region, where separation and clarity can really make a difference in the outcome of any performance.

This is granted by the coaxial acoustic design, featuring a front Integrated HF horn with diamond-shaped cutouts with the aim of rendering comb filtering-free high frequency reproduction, and at the same time of improving the upper woofer’s efficiency.

Another phase plug enhances the lower woofer efficiency: this acoustic device greatly improves the transient response and overall behavior of this transducer.

Low noise reflex ports are integrated in the front molding. The honeycomb structure inside the ports helps reducing wind turbulence caused by the high airflow of this high SPL powerhouse.

This model is equipped with a Class-D Digipro G2 amplifier which delivers an impressive 1050 W RMS and 2100 W Peak power, and features advanced DSP processing where FIR linear phase filters allow the systems to achieve a coherent audio performance, rendering an uniform and crystal-clear sound. Moreover, Opera Reevo offers factory-tailored voicing presets to adapt to multiple scenarios, including when in need of a wedge stage monitor or a completely standalone full-range PA system.

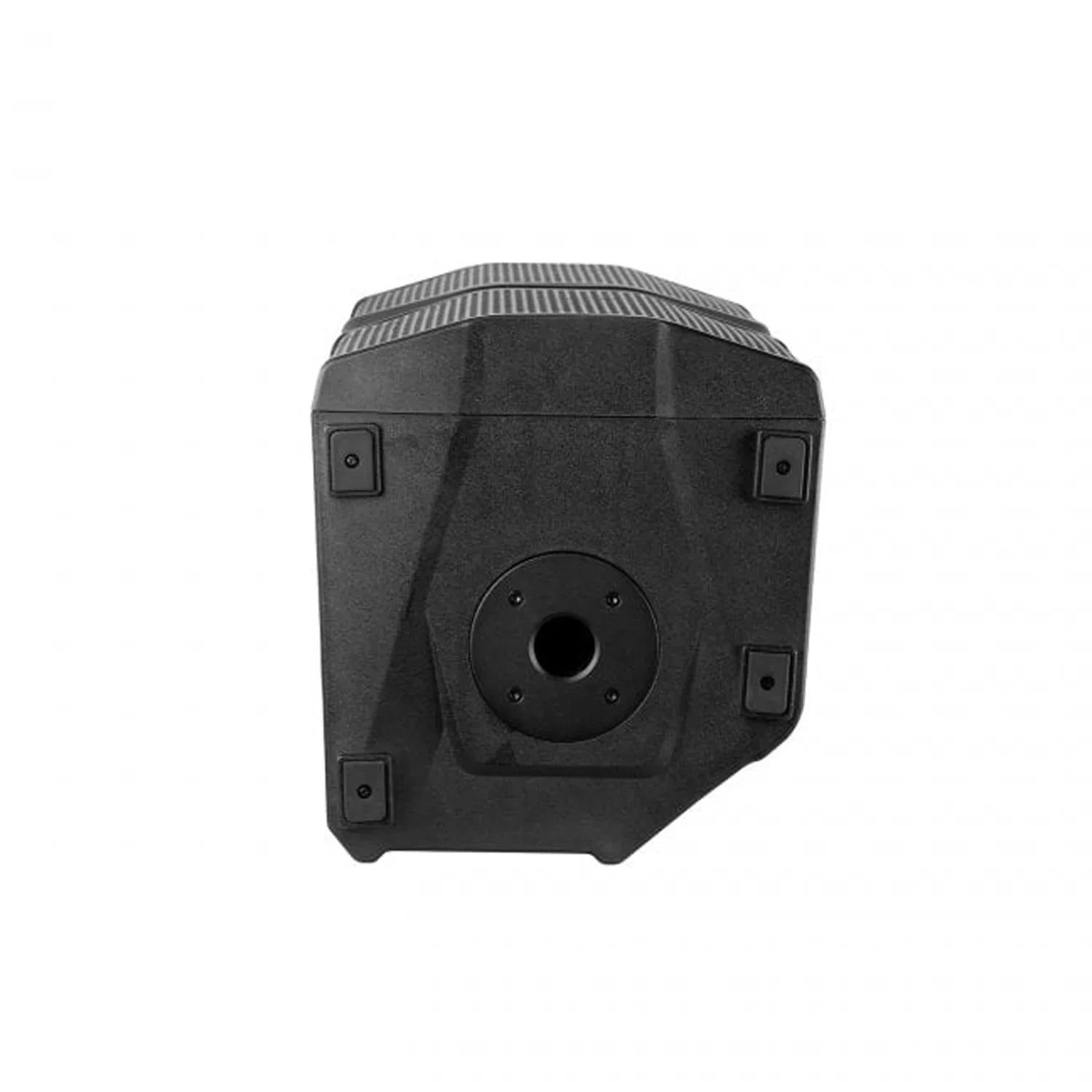

This versatile sound processing works in tandem with a cleverly designed box shape which combines cutting-edge design and ease of use. OPERA REEVO can be used as a wedge stage monitor or on a classic speaker stand support. When paired with a subwoofer can be mounted on a 36mm standard pole, and can be also suspended thanks to the integrated 3x M10 threaded eyebolts, making this enclosure a perfect permanent installation complement.

This cabinet also has a very compact size compared to the output of 133 dB yet featuring 2x Neodymium woofers and one 1.75” coaxial compression driver, keeping the overall weight down to 20.4 KG.

When it comes down to business, Opera Reevo outstanding voicing ensures seamless and transparent rendition of any speech, where intelligibility is mission critical (such as corporate events or houses of worship) with a very wide nominal dispersion.

• Speaker Type Quasi 3-Way Active Speaker
• Frequency Response [-10dB]48 - 20.000 Hz
• Frequency Response [- 6dB]52 - 19.200 Hz
• Max SPL133 dB
• HF1" Exit CD, 1.75" v.c.
• Type HFCompression driver
• Horizontal Directivity100°
• Vertical Directivity80°
• HornAsymmetrical Horn
• LF2x 12" Neo, 2.5" v.c.
• Amp TechnologyDigipro G2 with SMPS
• Amp ClassClass D
• RMS Power1050 W (525W + 525W)
• Peak Power2100 W (1050W + 1050W)
• ControllerDSP 28/56 bit
• AD/DA Converter24 bit/48 KHz
• CrossOver Frequency1260 Hz
• LimiterPeak, RMS, Thermal
• Advanced DSP FunctionsLinear Phase FIR Filters
• Signal Input1x Combo (XLR/Jack 6.3 mm) Line
• Signal Output1x XLR Male (True link)
• ControlsGain (rotary)
• Preset (Flat, Playback, Wedge)
• HousingPolyproylene
• GrilleFull grille
• Handles1 on left Side, 1 on Top
• Rigging Points 2x M10 on Top + 1x M10 on Back
• Pole Mount D36 mm
• Width 345 mm (13.58 in)
• Height 690 mm (27.17 in)
• Depth 376 mm (14.8 in)
• Weight 20.4 kg (44 lbs)
