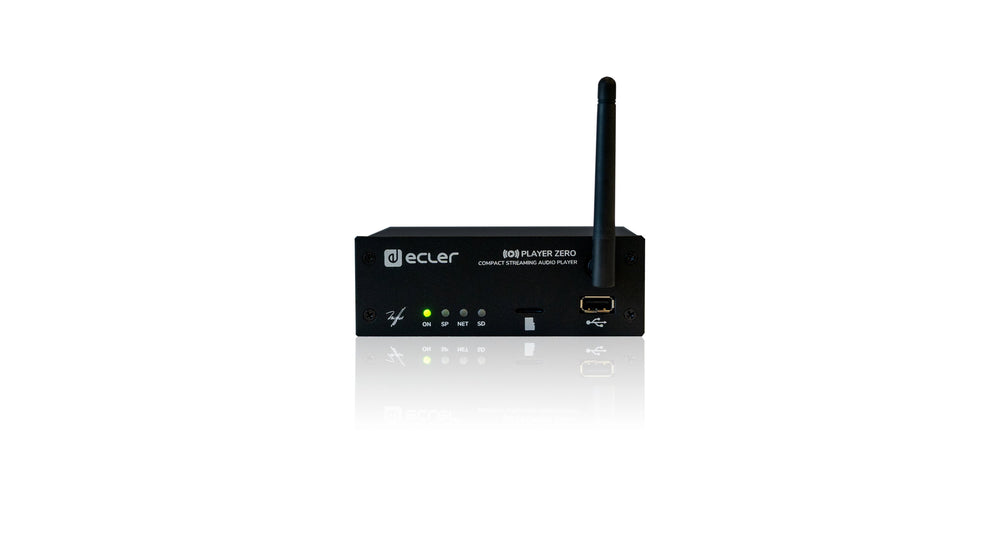

Ecler PLAYER ZERO compact stereo audio player
Ecler PLAYER ZERO compact stereo audio player
Ecler PLAYER ZERO compact stereo audio player
Ecler PLAYER ZERO compact stereo audio player
Ecler PLAYER ZERO compact stereo audio player

Ecler PLAYER ZERO Compact microSD and Streaming Audio Player

Brand: Ecler
SKU: ECL0076
£514.08
Only 1 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Visa Mastercard Klarna PayPal Credit
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.

Product Description

A compact stereo audio player for local USB/microSD media, internet streams, DLNA and AirPlay. Configure and control it through its embedded web application and Ecler Gallery.

Features

  • Single-deck audio player
  • Stereo RCA and mini-jack outputs
  • Internet streaming receiver
  • DLNA and AirPlay streaming
  • USB and microSD playback
  • Calendar event triggers, Cloud Disk Sync and user-written Lua scripts
  • JSON protocol compatibility
  • Programmable through embedded web app and Ecler Gallery

Specifications

  • Processor: MIPS single-core 64-bit, 580MHz
  • Sampling rate: 48kHz
  • Resolution: 16-bit
  • Bit rate: 32-320kbps
  • Frequency response: 5Hz-24kHz (-3dB)
  • Audio sources: USB/microSD local storage, internet radio, AirPlay and DLNA
  • Audio formats: MP3, OGG, WAV, FLAC and AIFF
  • Playlist formats: M3U and PLS
  • Dynamic range, as supplied: -80dB to 0dB
  • THD+noise: below 0.008% at 1kHz, 1Vrms
  • Two unbalanced stereo outputs: RCA stereo and 3.5mm mini-jack
  • Maximum output level: 6dBV into 5k ohms
  • Output impedance: 460 ohms
  • Ethernet: one RJ45, 10/100Mbps
  • Wi-Fi: 2.4GHz, IEEE 802.11b/g/n
  • Control: web application, RePLAYER, Ecler Gallery and JSON third-party integration
  • Two GPI ports: dry contact to ground, 3-pin terminal block
  • RTC retention: approximately 240 hours
  • RTC accuracy: +/-1 minute per month
  • LEDs: front NET, SP, SD and power; rear Wi-Fi
  • MicroSD SDXC support
  • USB 2.0 High Speed, 480Mbps
  • Storage capacity: up to 2TB
  • File systems: FAT16, FAT32, VFAT and read-only NTFS; one partition
  • Playable audio/playlist files: MP3, OGG, WAV, FLAC, AIFF, M3U and PLS
  • File-analysis limits, supplier wording: 65354 playable folders; 65354 playable folders within each folder; 65354 playable files within each folder
  • Folder hierarchy: up to eight levels including root
  • Sorting: Unicode; up to 100 folders and 100 files per folder; extras sorted in FAT order
  • External universal 5V DC power supply included
  • AC mains: 90-264VAC, 50-60Hz
  • International AC plug set
  • Passive ventilation
  • Operating temperature: 0 to 35 degrees C
  • Operating humidity: below 85% RH
  • Storage temperature: -10 to 50 degrees C
  • Storage humidity: below 90% RH
  • Included accessories: AC/DC supply, Wi-Fi antenna, adhesive rubber feet, rack-tray screws, GPI connector, warranty card and standard user guide
  • Display: none
  • Rear factory-default/fail-safe pinhole
  • Power consumption: 4.5VA / 2.2W
  • Installation: desktop or one-third-width 1U rack
  • Optional accessory: VEO-RACK19 compatible
  • Dimensions (W x H x D): 126.5 x 44 x 132mm
  • Weight: 0.6kg
  • Shipping dimensions (W x H x D): 220 x 60 x 450mm
  • Shipping weight: 0.8kg
