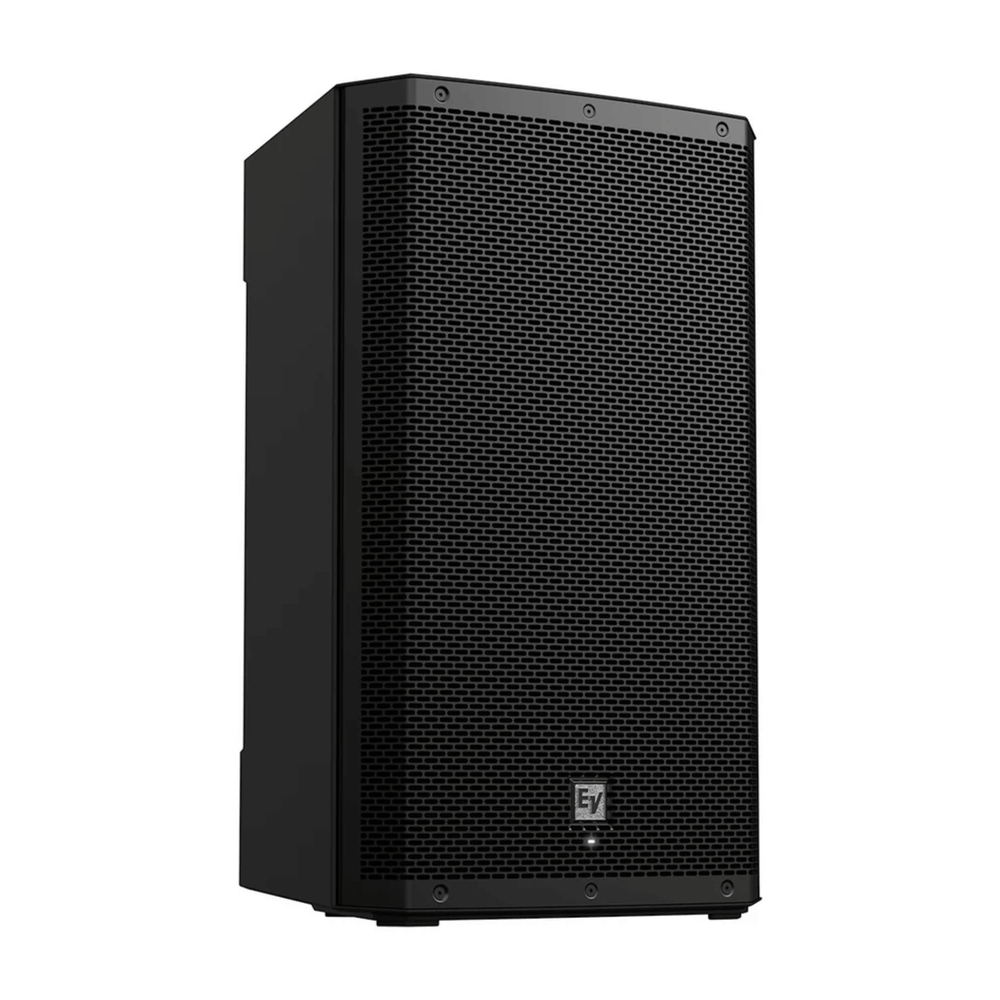

Electro-Voice ZLX-15P G2 15" Active PA Speaker
Product Description
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers lead with acoustic output and extended frequency range. The Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures enhanced bass response, smaller size and more even coverage across all frequencies. ZLX-G2 is designed with a robust and ergonomic enclosure for day-to-day durability and portability.
POWERED BY DYNACORD, all powered ZLX-G2 loudspeakers feature a built-in digital mixer with FX, EQ, automatic feedback suppression (AFS) and ducking. The mixer includes two XLR/TRS combo jacks, and provides 24V phantom power and Hi-Z compatibility.
Bluetooth® stereo streaming and linking for true wireless stereo setup are integrated into the ZLX-G2 series. The mixer and all speaker functions are easily controlled from the Electro-Voice QuickSmart Mobile app. The app allows pairing and grouping of up to six loudspeakers, in any combination.
The new larger full-colour LCD display and simple single encoder and push-key interface result in quick setup and more user control. Powered ZLX-G2 loudspeakers contain Electro-Voice-specific subwoofer presets that adjust for both gain and time alignment, resulting in full acoustic optimization. Additional high pass filters (HPF) are available in the DSP for increased compatibility.
- 15" LF Driver, 1.4" HF Driver
- Frequency response (-3 dB): 48 Hz – 18,000 Hz
- Max SPL: 129dB
- 55-degree monitor angle and “Kickback” 25-degree angle
- Full-colour LCD display
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Advanced connectivity with Bluetooth® wireless stereo streaming and QuickSmart Mobile app control
- POWERED BY DYNACORD - built in digital mixer with FX, AFS, ducker, PEQ and more
- Frequency response (-3 dB) (Hz): 48 Hz – 18,000 Hz
- Frequency range (-10 dB) (Hz): 42 Hz – 20,000 Hz
- Maximum sound pressure level at a distance of 1 m (dB): 129 dB
- Coverage angle HxV (°): 90° x 60°
- Crossover frequency (kHz): 1.40 kHz
- Power rating (W): 1000 W
- Power consumption (V, Hz): 100 - 240 V~, 50 - 60 Hz
- LF transducer: WECA2188
- LF transducer size (in): 15 in
- LF transducer magnet material: Ferrite
- HF transducer: DECA2516
- HF transducer type: Compression driver
- HF transducer size (in): 1.40 in
- HF transducer magnet material: Ferrite
- HF transducer diaphragm material: Titanium
- Connector type: (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
- Material: Polypropylene
- Grille material: Powder coated steel
- Dimensions (H x W x D): 697.6 mm x 422.8 mm x 383.1 mm (27.46 in x 16.65 in x 15.08 in)
- Weight: 16.78 kg (37 lb)
