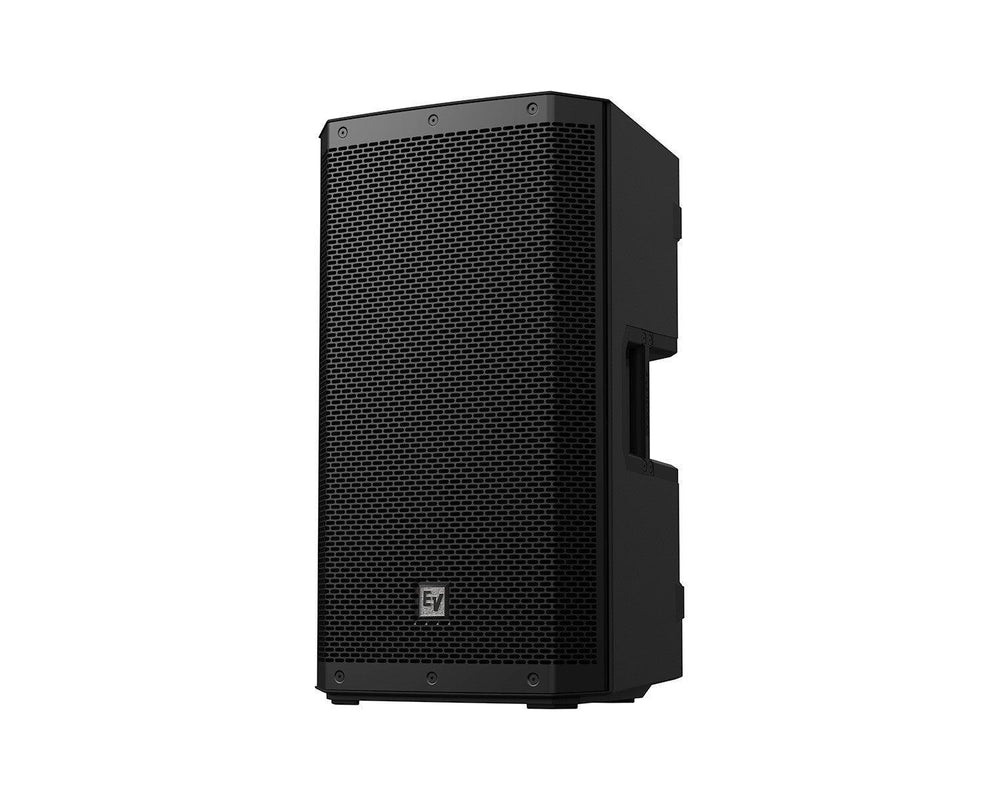

Electro-Voice ZLX12-G2 12" 2-Way Passive Speaker 8Ohm Black
Product Description
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a “kickback” 25-degree monitor angle. ZLX-12-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins.
For optimal acoustics and performance, ZLX-12-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.
- 12" LF Driver, 1.4" HF Driver
- Frequency response (-3 dB): 69 Hz – 20,000 Hz
- Max SPL: 125dB
- 55-degree monitor angle and “Kickback” 25-degree angle
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
Product Specifications
- Frequency response (-3 dB) (Hz): 69 Hz – 20,000 Hz
- Frequency range (-10 dB) (Hz): 55 Hz – 20,000 Hz
- Axial sensitivity (dB SPL 1W/1m): 93 dB SPL 1W/1m
- Maximum sound pressure level at a distance of 1 m (dB): 125 dB
- High pass frequency (Hz): 48 Hz
- Crossover frequency (kHz): 2 kHz
- Coverage angle HxV (°): 90° x 60°
- Power handling (continuous) (W): 250 W
- Power handling (peak) (W): 1,000 W
- Nominal impedance (O): 8 O
- LF transducer: WECA2128
- LF transducer size (in): 12 in
- LF transducer magnet material: Ferrite
- HF transducer: DH-1K
- HF transducer type: Compression driver
- HF transducer size (in): 1.4 in
- HF transducer diaphragm material: Titanium
- Dimensions (H x W x D): 621.1 mm x 356.2 mm x 356 mm (24.45 in x 14.02 in x 14.01 in)
- Weight: 14.26 kg (31.44 lb)
