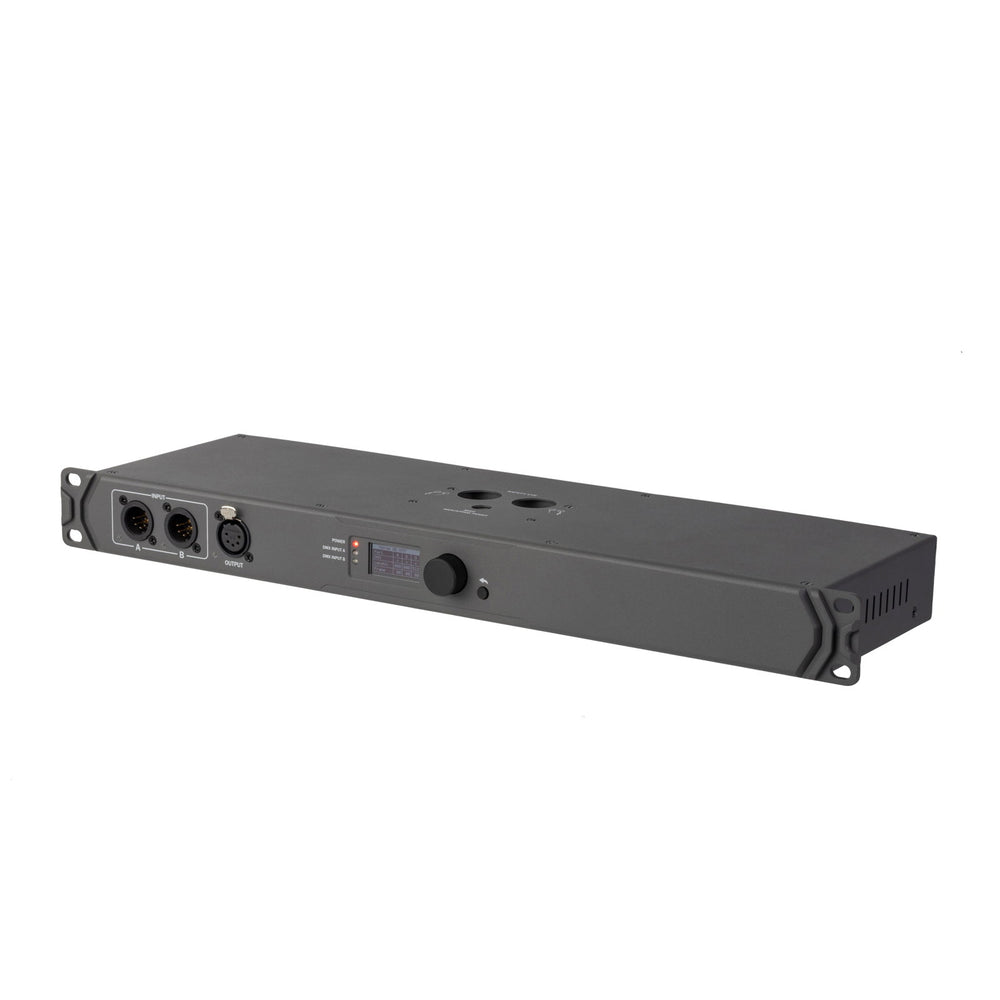

Elumen8 Cygnus MERGE DMX Merger
Brand: Elumen8
SKU: ELUM254
£190.00
In Stock (25+)
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
Combine two DMX controllers into one line or use a second desk as a backup. The Cygnus MERGE provides A/B inputs and output on its front and rear panels, six merge/backup modes, configurable frame rates and a selectable RDM filter. Its rugged aluminium 1U 19-inch rack chassis includes an M10 clamp mounting point for professional lighting networks.
Features
- 2 year warranty
- A/B Seetronic 5-pin inputs on front and rear panels
- Seetronic 5-pin DMX output on front and rear panels
- Power, A/B and DMX indicator LEDs
- Six modes: HTP, LoTP, LTPc, LTPin, backup and merge
- Selectable RDM filter removes RDM traffic from output
- Outputs electronically opto-isolated from each other and inputs
- Configurable frame rates
- RDM remote device management
- 1.4-inch OLED display with rotary control
- M10 clamp rigging point
- Powder-coated aluminium 1U 19-inch rack chassis
- PowerTwist TR1 input/output
- Convection cooled
Specifications
- Power consumption: 3W
- Power supply: 100-240V, 50/60Hz
- Fuse: T1A 250V
- Dimensions (H x W x D): 44 x 483 x 155mm
- Weight: 1.91kg
