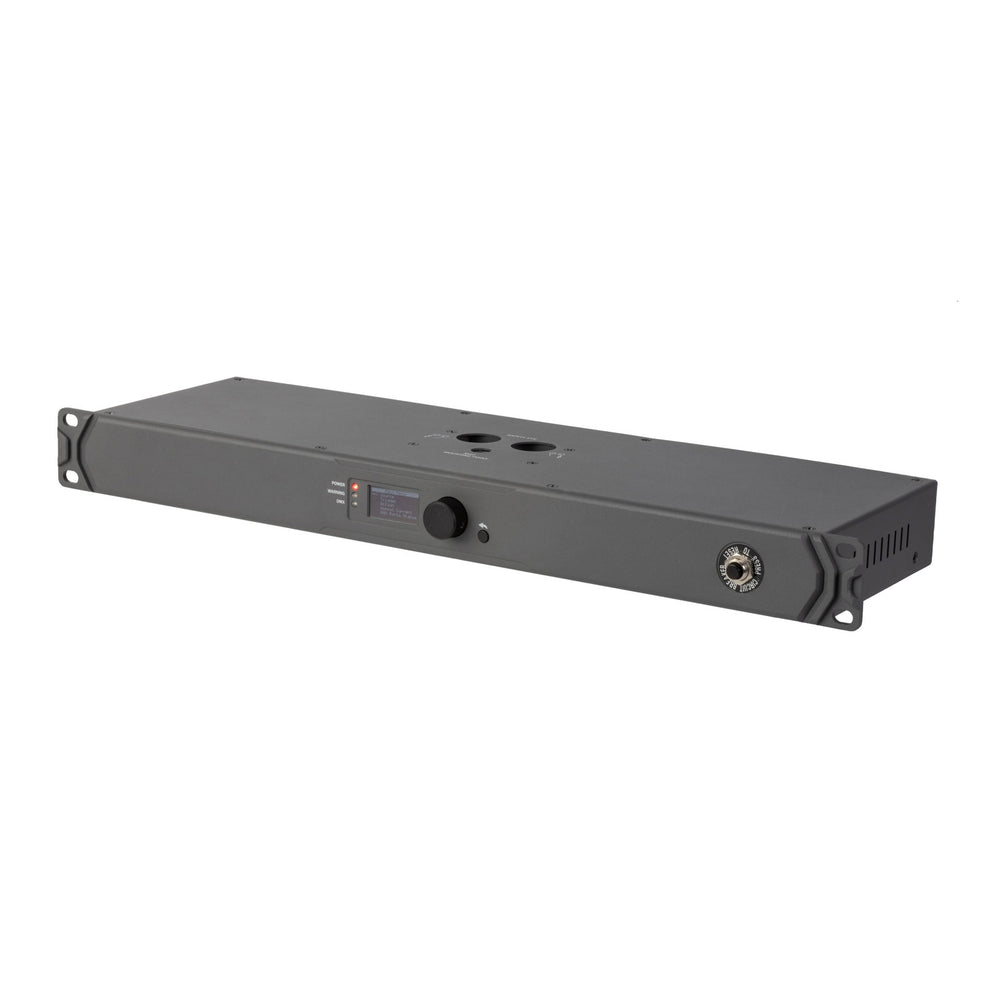

Elumen8 Cygnus RSP4 DMX Recorder / Switch Pack

A four-way DMX recorder, switch pack and programmable trigger with timer functions for shops, theme parks, museums and events. Four DMX and four PowerTwist TR1 outputs each have user-settable current monitoring and limiting. Scenes, shows, chases and power switching can be triggered by daily or weekly timers or DMX, from a rugged 1U 19-inch rack chassis.

Features

• 2 year warranty
• One Seetronic 5-pin DMX input
• One Seetronic 5-pin passthrough
• Four Seetronic 5-pin DMX outputs
• Four PowerTwist TR1 switchable outputs
• Programmable daily and weekly timers
• Programmable DMX input triggers
• 32GB internal memory
• Current limiter and monitor per output
• Maximum current: 10A per channel, 15A total
• Auto, timer and DMX modes
• DMX outputs electronically opto-isolated from each other and input
• DMX link output with switchable termination
• Power, warning and DMX indicator LEDs
• 1.4-inch OLED display with rotary control
• M10 clamp rigging point
• Powder-coated aluminium 1U 19-inch rack chassis
• PowerTwist TR1 input
• Convection cooled

Specifications

• Power consumption: 4W; 3450W fully loaded
• Power supply: 100-240V, 50/60Hz
• Fuse: T1A 250V
• Dimensions (H x W x D): 44 x 483 x 155mm
• Weight: 2.36kg
