Product Description

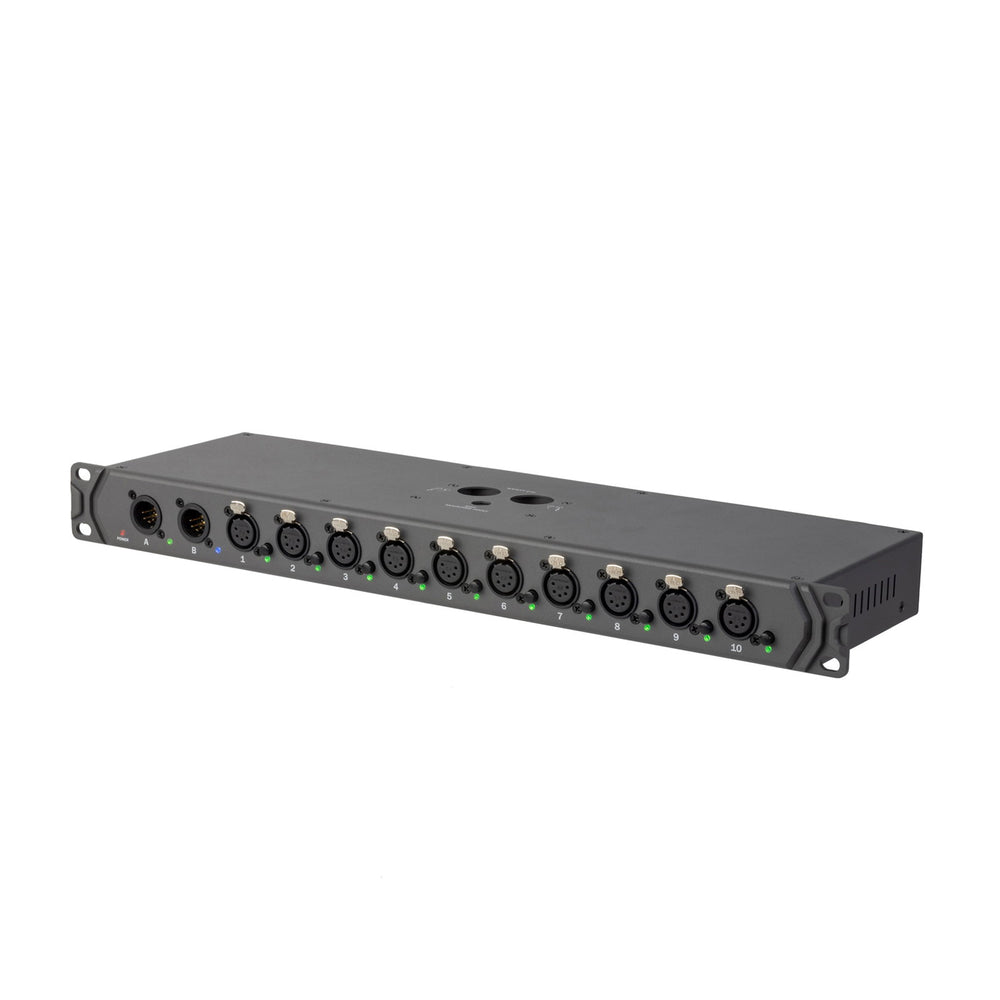

A ten-way DMX distribution splitter and booster with two inputs and switchable-termination passthroughs. Per-output A/B toggle switches, independent drivers and opto-isolation support star-format cabling while helping prevent data errors.
Features
- A/B Seetronic 5-pin inputs on front and rear panels
- A/B Seetronic 5-pin passthroughs on rear panel
- Ten Seetronic 5-pin DMX outputs
- Per-output toggle switches select A or B input
- Link outputs with switchable termination
- Power and A/B indicator LEDs
- 2 year warranty
- Boosts DMX signal
- Outputs electronically opto-isolated from each other and inputs
- M10 clamp rigging point
- Powder-coated aluminium 1U 19-inch rack chassis
- PowerTwist TR1 input/output
- Convection cooled
Specifications
- Power consumption: 9W
- Power supply: 100-240V, 50/60Hz
- Fuse: T1A 250V
- Dimensions (H x W x D): 44 x 483 x 148mm
- Weight: 1.98kg
