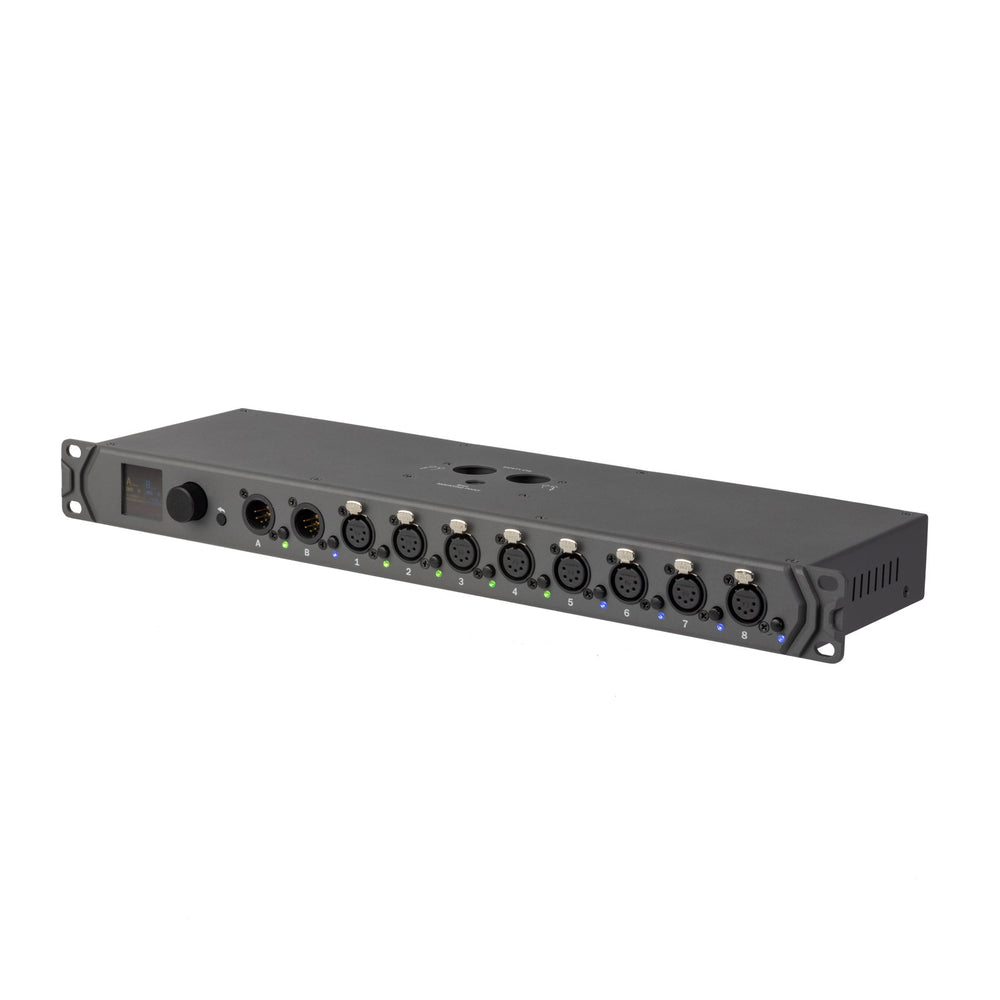

Elumen8 Cygnus SPLIT8PRO DMX / RDM Interface
Brand: Elumen8
SKU: ELUM252
£365.00
In Stock (25+)
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
An eight-way DMX distribution splitter, booster and merger with two inputs, passthroughs and eight opto-isolated outputs. Per-output A/B routing, independent drivers and RDM-capable Seetronic 5-pin connections support professional star-format lighting networks.
Features
- A/B Seetronic 5-pin inputs on front and rear panels
- A/B Seetronic 5-pin passthroughs on rear panel
- Eight Seetronic 5-pin DMX outputs
- Per-output toggle switches select A or B input
- Boosts DMX/RDM signal
- Configurable DMX refresh rates
- RDM remote device management
- Power and A/B indicator LEDs
- Audible DMX error alarm
- 1.8-inch OLED display with rotary control
- 2 year warranty
- Boosts DMX signal
- Outputs electronically opto-isolated from each other and inputs
- M10 clamp rigging point
- Powder-coated aluminium 1U 19-inch rack chassis
- PowerTwist TR1 input/output
- Convection cooled
Specifications
- Power consumption: 8W
- Power supply: 100-240V, 50/60Hz
- Fuse: T1A 250V
- Dimensions (H x W x D): 44 x 483 x 155mm
- Weight: 1.97kg
