Product Description

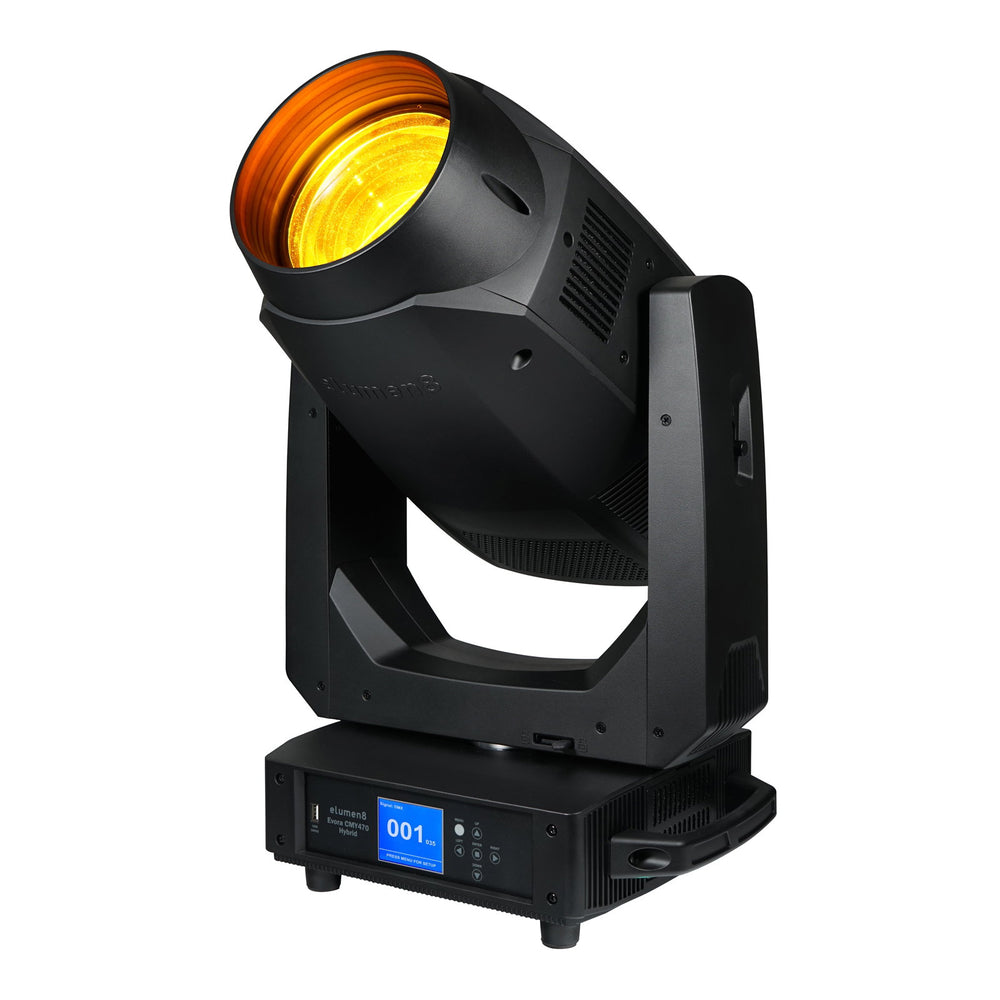

A 3-in-1 moving head with an Osram SIRIUS HRI 471W discharge lamp and motorised 1.8-46 degree zoom for tight beams and wide washes. Static and rotating gobo wheels, eight rotating prisms, two variable frost filters, an animation wheel and CMY colour mixing provide a broad effects palette. TRUE1 connections, battery-backed offline configuration and wired or onboard W-DMX control support stage and touring use.
Features
- 2 year warranty
- One Osram SIRIUS HRI 471W SN discharge lamp (7500K)
- Adjustable beam angle: 1.8-46 degrees
- Source lumens: 23900
- Output lumens: 12699
- Beam mode: 431000 lux at 10m at 1.8 degrees; 3620 lux at 10m at 21 degrees
- Spot mode: 180000 lux at 10m at 3 degrees; 840 lux at 10m at 42 degrees
- Wash mode: 12000 lux at 10m at 7 degrees; 608 lux at 10m at 46 degrees
- Motorised zoom and focus
- Eight rotating indexable prisms on two wheels
- Prism wheel 1: dynamic effects, six-facet circular, five-facet linear and four-facet circular
- Prism wheel 2: six-facet linear, eight-facet circular, sixteen-facet circular and twenty-four-facet circular
- Medium variable frost: 0-100%
- Heavy variable frost: 0-100%
- CRI: 80
- High CRI filter: CRI 90
- Gobo wheel 1: nine rotating, indexable, replaceable gobos plus open
- Gobo wheel 2: thirteen static gobos plus open
- Animation wheel
- CMY colour mixing: cyan, magenta and yellow each 0-100%
- Colour wheel: twelve colours plus CTO filter plus open
- Control protocols: DMX, Kling-Net, Art-Net and sACN
- DMX channels: 35
- Wireless control: W-DMX Sweden transceiver
- Manual and master/slave modes plus built-in programs
- RDM remote device management
- Pan/tilt transit lock and auto correction
- 16-bit pan/tilt positioning
- Pan: 540 or 630 degrees selectable; tilt: 270 degrees
- 0-100% dimming
- Variable strobe
- Quick-release omega clamps supplied
- Six-button menu with 2.7-inch LCD touch-screen display
- Display battery backup for offline configuration
- USB port for firmware updates
- powerCON TRUE1 input/output
- 5-pin XLR input/output
- etherCON input/output
- Temperature-controlled fans
Specifications
- Power consumption: 728W
- Power supply: 100-240V, 50/60Hz
- Fuse: T8A 250V
- Noise level: 50dBA at 1m, auto speed
- Dimensions (H x W x D): 670 x 390 x 288mm
- Weight: 25.8kg
