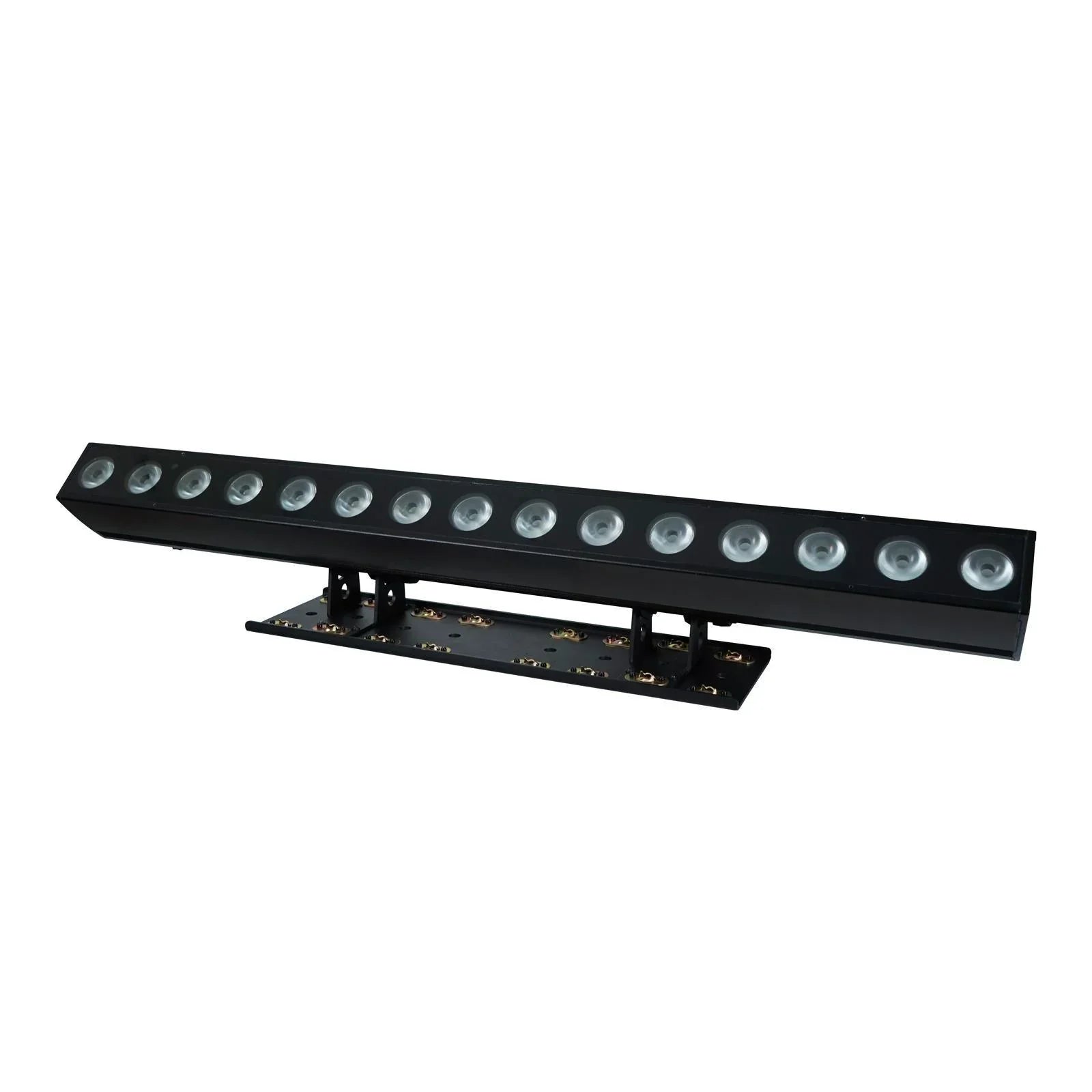

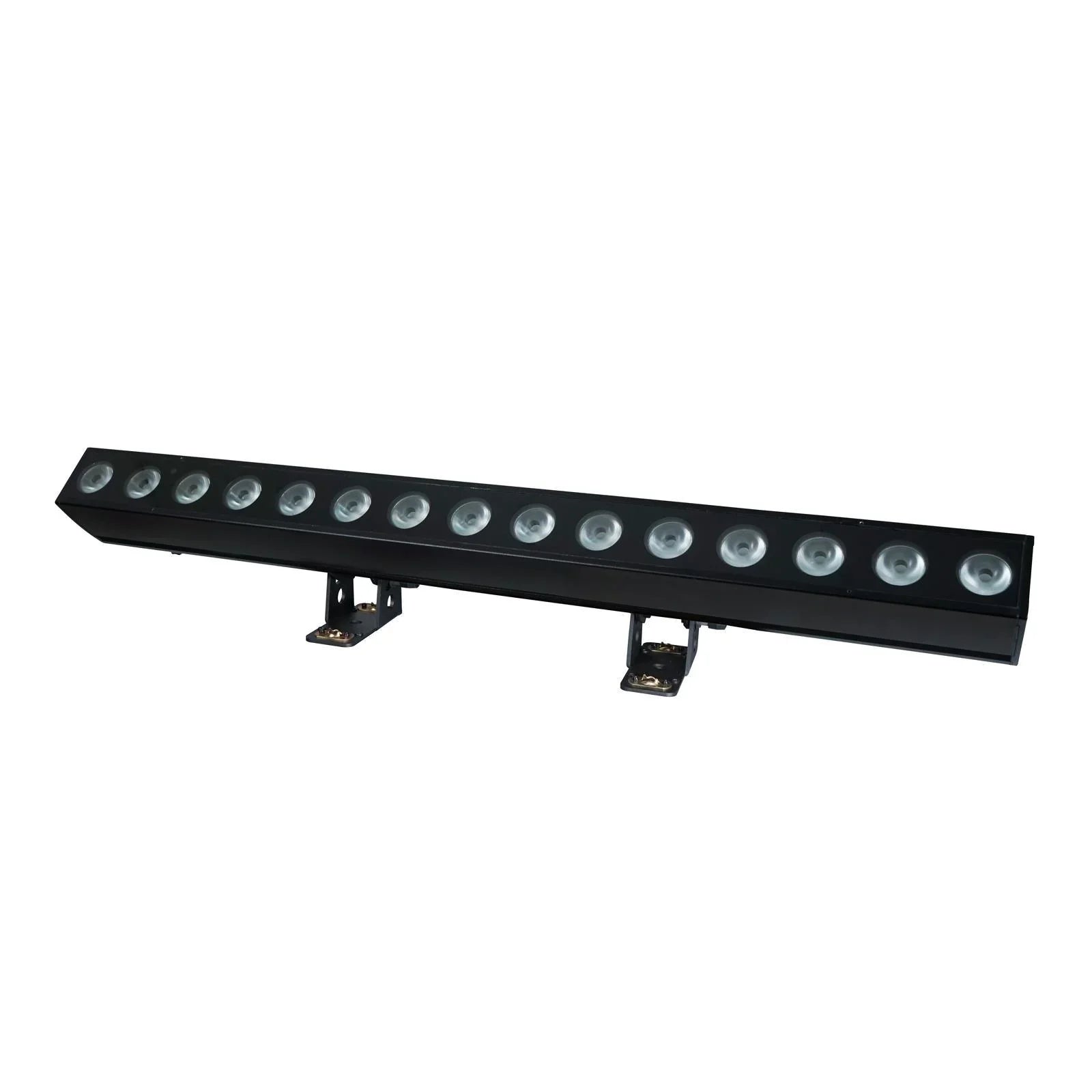

elumen8 Meteor 150 IP Pixel Battens

The Elumen8 Meteor 150 HEX IP Pixel Batten features high output LEDs housed in a rugged rental-ready IP65 housing, suitable for indoor and temporary outdoor applications. The 20° x 30° beam angle smoothly washes facades in deep rich colours or pastel tones whilst the individually addressable LEDs allow for a range of pixel effects to be created on-stage. The Meteor 150 Batten can be controlled via DMX or via the 4 button menu system allowing access to manual, auto and master/slave modes. The fixture boasts convection cooling for completely silent operation whilst the integral mounting brackets featuring quick-release omega clamps makes rigging and installation a breeze.

• 2 year warranty
• 15 x 12W six-colour LEDs (RGBWAUV)
• Beam angle: 20° x 30°
• 3,040 Lux @ 2m (full on)
• Refresh rate: 1kHz, 4kHz, 8kHz or 16kHz selectable
• Full pixel mapping capabilities
• DMX channels: 6/8/12/90 or 96 selectable
• Static colour, colour change, colour fade and master/slave modes
• 0 - 100% dimming
• 4 dimming curves: Linear, square law and S-curve
• Variable strobe
• RDM (Remote Device Management)
• 4 button menu with OLED display
• Bracket allows for multiple rigging or floor standing applications
• Removable base plate included enables omega clamps to be rigged multiple positions to avoid truss cross braces
• Quick release omega clamps included
• PowerCON TRUE1 compatible Seetronic input/output
• IP rated 5-Pin XLR input/output
• Convection cooled

• Power consumption: 130W
• Power supply: 100~240V 50/60Hz
• IP rating: IP65
• Dimensions (H x W x D): 191 x 990 x 145mm
• Weight: 7.3kg
