elumen8 Meteor 784 IP Batten
Product Description

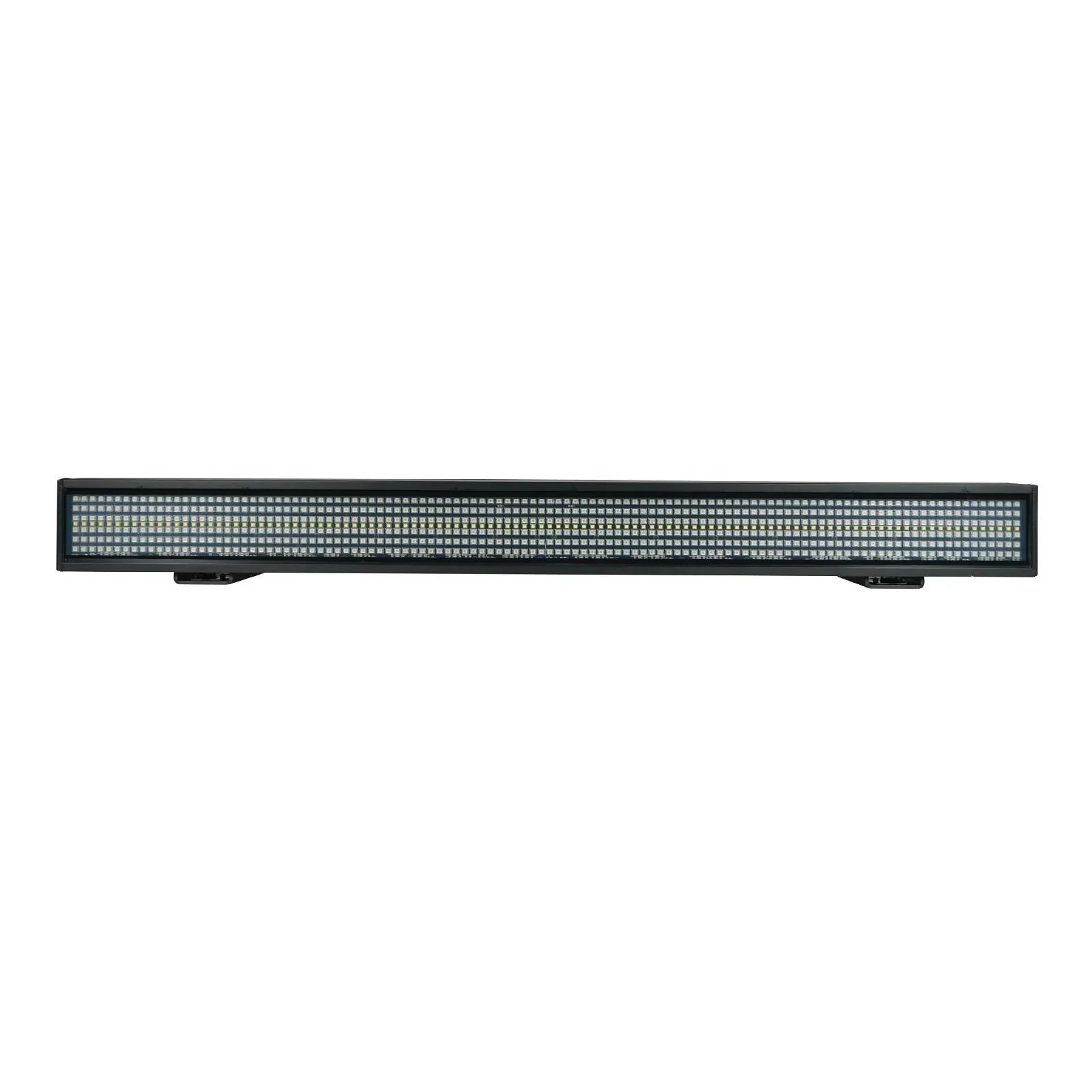

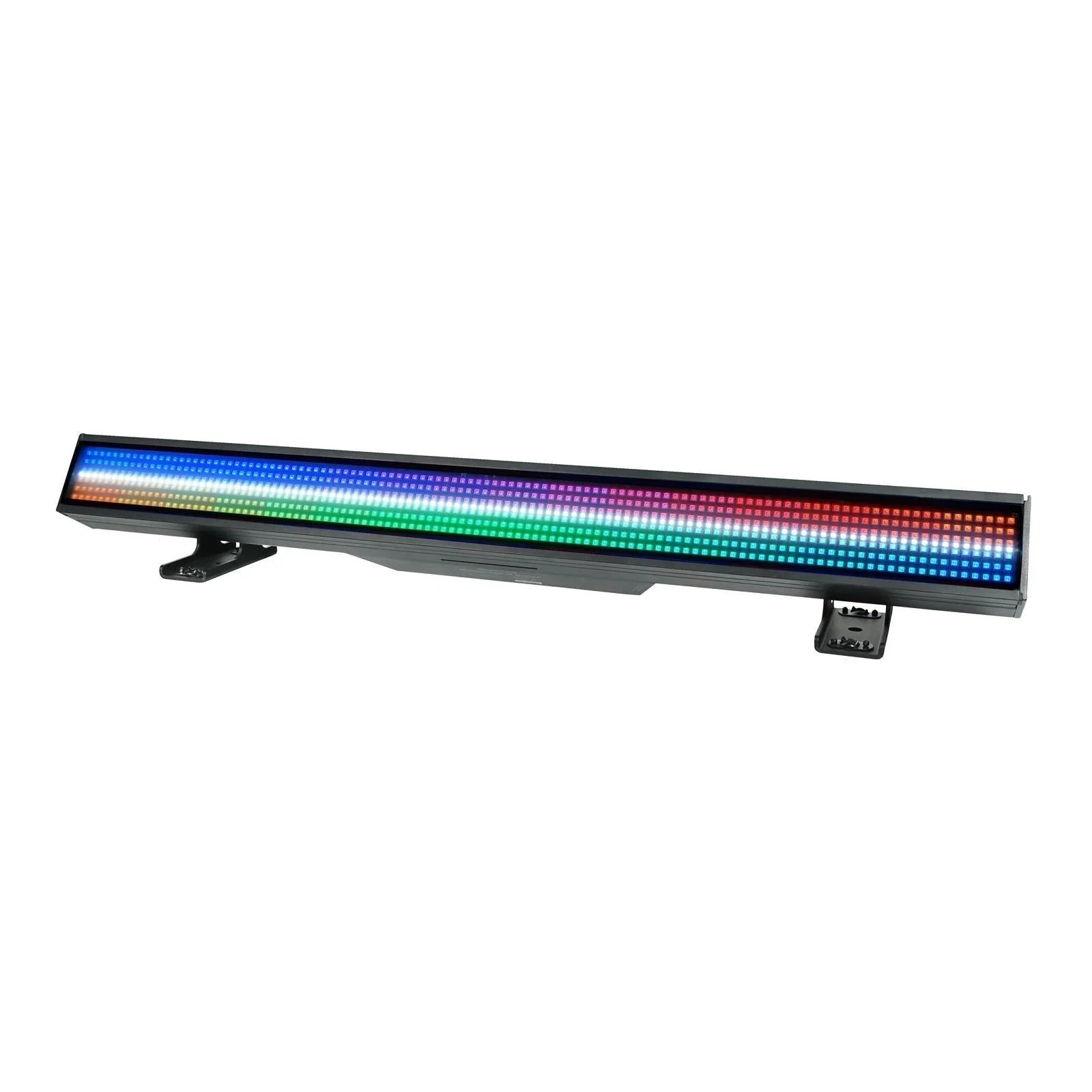

Generating intense white strobing and multicoloured pixel zone effects the Meteor 784 IP Batten features a central strip of 112 x 3W cool white SMD LEDs, surrounded on both sides by a total of 672 x 1.5W RGB colour mixing SMD LEDs. All the LEDs are divided into independently controllable zones (16 white and 32 colour). With a wide beam angle the batten is ideally suited to concerts, festival stages and installations. A clever twist to this fixture is the ability to switch the front glass to a frosted output. The Intelliglass Technology® developed on this fixture allows the user to simply switch a DMX channel and alternate between clear and frost effects eliminating the need for additional frost filters. A quick-positioning twist-lock mechanism on two sides ensures the fixtures always line up when used in multiples, and the IP65 rated housing weighs in at only 5.9kg.
- 2 year warranty
- 672 x 1.5W SMD LEDs (RGB) plus 112 x 3W SMD LEDs (CW)
- RGB beam angle: 101° (field angle: 149°)
- CW beam angle: 108° (field angle: 152°)
- Pixel zone mapping: 32 x RGB LED zones and 16 x CW LED zones can be controlled individually

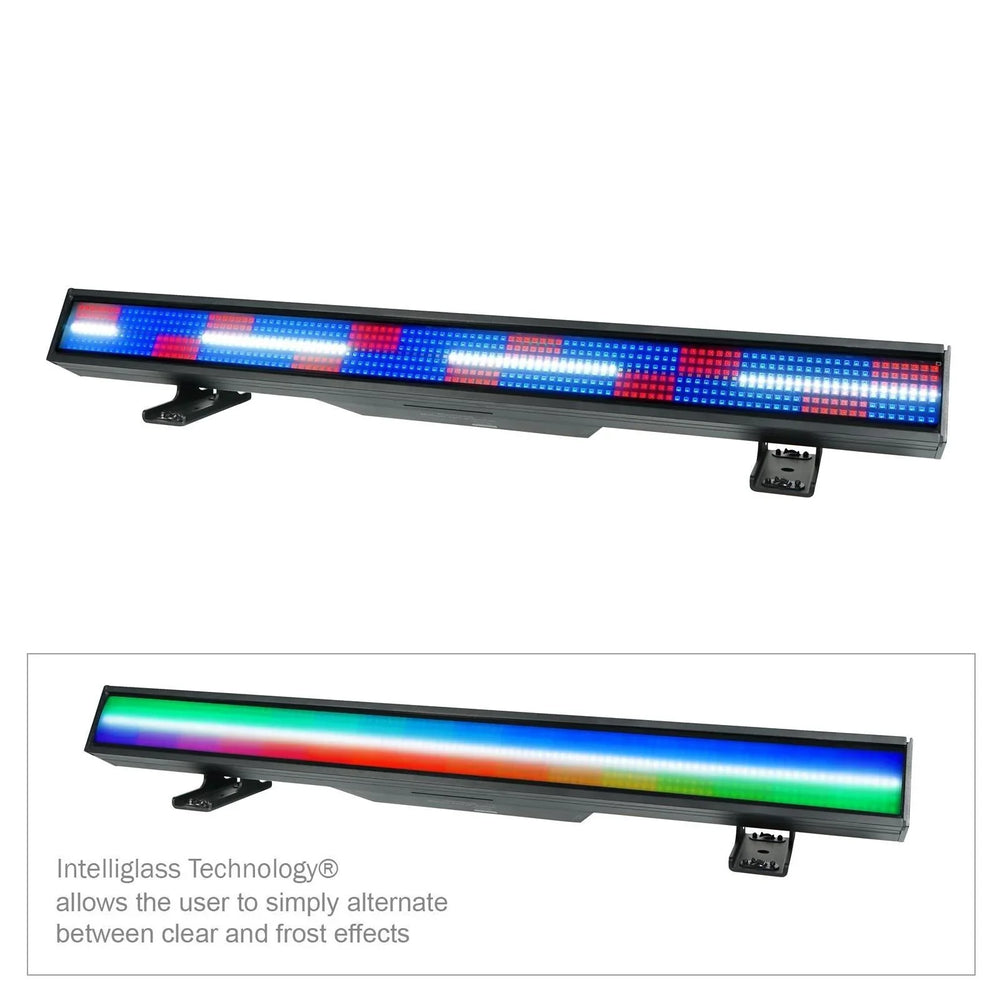

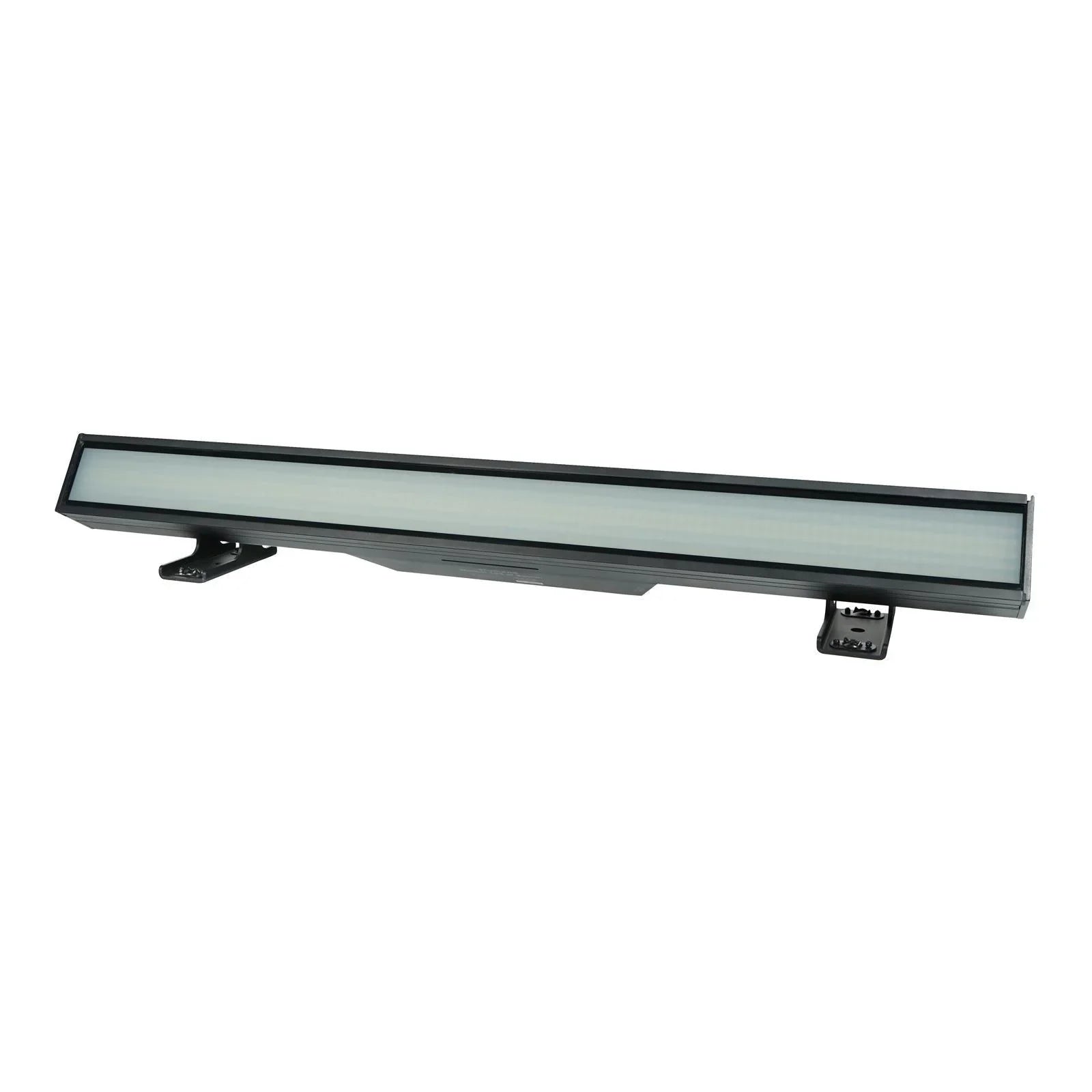

- Intelliglass Technology® allows the user to simply alternate between clear and frost effects eliminating the need for additional frost filters
- Control protocols: DMX, Art-net and sACN
- DMX channels: 7/15/17/21/33/39/65/68/70/112/117 or 121 selectable
- 0 - 100% dimming
- 4 dimming curves: Linear, square law, inverse square law and S-curve
- Variable strobe
- Supplied with installation brackets
- Multiple units can be seamlessly jointed tool-free

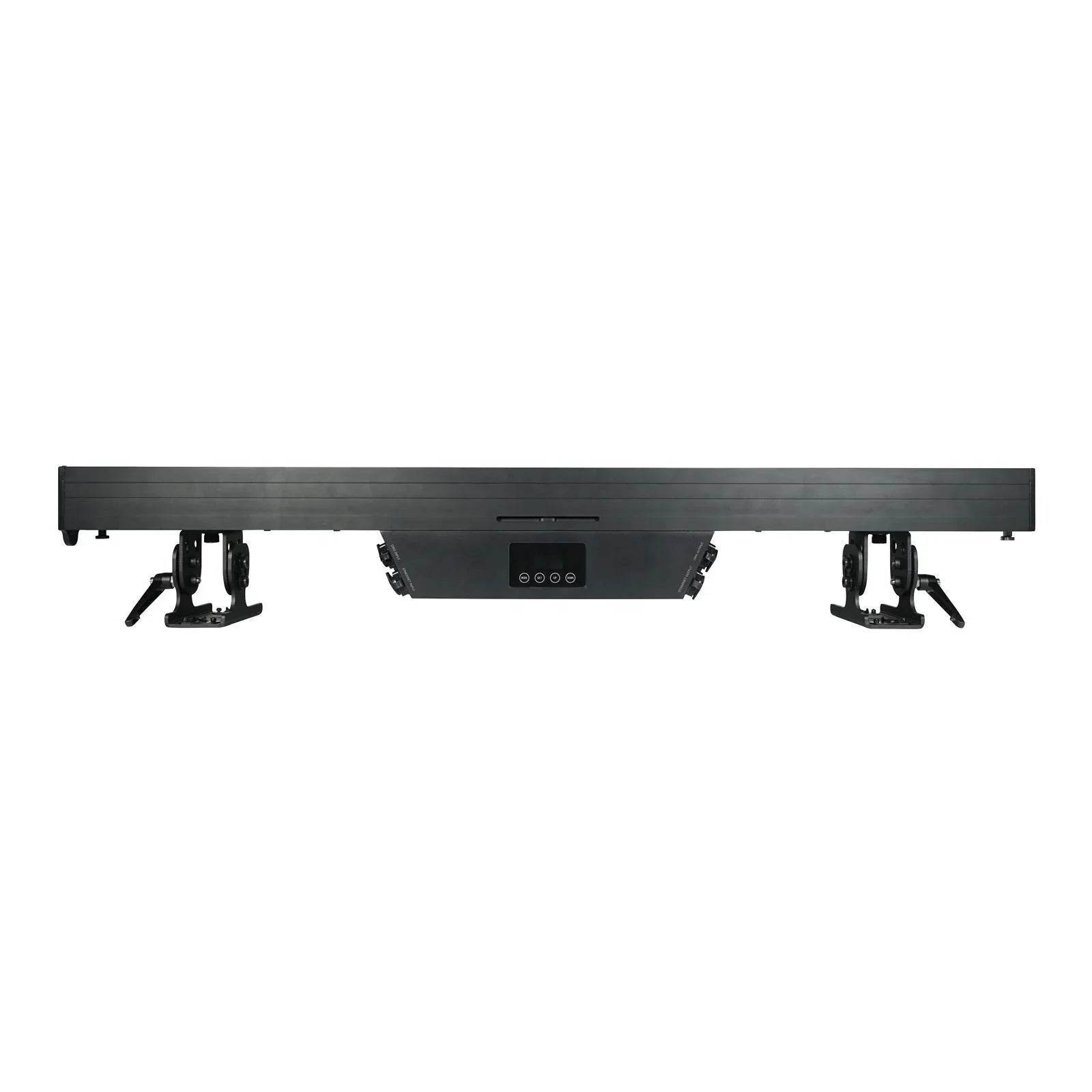

- 4 button menu with OLED display

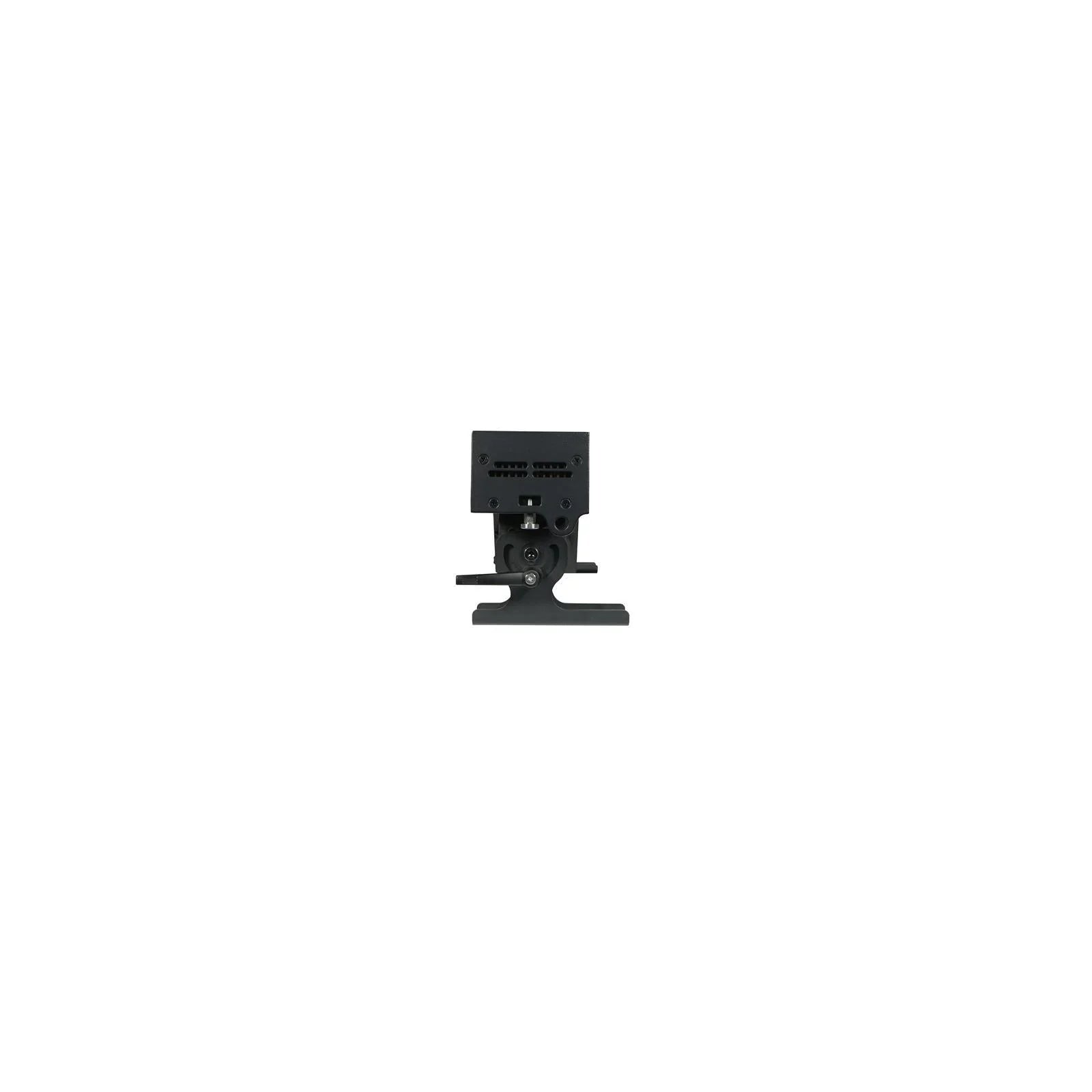

- Bracket allows for multiple rigging or floor standing applications
- Quick release omega clamps included
- powerCON TRUE1 input/output
- IP rated 5-Pin XLR input/output

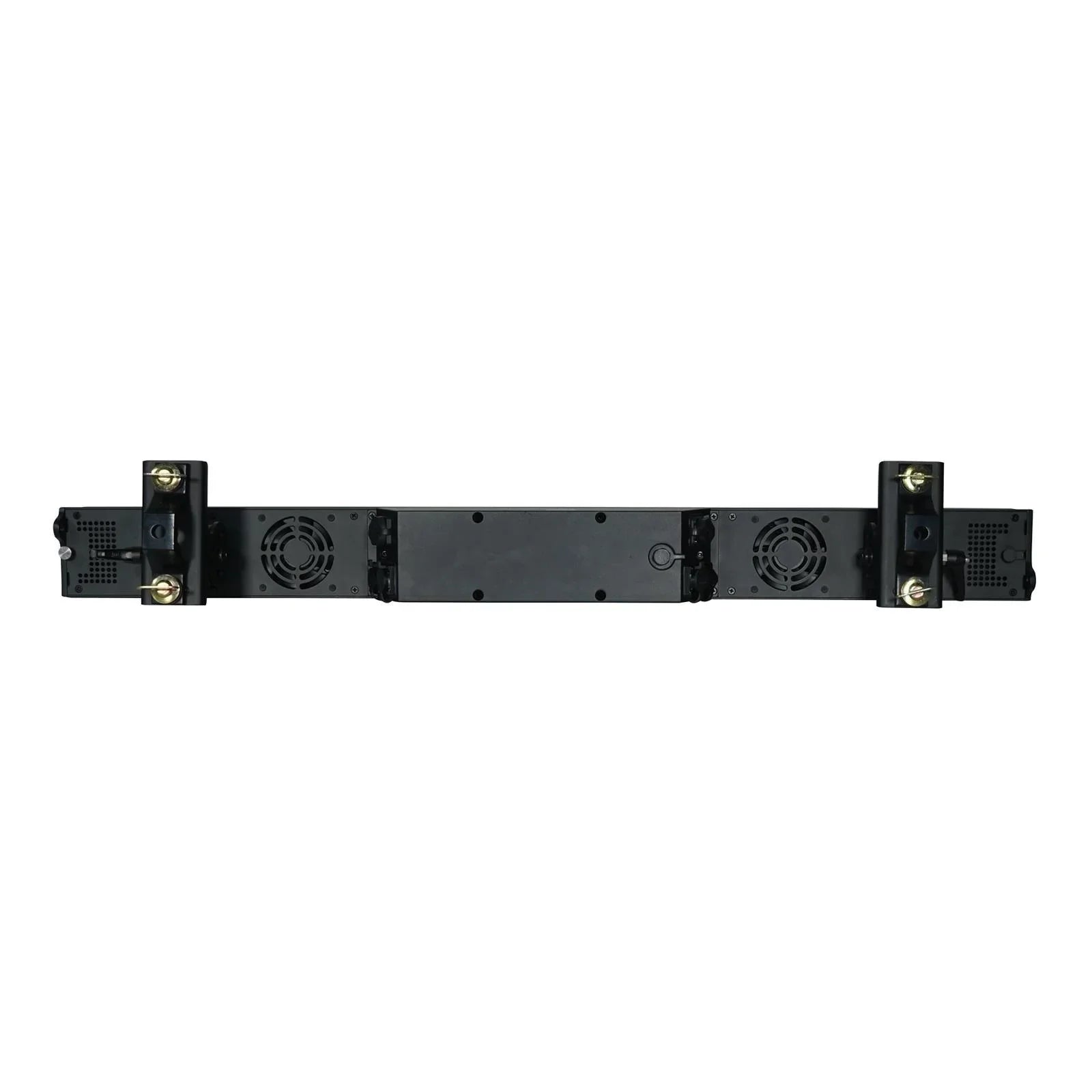

- Fan cooled
- Power consumption: 420W
- Power supply: 100~240V, 50/60Hz
- IP rating: IP65
- Dimensions (H x W x D): 170mm x 1000mm x 114mm
- Weight: 5.9kg
