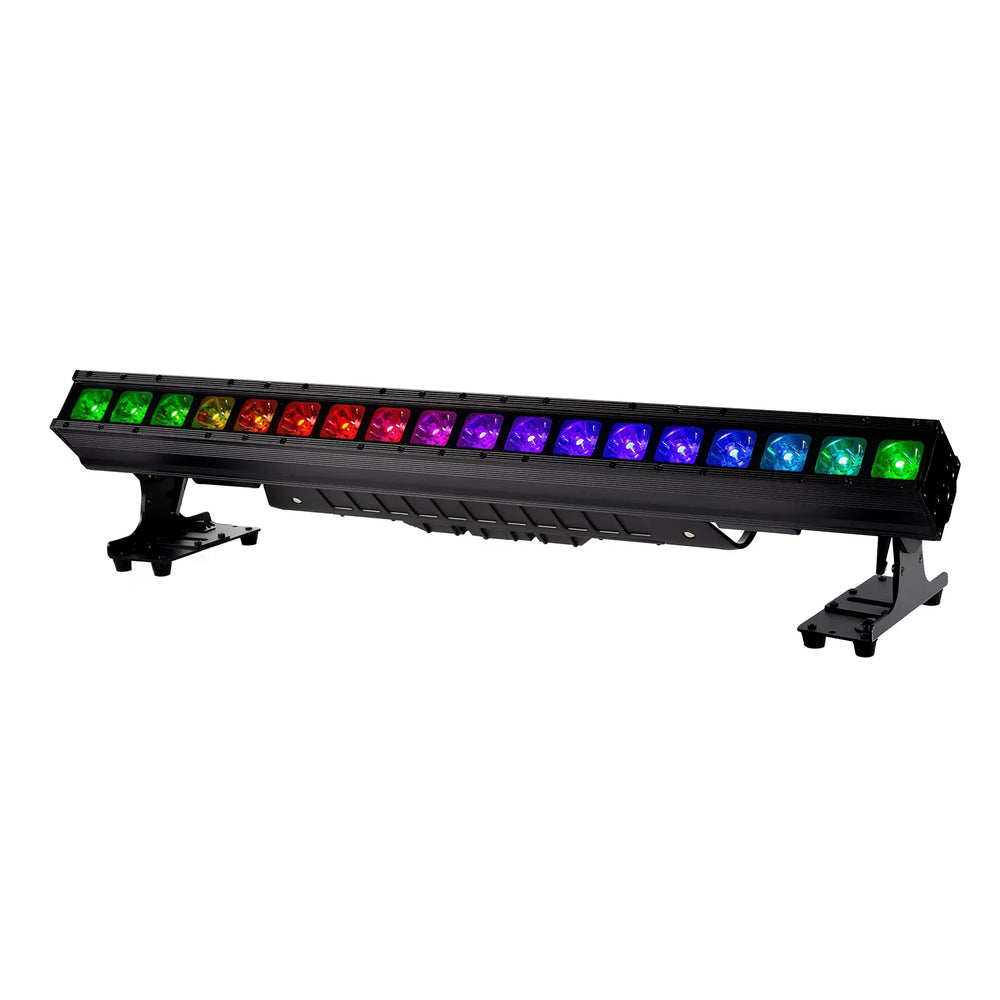

elumen8 Mira 450 IP Pixel 18 x 25W RGBL LED Batten
Product Description
The Elumen8 Mira 450 IP Pixel Batten is a high-output, IP65-rated fixture designed for the most demanding of environments. Housing 18 x 25W RGBL quad-colour LEDs, it delivers an intense 6° beam, with optional 20°, 45°, and 60° lenses available for broader wash coverage. The batten supports full pixel mapping and is controllable via DMX, Art-Net, or sACN with selectable refresh rates up to 24kHz for flicker-free performance on camera. Built for touring and fixed installs alike, the Mira 450 features fully rotatable 4-position mounting brackets for floor-standing or truss rigging, and includes quick-release omega clamps for fast setup. Units can be seamlessly joined side-by-side or stacked vertically using the built-in tool-free link system, allowing for uninterrupted linear or grid-style arrays. With convection cooling and rugged IP-rated connectors, the Mira 450 is the ideal choice for outdoor shows, stage productions, and architectural lighting.\2 year warranty
- 18 x 25W RGBL quad-colour LEDs
- Native 6° beam angle
- Optional 20°, 45° and 60° diffusion lenses available
- Selectable refresh rates: 800Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz, 24kHz
- Full pixel mapping capabilities
- Control: DMX, Art-Net and sACN
- DMX channels: 4/7/9/20/75/79 selectable
- Integral Art-Net to DMX for downstream fixture control
- Static colour, colour temperature and manual modes
- Built-in colour macros and programs
- Colour temperature presets
- 0 - 100% dimming
- 4 dimming curves: Linear, Square Law, Inverse Square Law, S-Curve
- Variable strobe
- RDM (Remote Device Management)
- 4 button menu with LCD display
- Adjustable 4-position brackets, rotatable at 90° intervals
- Quick release omega clamps included for fast rigging
- Tool-free seamless joining side-by-side or vertically stacked
- PowerTwist TR1 input/output
- IP-rated 5-Pin XLR input/output
- Fanless convection cooling
- Power consumption: 510W
- Power supply: 100~240V, 50/60Hz
- Fuse: T10A 250V
- IP rating: IP65
- Dimensions: 230 x 970 x 94mm
- Weight: 11kg
