Description
Phase 3s Powersafe single pole connectors are the highest rated, safest and finest quality industrial plug available, and are used by the power distribution, events, military and cable assembly industries worldwide. A set of Powersafe line connectors can easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. The three phase power distribution range includes: Earth, Neutral, L1, L2 and L3, available in either source or drain format as 800A or 500A, determined by cable size (240mm²-300mm² requires 800A plugs, 25mm²-185mm² requires 500A plugs). They are the perfect, safe alternative to Camlock connectors and fully compatible with Litton VEAM, T4 400 and T6 660 amp powerlocks, ITT Cannon and other manufacturers.
- Made in Britain
- Manufacturers code: SLS-1-BN-S120-M40A

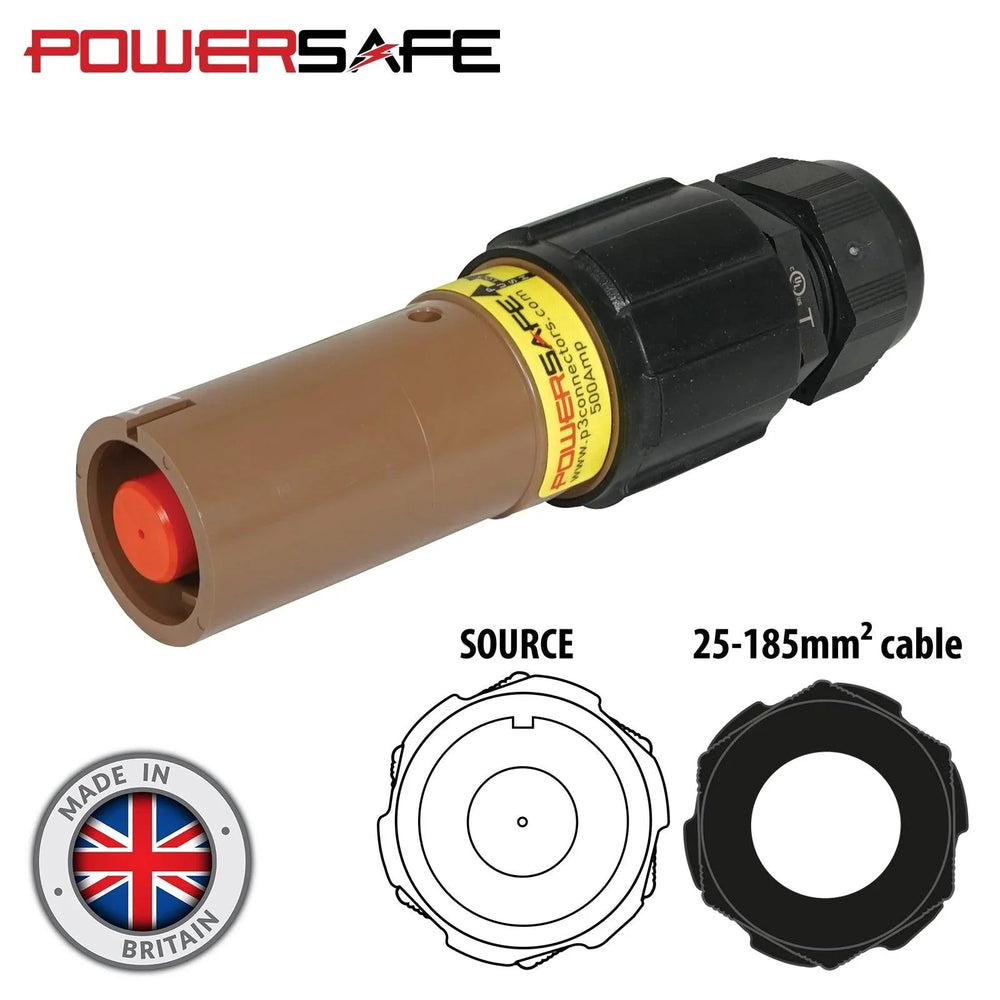

- Type: 500A Line Source 120mm² L1 Brown
- Mechanically keyed to eliminate the possibility of cross mating
- Secondary locking prevent unintentional uncoupling under load
- Finger-proof protection against electric shock IP2X
- Waterproof and dustproof to IP67 rated
- Colour coded for easy identification
- Innovative contact band allows higher rating (400A>500A, 660A>800A)
- Contact band cannot come out
- High impact insulator (no glass used and flame retardant)
- Field installation no special tools required
- Integral cable strain relief
- Daisy chain capability facilitates flexible stock cable lengths
- Large cable range: 25mm²-300mm² (Please note: If you require Powersafe for power cables less than set screw 120mm², i.e. 95mm², 70mm², 50mm², 35mm², 25mm², you must purchase a reducer kit separately)
- No of contacts: 1
- Maximum continuous rating* Up to 500A
- Surge current: 75kA
- Short circuit rating up to: 35.5kA
- Cables cross sectional area: C.S.A. 25mm² to 300mm²
- Contact termination: Screw
- Mating method: Bayonet lock
- Operating voltage: 1000V AC
- Max. rated voltage to tarth: 2kV AC / 3kV DC
- Minimum flashover: 9.5kV DC or AC Peak
- Insulation resistance: >5MO @ 500V DC
- Ingress protection**: IP67
- Protection against electrical shock: IP2X
- Flammability: UL94-V0
- Mating cycles: >500
- Shell material: High temperature thermoplastic
- Contact plating: Silver
- * Subject to environmental factors and cable choice etc
- ** In accordance with EN60529
