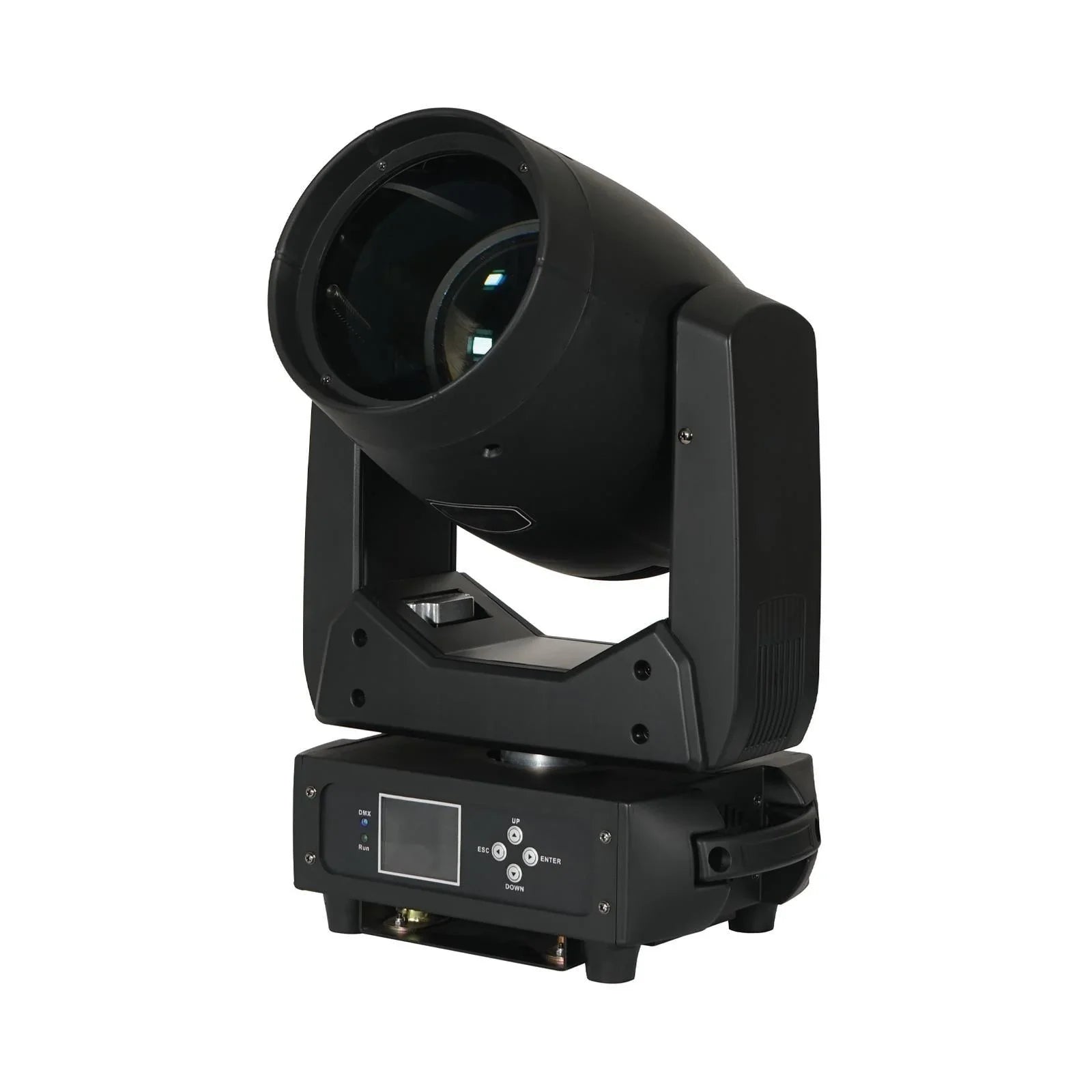

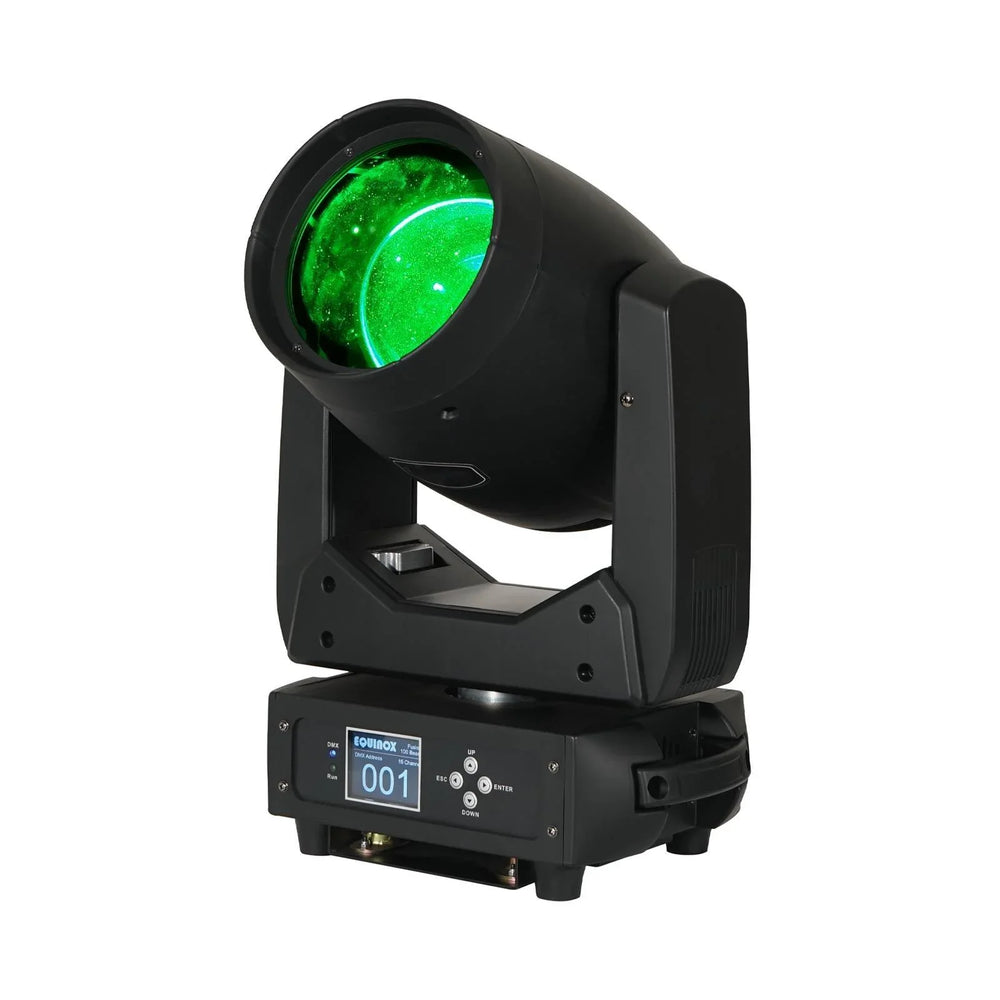

Equinox Fusion 200 Beam Moving Head

he Fusion 200 Beam features a single 100W LED and produces stunning light shows from its tight 2.5 degree beam. Featuring 11 colours (plus open) and 13 static gobos (plus open) paired with motorised focus allows users to create sharp, well defined beams over any distance. Two bi-directional prisms (16 facet circular and 6 facet linear) allow for multi beam effects whilst a frost filter and 6 colour rainbow wheel further bolster the fixtures comprehensive features. An on-board 4 push button menu allows for easy access to the functions including DMX, auto, sound active and master/slave modes.

- 1 x 100W white LED (8000K)
- Beam angle: 2.5°
- 132,159 Lux @ 2m
- 4.4kHz refresh rate
- Motorised focus
- 16 facet circular rotating prism plus 6 facet linear rotating prism
- Frost filter (19°)
- Gobo wheel: 13 static gobos + open
- Colour wheel: 11 colours + open
- 6 colour rainbow effect wheel
- DMX channels: 2/15 or 19 selectable
- Auto, sound active, manual control and master/slave modes
- Forward facing show mode
- Pan/tilt auto correction
- 16-Bit pan/tilt positioning
- Pan: 540°, Tilt: 270°
- 0-100% dimming
- Variable strobe

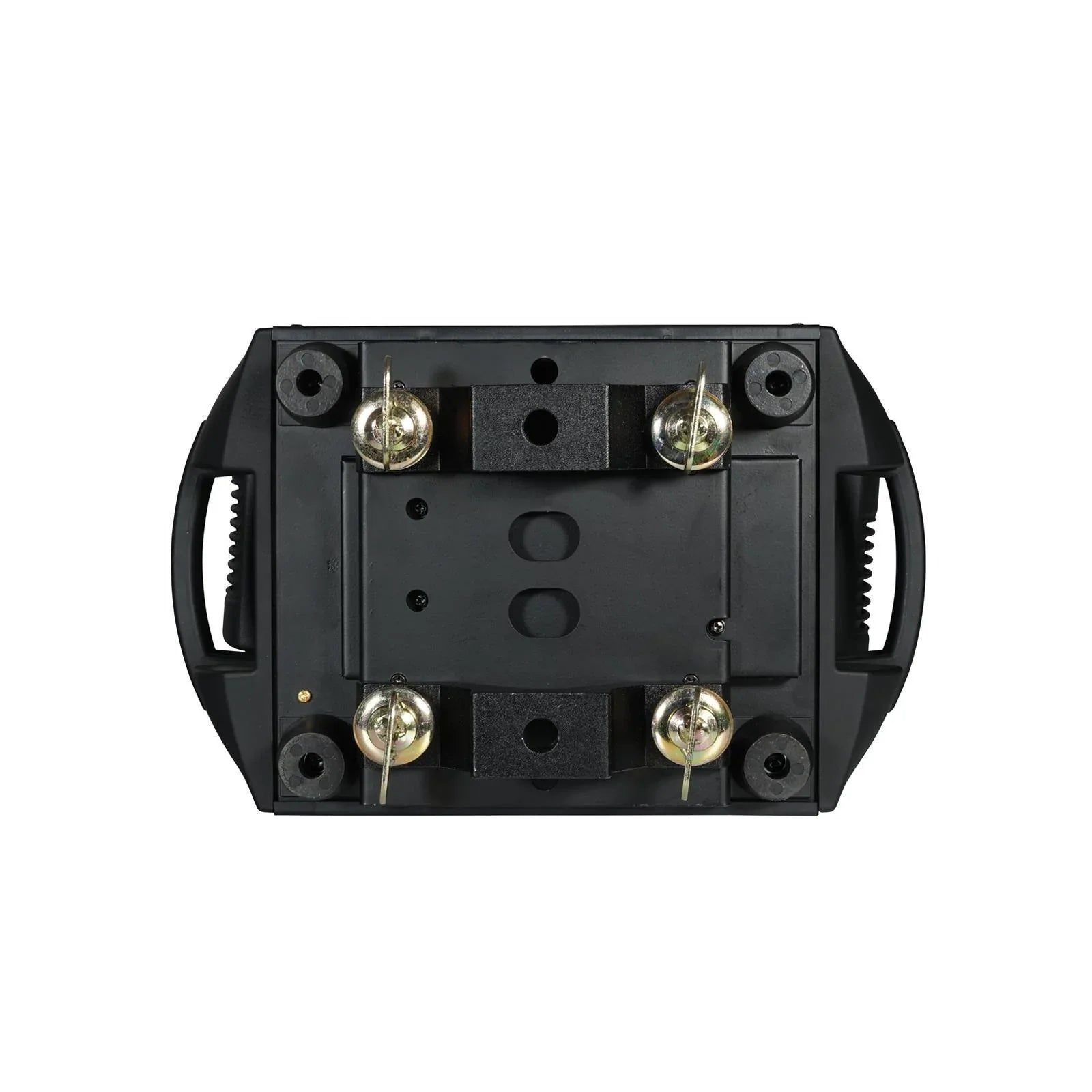

- Quick release omega clamps included

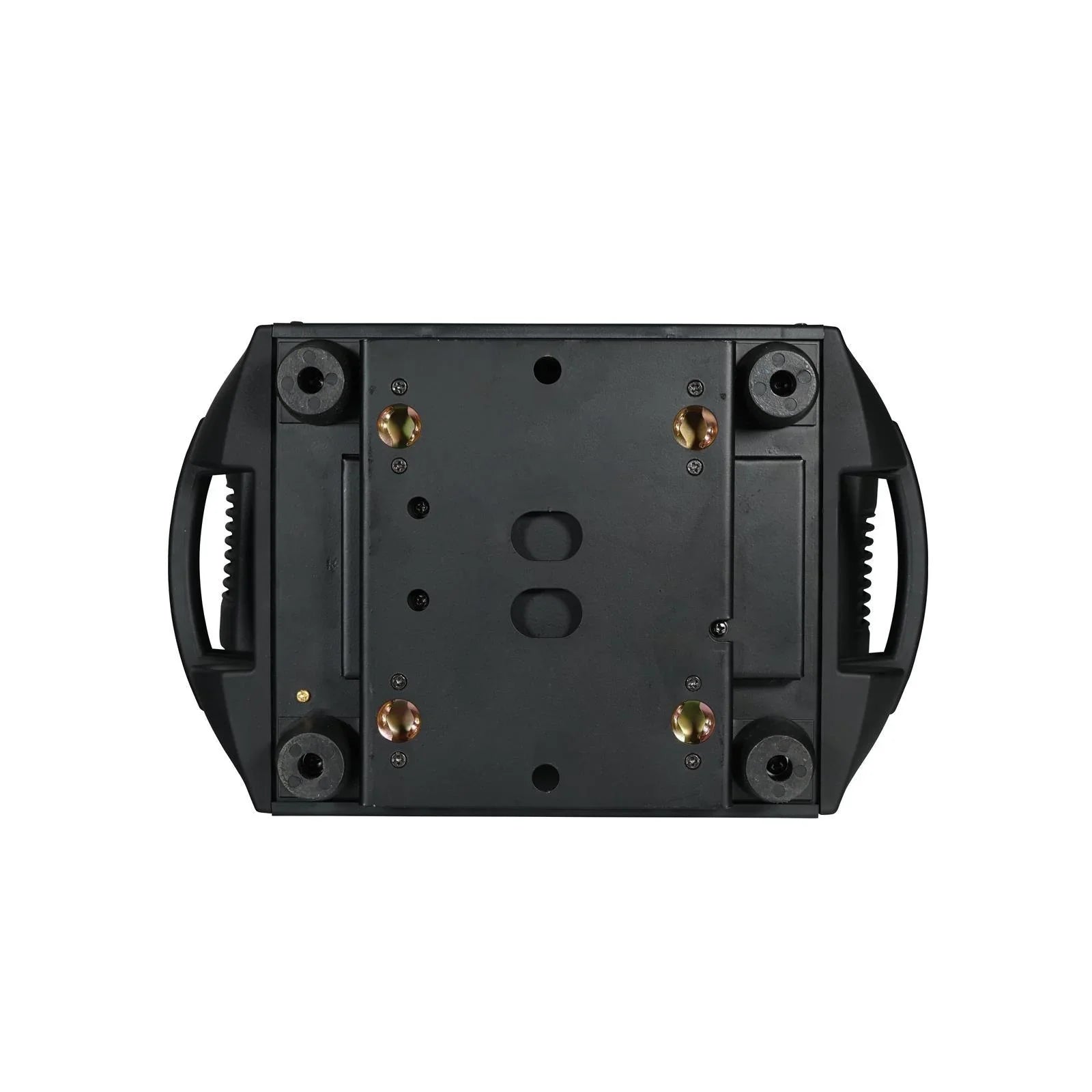

- Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
- 4 push button menu with 2.6” LCD display
- PowerCON input/output
- 3-Pin XLR input/output
- Fan cooled
