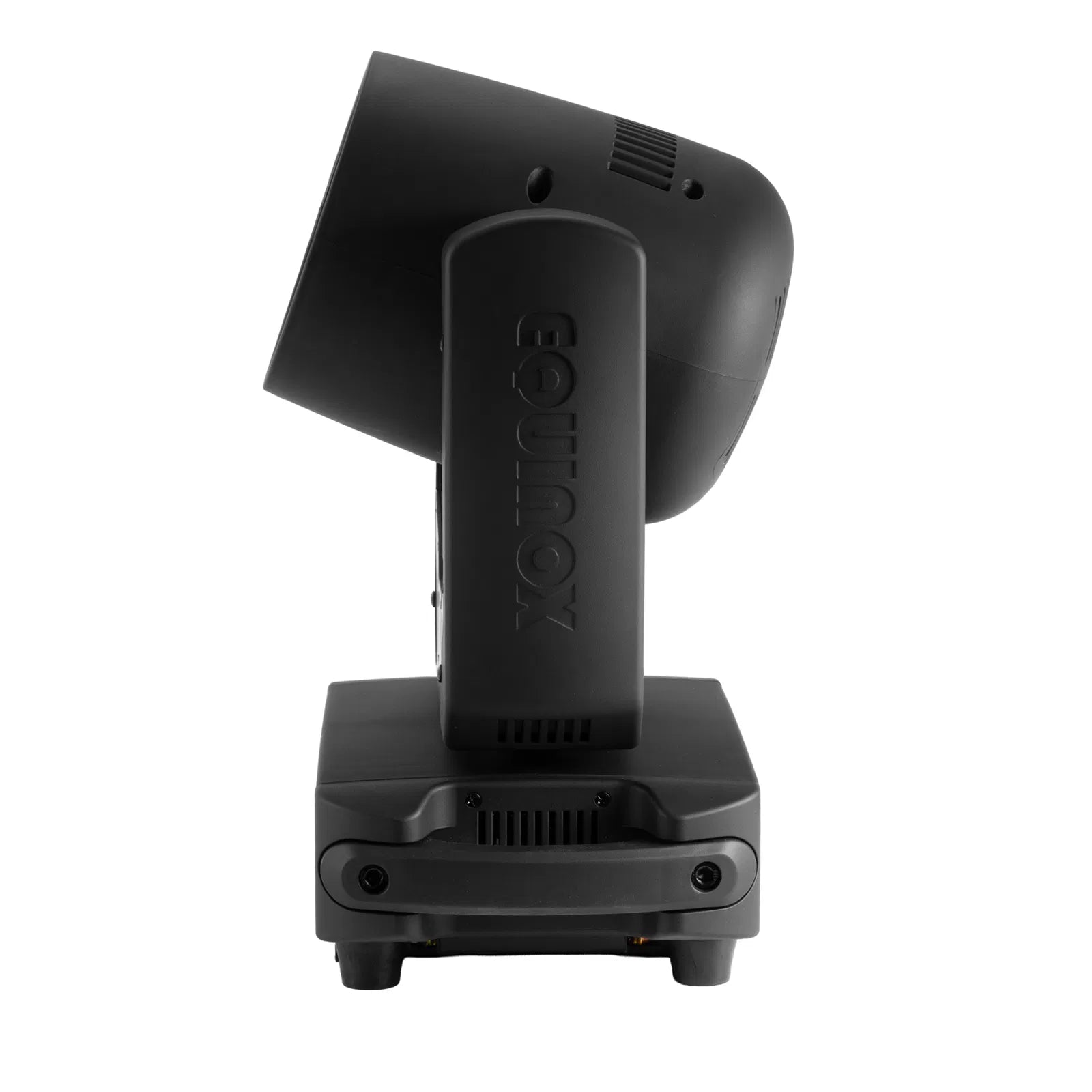

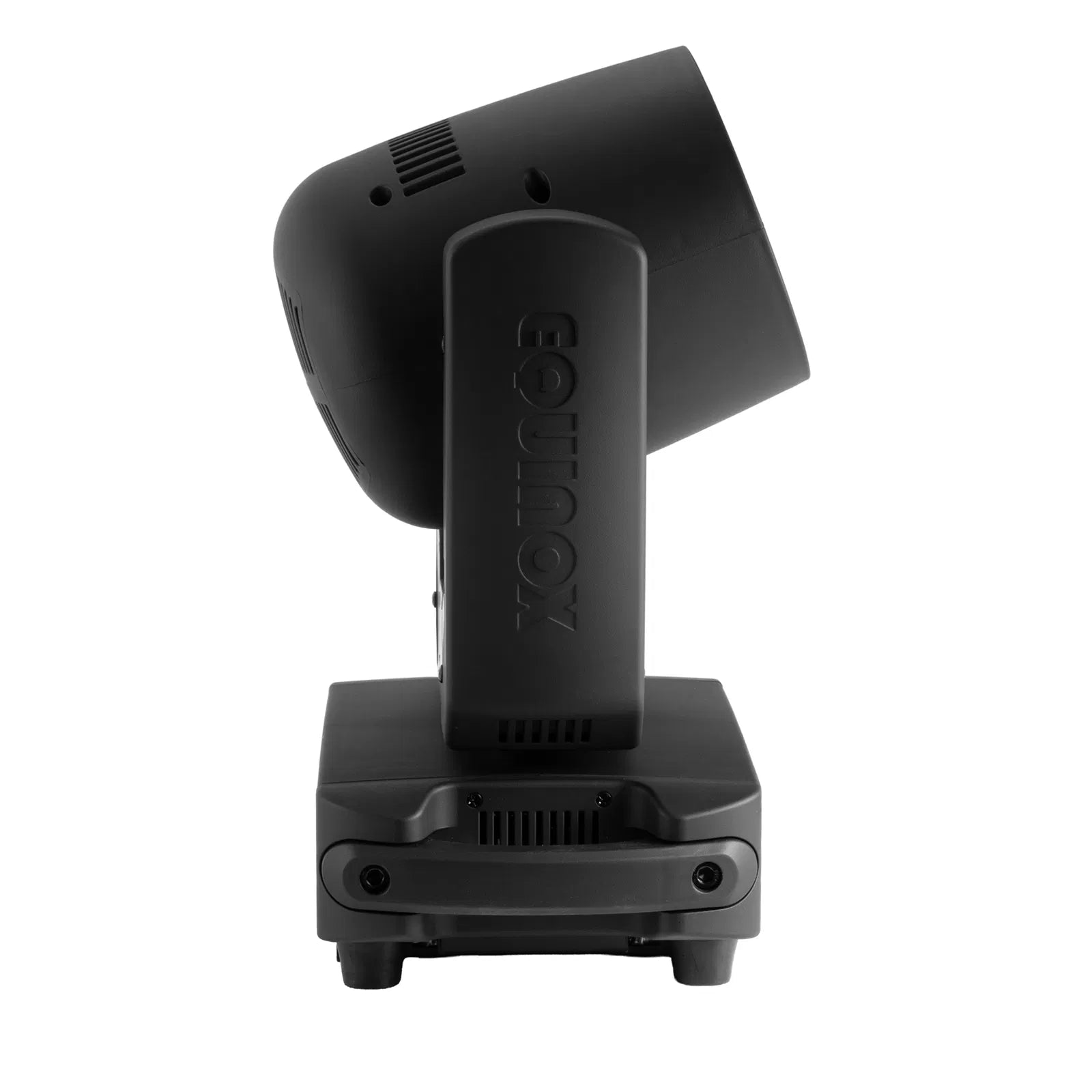

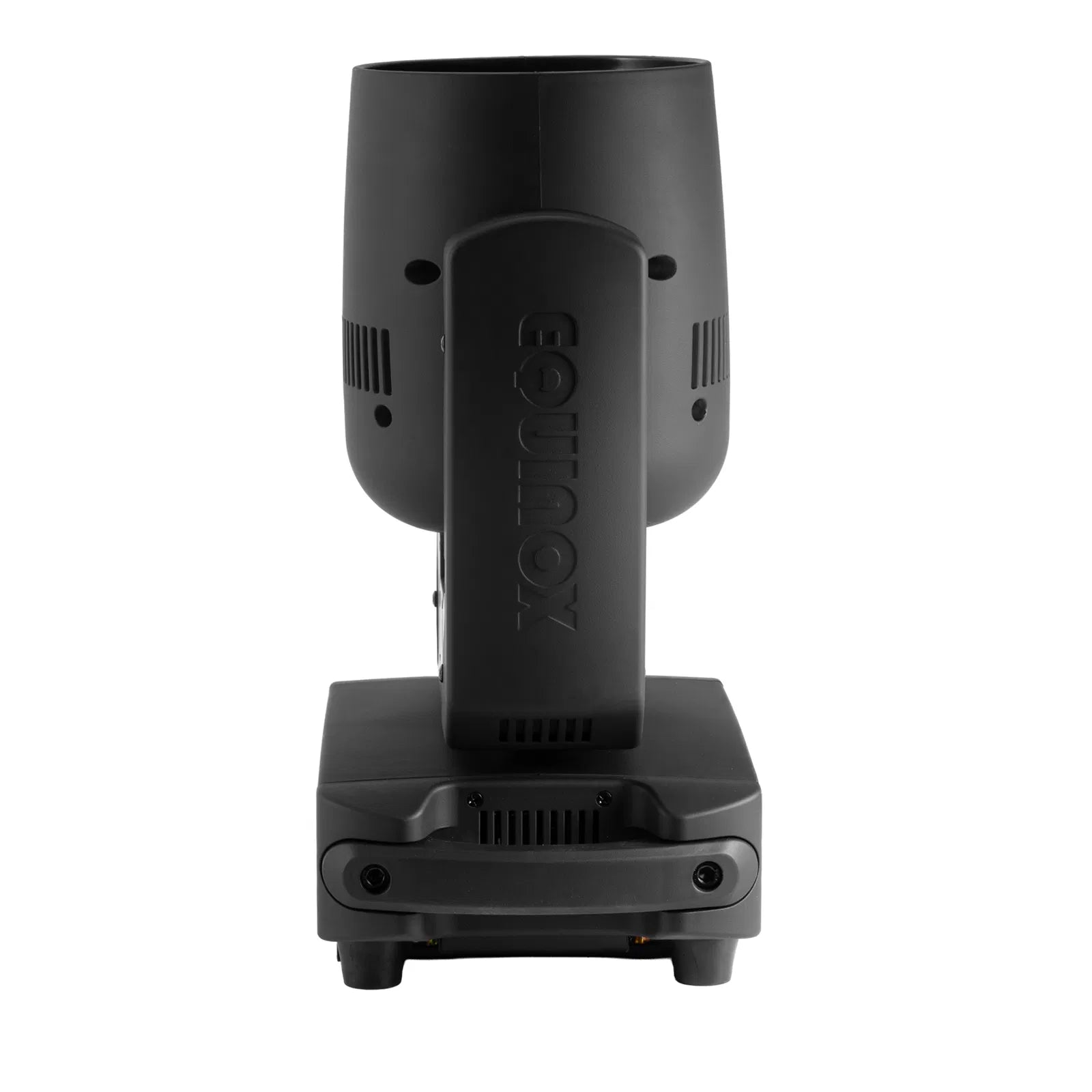

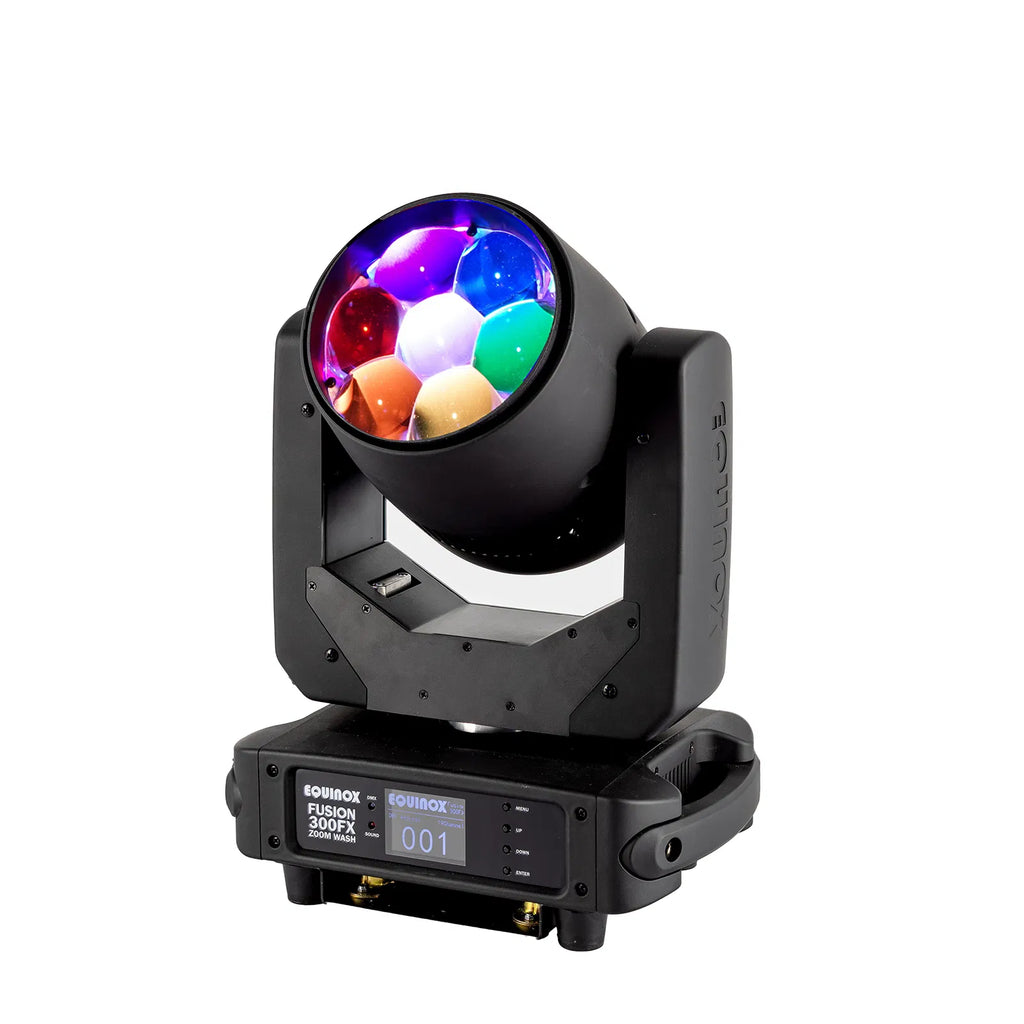

Equinox Fusion 300FXP Pixel Zoom Wash Moving Head
Product Description

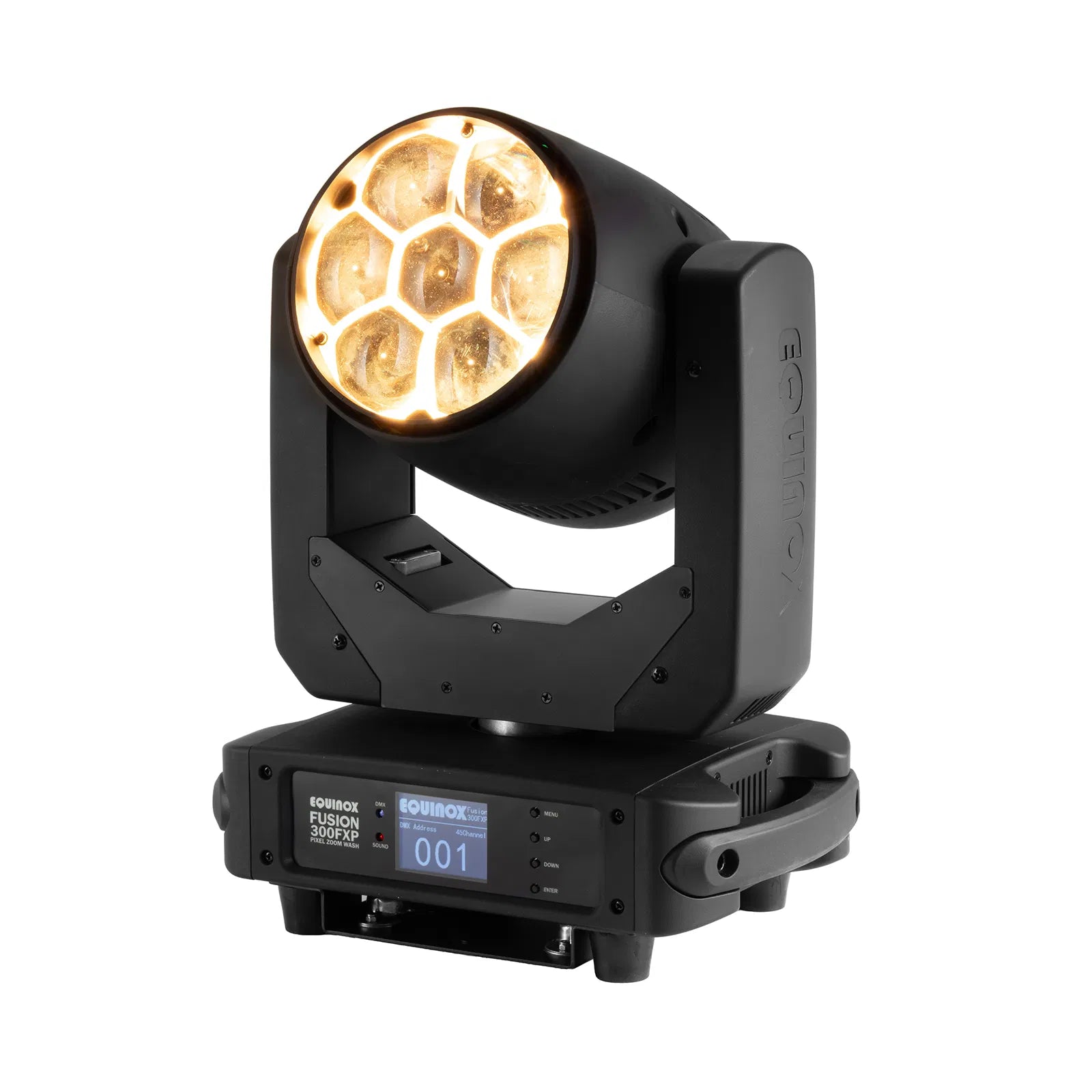

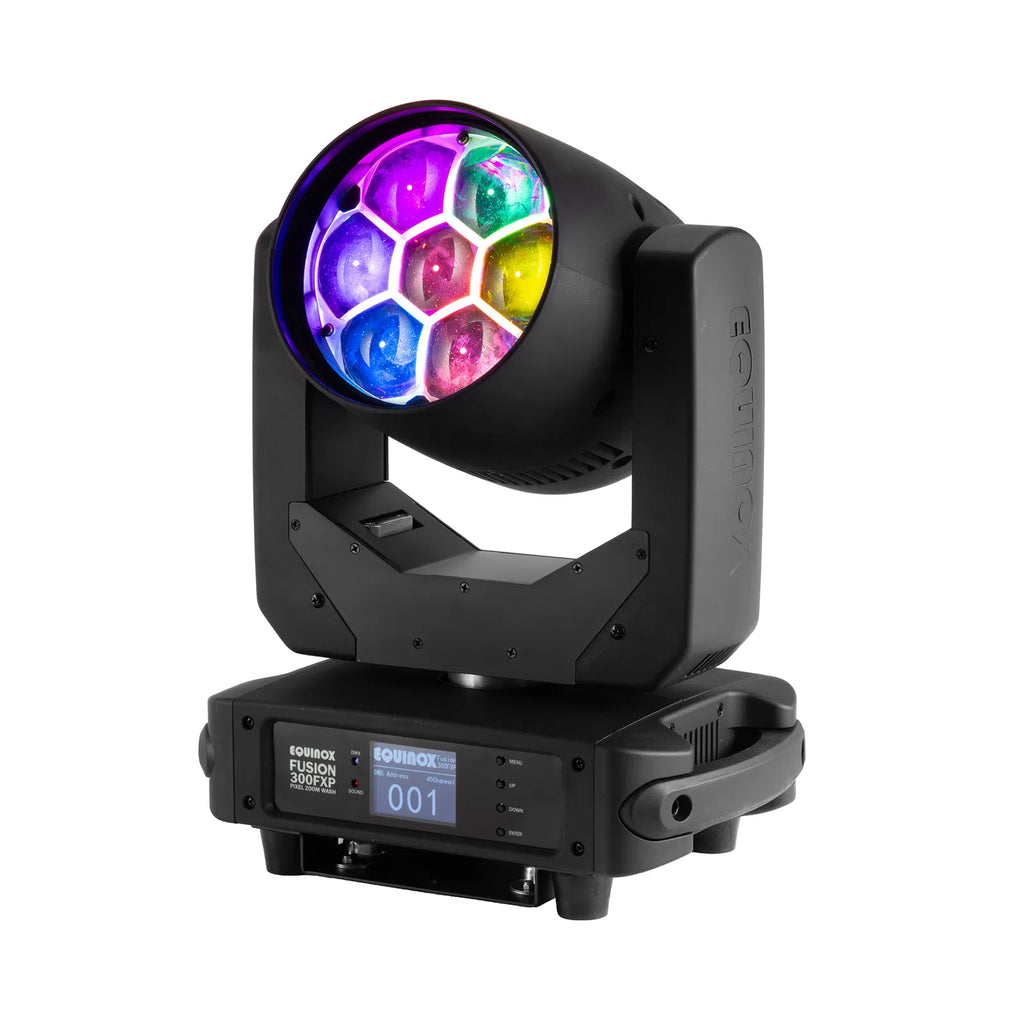

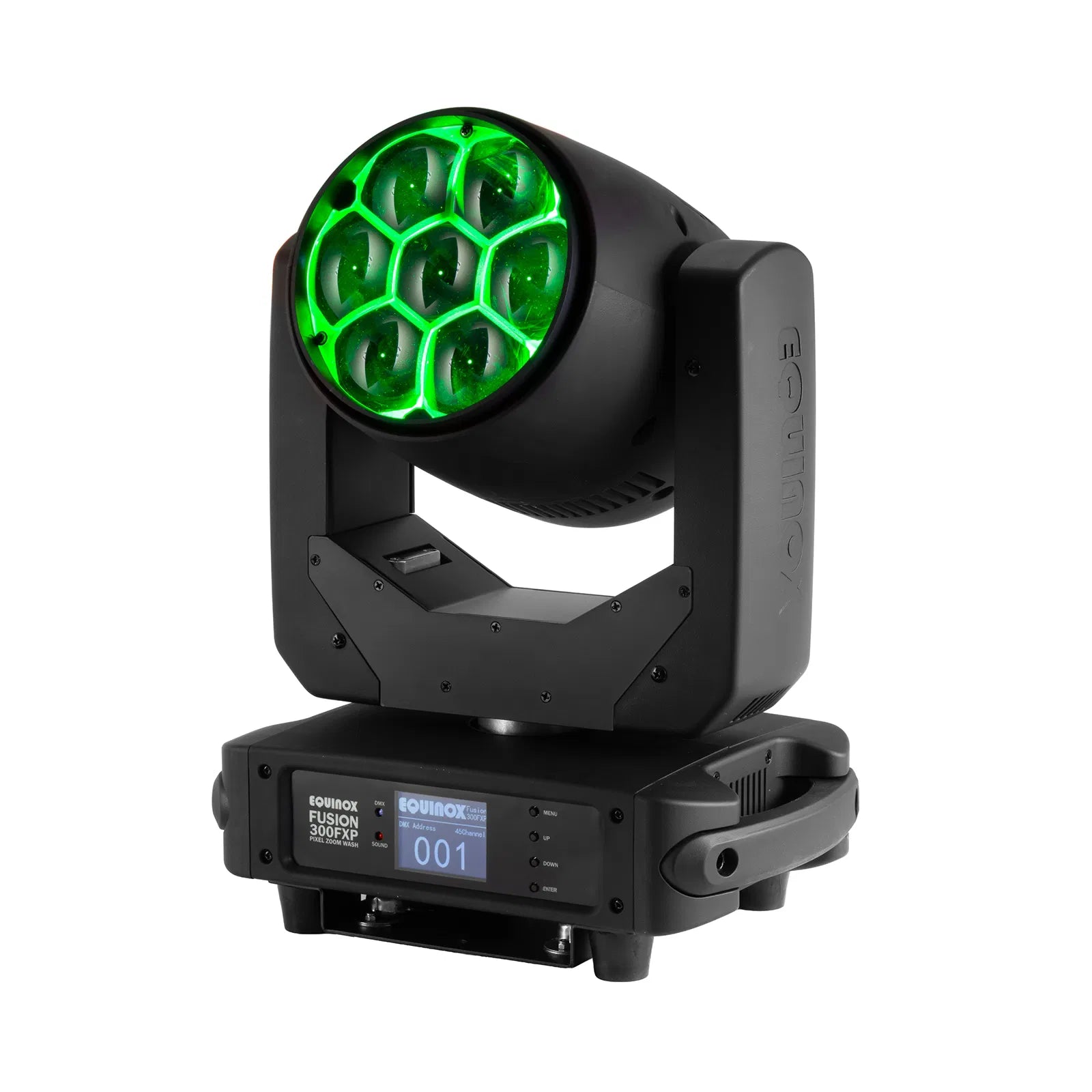

The Equinox Fusion 300FXP Zoom Wash is a compact RGBW moving head fixture featuring 7 x 40W quad-colour LEDs (RGBW), fully pixel mappable to create stunning eye candy effects. A motorised zoom function ranges from a narrow 5° beam angle to a wide 40°, and the front-lens rotation allows superb mid-air multibeam effects and wide washes of colour. This powerful stage lighting unit also includes colour temperature presets, DMX, auto, sound active, manual control, and primary/secondary modes – all accessible via the onboard 4-button menu.
- 7 x 40W quad-colour LEDs (RGBW)
- Adjustable beam angle: 5°–40°
- 5° – 86,570 Lux @ 2m (full on), 40° – 6,156 Lux @ 2m (full on)
- CRI: 70
- Refresh rate: 3kHz
- Motorised zoom
- Full pixel mapping capabilities
- Front lens rotation
- DMX channels: 2/10/14/19/40/45 or 49 selectable
- Auto, sound active, manual control and primary/secondary modes
- Colour temperature presets
- Forward facing show mode
- Pan/tilt auto correction
- 16-Bit pan/tilt positioning
- Pan: 540°, Tilt: 270°
- 0–100% dimming
- Variable strobe

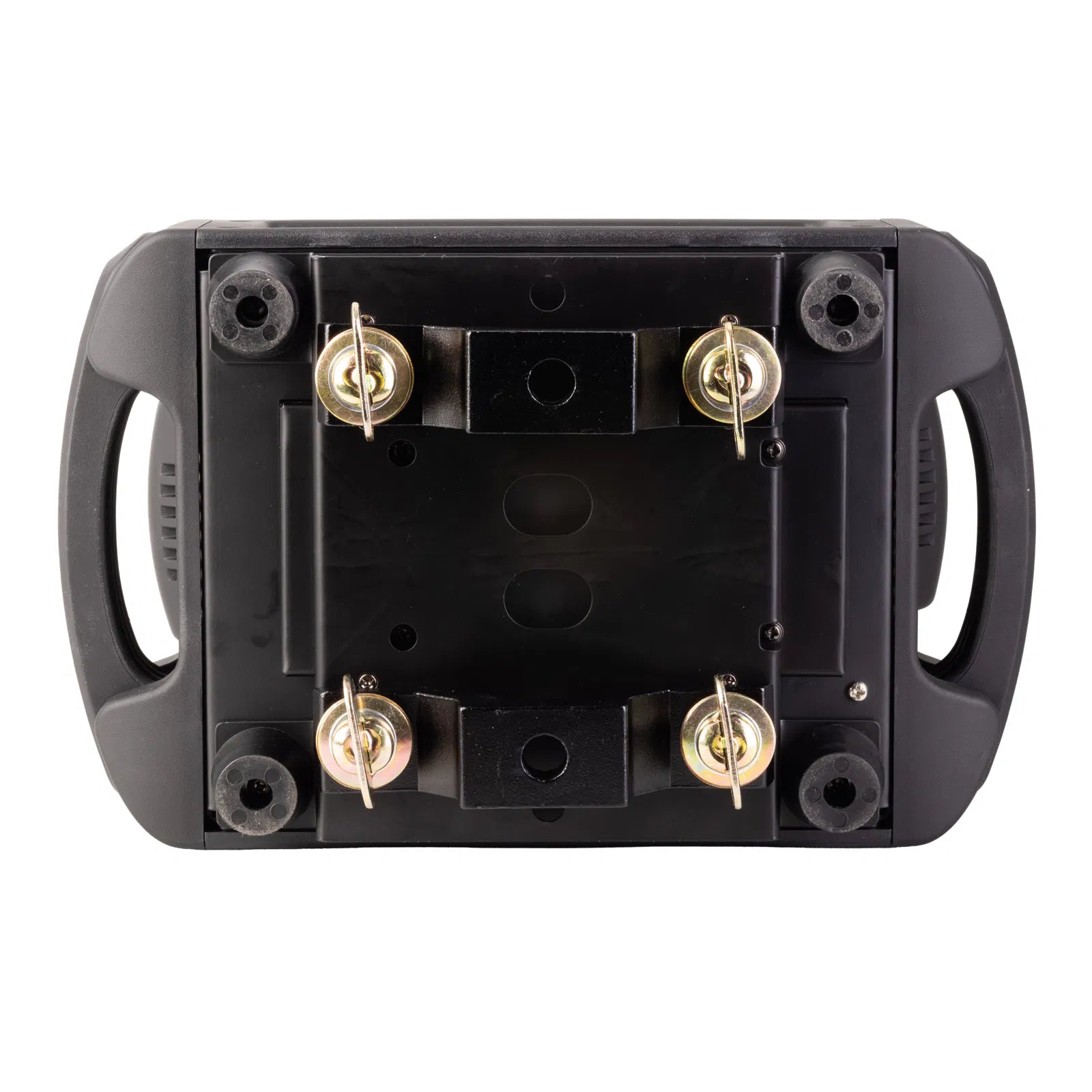

- Quick release omega clamps included
- Square hole spacing supports multiple clamp orientations
- 4 button menu with 2.6” LCD display

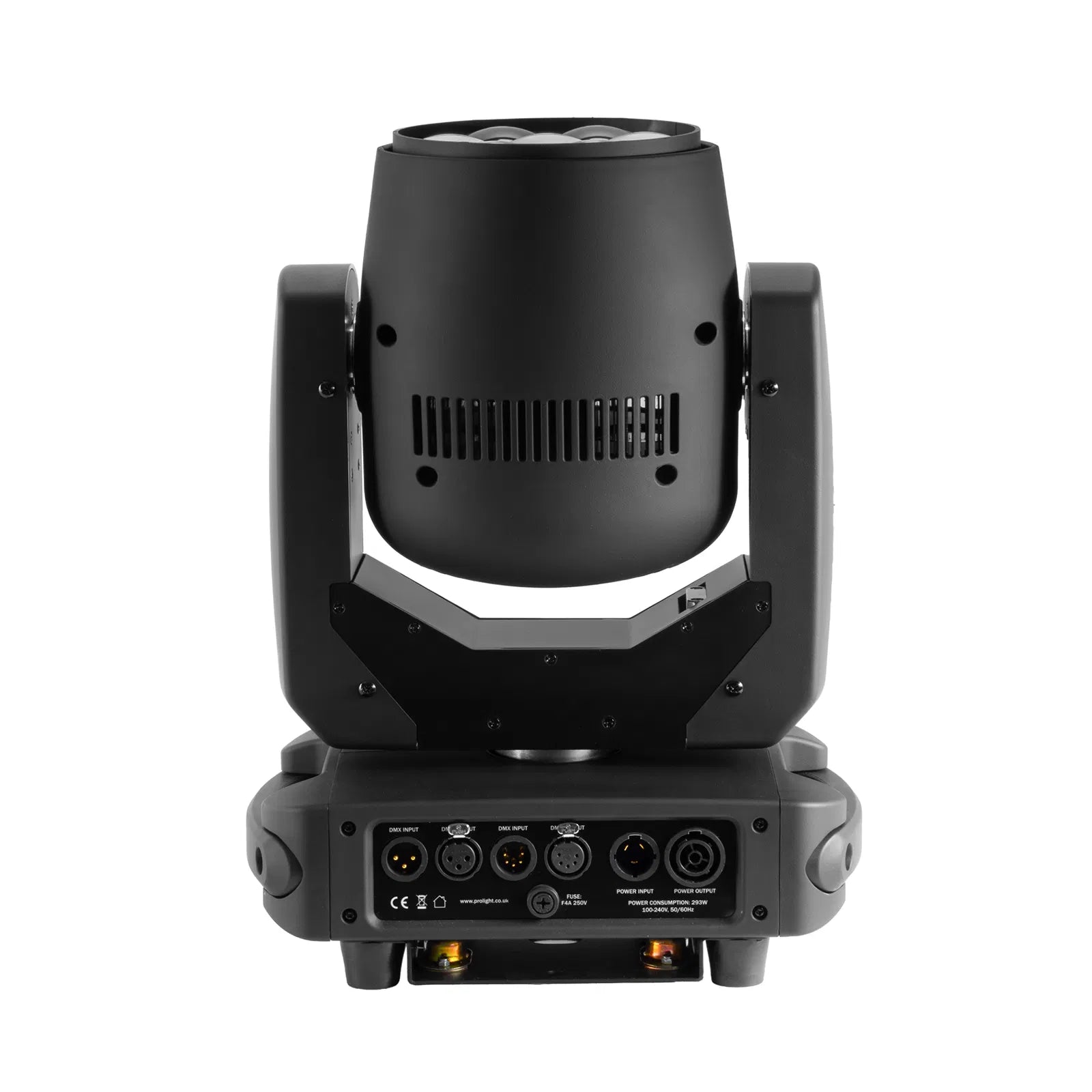

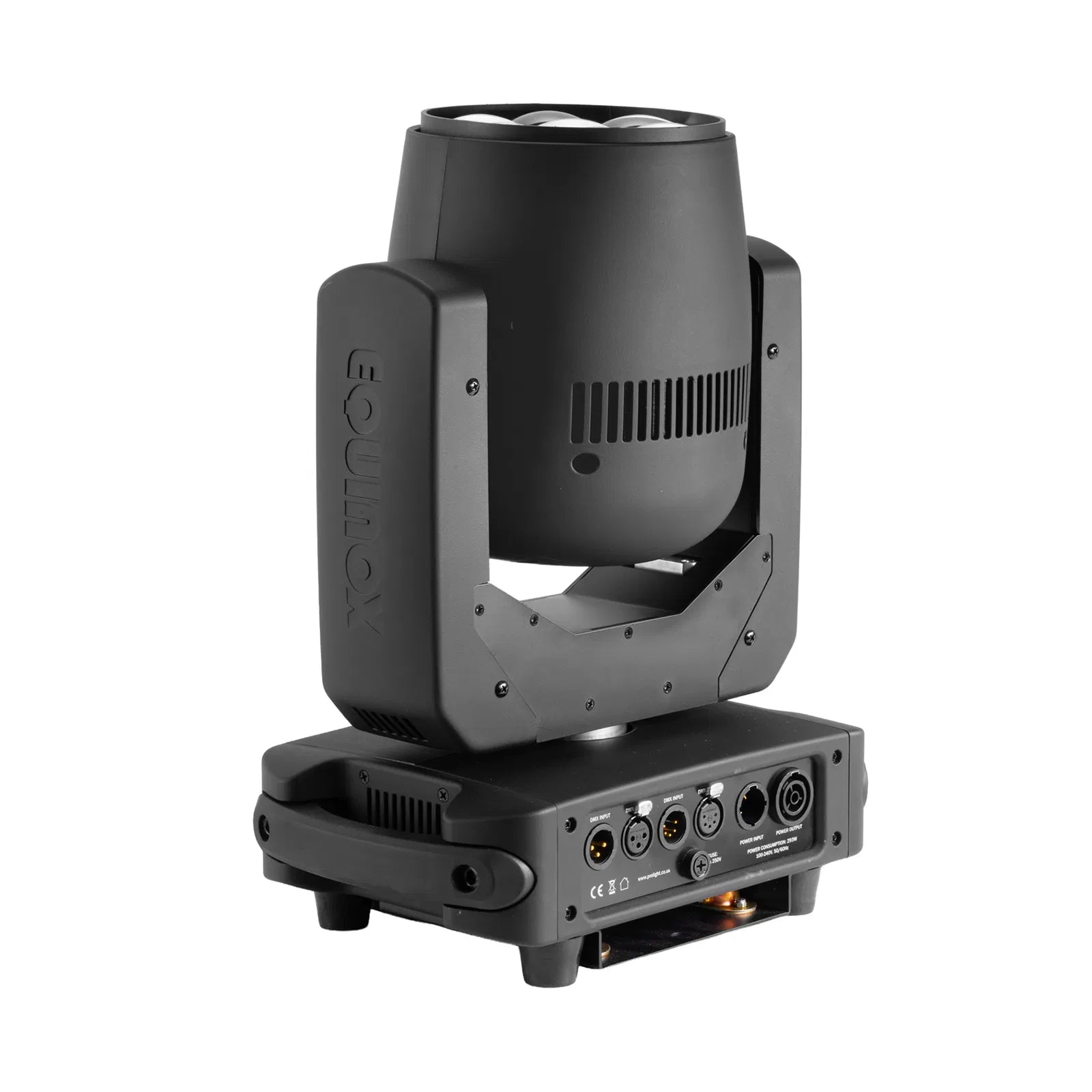

- PowerTwist TR1 input/output
- 5-Pin XLR input/output
- 3-Pin XLR input/output
- Fan cooled
- Power consumption: 300W
- Power supply: 100~240V, 50/60Hz
- Fuse: F4A 250V
- Noise level: 49.3dBA @ 1m
- Dimensions (H x W x D): 385 x 310 x 190mm
- Weight: 8.7kg
