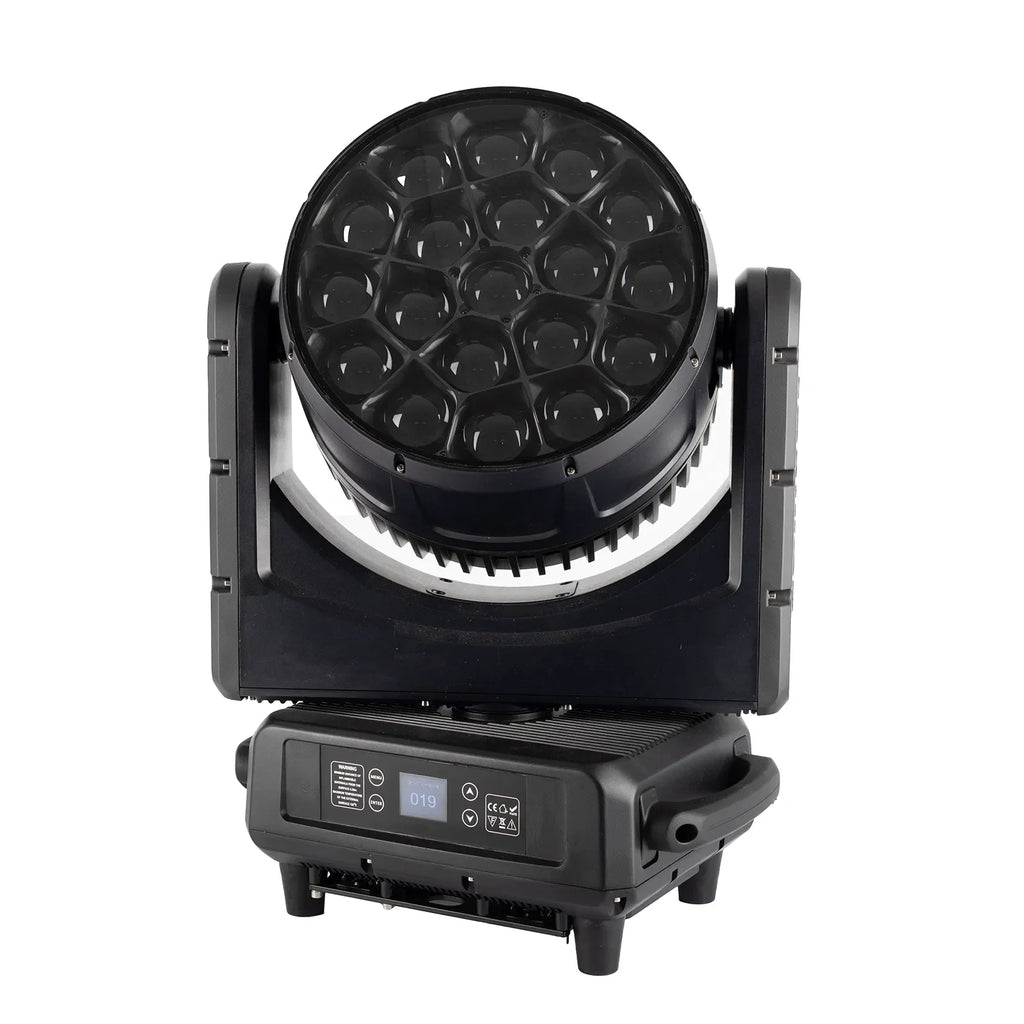

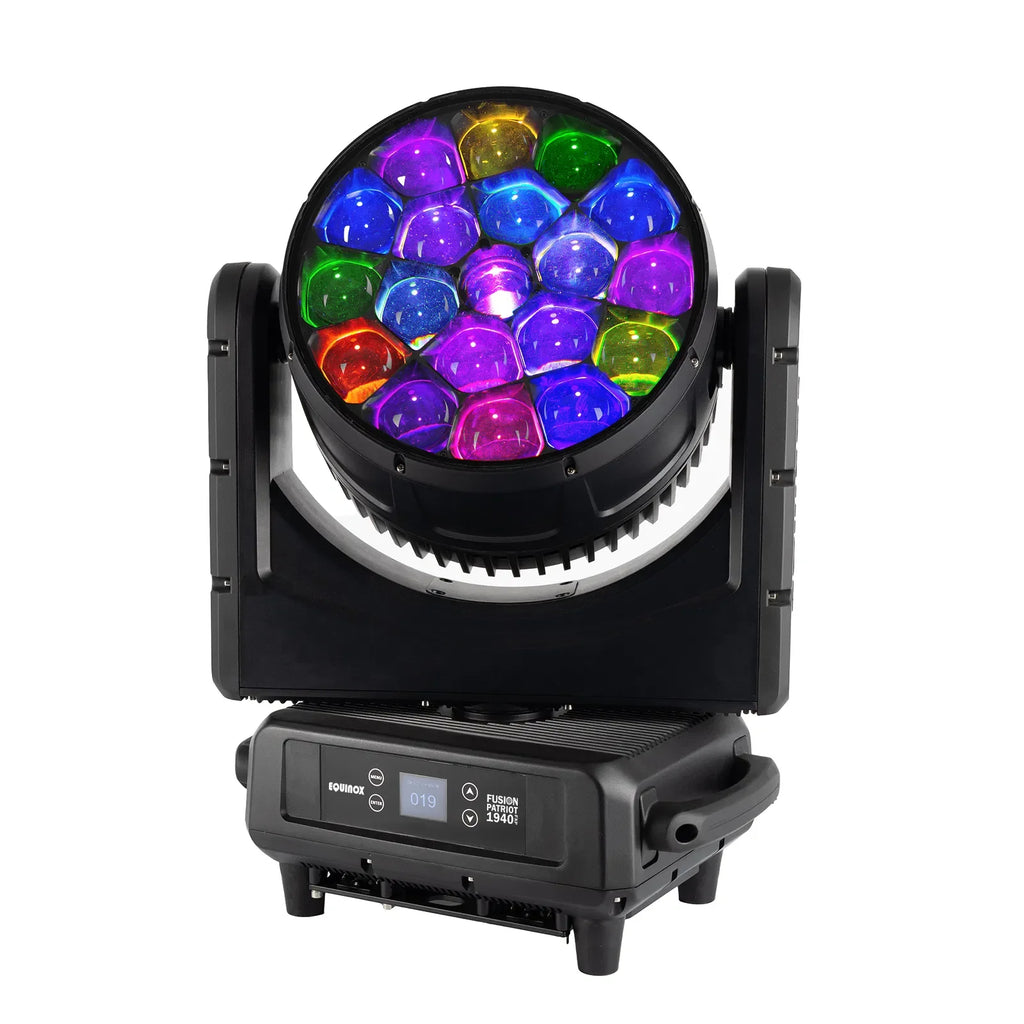

Equinox Fusion Patriot 1940FXP Pixel Zoom Wash Moving Head

The Equinox Fusion Patriot 1940FXP is a powerful IP65-rated moving head beam designed to perform in the toughest environments. Featuring 19 x 40W quad-colour LEDs (RGBW) with full pixel mapping, it produces stunning eye candy effects. The motorised zoom adjusts from a tight 4° beam to a wide 55° wash, while front-lens rotation creates superb mid-air multibeam effects. With colour temperature presets, W-DMX compatibility, and DMX control, the Patriot 1940FXP integrates seamlessly into professional rigs. All functions are accessible via the onboard LCD menu, and installation is made easy with PowerTwist TR1 connectors, 3/5-pin DMX, and quick-release omega clamps.

• 19 x 40W quad-colour LEDs (RGBW)
• Adjustable beam angle: 4°–55°
• 4° – Lux @ 2m (to be confirmed)
• 55° – Lux @ 2m (to be confirmed)
• CRI: 70
• Refresh rate: 5 selectable presets between 650Hz–25kHz
• Motorised zoom
• Full pixel mapping capabilities
• Front lens rotation
• DMX channels: 18/21/37/96 or 113 selectable
• Wireless control (W-DMX Sweden compatible transceiver)
• RDM (Remote Device Management)
• Auto, manual control and primary/secondary modes
• Colour temperature presets
• Forward facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 220°
• 0–100% dimming
• 4 dimming curves: Linear, square law, inverse square law, S-curve
• Variable strobe
• Quick release omega clamps included
• 4 button menu with 1.8” LCD display
• PowerTwist TR1 input/output
• 5-Pin XLR input/output
• 3-Pin XLR input/output
• Temperature controlled fans
• Power consumption: 813W
• Power supply: 100~240V, 50/60Hz
• Fuse: F10A 250V
• IP rating: IP65
• Dimensions (H x W x D): 565 x 405 x 245mm
• Weight: 22.7kg
